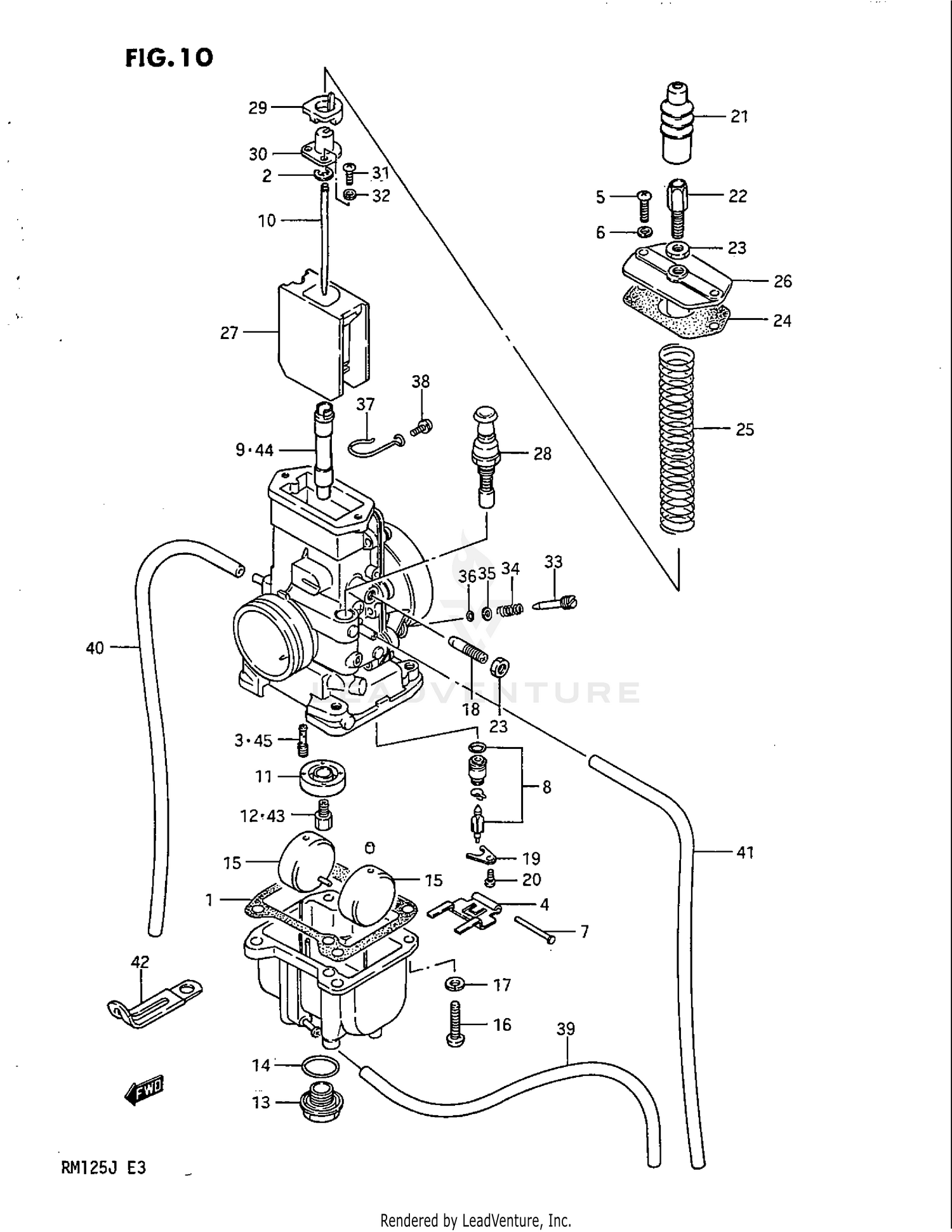

CARBURETOR (MODEL G/MODEL H -E.NO.106550)

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
13200-01B00 carburetor assy MODEL G
This part is currently unavailable.
13200-01B21 carburetor assy MODEL H ~E.NO.106550TO 13200-01B21; Includes Item(s) 1 - 38 Supersedes: 13200-01B20 (CARBURETOR ASSY)
This part is currently unavailable.
1
13251-14300 gasket
This part is currently unavailable.
2
13394-10010 e ring MODEL G Retail: $6.79 Price: $1.77

In Stock
2
13394-31210 e ring MODEL H Price: $6.79

Expected to Ship in 4-9 Days
3
09492-55005 jet, pilot (55) MODEL G
This part is currently unavailable.
3
09492-40004 jet, pilot (40) MODEL H Retail: $10.56 Price: $9.93

Expected to Ship in 4-9 Days
4
13253-40010 arm
This part is currently unavailable.
5
02112-0412A screw Supersedes: 02112-04123 (SCREW) Price: $1.73

In Stock
6
08321-0104A lock washer Supersedes: 08321-01043 (LOCK WASHER) Price: $2.59

In Stock
7
13254-92311 pin Price: $2.67

Expected to Ship in 4-9 Days
8
13370-43B01 valve assy,need Supersedes: 13370-14300 (VALVE ASSY, NEEDLE)
This part is currently unavailable.
9
09494-00357 jet, needle (r-0) MODEL G
This part is currently unavailable.
9
09494-00558 jet, needle (r-6) MODEL H
This part is currently unavailable.
10
13383-14510 needle, jet (6fp55-2) MODEL G
This part is currently unavailable.
10
13383-01B15 needle, jet (6dj4-4) MODEL H
This part is currently unavailable.
11
13331-14510 ring
This part is currently unavailable.
12
09491-56003 jet, main (280) MODEL G Supersedes: 09491-56001 (JET, MAIN (280))
This part is currently unavailable.
12
09491-62005 jet, main (310) MODEL H Retail: $12.43 Price: $11.68

Expected to Ship in 4-9 Days
13
13247-32210 cap, drain Retail: $16.47 Price: $15.48

Expected to Ship in 4-9 Days
14
13249-41310 o ring Price: $6.26

Expected to Ship in 4-9 Days
15
13252-18620 float Retail: $27.73 Price: $26.07

Expected to Ship in 4-9 Days
16
02112-0516A .screw Supersedes: 02112-05163 (SCREW) Price: $2.01

In Stock
17
08321-0105A lock washer Supersedes: 08321-01053 (LOCK WASHER) Price: $2.55

In Stock
18
13267-14500 adjuster
This part is currently unavailable.
19
13373-39110 plate, needle valve Price: $9.71

Expected to Ship in 4-9 Days
20
02112-0406B screw Supersedes: 02112-04063 (SCREW) Price: $2.16

In Stock
21
13681-41510 cap, adjuster Retail: $12.63 Price: $11.87

Expected to Ship in 4-9 Days
22
13577-41612 adjuster, cable Price: $10.25

Expected to Ship in 4-9 Days
23
13661-16600 nut
This part is currently unavailable.
24
13266-14500 gasket, top
This part is currently unavailable.
25
13573-14500 spring, throttle valve
This part is currently unavailable.
26
13261-14500 cap, top .106551~
This part is currently unavailable.
27
13551-01C00 valve, piston (ca:4.0) MODEL G Supersedes: 13551-14500 (VALVE, THROTTLE (CA:4.0)) Retail: $164.47 Price: $139.80

Expected to Ship in 4-9 Days
27
13551-01B20 valve, throttle (ca:6.0) MODEL H Retail: $83.95 Price: $78.07

Expected to Ship in 4-9 Days
28
13400-14500 plunger
This part is currently unavailable.
29
13629-16700 ring
This part is currently unavailable.
30
13398-16700 connector
This part is currently unavailable.
31
02112-0310B screw Supersedes: 02112-03106 (SCREW) Price: $3.30

Expected to Ship in 4-9 Days
32
08321-2103B lock washer Supersedes: 08321-21033 (LOCK WASHER) Retail: $1.99 Price: $0.77

In Stock
33
13269-48030 screw, pilot (1 1/2)
This part is currently unavailable.
34
13268-48700 spring,throttle screw Price: $6.16

In Stock
35
13291-29900 washer Supersedes: 13277-44080 (WASHER) Price: $2.42

In Stock
36
13295-29901 o-ring Supersedes: 13295-29900 (O RING) Price: $6.16

In Stock
37
13692-14500 clip
This part is currently unavailable.
38
13601-04148 screw Price: $3.91

In Stock
39
09352-40706-600 hose 4x7x600 Supersedes: 09343-04104 (HOSE, OVER FLOW (L:600->300)) Price: $7.27

In Stock
40
09352-40706-600 hose 4x7x600 Supersedes: 09343-04104 (HOSE, AIR VENT, RH (L:600->400) Price: $7.27

In Stock
41
09352-40706-600 hose 4x7x600 Supersedes: 09343-04104 (HOSE, AIR VENT, LH (L:600->330) Price: $7.27

In Stock
42
09404-06039 clamp Supersedes: 09404-06401 (CLAMP) Price: $2.40

In Stock
43
09491-52006 jet, main OPT Supersedes: 09491-52001 (JET, MAIN (260)) Retail: $10.91 Price: $10.26

Expected to Ship in 4-9 Days
43
09491-54002 jet, main (270) OPT Supersedes: 09491-54001 (JET, MAIN (270))
This part is currently unavailable.
43
09491-58002 jet, main (290) OPT Retail: $11.85 Price: $11.14

Expected to Ship in 4-9 Days
43
09491-60007 jet, main (300) OPT Retail: $13.71 Price: $12.89

Expected to Ship in 4-9 Days
43
09491-64002 jet, main (320) OPT Retail: $12.43 Price: $11.68

Expected to Ship in 4-9 Days
43
09491-66002 jet, main (330) OPT Retail: $11.97 Price: $11.25

Expected to Ship in 4-9 Days
43
09491-68002 jet, main (340) OPT Retail: $11.97 Price: $11.25

Expected to Ship in 4-9 Days
43
09491-70011 jet, main (350) OPT Retail: $11.97 Price: $11.25

Expected to Ship in 4-9 Days
44
09494-00393 jet, needle (q-8) OPT
This part is currently unavailable.
44
09494-00357 jet, needle (r-0) OPT
This part is currently unavailable.
44
09494-00453 jet, needle (r-2) OPT
This part is currently unavailable.
44
09494-00403 jet, needle (r-4) OPT Retail: $20.01 Price: $18.81

Expected to Ship in 4-9 Days
44
09494-00404 jet, needle (r-6) OPT Retail: $11.83 Price: $11.12

Expected to Ship in 4-9 Days
45
09492-40004 jet, pilot (40) OPT Retail: $10.56 Price: $9.93

Expected to Ship in 4-9 Days
45
09492-50010 jet, pilot (50) OPT Price: $9.37

Expected to Ship in 4-9 Days
45
09492-60004 jet, pilot (60) OPT.106551~
This part is currently unavailable.

1987 Suzuki RM125 CARBURETOR (MODEL G/MODEL H -E.NO.106550)
