# Part Retail Our Price

Stock Status Suggested Quantity
1
4KD-23570-02-00 front lower arm comp. (left) Supersedes: 4KD-23570-01-00 (FRONT LOWER ARM COMP. (LEFT))
This part is currently unavailable.
2
4KD-23580-02-00 front lower arm comp. (right) Supersedes: 4KD-23580-01-00 (FRONT LOWER ARM COMP. (RIGHT))
This part is currently unavailable.
3
2HR-23526-00-00 bush Retail: $22.99 Price: $19.77

In Stock
4
90105-10788-00 bolt, flange Supersedes: 90105-10253-00 (BOLT, WASHER BASED) Price: $9.76

Expected to Ship in 5-8 Days
5
90185-10060-00 nut, self-locking Price: $9.76

Expected to Ship in 5-8 Days
6
4KD-23350-10-33 shock absorber assy YB Retail: $511.99 Price: $404.47

Expected to Ship in 5-8 Days
7
90179-35002-00 nut Supersedes: 90179-35625-00 (NUT | (USA)) Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
8
93410-32075-00 circlip Supersedes: 93410-32826-00 (CIRCLIP) Retail: $10.49 Price: $9.02

In Stock
9
90105-10728-00 bolt, flange Supersedes: 90105-102A6-00 (BOLT, FLANGE) Price: $10.91

In Stock
10
95337-10600-00 nut Supersedes: 95317-10600-00 (NUT) Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
11
91490-20025-00 pin, cotter Supersedes: 91402-20020-00 (PIN, SPLIT) Price: $2.29

Expected to Ship in 5-8 Days
12
90201-100F7-00 washer, plate Supersedes: 90201-10430-00 (WASHER, PLATE) Retail: $10.49 Price: $9.02

In Stock
13
90101-12570-00 bolt Price: $9.76

Expected to Ship in 5-8 Days
14
95617-12100-00 nut, u Supersedes: 95602-12100-00 (NUT, U) Price: $4.78

Expected to Ship in 5-8 Days
15
4KD-2331M-00-00 cover, ring Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
16
4KD-2331N-00-00 cover, ring Retail: $32.99 Price: $28.37

Expected to Ship in 5-8 Days

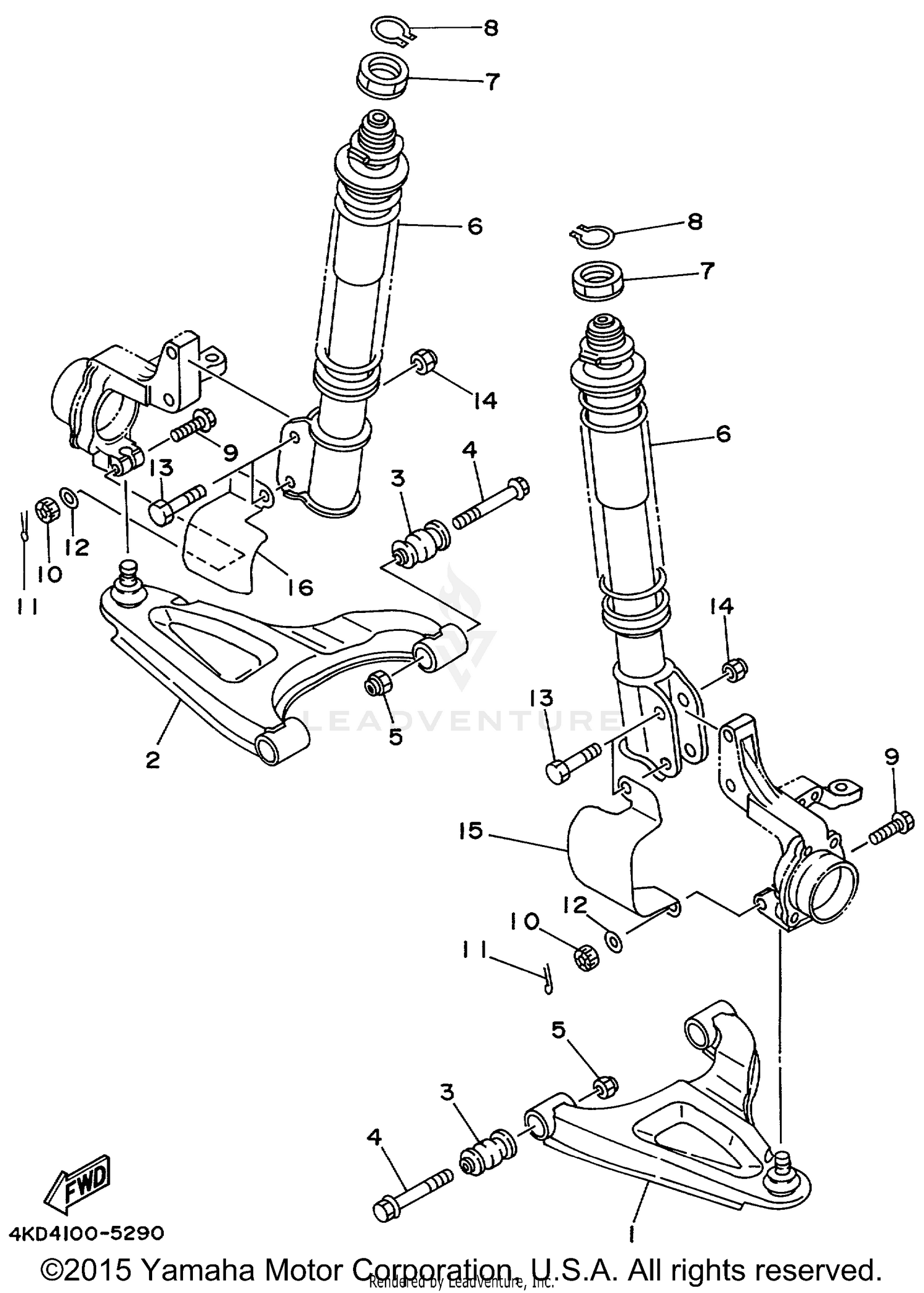

1999 Yamaha TIMBERWOLF 250 2X4 FRONT_SUSPENSION_WHEEL
