# Part Retail Our Price

Stock Status Suggested Quantity
1
4BD-46101-10-00 rear axle gear case assy
This part is currently unavailable.
2
2VY-46151-01-00 housing, drive shaft Retail: $431.24 Price: $340.67

Expected to Ship in 5-8 Days
3
95617-08620-00 bolt, stud Supersedes: 90116-08360-00 (BOLT, STUD) Price: $9.72

In Stock
4
24W-46102-00-00 bearing assy Retail: $41.82 Price: $35.96

Expected to Ship in 5-8 Days
5
93101-52116-00 oil seal Retail: $18.41 Price: $15.83

Expected to Ship in 5-8 Days
6
93317-85569-00 bearing Retail: $93.61 Price: $75.82

Expected to Ship in 5-8 Days
7
4BD-Y4612-10-00 ring gear set Retail: $530.83 Price: $441.44

Expected to Ship in 5-8 Days
8
1J7-17537-Y0-40 shim, thrust (0.40t) UR Price: $5.55

Expected to Ship in 5-8 Days
1J7-17537-Y0-50 shim, thrust (0.50t) UR Price: $5.55

Expected to Ship in 5-8 Days
1J7-17537-Y0-30 shim, thrust (0.30t) UR Price: $5.55

Expected to Ship in 5-8 Days
24W-46118-00-14 washer, thrust (1.4t) UR Retail: $17.91 Price: $15.40

Expected to Ship in 5-8 Days
24W-46118-00-16 washer, thrust (1.6t) UR Retail: $17.91 Price: $15.40

Expected to Ship in 5-8 Days
24W-46118-00-18 washer, thrust (1.8t) UR Retail: $17.91 Price: $15.40

Expected to Ship in 5-8 Days
24W-46118-00-20 washer, thrust (2.0t) UR Retail: $16.42 Price: $14.12

Expected to Ship in 5-8 Days
24W-46117-00-25 shim, ring gear (0.25t) UR
This part is currently unavailable.
24W-46117-00-40 shim, ring gear (0.40t) UR
This part is currently unavailable.
24W-46117-00-30 shim, ring gear (0.30t) UR
This part is currently unavailable.
9
93306-30560-00 bearing Supersedes: 93306-30527-00 (BEARING) Retail: $85.64 Price: $71.50

Expected to Ship in 5-8 Days
10
29U-46125-00-00 retainer, bearing Retail: $100.58 Price: $80.46

Expected to Ship in 5-8 Days
11
90387-255H9-00 collar Retail: $36.84 Price: $31.68

Expected to Ship in 5-8 Days
12
24W-46118-00-12 washer, thrust (1.2t) UR Retail: $21.90 Price: $18.83

Expected to Ship in 5-8 Days
13
90340-14002-00 plug, straight screw Supersedes: 90340-14046-00 (PLUG, STRAIGHT SCREW) Retail: $22.89 Price: $19.69

In Stock
14
214-11198-01-00 gasket Price: $3.63

Expected to Ship in 5-8 Days
15
2H7-17591-01-00 breather
This part is currently unavailable.
16
24W-46117-00-50 shim, ring gear (0.50t) UR
This part is currently unavailable.
17
93316-01301-00 bearing Retail: $120.50 Price: $96.39

Expected to Ship in 5-8 Days
18
93102-65277-00 oil seal Supersedes: 93102-65386-00 (OIL SEAL) Retail: $18.41 Price: $15.83

Expected to Ship in 5-8 Days
19
93211-44348-00 o-ring Retail: $20.90 Price: $17.97

Expected to Ship in 5-8 Days
20
97017-08025-00 bolt Supersedes: 97022-08025-00 (BOLT HEX, HEAD W/WASHER) Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
21
92907-08600-00 washer, plate Supersedes: 9290N-08600-00 (WASHER, PLATE) Price: $3.72

Expected to Ship in 5-8 Days
22
97017-10025-00 bolt Supersedes: 97311-10022-00 (BOLT) Price: $10.86

Expected to Ship in 5-8 Days
23
92907-10600-00 washer, plate Price: $10.86

Expected to Ship in 5-8 Days
24
3GC-46152-00-00 housing, bearing
This part is currently unavailable.
25
93210-59531-00 o-ring Retail: $17.41 Price: $14.97

Expected to Ship in 5-8 Days
26
93101-38098-00 oil seal Retail: $19.41 Price: $16.69

Expected to Ship in 5-8 Days
27
90179-08491-00 nut Supersedes: 90179-08299-00 (NUT, FLANGE) Price: $3.20

Expected to Ship in 5-8 Days
28
90201-086P8-00 washer, plate Price: $6.28

In Stock
29
95817-10025-00 bolt, flange Supersedes: 95822-10025-00 (BOLT, FLANGE) Price: $10.86

Expected to Ship in 5-8 Days
30
90201-101J1-00 washer, plate Supersedes: 90201-108R2-00 (WASHER, PLATE) Price: $10.86

In Stock
31
93210-85075-00 o-ring Supersedes: 93210-85M32-00 (O-RING) Price: $6.28

Expected to Ship in 5-8 Days
32
2HR-46123-00-00 coupling, gear Supersedes: 29U-46123-00-00 (COUPLING, GEAR) Retail: $58.75 Price: $47.58

Expected to Ship in 5-8 Days
33
4BD-46172-00-00 shaft, drive Retail: $114.52 Price: $91.61

Expected to Ship in 5-8 Days
34
93410-22039-00 circlip
This part is currently unavailable.
35
4X7-46180-00-00 cross joint comp. Retail: $217.10 Price: $173.68

Expected to Ship in 5-8 Days
36
93399-99926-00 bearing Supersedes: 93311-21044-00 (BEARING) Retail: $72.69 Price: $58.88

In Stock
37
93440-20088-00 circlip Price: $10.86

In Stock
38
90467-07029-00 clip Price: $2.97

Expected to Ship in 5-8 Days
39
90445-072G8-00 hose (l310) Supersedes: 90445-042E2-00 (HOSE) Retail: $32.85 Price: $28.25

In Stock

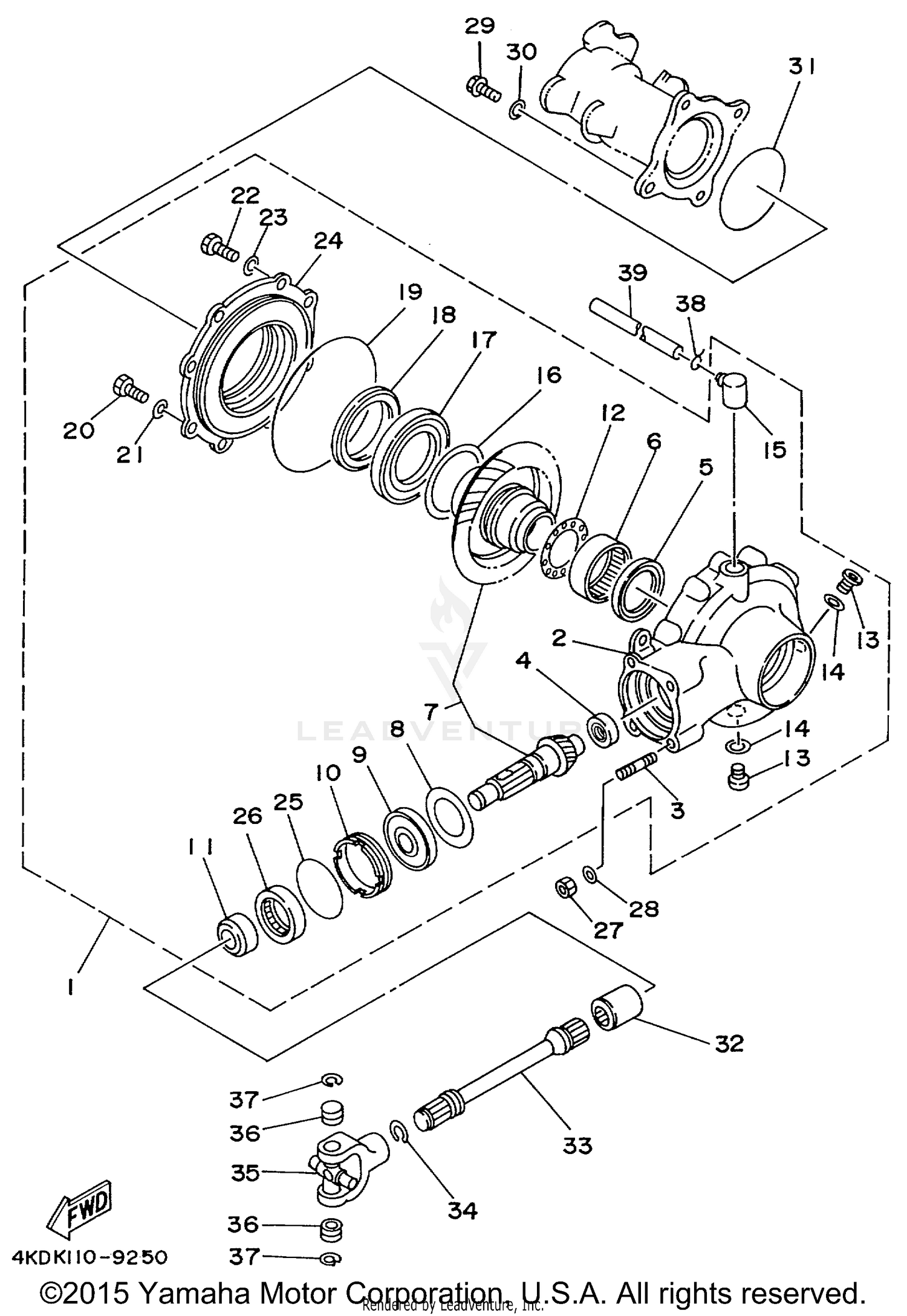

1999 Yamaha TIMBERWOLF 250 2X4 DRIVE SHAFT
