# Part Retail Our Price

Stock Status Suggested Quantity
1
06430-HN0-A20 shoe set, brake (ask) Supersedes: 06430-HM7-003 (SHOE SET, RR. BRAKE) Retail: $55.48 Price: $54.13

In Stock
1
06430-HN0-A30 shoe set, brake (jb) Retail: $70.44 Price: $59.17

In Stock
2
40520-HP0-A00 cover assy., drum Supersedes: 40520-HN2-000 (COVER ASSY., DRUM) Retail: $57.29 Price: $48.12

In Stock
3
42624-HN5-M00 ring, damper Price: $3.55

In Stock
4
43010-HR3-A20 panel set, rr. brake Retail: $130.11 Price: $107.99

In Stock
5
43102-319-000 washer, anchor pin Price: $8.17

Expected to Ship in 5-8 Days
6
43132-HR3-A20 tube, breather (3.5x1005) Price: $4.32

In Stock
7
43134-300-000 dust seal, brake cam Price: $2.64

In Stock
8
43141-HA7-670 cam, rr. brake Retail: $43.04 Price: $36.15

Expected to Ship in 5-8 Days
8
43141-HA7-671 cam, rr. brake Retail: $32.49 Price: $27.29

In Stock
9
43145-HN5-M00 indicator, brake Price: $1.12

In Stock
10
43410-HN2-000 arm, rr. brake Retail: $27.24 Price: $22.88

In Stock
11
43415-HM7-000 spring, rr. brake arm Price: $9.47

In Stock
12
43459-HM5-A10 nut, brake adjusting Supersedes: 43459-VM4-000 (NUT, BRAKE ADJUSTING) Retail: $11.51 Price: $9.67

In Stock
13
43620-HR3-A20 drum assy., rr. brake Retail: $95.93 Price: $79.62

In Stock
14
45133-329-000 spring, fr. brake shoe (rr.) Price: $3.45

Expected to Ship in 5-8 Days
15
90109-371-000 bolt, sealing (8mm) Price: $3.24

In Stock
16
90151-HA7-670 bolt, stud (10x25) Price: $8.21

In Stock
17
90471-580-000 washer (8mm) Price: $3.57

In Stock
18
91002-KY0-981 bearing, radial ball (63/28u) Retail: $46.50 Price: $39.06

In Stock
19
91206-968-003 dust seal (17x23x3) (nok) Supersedes: 91206-968-004 (DUST SEAL (17X23X3)) Price: $4.87

In Stock
20
91251-HF7-003 dust seal (44x58x8) (arai) Retail: $16.91 Price: $14.20

In Stock
21
91253-HM7-003 dust seal (41x76x19) (arai) Retail: $21.75 Price: $18.27

In Stock
22
91320-HM7-702 o-ring (75x3.2) (nok) Price: $3.55

In Stock
23
91355-HN2-003 o-ring (199x3.1) Retail: $16.02 Price: $13.46

In Stock
24
94050-08000 nut, flange (8mm) nut, flange (10mm) Supersedes: 90236-300-000 (NUT, FLANGE (8MM)) Price: $1.72

In Stock
25
94201-25300 pin, split (2.5x30) Supersedes: 94201-25150 (PIN, COTTER (2.5MM)) Price: $1.21

In Stock
25
94201-25300 pin, split (2.5x30) Supersedes: 94201-25150 (PIN, COTTER (2.5MM)) Price: $1.21

In Stock
25
94201-25300 pin, cotter (2.5mm) Supersedes: 94201-25150 (PIN, COTTER (2.5MM)) Price: $1.21

In Stock
26
94520-68000 circlip (inner) (68mm) Price: $9.46

In Stock
27
95002-35000 clip, tube (c6.5) Price: $1.37

In Stock
28
95014-73100 spring a, brake rod Price: $1.54

In Stock
29
95015-32001 joint b, brake arm Price: $1.12

In Stock
30
95701-08045-00 bolt, flange (8x45) Supersedes: 95700-08045-00 (BOLT, FLANGE (8X45)) Price: $1.75

In Stock
31
96001-06016-00 bolt, flange (6x16) Supersedes: 96001-06016 (BOLT, FLANGE (6X16)) Price: $1.16

In Stock

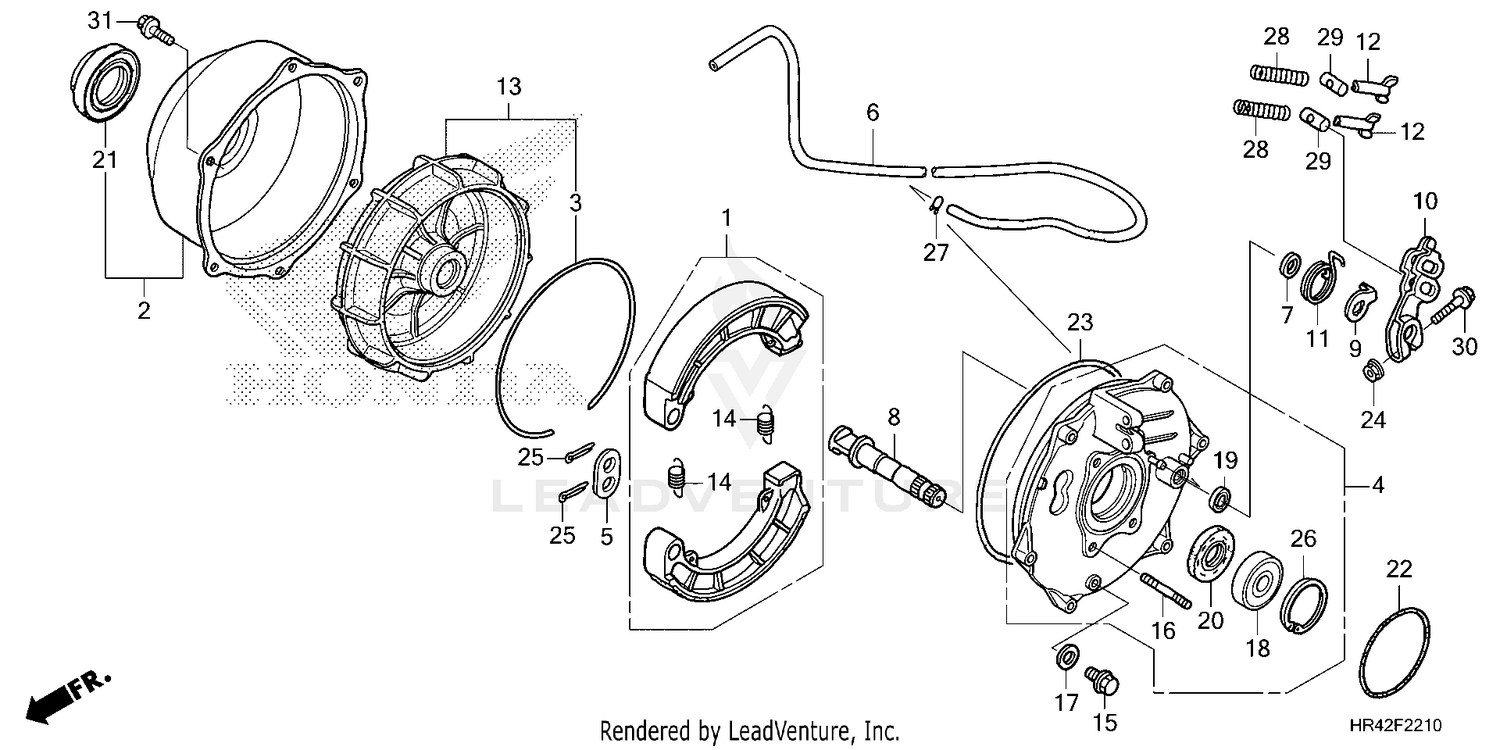

2023 Honda FOREMAN 4X4 ES EPS TRX520FE2 REAR BRAKE PANEL
