1986 Honda ATC200S REAR WHEEL AXLE + CHAIN GUARD

Set this as my ride

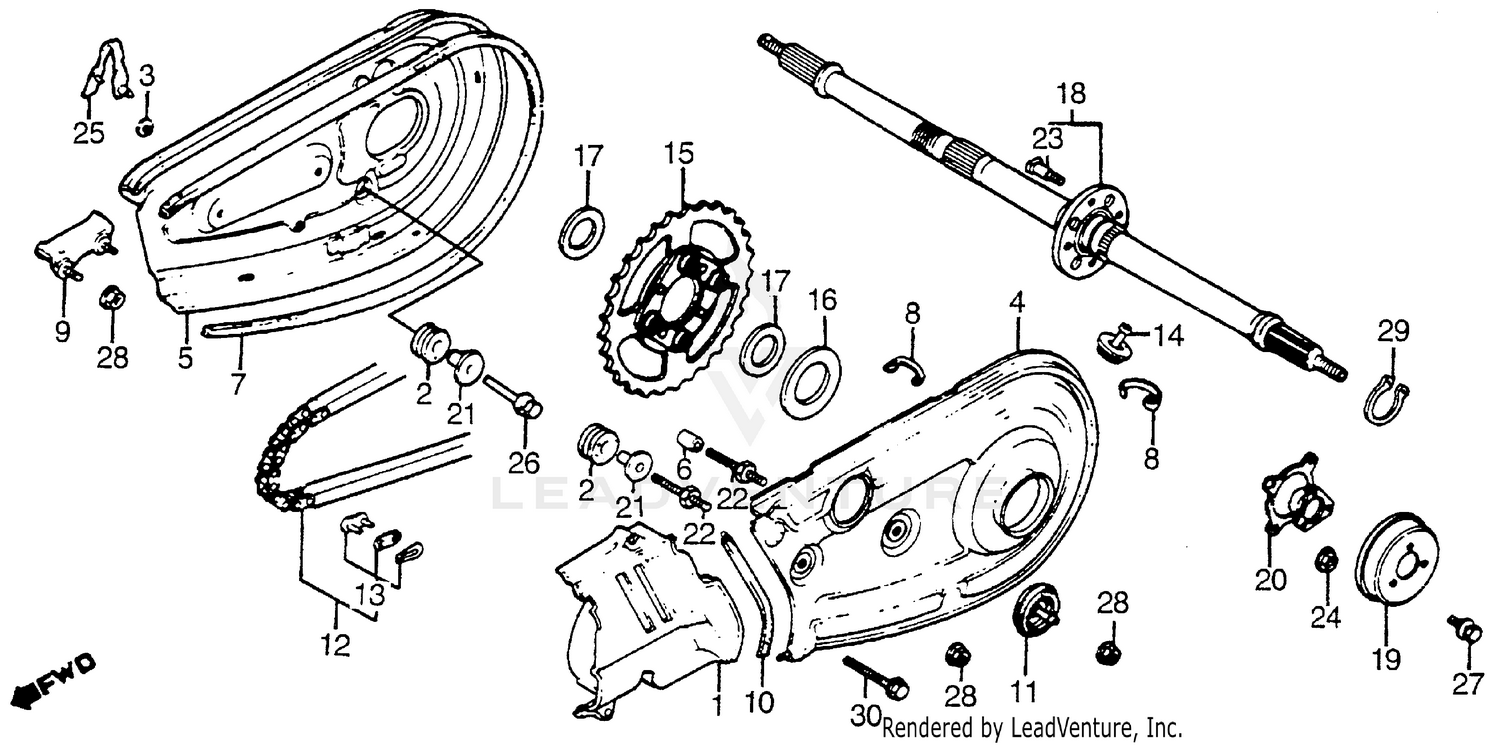

REAR WHEEL AXLE + CHAIN GUARD

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    11361-958-000 cover, l. rr. crankcase
    This part is currently unavailable.
  • 2
    17245-107-010 rubber, air cleaner housing setting Price: $3.64
    In Stock
  • 3
    40514-333-000 plug, chain guard Price: $3.10
    Expected to Ship in 5-8 Days
  • 4
    40521-VM4-000 case, chain (outer) (not available)
    This part is currently unavailable.
  • 5
    40522-VM4-000 case, inside chain (not available)
    This part is currently unavailable.
  • 6
    40523-958-000 collar, chain guard (not available)
    This part is currently unavailable.
  • 7
    40524-958-670 seal, inside chain guard (not available)
    This part is currently unavailable.
  • 8
    40525-969-680 spring, chain guard setting
    This part is currently unavailable.
  • 9
    40526-958-000 guide, chain (not available)
    This part is currently unavailable.
  • 10
    40527-958-000 seal, chain guard (outer) (not available)
    This part is currently unavailable.
  • 11
    40529-958-010 cap, chain
    This part is currently unavailable.
  • 12
    405W3-HB9-505 chain, drive (not available)
    This part is currently unavailable.
  • 12
    405W3-HB9-505 chain, drive (not available) Supersedes: 40530-VM4-000 (CHAIN, DRIVE (520V-S 84) (DAIDO))
    This part is currently unavailable.
  • 13
    40531-HB5-671 master link (daido) Supersedes: 40531-958-671 (MASTER LINK (DAIDO))
    This part is currently unavailable.
  • 13
    40531-HB5-671 master link (daido) Supersedes: 40531-958-671 (MASTER LINK (DAIDO))
    This part is currently unavailable.
  • 14
    40545-958-000 cap, chain
    This part is currently unavailable.
  • 15
    41200-VM4-000 sprocket, final driven (43t)
    This part is currently unavailable.
  • 16
    41205-961-000 ring, sprocket side (not available)
    This part is currently unavailable.
  • 17
    41206-961-000 dust seal, sprocket
    This part is currently unavailable.
  • 18
    42310-VM4-680 axle, rr. wheel (not available)
    This part is currently unavailable.
  • 19
    42327-958-000 plate, shield (not available)
    This part is currently unavailable.
  • 20
    42330-958-671 flange, shield Retail: $24.44 Price: $20.16
    Expected to Ship in 5-8 Days
  • 21
    61104-428-010 collar, fr. fender (white) Supersedes: 61104-428-000 (COLLAR, FR. FENDER) Price: $5.55
    In Stock
  • 21
    61105-428-000 collar, rr. fender
    This part is currently unavailable.
  • 22
    90102-958-000 bolt, special (6x22) (not available)
    This part is currently unavailable.
  • 23
    90128-961-000 bolt, sprocket fixing
    This part is currently unavailable.
  • 24
    90309-428-731 nut, flange (8mm) Supersedes: 90309-KF0-003 (NUT, FLANGE (8MM)) Price: $4.41
    In Stock
  • 25
    90669-671-003 strap b, cable (125mm) (blue) Price: $5.02
    Expected to Ship in 5-8 Days
  • 26
    92101-06020-0H bolt, hex. (6x20) Supersedes: 92000-06020-0H (BOLT, HEX. (6X20)) Price: $1.61
    Expected to Ship in 5-8 Days
  • 26
    92101-06020-0H bolt, hex. (6x20) Price: $1.61
    Expected to Ship in 5-8 Days
  • 27
    93402-06010-08 bolt-washer (6x10) Price: $1.94
    Expected to Ship in 5-8 Days
  • 27
    93402-06010-08 bolt-washer (6x10) Supersedes: 93492-06010-08 (BOLT-WASHER (6X10)) Price: $1.94
    Expected to Ship in 5-8 Days
  • 28
    94050-06080 nut, flange (6mm) Price: $1.19
    In Stock
  • 29
    94511-42000 circlip (outer) (42mm)
    This part is currently unavailable.
  • 30
    96000-06025-00 bolt, flange (6x25)
    This part is currently unavailable.
  • 30
    96001-06025-00 bolt, flange (6x25) Supersedes: 90040-GHR-700 (BOLT, FLANGE (6X25)) Price: $2.31
    In Stock
