1986 Honda ATC200S CRANKSHAFT + PISTON

Set this as my ride

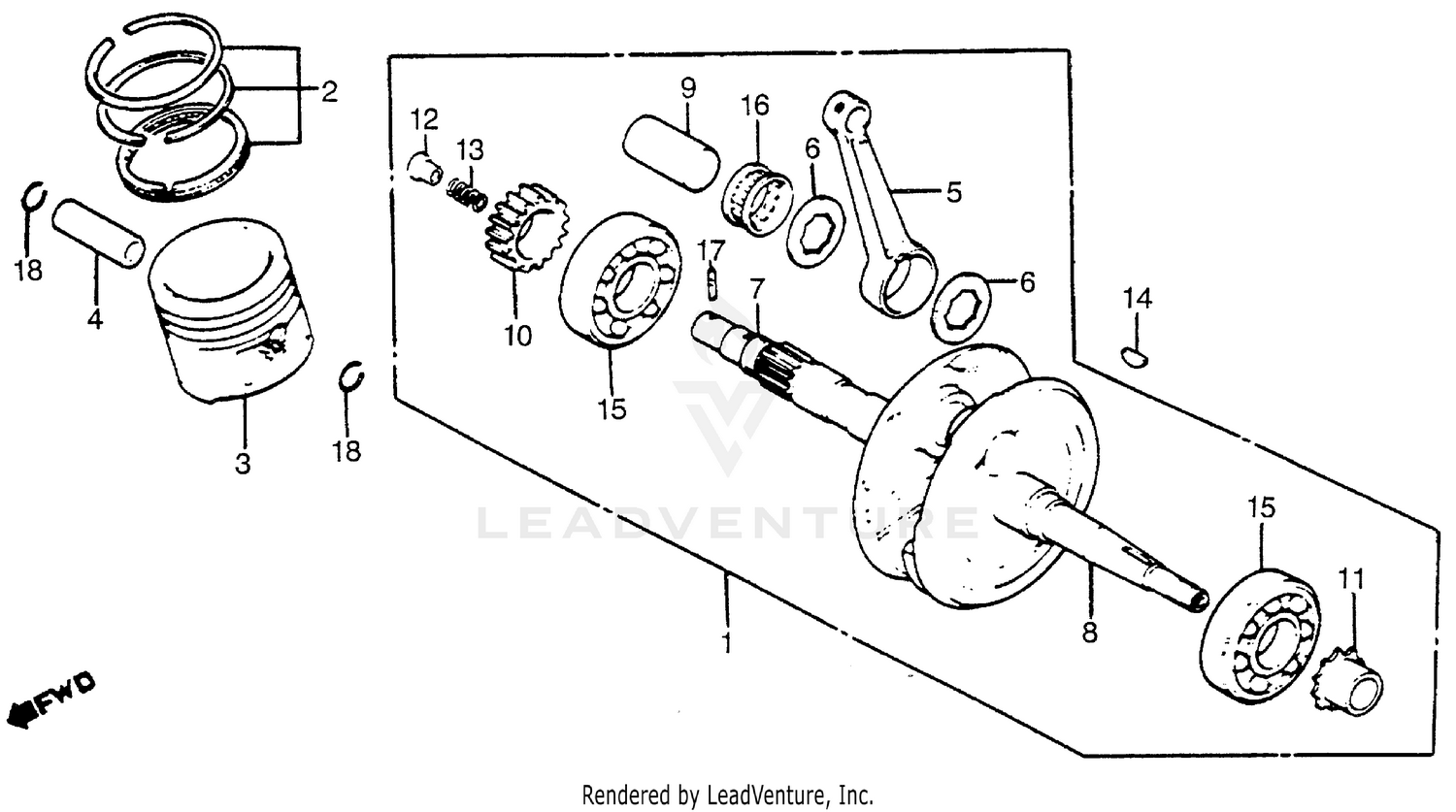

CRANKSHAFT + PISTON

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    13000-958-030 crankshaft (not available)
    This part is currently unavailable.
  • 2
    13011-958-671 ring set, piston (std)
    This part is currently unavailable.
  • 2
    13011-958-671 ring set, piston (std) Supersedes: 13011-958-672 (RING SET, PISTON (STD))
    This part is currently unavailable.
  • 2
    13012-958-671 ring set, piston (os 0.25)
    This part is currently unavailable.
  • 2
    13012-958-671 ring set, piston (os 0.25) Supersedes: 13012-958-672 (RING SET, PISTON (OS 0.25))
    This part is currently unavailable.
  • 2
    13013-958-671 ring set, piston (os 0.50)
    This part is currently unavailable.
  • 2
    13013-958-671 ring set, piston (os 0.50) Supersedes: 13013-958-672 (RING SET, PISTON (OS 0.50))
    This part is currently unavailable.
  • 3
    13101-958-671 piston (std)
    This part is currently unavailable.
  • 3
    13102-958-670 piston (os 0.25) Retail: $108.44 Price: $87.84
    Expected to Ship in 5-8 Days
  • 3
    13103-958-670 piston (os 0.50) Retail: $94.51 Price: $78.44
    Expected to Ship in 5-8 Days
  • 4
    13111-425-000 pin, piston Supersedes: 13111-422-000 (PIN, PISTON) Retail: $25.47 Price: $21.02
    In Stock
  • 5
    13202-427-300 rod, connecting
    This part is currently unavailable.
  • 6
    13202-958-300 plate, connecting rod side Retail: $13.32 Price: $11.00
    Expected to Ship in 5-8 Days
  • 7
    13312-958-335 crankshaft, r.
    This part is currently unavailable.
  • 8
    13321-958-310 crankshaft, l. (not available)
    This part is currently unavailable.
  • 9
    13381-HF1-670 pin, crank
    This part is currently unavailable.
  • 9
    13381-HF1-670 pin, crank Supersedes: 13381-383-300 (PIN, CRANK)
    This part is currently unavailable.
  • 10
    13411-958-300 gear, oil pump drive Retail: $65.52 Price: $54.38
    Expected to Ship in 5-8 Days
  • 11
    14311-958-000 sprocket, timing (16t) Supersedes: 14311-107-000 (SPROCKET, TIMING (16T)) Retail: $48.30 Price: $39.84
    Expected to Ship in 5-8 Days
  • 11
    14311-958-000 sprocket, timing (16t) Supersedes: 14311-107-000 (SPROCKET, TIMING (16T)) Retail: $48.30 Price: $39.84
    Expected to Ship in 5-8 Days
  • 12
    15441-958-000 through, oil
    This part is currently unavailable.
  • 13
    15446-958-000 spring, oil through
    This part is currently unavailable.
  • 14
    90701-HB6-010 key, woodruff (25x14x4) Supersedes: 90741-003-010 (KEY, WOODRUFF (25X14X4)) Price: $4.84
    Expected to Ship in 5-8 Days
  • 14
    90701-HB6-010 key, woodruff (25x14x4) Supersedes: 90741-003-010 (KEY, WOODRUFF (25X14X4)) Price: $4.84
    Expected to Ship in 5-8 Days
  • 14
    90701-HB6-010 key, woodruff (25x14x4) Supersedes: 90741-003-010 (KEY, WOODRUFF (25X14X4)) Price: $4.84
    Expected to Ship in 5-8 Days
  • 15
    91009-HC0-003 bearing, radial ball (63/28) Supersedes: 91001-KK3-831 (BEARING, RADIAL BALL (63/28)) Retail: $36.98 Price: $30.52
    Expected to Ship in 5-8 Days
  • 15
    91009-HC0-003 bearing, radial ball (63/28) Supersedes: 91001-KK3-831 (BEARING, RADIAL BALL (63/28)) Retail: $36.98 Price: $30.52
    Expected to Ship in 5-8 Days
  • 15
    91009-HC0-003 bearing, radial ball (63/28) Supersedes: 91001-KK3-831 (BEARING, RADIAL BALL (63/28)) Retail: $36.98 Price: $30.52
    Expected to Ship in 5-8 Days
  • 15
    91009-HC0-003 bearing, radial ball (63/28) Supersedes: 91001-KK3-831 (BEARING, RADIAL BALL (63/28)) Retail: $36.98 Price: $30.52
    Expected to Ship in 5-8 Days
  • 15
    91009-HC0-003 bearing, radial ball (63/28) Supersedes: 91001-KK3-831 (BEARING, RADIAL BALL (63/28)) Retail: $36.98 Price: $30.52
    Expected to Ship in 5-8 Days
  • 15
    91009-HC0-003 bearing, radial ball (63/28) Supersedes: 91001-KK3-831 (BEARING, RADIAL BALL (63/28)) Retail: $36.98 Price: $30.52
    Expected to Ship in 5-8 Days
  • 16
    91002-440-003 bearing a, connecting rod (red) (toyo) Supersedes: 91002-437-004 (BEARING A, CONNECTING ROD (RED) Retail: $31.01 Price: $25.58
    Expected to Ship in 5-8 Days
  • 16
    91002-440-003 bearing a, connecting rod (red) (toyo) Supersedes: 91002-437-004 (BEARING A, CONNECTING ROD (RED) Retail: $31.01 Price: $25.58
    Expected to Ship in 5-8 Days
  • 16
    91003-440-003 bearing b, connecting rod (blue) (toyo) Supersedes: 91003-437-004 (BEARING, CONNECTING ROD LARGE END (BLUE))
    This part is currently unavailable.
  • 16
    91003-440-003 bearing b, connecting rod (blue) (toyo)
    This part is currently unavailable.
  • 16
    91004-440-003 bearing c, connecting rod (white) (toyo) Supersedes: 91004-437-004 (BEARING, CONNECTING ROD LARGE END (WHITE)) Retail: $31.01 Price: $25.58
    Expected to Ship in 5-8 Days
  • 16
    91004-440-003 bearing c, connecting rod (white) (toyo) Retail: $31.01 Price: $25.58
    Expected to Ship in 5-8 Days
  • 17
    94305-20162 pin, spring (2x16) (not available)
    This part is currently unavailable.
  • 18
    94601-15000 clip, piston pin (15mm) Price: $1.19
    In Stock
