1986 Honda ATC200S LEFT CRANKCASE COVER + ALTERNATOR

Set this as my ride

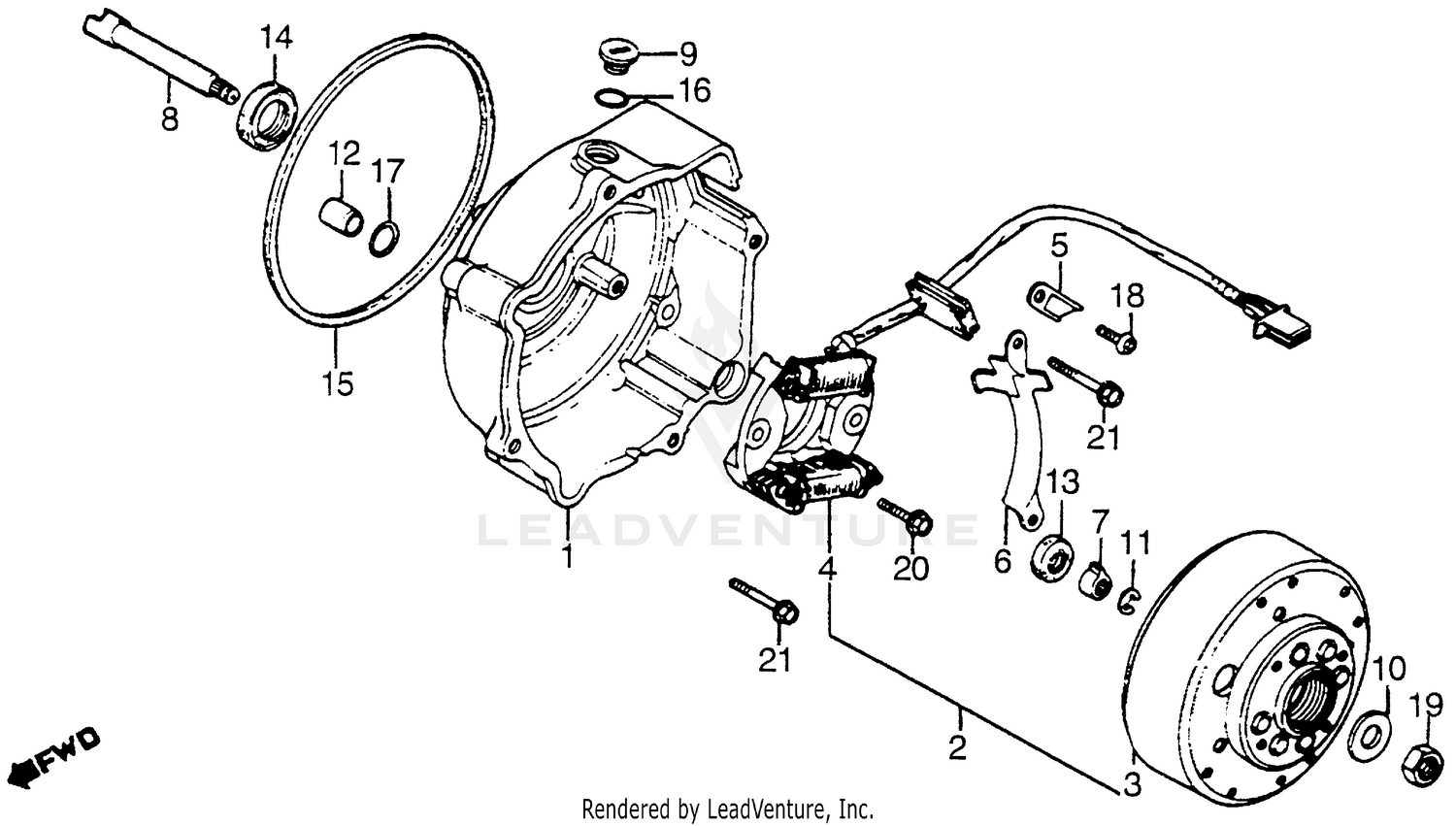

LEFT CRANKCASE COVER + ALTERNATOR

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    11340-958-010 cover, l. crankcase (not available)
    This part is currently unavailable.
  • 1
    11340-958-010 cover, l. crankcase (not available) Supersedes: 11341-958-010 (COVER, L. CRANKCASE)
    This part is currently unavailable.
  • 2
    31100-958-023 alternator assy. (not available)
    This part is currently unavailable.
  • 3
    31110-958-003 rotor (not available)
    This part is currently unavailable.
  • 4
    31120-958-023 stator
    This part is currently unavailable.
  • 5
    32976-107-010 clamp, wire harness Supersedes: 32976-107-000 (CLAMP, WIRE HARNESS) Price: $2.29
    Expected to Ship in 5-8 Days
  • 5
    32976-107-010 clamp, wire harness Supersedes: 32976-107-000 (CLAMP, WIRE HARNESS) Price: $2.29
    Expected to Ship in 5-8 Days
  • 6
    32976-958-000 clamp, alternator cable
    This part is currently unavailable.
  • 7
    35762-HF7-000 indicator, neutral Price: $5.34
    Expected to Ship in 5-8 Days
  • 7
    35762-HF7-000 indicator, neutral Supersedes: 35762-918-020 (INDICATOR, NEUTRAL) Price: $5.34
    Expected to Ship in 5-8 Days
  • 8
    35764-958-010 shaft, neutral indicator (not available)
    This part is currently unavailable.
  • 9
    90084-471-000 cap, alternator Supersedes: 90084-428-000 (CAP, ALTERNATOR)
    This part is currently unavailable.
  • 9
    90084-471-000 cap, alternator Supersedes: 90084-428-000 (CAP, ALTERNATOR)
    This part is currently unavailable.
  • 10
    90426-958-000 washer, rotor setting (not available)
    This part is currently unavailable.
  • 11
    90605-230-000 circlip (5mm) Price: $3.74
    Expected to Ship in 5-8 Days
  • 12
    90702-958-000 pin, dowel (13x15) (not available)
    This part is currently unavailable.
  • 13
    91201-958-003 oil seal (10x19x6) (not available)
    This part is currently unavailable.
  • 14
    91203-958-013 oil seal (19.8x35x8) Supersedes: 91203-958-003 (OIL SEAL (19.8X35X8))
    This part is currently unavailable.
  • 14
    91203-958-013 oil seal (19.8x35x8)
    This part is currently unavailable.
  • 14
    91203-958-013 oil seal (19.8x35x8) Supersedes: 91203-958-014 (OIL SEAL (19.8X35X8))
    This part is currently unavailable.
  • 15
    91302-355-000 gasket, l. crankcase cover Supersedes: 91302-107-010 (GASKET, L. CRANKCASE COVER) Retail: $14.69 Price: $12.13
    Expected to Ship in 5-8 Days
  • 15
    91302-355-000 gasket, l. crankcase cover Supersedes: 91302-107-010 (GASKET, L. CRANKCASE COVER) Retail: $14.69 Price: $12.13
    Expected to Ship in 5-8 Days
  • 16
    91303-MG7-003 o-ring (13.8x2.5) Supersedes: 91303-426-000 (O-RING (13.8X2.5)) Price: $3.99
    Expected to Ship in 5-8 Days
  • 16
    91303-377-000 o-ring (13.8x2.5) Price: $4.38
    In Stock
  • 16
    91303-MG7-003 o-ring (13.8x2.5) Supersedes: 91303-426-000 (O-RING (13.8X2.5)) Price: $3.99
    Expected to Ship in 5-8 Days
  • 17
    91303-634-010 o-ring (12.5x2.2) Supersedes: 91303-611-000 (O-RING (12.5X2.2)) Price: $7.29
    Expected to Ship in 5-8 Days
  • 17
    91303-634-010 o-ring (12.5x2.2) Supersedes: 91303-634-000 (O-RING (12.5X2.2)) Price: $7.29
    Expected to Ship in 5-8 Days
  • 17
    91303-634-010 o-ring (12.5x2.2) Price: $7.29
    Expected to Ship in 5-8 Days
  • 18
    93500-06012-0A screw, pan (6x12) Price: $1.05
    Expected to Ship in 5-8 Days
  • 19
    94001-12280-0S nut, hex. (12mm)
    This part is currently unavailable.
  • 20
    95701-06016-08 bolt, flange (6x16) Supersedes: 95900-06016-08 (BOLT, FLANGE (6X16)) Price: $1.60
    In Stock
  • 20
    95701-06016-08 bolt, flange (6x16) Supersedes: 95900-06016-08 (BOLT, FLANGE (6X16)) Price: $1.60
    In Stock
  • 21
    96000-06025-00 bolt, flange (6x25)
    This part is currently unavailable.
  • 21
    96001-06025-00 bolt, flange (6x25) Supersedes: 90040-GHR-700 (BOLT, FLANGE (6X25)) Price: $2.24
    In Stock
