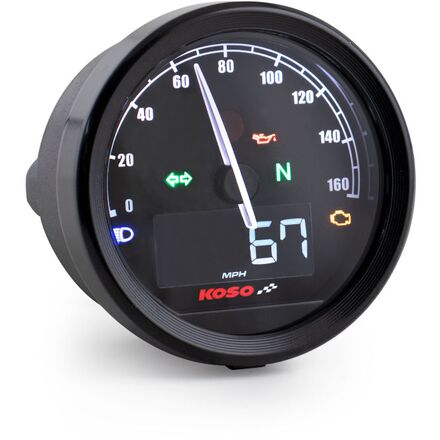

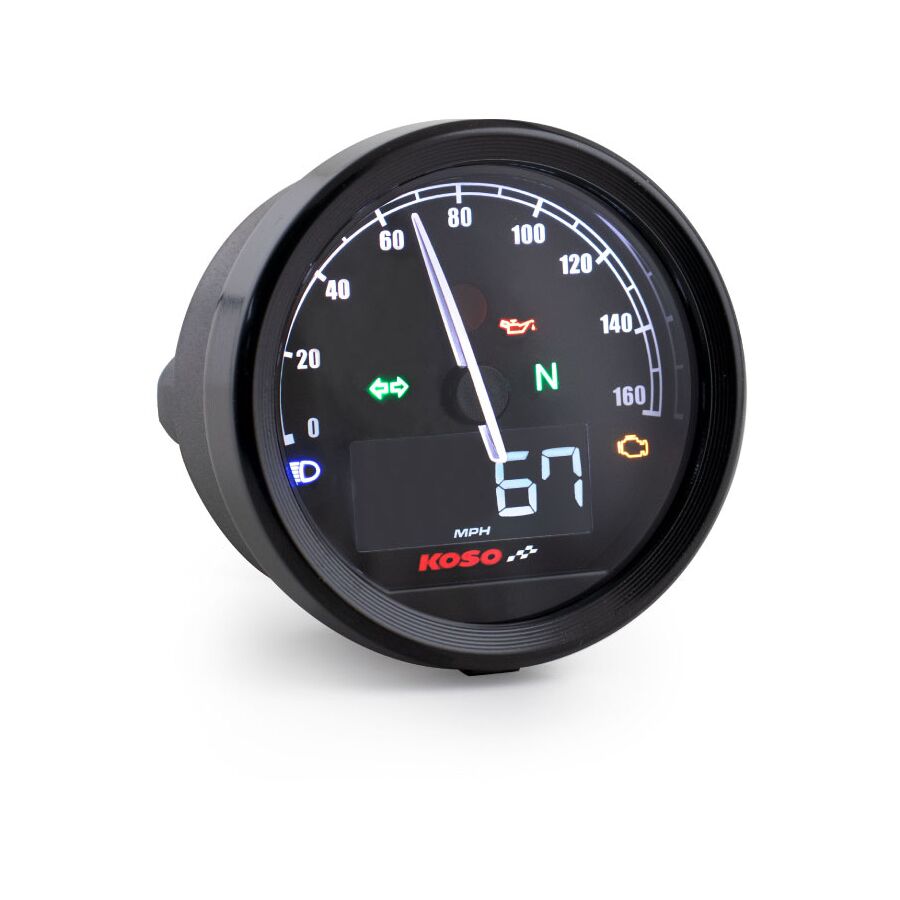

Koso TNT-05S Speedometer

• Product Details

  Providing basic functions such as speed, odometer, tripmeter, hour meter, fuel, voltage, clock and stopwatch, the TNT-05S speedometer is equipped with eight (8) changeable LCD display colors that also includes all the necessary indicator lights to give you all the data you need. The illuminated backlight makes the instrument very easy to read even in the darkest conditions.

  • This smaller version of the TNT-05 speedometer can fit various locations and models while providing basic functions such as speed, odometer, tripmeter, fuel and voltage.
  • Its compact LCD display is very easy to read even in the darkest conditions.

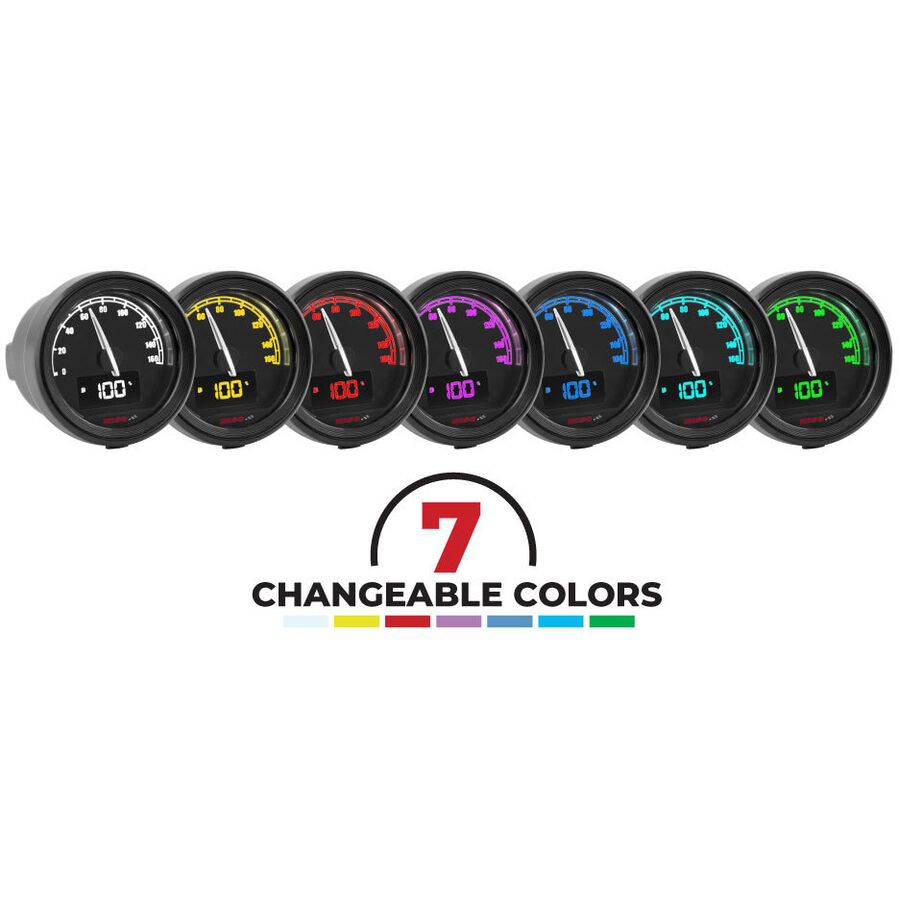

  • Equipped with all the necessary indicator lights and features seven (7) changeable display colors to fit your style.
  • Displays speed (0 - 99 MPH; 0 - 160 km/h).

  Specifications:

  • Speedometer:
  • R: 0 ~ 160 km/h (MPH).
  • U: 20 km/h (MPH) (Large grid), 10 km/h (MPH) (small grid).
  • Effective temperature range:
  • 14 ~ 140F (-10 ~ 60C).
  • Effective voltage:
  • DC 12 V.
  • Indicator lights:
  • Composite warning light / Speeding warning light / Neutral / High beam / Turn signals / Check engine / Motor oil light.
  • Fuel meter:
  • R: 10 levels | U: 1 level = 10%.
  • Fuel resistance:
  • R: 100 Ohm / 250 Ohm / 270 Ohm / 390 Ohm /510 Ohm / 1,200 Ohm / Sw / Custom (learning mode) / OFF.
  • Clock:
  • 12 H or 24 H format.

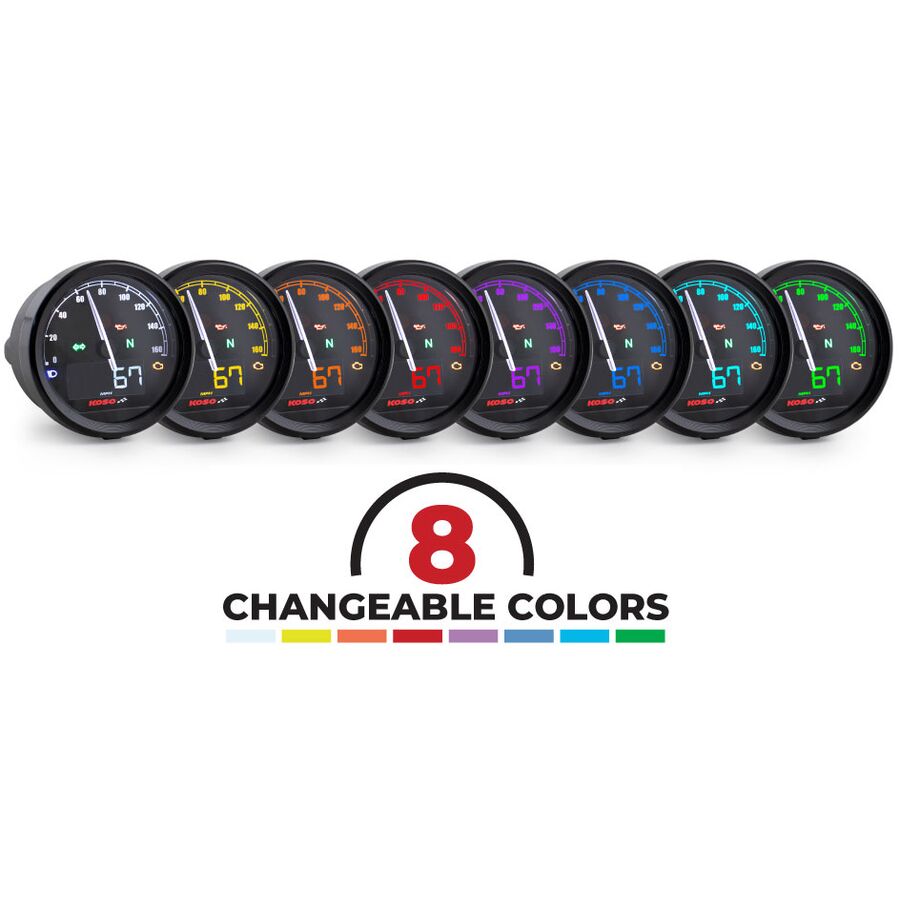

  • Backlight colors:
  • White / Yellow / Orange / Red / Purple / Blue / Light blue / Green.
  • Overspeeding warning:
  • R: 19 ~ 100 MPH (30 ~ 160 km/h).
  • U: MPH or km/h, can return to zero manually.
  • Odometer:
  • R: 0 ~ 99,999 miles (km) U: 1 mile (km).
  • Tripmeter A/B:
  • R: 0 ~ 9,999.9 miles (km) U: 0.1 mile (km).
  • Tire circumference:
  • R: 300 ~ 2,500 mm.
  • U: 1 mm Sensitive point: 1 ~ 20.
  • Thermometer:
  • R: 32 ~ 482F (0 ~ 250C).
  • U: 0.1F or C (alternative).
  • Over temperature warning:
  • R: 140 ~ 482F (60 ~ 250C) / U: 1F (C).
  • Volt meter:
  • R: DC 8 ~ 18 V | Flashing Warning light value.
  • Backlight brightness:
  • R: 1/3 (darkest) ~ 3/3 (brightest).

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  D48 / For Harley-Davidson	BA086001-HD
  D48 / Standard	BA086001
  D60 / For Harley-Davidson	BA085001-HD
  D60 / Standard	BA085001
