RAM Mounts X-Grip Large With Vibe-Safe & Reservoir Base

• Product Details

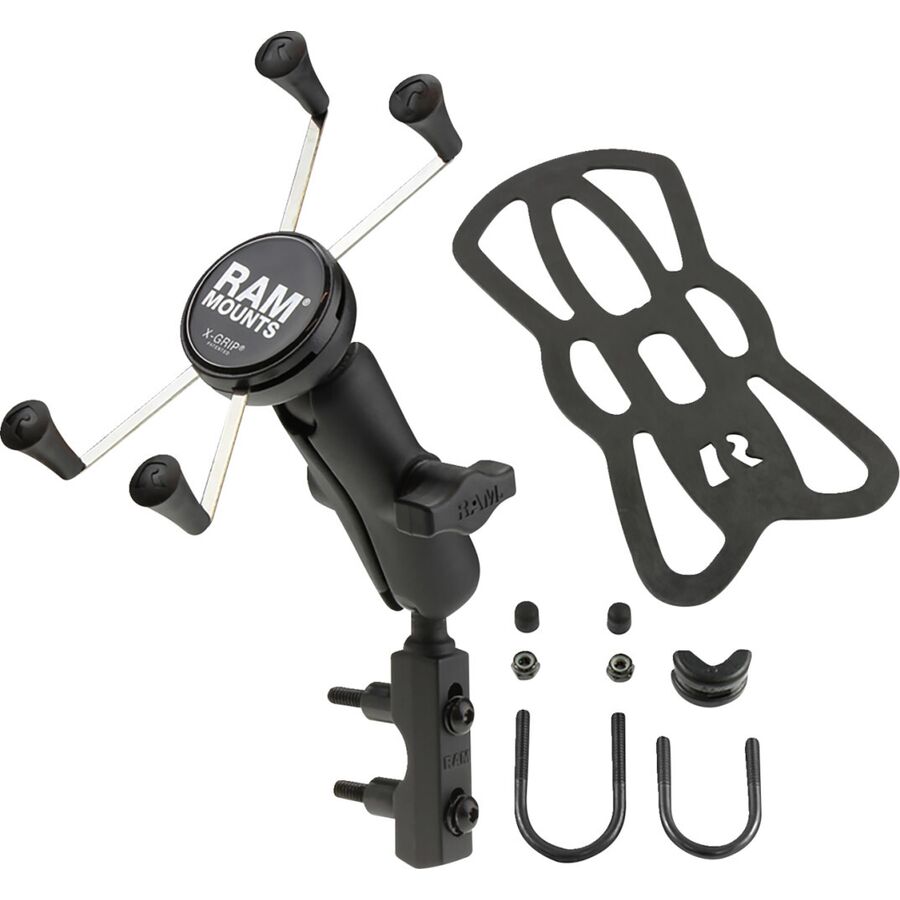

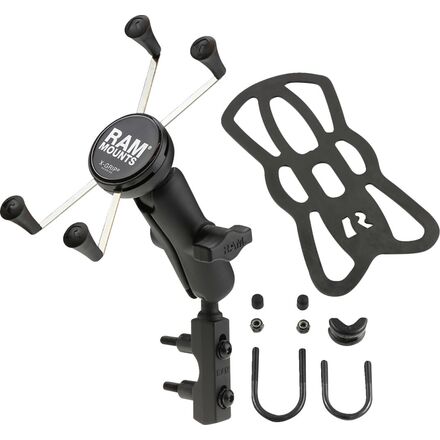

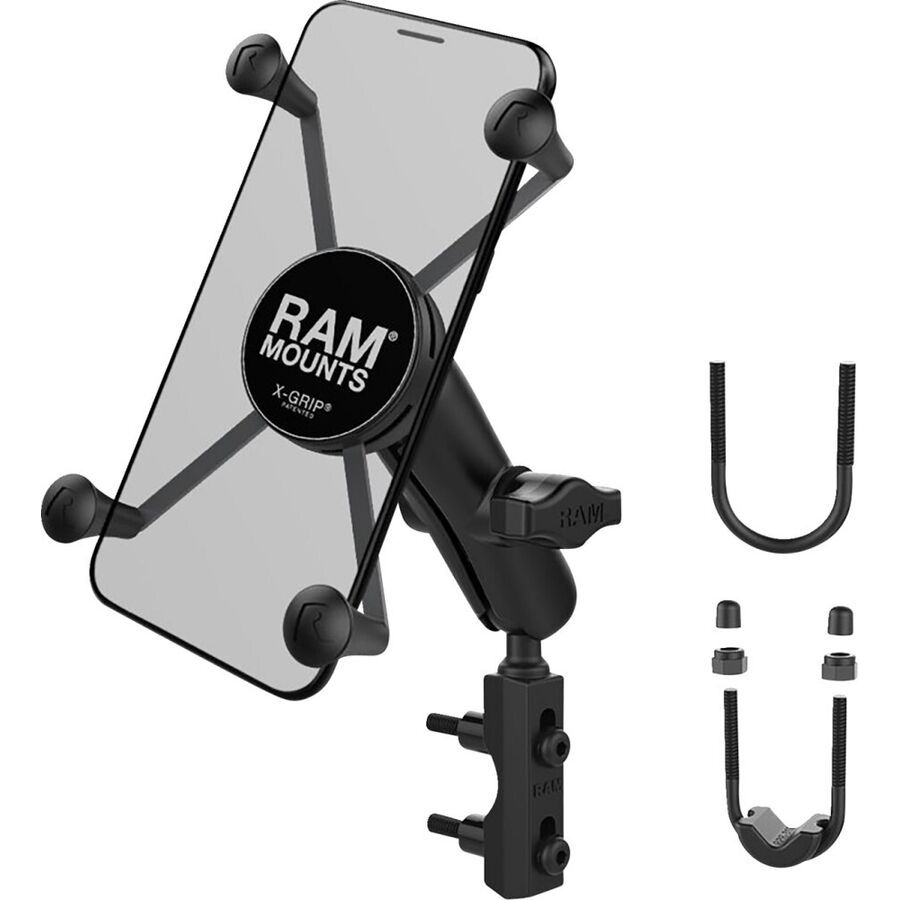

  The RAM X-Grip Large Phone Mount with RAM Vibe-Safe & Reservoir Base (RAM-B-174-UN10-462) is a combination of the RAM X-Grip Phone Mount with Motorcycle Brake / Clutch Reservoir and Handlebar Base and the RAM Vibe-Safe - the vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM X-Grip can rotate between portrait and landscape by loosening the center screw. This product comes with one (1) medium B size arm, one (1) RAM Motorcycle Brake / Clutch Reservoir and Handlebar Ball Base that attaches to either the handlebar or brake / clutch that accommodates rails from 0.5""- 1.25" in diameter and an optional device tether that is recommended for outdoor applications. This kit also includes one (1) zinc-coated metal U-bolt that accommodates rails ranging from 0.5" to 1.25" in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case / sleeve / skin when determining the overall size.

  • RAM Vibe-Safe dampens a wide range of vibration frequencies.
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments.
  • Unique structure and thoughtfully designed with all industries in mind.
  • Backed by a lifetime warranty.

  Tech Specs:

  • Hardware included:
  • (1x) optional tether.
  • (1x) glue tube for rubber caps.
  • (2x) M6 x 55 mm hex bolts.
  • (2x) 1/4-20 x 2" hex bolts.
  • (2x) 1/4"-20 x 2.5" hex bolts.
  • (2x) 1/2" spacers.
  • (2x) 1/4" split lock washers.
  • (1x) 1/4"-20 U-bolt for 0.5" - 1" rails.
  • (1x) 1/4"-20 U-bolt for 1" - 1.25" rails.
  • (2x) 1/4"-20 Nylock nuts.
  • (2x) rubber caps.
  • (1x) U-bolt spacer.
  • Holder dimensions:
  • Width range: 1.75" - 4.5".
  • Depth range: 0.875" maximum.
  • Clamp range: 0.5" - 1.25" diameter.
  • Socket-to-socket length: 3".
  • Ball size: B Size (1").
  • Weight capacity:
  • Standard use: 2 pounds.
  • Heavy-duty use: 1 pound.
  • Materials:
  • Marine-grade aluminum.
  • High-strength composite.
  • Stainless steel.
  • Weight: 1.26 pounds.
  • Note: A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM Vibe-Safe. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM mounts lifetime warranty is limited to RAM mounts and components. The warranty does not include any device mounted or attached to a RAM mount, such as a phone, GPS, camera, computer or other device.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Medium Arm RAM Mounts X-Grip Large With Vibe-Safe & Reservoir Base	RAM-B-174-UN10-462
