RAM Mounts X-Grip Holder With U-Bolt Double Ball Mount Kit

• Product Details

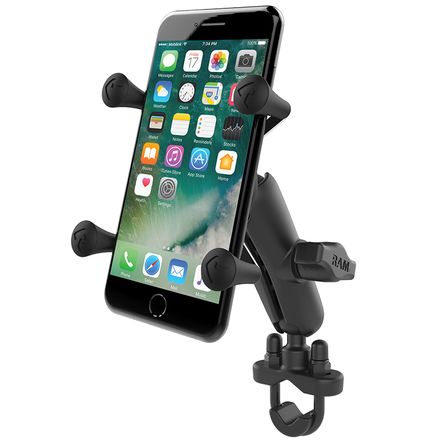

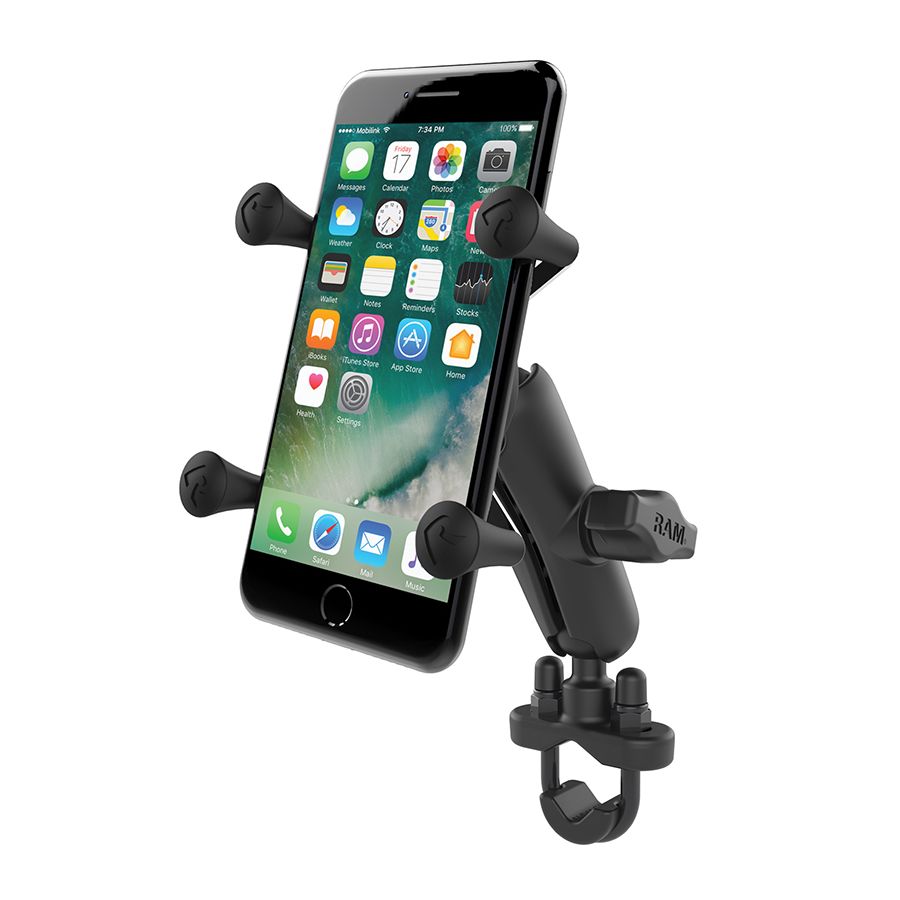

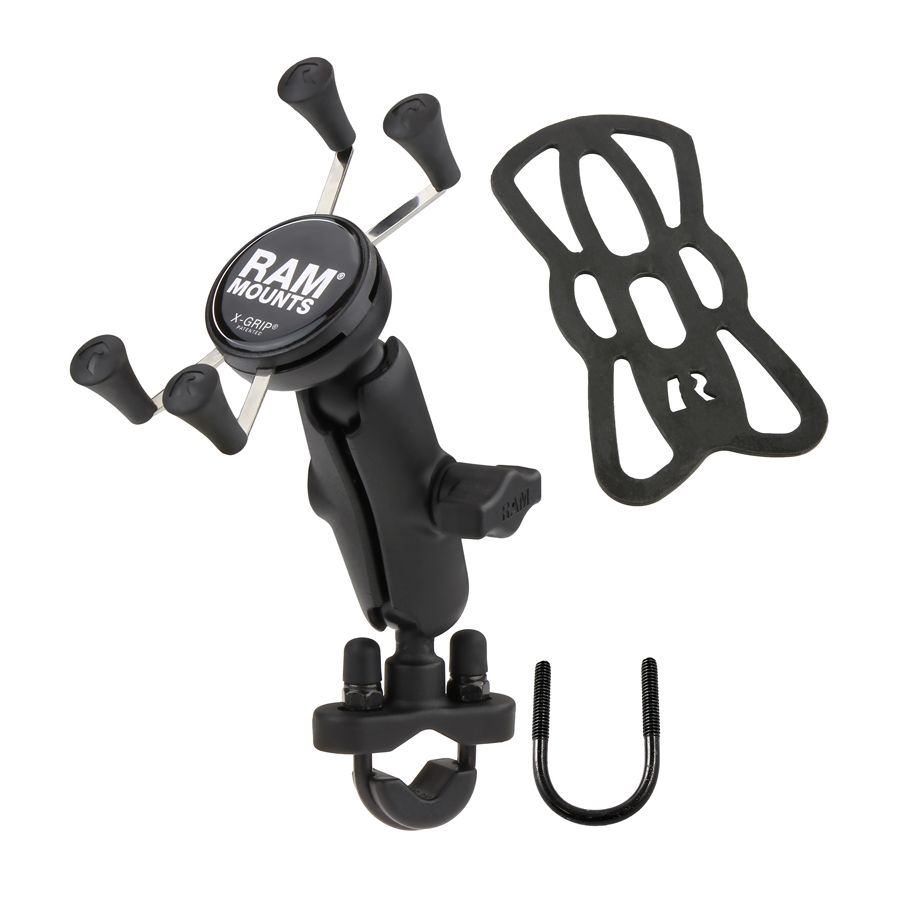

  The X-Grip Holder With U-Bolt Double Ball Mount Kit consists of a zinc coated U-bolt base, double socket arm and universal X-Grip cradle.

  • Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
  • The base includes black cover caps to be placed over the exposed ends of the U-bolt.
  • The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
  • The included composite rail adapter can narrow the rail to a minimum width of 0.5".
  • The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic.
  • The spring-loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone.
  • The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved.
  • The X-Grip includes a device tether recommended for outdoor applications.
  • High-strength composite, marine-grade stainless steel and powder-coated marine-grade aluminum.
  • The cradle is compatible with handheld devices that will fit the dimensions listed below.
  • Cradle Dimensions:
  • Minimum width = 1.875" (minimum height = 4.25").
  • Maximum width = 3.25" (minimum height = 2.25").
  • Depth = 0.875".
  • U-Bolt Dimensions: 0.50" to 1.25".
  • Plate Dimensions: 3" width x 3" height.
  • Notes: It is important to verify the dimensions of your handheld device with a case / sleeve / skin when determining the overall size. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  B Size / Medium Arm / Boxed RAM Mounts X-Grip Holder With U-Bolt Double Ball Mount Kit	RAM-B-149Z-UN7
