Securely fix your mount to flat surfaces using one of Quad Lock's Rectangle Flat Hole Bases. Choose between a 2 hole or a 4 hole base.
- Both bases can be fixed to flat surfaces vertically, diagonally or horizontally.
- Each base uses the universal AMPs hole spacing standard and the holes will accept 10G or M5 countersunk fasteners (if using the 4 hole base, Quad Lock recommend using all four hole screws for the strongest connection).
- A 10 mm spacer and two screws are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM (note: Screws are not provided for mounting the base to your required surface).
- Both Rectangle Bases are built with tough nylon and use the universal AMPs hole spacing standard.
- The holes will accept 10G or M5 countersunk fasteners.
Tech Specs:

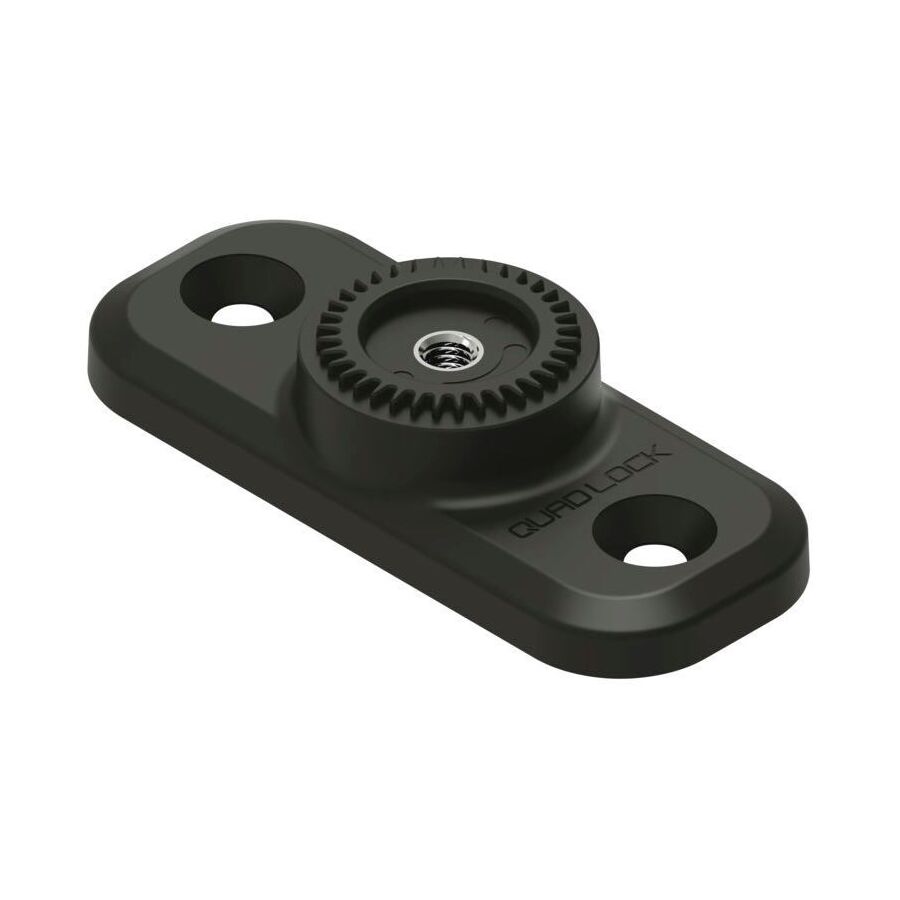

- 2 Hole Base:
- 68.5 mm (2.7") long x 28 mm (1.1") wide x 14 mm (0.55") high.
- AMPS Hole Pitch: 48.5 mm (1.9").

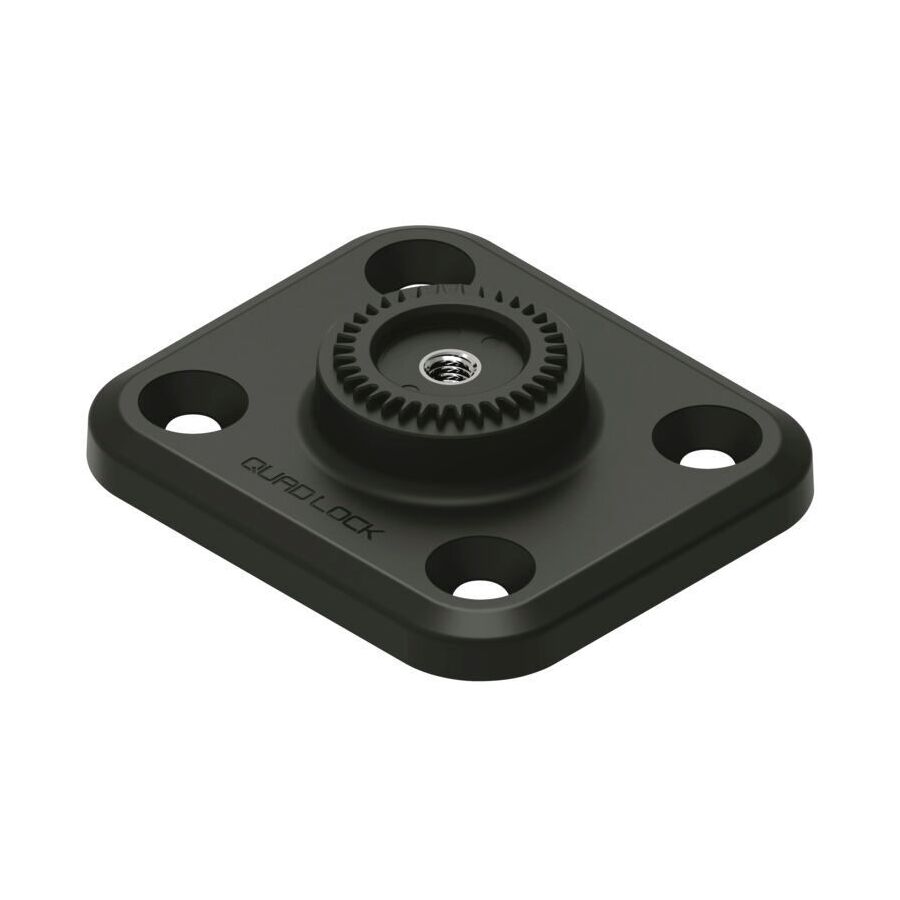

- 4 Hole Base:
- 58 mm (2.3") long x 50 mm (2") wide x 14 mm (0.55") high.
- AMPS Hole Pitch: 38 mm (1.5") x 30 mm (1.2").
What's Included?
- 2 Hole Base:
- 1x Flat Rectangle 2 Hole Base.
- 1x 10 mm Spacer.
- 1x M5 x 30 Screw (for connecting Spacer to Lever Head or 360 Arm).
- 1x M5 x 45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head).
- 4 Hole Base:
- 1x Flat Rectangle 4 Hole Base.
- 1x 10 mm Spacer.
- 1x M5 x 30 Screw (for connecting Spacer to Lever Head or 360 Arm).
- 1x M5 x 45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head).
