# Part Retail Our Price

Stock Status Suggested Quantity
1
3D8-22110-30-00 rear arm comp. Retail: $1,159.28 Price: $915.83

Expected to Ship in 5-8 Days
2
3D8-22141-01-00 shaft, pivot Supersedes: 3D8-22141-00-00 (SHAFT, PIVOT) Retail: $36.84 Price: $31.68

Expected to Ship in 5-8 Days
3
90201-16018-00 washer, plate Price: $10.86

In Stock
4
90185-16002-00 nut, self-locking Supersedes: 90185-16127-00 (NUT, SELF-LOCKING) Retail: $18.41 Price: $15.83

In Stock
5
93320-32403-00 bearing Retail: $50.78 Price: $43.67

In Stock
6
3D8-22124-00-00 bush 2 Retail: $70.70 Price: $60.80

Expected to Ship in 5-8 Days
7
5EL-22129-00-00 cover, thrust 2 Retail: $30.86 Price: $26.54

In Stock
8
90201-243U9-00 washer, plate Price: $10.86

Expected to Ship in 5-8 Days
9
3D8-2217A-00-00 arm, relay Retail: $124.48 Price: $100.83

Expected to Ship in 5-8 Days
10
93317-42060-00 bearing Retail: $50.78 Price: $43.67

Expected to Ship in 5-8 Days
11
90387-100T8-00 collar Retail: $23.89 Price: $20.54

Expected to Ship in 5-8 Days
12
90105-10233-00 bolt, flange Price: $10.86

Expected to Ship in 5-8 Days
13
90387-10049-00 collar Retail: $20.90 Price: $17.97

Expected to Ship in 5-8 Days
14
95602-10200-00 nut, u flange Price: $3.09

Expected to Ship in 5-8 Days
15
90201-101J1-00 washer, plate Supersedes: 90201-108R2-00 (WASHER, PLATE) Price: $10.86

Expected to Ship in 5-8 Days
16
93317-41761-00 bearing Retail: $46.80 Price: $40.24

Expected to Ship in 5-8 Days
17
90387-126T1-00 collar Retail: $25.88 Price: $22.25

Expected to Ship in 5-8 Days
18
90101-12027-00 bolt Retail: $16.42 Price: $14.12

Expected to Ship in 5-8 Days
19
90201-12045-00 washer, plate Price: $7.42

In Stock
20
95612-12100-00 nut, u Supersedes: 9561P-12100-00 (NUT, U) Price: $7.42

Expected to Ship in 5-8 Days
21
93317-31771-00 bearing Retail: $39.82 Price: $34.25

In Stock
22
93109-17071-00 oil seal Price: $9.72

Expected to Ship in 5-8 Days
23
90387-127W0-00 collar Retail: $16.42 Price: $14.12

Expected to Ship in 5-8 Days
24
3D8-2217M-00-00 arm 1 Retail: $22.89 Price: $19.69

Expected to Ship in 5-8 Days
25
90109-10024-00 bolt Supersedes: 90109-10007-00 (BOLT) Price: $9.72

Expected to Ship in 5-8 Days
26
90201-10035-00 washer, plate Price: $5.15

Expected to Ship in 5-8 Days
27
95617-10100-00 nut, u Supersedes: 95601-10100-00 (NUT, U) Price: $10.86

In Stock
28
5PX-21652-00-00 protector Price: $10.29

Expected to Ship in 5-8 Days
29
3D8-22311-10-00 case, chain Retail: $254.95 Price: $204.20

Expected to Ship in 5-8 Days
30
3D8-22351-00-00 reinf.,1 Price: $9.15

Expected to Ship in 5-8 Days
31
90480-13080-00 grommet Price: $2.63

Expected to Ship in 5-8 Days
32
90387-06146-00 collar Price: $10.86

Expected to Ship in 5-8 Days
33
90149-06302-00 screw Supersedes: 90149-06022-00 (SCREW) Price: $7.42

Expected to Ship in 5-8 Days
34
3D8-2213J-00-00 stay, chain case Retail: $17.91 Price: $15.40

Expected to Ship in 5-8 Days
35
90480-13004-00 grommet Price: $10.29

Expected to Ship in 5-8 Days
36
90387-06171-00 collar Price: $10.86

Expected to Ship in 5-8 Days
37
90111-06038-00 bolt, hex. socket button Supersedes: 90111-06168-00 (BOLT,HEX. SOCKET BUTTON) Price: $5.32

Expected to Ship in 5-8 Days
38
95380-06600-00 nut, hexagon Supersedes: 95301-06600-00 (NUT) Price: $5.61

In Stock
39
90480-13004-00 grommet Price: $10.29

Expected to Ship in 5-8 Days
40
90201-06095-00 washer, plate Supersedes: 90201-06063-00 (WASHER, PLATE) Price: $10.86

In Stock
41
90149-06302-00 screw Supersedes: 90149-06022-00 (SCREW) Price: $7.42

Expected to Ship in 5-8 Days
42
3D8-22312-00-00 case, chain 2 Retail: $54.76 Price: $47.09

Expected to Ship in 5-8 Days
43
90387-06106-00 collar Supersedes: 90387-06022-00 (COLLAR) Price: $9.72

Expected to Ship in 5-8 Days
44
90111-06038-00 bolt, hex. socket button Supersedes: 90111-06168-00 (BOLT,HEX. SOCKET BUTTON) Price: $5.32

Expected to Ship in 5-8 Days
45
3D8-22341-10-00 plate, guide 1 Price: $10.86

Expected to Ship in 5-8 Days
46
90183-06069-00 nut, spring Supersedes: 90183-06053-00 (NUT, SPRING) Price: $8.57

In Stock
47
90149-06298-00 screw Supersedes: 90111-06078-00 (SCREW) Price: $7.42

In Stock
48
3D8-22210-20-00 shock absorber assy, rear Supersedes: 3D8-22210-00-00 (SHOCK ABSORBER ASSY, REAR) Retail: $545.77 Price: $431.16

Expected to Ship in 5-8 Days
49
90109-10028-00 bolt Price: $6.28

Expected to Ship in 5-8 Days
50
95602-10200-00 nut, u flange Price: $3.09

Expected to Ship in 5-8 Days
51
5YU-2143A-00-00 cap
This part is currently unavailable.

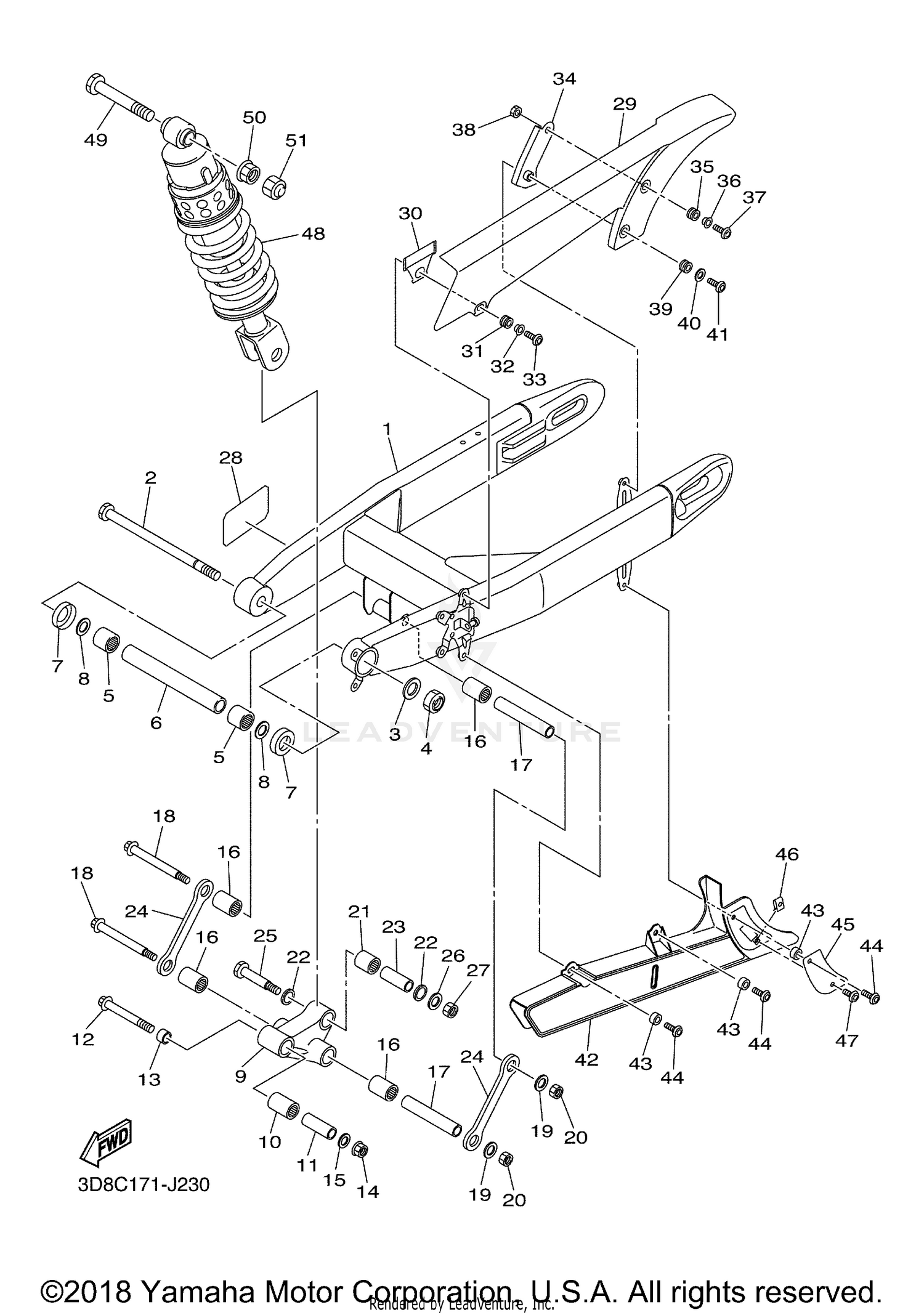

2012 Yamaha V STAR 1300 - XVS13ABR REAR ARM SUSPENSION
