# Part Retail Our Price

Stock Status Suggested Quantity
1
3D8-23102-20-00 front fork assy (l.h) Retail: $562.99 Price: $488.24

Expected to Ship in 5-8 Days
2
5KS-23126-10-00 tube, outer (left) Retail: $311.99 Price: $251.77

Expected to Ship in 5-8 Days
3
5BN-23193-00-00 guide, boot Price: $9.76

Expected to Ship in 5-8 Days
4
3D8-23110-00-00 inner tube comp. 1 Retail: $257.99 Price: $206.39

Expected to Ship in 5-8 Days
5
5BN-23171-00-00 piston, front fork Retail: $24.99 Price: $21.49

In Stock
6
3D8-23170-10-00 cylinder comp., front fork Retail: $168.99 Price: $135.19

Expected to Ship in 5-8 Days
7
4FM-23125-40-00 metal, slide 1 Retail: $36.99 Price: $31.81

In Stock
8
36Y-23146-10-00 washer, oil seal Supersedes: 1TP-23146-00-00 (WASHER, OIL SEAL) Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
9
4EB-23145-01-00 oil seal Supersedes: 4EB-23145-00-00 (OIL SEAL) Retail: $31.99 Price: $27.51

In Stock
5VU-23145-00-00 oil seal INCL. IN FORK SEAL KIT Retail: $32.99 Price: $28.37

In Stock
4EB-23144-00-00 seal, dust Retail: $24.99 Price: $21.49

In Stock
5VU-23145-00-00 oil seal INCL. IN FORK SEAL KIT Retail: $32.99 Price: $28.37

In Stock
4EB-23144-00-00 seal, dust Retail: $24.99 Price: $21.49

In Stock
10
26H-23156-00-00 ring, snap Supersedes: 1TP-23156-00-00 (CLIP, OIL SEAL) Price: $9.76

In Stock
11
3VD-23144-00-00 seal, dust INCL. IN FORK SEAL KIT Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
12
4YR-23173-00-00 spindle, taper Retail: $43.99 Price: $37.83

Expected to Ship in 5-8 Days
13
509-23158-L0-00 gasket Supersedes: 90201-10801-09 (GASKET) Retail: $17.99 Price: $15.47

In Stock
14
3D8-23181-00-00 bolt, hexagon socket head Supersedes: 3V9-F3181-00-00 (BOLT, HEXAGON SOCKET HEAD) Price: $10.91

Expected to Ship in 5-8 Days
15
3D8-23141-00-00 spring, front fork Retail: $87.99 Price: $71.27

Expected to Ship in 5-8 Days
16
4DW-23149-40-00 washer, spring upper Price: $8.61

Expected to Ship in 5-8 Days
17
5EL-23118-00-00 spacer Retail: $19.99 Price: $17.19

Expected to Ship in 5-8 Days
18
1D0-23111-00-00 bolt, cap Supersedes: 3EN-23111-50-00 (BOLT, CAP) Retail: $51.99 Price: $42.11

Expected to Ship in 5-8 Days
19
43F-23188-10-00 o-ring Price: $9.76

Expected to Ship in 5-8 Days
20
3D8-23103-20-00 front fork assy (r.h) Retail: $562.99 Price: $488.24

Expected to Ship in 5-8 Days
21
5KS-23136-10-00 tube, outer (right) Retail: $313.99 Price: $253.01

Expected to Ship in 5-8 Days
22
5BN-23193-00-00 guide, boot Price: $9.76

Expected to Ship in 5-8 Days
23
3D8-23110-00-00 inner tube comp. 1 Retail: $257.99 Price: $206.39

Expected to Ship in 5-8 Days
24
5BN-23171-00-00 piston, front fork Retail: $24.99 Price: $21.49

In Stock
25
3D8-23170-10-00 cylinder comp., front fork Retail: $168.99 Price: $135.19

Expected to Ship in 5-8 Days
26
4FM-23125-40-00 metal, slide 1 Retail: $36.99 Price: $31.81

In Stock
27
36Y-23146-10-00 washer, oil seal Supersedes: 1TP-23146-00-00 (WASHER, OIL SEAL) Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
28
4EB-23145-01-00 oil seal Supersedes: 4EB-23145-00-00 (OIL SEAL) Retail: $31.99 Price: $27.51

In Stock
29
26H-23156-00-00 ring, snap Supersedes: 1TP-23156-00-00 (CLIP, OIL SEAL) Price: $9.76

In Stock
30
3VD-23144-00-00 seal, dust INCL. IN FORK SEAL KIT Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
31
4YR-23173-00-00 spindle, taper Retail: $43.99 Price: $37.83

Expected to Ship in 5-8 Days
32
509-23158-L0-00 gasket Supersedes: 90201-10801-09 (GASKET) Retail: $17.99 Price: $15.47

In Stock
33
3D8-23181-00-00 bolt, hexagon socket head Supersedes: 3V9-F3181-00-00 (BOLT, HEXAGON SOCKET HEAD) Price: $10.91

Expected to Ship in 5-8 Days
34
3D8-23141-00-00 spring, front fork Retail: $87.99 Price: $71.27

Expected to Ship in 5-8 Days
35
4DW-23149-40-00 washer, spring upper Price: $8.61

Expected to Ship in 5-8 Days
36
5EL-23118-00-00 spacer Retail: $19.99 Price: $17.19

Expected to Ship in 5-8 Days
37
1D0-23111-00-00 bolt, cap Supersedes: 3EN-23111-50-00 (BOLT, CAP) Retail: $51.99 Price: $42.11

Expected to Ship in 5-8 Days
38
43F-23188-10-00 o-ring Price: $9.76

Expected to Ship in 5-8 Days
39
91314-08040-00 bolt, hexagon socket head Supersedes: 91312-08040-00 (BOLT, HEXAGON SOCKET HEAD) Price: $10.91

In Stock
40
93399-99932-00 bearing Retail: $69.99 Price: $56.69

In Stock
41
3FV-23462-00-00 seal, steering Retail: $26.99 Price: $23.21

Expected to Ship in 5-8 Days
42
5S7-23340-01-00 under bracket comp. Supersedes: 5S7-23340-00-00 (UNDER BRACKET COMP.) Retail: $419.99 Price: $337.27

Expected to Ship in 5-8 Days
43
91314-10020-00 bolt, hexagon socket head Price: $10.91

Expected to Ship in 5-8 Days
44
3D8-23123-00-00 cover, under 1 Retail: $244.99 Price: $195.99

Expected to Ship in 5-8 Days
45
3D8-23121-00-00 cover, upper 1 Retail: $306.99 Price: $242.52

Expected to Ship in 5-8 Days
46
3D8-23163-00-00 gasket Retail: $14.99 Price: $12.89

Expected to Ship in 5-8 Days
47
3D8-23394-20-00 bolt, special Price: $6.31

Expected to Ship in 5-8 Days
48
5VU-W003B-00-00 fork seal kit Retail: $50.99 Price: $41.30

In Stock

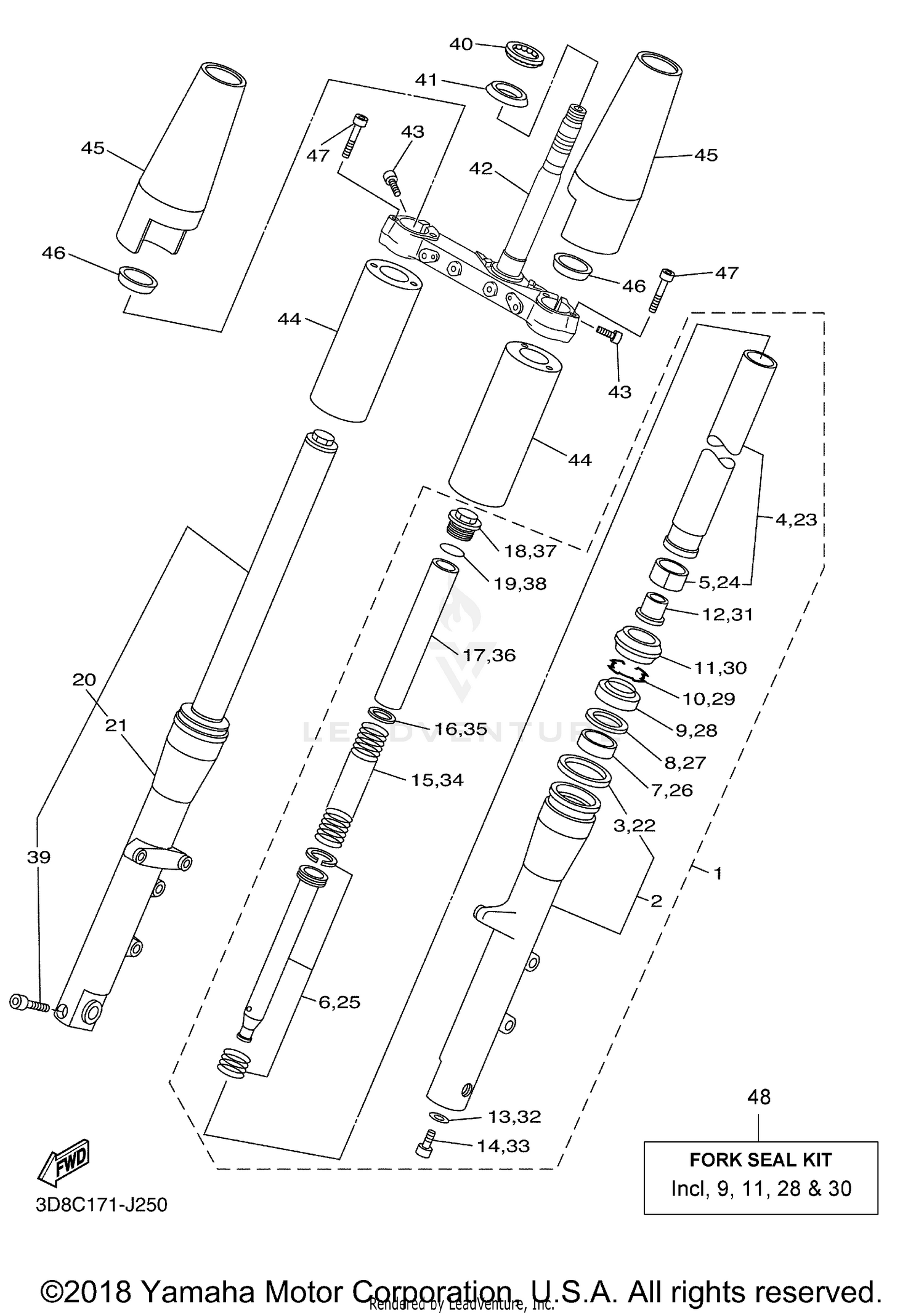

2012 Yamaha V STAR 1300 - XVS13ABR FRONT FORK
