More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
1LX-23102-L0-00 front fork assembly lh
This part is currently unavailable.
2
1LX-23126-L0-00 tube, outer 1 Retail: $294.99 Price: $235.99

Expected to Ship in 5-8 Days
3
4V4-23153-L0-00 ring, snap Retail: $10.99 Price: $9.45

In Stock
4
23X-23145-L0-00 oil seal Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
5
5EB-23125-00-00 metal, slide 1 Supersedes: 3XJ-23125-L0-00 (METAL, SLIDE 1) Retail: $35.99 Price: $30.95

In Stock
6
23X-23144-L0-00 seal, dust Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
7
4V4-23146-L0-00 washer, oil seal Price: $8.61

Expected to Ship in 5-8 Days
8
1LX-23110-L0-00 inner tube 1
This part is currently unavailable.
9
4V4-23171-L0-00 piston, front fork
This part is currently unavailable.
10
1LX-23170-L0-00 cylinder, front fork
This part is currently unavailable.
11
55Y-23152-M0-00 spring, sub
This part is currently unavailable.
12
4V4-23157-L0-00 ring, piston front fork Retail: $19.99 Price: $17.19

Expected to Ship in 5-8 Days
13
23X-23173-L0-00 spindle, taper Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
14
39X-23141-00-00 spring, front fork std (k@0.3
This part is currently unavailable.
39X-23141-10-00 spring, front fork soft (k@0. AP UR (SOFT) Retail: $66.99 Price: $54.26

Expected to Ship in 5-8 Days
39X-23141-20-00 spring, front fork hard (k@0. AP UR (HARD) Retail: $76.99 Price: $62.36

Expected to Ship in 5-8 Days
1LV-23118-L0-00 spacer Supersedes: 1LX-23118-10-00 (SPACER (L5MM)) Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
39X-23141-10-00 spring, front fork soft (k@0. Retail: $66.99 Price: $54.26

Expected to Ship in 5-8 Days
39X-23141-20-00 spring, front fork hard (k@0. Retail: $76.99 Price: $62.36

Expected to Ship in 5-8 Days
1LV-23118-L0-00 spacer Supersedes: 1LX-23118-10-00 (SPACER (L5MM)) Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
15
4V4-23142-L0-00 seat, spring upper Supersedes: 3GM-23142-00-00 (SEAT, SPRING UPPER) Retail: $11.99 Price: $10.31

Expected to Ship in 5-8 Days
16
5X6-23118-10-00 spacer (l=80) Retail: $12.99 Price: $11.17

Expected to Ship in 5-8 Days
17
23X-23158-L0-00 gasket Price: $5.58

Expected to Ship in 5-8 Days
18
122-23129-00-00 gasket, drain plug Price: $9.76

Expected to Ship in 5-8 Days
19
98517-04006-00 screw, pan head Supersedes: 98502-04006-00 (SCREW, PAN HEAD (98511-04006-) Price: $5.18

In Stock
20
1LX-23144-L0-00 seal, dust
This part is currently unavailable.
21
43M-23111-L0-00 bolt, cap
This part is currently unavailable.
22
23X-23190-L0-00 air valve comp. Retail: $73.99 Price: $59.93

Expected to Ship in 5-8 Days
23
4V4-23188-L1-00 o-ring Supersedes: 4V4-23188-L0-00 (O-RING) Price: $7.46

Expected to Ship in 5-8 Days
24
3J2-23147-00-00 o-ring Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
25
56A-2316A-L0-00 valve Supersedes: 55Y-2316A-R0-00 (VALVE)
This part is currently unavailable.
26
55Y-2312G-M0-00 plug Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
27
1LX-23103-L0-00 front fork assembly rh
This part is currently unavailable.
28
1LX-23136-L0-00 tube, outer 2 Retail: $284.99 Price: $227.99

Expected to Ship in 5-8 Days
29
4V4-23153-L0-00 ring, snap Retail: $10.99 Price: $9.45

In Stock
30
23X-23145-L0-00 oil seal Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
31
5EB-23125-00-00 metal, slide 1 Supersedes: 3XJ-23125-L0-00 (METAL, SLIDE 1) Retail: $35.99 Price: $30.95

In Stock
32
23X-23144-L0-00 seal, dust Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
33
4V4-23146-L0-00 washer, oil seal Price: $8.61

Expected to Ship in 5-8 Days
34
1LX-23110-L0-00 inner tube 1
This part is currently unavailable.
35
4V4-23171-L0-00 piston, front fork
This part is currently unavailable.
36
1LX-23170-L0-00 cylinder, front fork
This part is currently unavailable.
37
55Y-23152-M0-00 spring, sub
This part is currently unavailable.
38
4V4-23157-L0-00 ring, piston front fork Retail: $19.99 Price: $17.19

Expected to Ship in 5-8 Days
39
23X-23173-L0-00 spindle, taper Retail: $35.99 Price: $30.95

Expected to Ship in 5-8 Days
40
39X-23141-00-00 spring, front fork std (k@0.3
This part is currently unavailable.
41
4V4-23142-L0-00 seat, spring upper Supersedes: 3GM-23142-00-00 (SEAT, SPRING UPPER) Retail: $11.99 Price: $10.31

Expected to Ship in 5-8 Days
42
5X6-23118-10-00 spacer (l=80) Retail: $12.99 Price: $11.17

Expected to Ship in 5-8 Days
43
23X-23158-L0-00 gasket Price: $5.58

Expected to Ship in 5-8 Days
44
122-23129-00-00 gasket, drain plug Price: $9.76

Expected to Ship in 5-8 Days
45
98517-04006-00 screw, pan head Supersedes: 98502-04006-00 (SCREW, PAN HEAD (98511-04006-) Price: $5.18

In Stock
46
1LX-23144-L0-00 seal, dust
This part is currently unavailable.
47
43M-23111-L0-00 bolt, cap
This part is currently unavailable.
48
23X-23190-L0-00 air valve comp. Retail: $73.99 Price: $59.93

Expected to Ship in 5-8 Days
49
4V4-23188-L1-00 o-ring Supersedes: 4V4-23188-L0-00 (O-RING) Price: $7.46

Expected to Ship in 5-8 Days
50
3J2-23147-00-00 o-ring Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
51
56A-2316A-L0-00 valve Supersedes: 55Y-2316A-R0-00 (VALVE)
This part is currently unavailable.
52
5Y3-23393-00-00 nut, special Price: $10.34

Expected to Ship in 5-8 Days
53
92995-06100-00 washer, spring Supersedes: 92990-06100-00 (WASHER, WAVE) Price: $3.97

Expected to Ship in 5-8 Days
54
1LX-23167-L0-00 holder, axle
This part is currently unavailable.
55
55Y-2312G-M0-00 plug Retail: $10.99 Price: $9.45

Expected to Ship in 5-8 Days
56
1LX-23340-L0-00 under bracket Retail: $395.99 Price: $312.83

Expected to Ship in 5-8 Days
57
90101-08340-00 bolt Price: $4.49

Expected to Ship in 5-8 Days
58
92990-08600-00 washer, plate Supersedes: 90201-08544-00 (WASHER, PLATE) Price: $3.11

Expected to Ship in 5-8 Days
59
92990-08100-00 washer, spring Supersedes: 92903-08100-00 (WASHER, SPRING) Price: $6.44

In Stock
60
95333-08600-00 nut Supersedes: 95301-08600-00 (NUT (6L2)) Price: $4.37

In Stock
61
1LX-23108-00-00 emblem
This part is currently unavailable.
62
43M-23191-L0-00 boot, front fork RED
This part is currently unavailable.
63
43M-23192-L0-00 band Retail: $22.99 Price: $19.77

In Stock
64
3LD-23489-00-00 band Retail: $32.99 Price: $28.37

Expected to Ship in 5-8 Days
65
98507-04018-00 screw, pan head Supersedes: 98502-04018-00 (SCREW, PAN HEAD) Price: $2.70

Expected to Ship in 5-8 Days

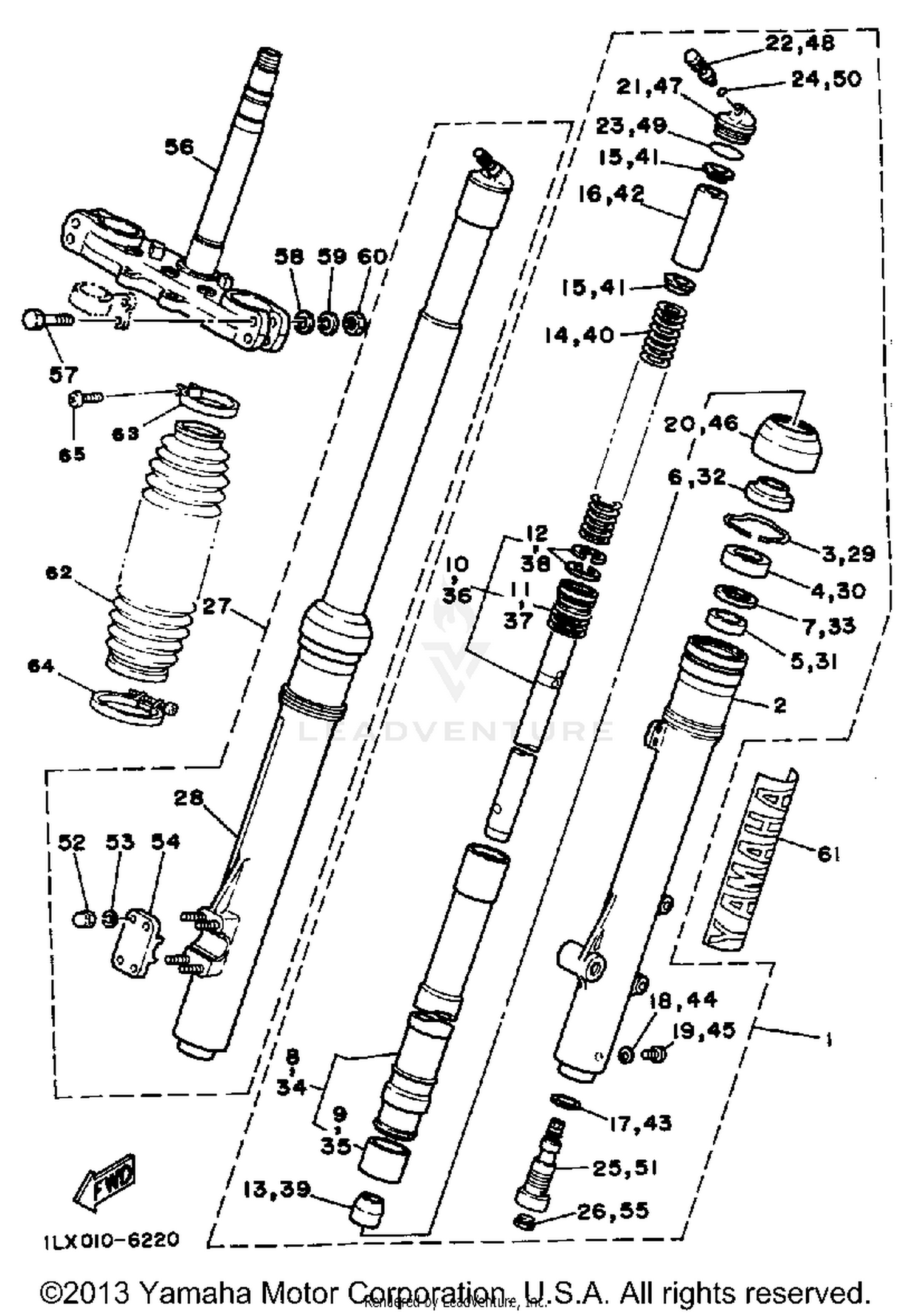

1986 Yamaha YZ125 FRONT FORK
