# Part Retail Our Price

Stock Status Suggested Quantity
1
13200-29FR0 carburetor assy Retail: $845.34 Price: $710.09

Expected to Ship in 4-9 Days
2
13573-07F00 .spring Retail: $14.71 Price: $5.74

In Stock
3
13418-33E00 .holder Price: $8.02

Expected to Ship in 4-9 Days
4
09280-05004 o-ring (d:1.9 id:4.8) Price: $2.80

In Stock
5
13481-04F00 .spring Price: $5.03

Expected to Ship in 4-9 Days
6
13382-19E00 .washer Price: $5.18

In Stock
7
13394-17E60 .e-ring multiple jet nozzle Price: $2.43

Expected to Ship in 4-9 Days
8
13387-13F00 .ring Retail: $10.04 Price: $5.74

In Stock
9
13291-29FA0 .washer Price: $4.17

Expected to Ship in 4-9 Days
10
13383-29FR0 .needle jet (5dh78) Retail: $16.74 Price: $15.73

Expected to Ship in 4-9 Days
11
09494-00939 .jet (p-0m) Retail: $54.31 Price: $50.51

Expected to Ship in 4-9 Days
12
13385-29FA0 .holder jet Retail: $36.73 Price: $34.53

Expected to Ship in 4-9 Days
13
13246-43011 .o ring Supersedes: 13246-43010 (O RING) Price: $6.13

In Stock
14
09491-28011 jet, main (140) Supersedes: 09491-28017 (.JET, MAIN (140)) Retail: $18.84 Price: $17.70

Expected to Ship in 4-9 Days
15
13507-17C02 .diaphragm Supersedes: 13507-17C00 (DIAPHRAGM) Retail: $36.41 Price: $34.23

Expected to Ship in 4-9 Days
16
13501-29FA0 .valve piston Retail: $89.15 Price: $82.91

In Stock
17
13504-14E00 .ring Price: $7.42

Expected to Ship in 4-9 Days
18
13370-29FA1 .valve assy needle Supersedes: 13370-29FA0 (VALVE ASSY,NEED) Retail: $67.78 Price: $63.04

In Stock
19
13250-04F00 .float assy Retail: $42.73 Price: $40.17

In Stock
20
13254-01010 .pin, float Price: $5.26

Expected to Ship in 4-9 Days
21
02112-0408A .screw Supersedes: 02112-04085 (SCREW) Price: $1.52

In Stock
22
13602-05A10 .screw Price: $5.03

Expected to Ship in 4-9 Days
23
09492-22014 .jet pilot (#22.5) Retail: $17.23 Price: $16.19

Expected to Ship in 4-9 Days
24
09491-62004 .jet, main (62.5)
This part is currently unavailable.
25
13258-04F00 .gasket Retail: $12.18 Price: $11.45

In Stock
26
13247-02340 screw, drain Supersedes: 13247-19C00 (SCREW, DRAIN) Price: $7.05

In Stock
27
02112-04107 .screw Price: $2.15

In Stock
28
02112-0412A .screw Supersedes: 02112-04123 (SCREW) Price: $1.72

In Stock
29
13671-29FA0 .clip Retail: $20.00 Price: $18.80

Expected to Ship in 4-9 Days
30
13267-29FA0 .screw adjust Retail: $67.04 Price: $62.35

Expected to Ship in 4-9 Days
31
13268-37420 .spring throttle screw Price: $6.58

Expected to Ship in 4-9 Days
32
13615-43010 .washer Price: $4.02

Expected to Ship in 4-9 Days
33
13295-29901 o-ring Supersedes: 13295-29900 (O RING) Price: $6.13

In Stock
34
13291-29900 .washer (14x17) Price: $2.41

In Stock
35
13268-48700 spring,throttle screw Price: $6.13

In Stock
36
13279-33E00 .adjuster (3.0) Retail: $13.43 Price: $12.62

Expected to Ship in 4-9 Days
37
13502-29FA0 .cover assy diaphragm Retail: $54.18 Price: $50.38

Expected to Ship in 4-9 Days
38
13247-33E00 .screw Price: $4.15

In Stock
39
13502-10F00 .cover assy Retail: $42.70 Price: $40.14

Expected to Ship in 4-9 Days
40
13481-41F20 .spring Price: $5.48

Expected to Ship in 4-9 Days
41
13480-10F01 .diaphragm assy Supersedes: 13480-10F00 (DIAPHRAGM ASSY) Retail: $20.65 Price: $19.42

In Stock
42
13601-04148 .screw Price: $3.89

In Stock
43
09493-23003 .jet pilot air (115)
This part is currently unavailable.
44
13420-29FA0 .plate assy Retail: $78.33 Price: $72.84

Expected to Ship in 4-9 Days
45
13415-38300 .e-ring Price: $2.57

Expected to Ship in 4-9 Days
46
13427-38300 .washer Price: $2.38

Expected to Ship in 4-9 Days
47
13682-31210 .cap, starter valve Price: $6.18

Expected to Ship in 4-9 Days
48
13418-44080 .holder, guide Retail: $12.65 Price: $11.90

Expected to Ship in 4-9 Days
49
13278-47091 .o ring (16) Supersedes: 13278-47090 (O RING) Price: $2.61

In Stock
50
13417-43010 .spring starter valve Price: $6.13

Expected to Ship in 4-9 Days
51
13411-29FA0 .plunger assy Retail: $33.58 Price: $31.57

Expected to Ship in 4-9 Days
52
13434-43010 .spring Supersedes: 13434-06B00 (SPRING) Price: $7.77

Expected to Ship in 4-9 Days
53
13596-93010 .steel ball Price: $5.48

Expected to Ship in 4-9 Days
54
13580-21F01 .sensor assy Supersedes: 13580-21F00 (.SENSOR ASSY) Retail: $106.69 Price: $90.69

Expected to Ship in 4-9 Days
55
13602-19B50 .screw Price: $4.84

In Stock
56
13387-29FA1 .ring Supersedes: 13387-29FA0 (RING) Retail: $14.95 Price: $14.06

Expected to Ship in 4-9 Days
57
13281-05A00 .plug Price: $6.50

In Stock
58
13671-14D01 .plate Supersedes: 13671-14D00 (.PLATE) Price: $5.16

Expected to Ship in 4-9 Days
59
13684-29FB1 .hose air vent (6.5x10.5) Supersedes: 13684-29FB0 (.HOSE) Retail: $33.18 Price: $31.19

Expected to Ship in 4-9 Days
60
13671-19F00 .clip Price: $6.35

Expected to Ship in 4-9 Days
61
13295-33010 .o-ring Price: $6.33

Expected to Ship in 4-9 Days
62
09404-06429 clamp (l:45)
This part is currently unavailable.
63
09404-08420 clamp (l:120 t:1.0) Supersedes: 09404-08413 (CLAMP, OVER FLOW HOSE LOW) Price: $4.48

In Stock
64
13682-29F00 hose vacuum Retail: $11.02 Price: $10.36

Expected to Ship in 4-9 Days
65
13683-29F10 hose Price: $6.66

Expected to Ship in 4-9 Days
66
09367-04009 joint Price: $5.71

Expected to Ship in 4-9 Days
67
09404-08422 clamp (l:80) Supersedes: 09404-08419 (CLAMP (L:80)) Price: $3.19

Expected to Ship in 4-9 Days
68
13650-25E01 heater assy carburetor (15w) OPT Retail: $47.85 Price: $44.98

Expected to Ship in 4-9 Days
69
13655-16F00 thermo switch carb heater OPT Retail: $71.00 Price: $66.03

Expected to Ship in 4-9 Days
70
13296-29F00 screw, stop OPT Retail: $17.95 Price: $16.88

Expected to Ship in 4-9 Days

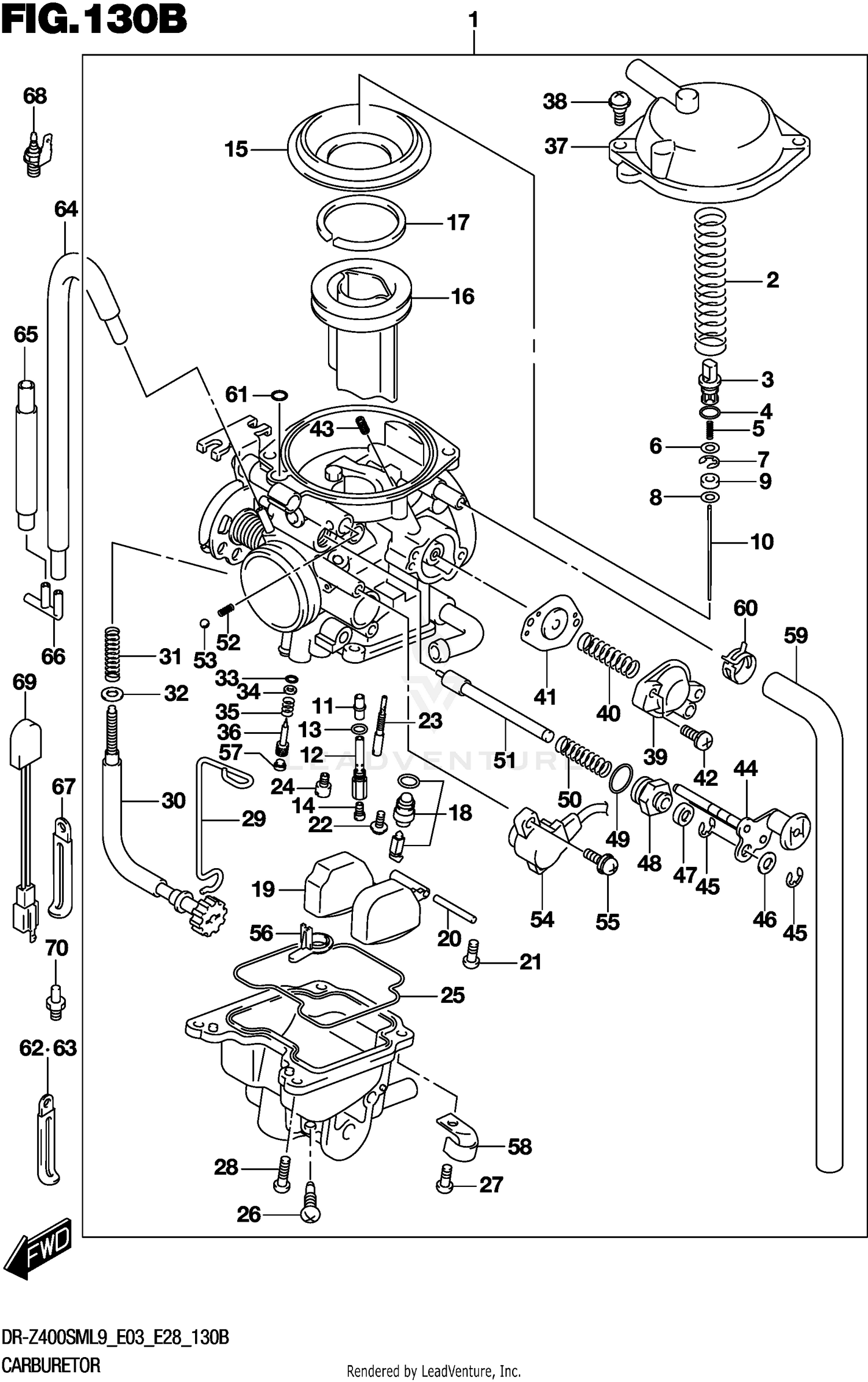

2019 Suzuki DRZ400SM CARBURETOR (DR-Z400SML9 E28)
