# Part Retail Our Price

Stock Status Suggested Quantity
1
32101-11H01 stator assy Supersedes: 32101-11H00 (STATOR ASSY, MAGNETO) Retail: $691.62 Price: $580.96

Expected to Ship in 4-9 Days
2
32102-11H00 rotor assy Retail: $879.05 Price: $738.40

Expected to Ship in 4-9 Days
3
07130-0635A bolt Price: $4.50

Expected to Ship in 4-9 Days
4
09420-05007 key Price: $5.55

Expected to Ship in 4-9 Days
5
31792-11H00 nut,magneto rotor Retail: $12.73 Price: $11.97

Expected to Ship in 4-9 Days
6
09100-05019 bolt (5x10) Price: $2.35

Expected to Ship in 4-9 Days
7
32371-11H00 clamp, magneto lead Price: $6.28

Expected to Ship in 4-9 Days
8
09100-05019 bolt (5x10) Price: $2.35

Expected to Ship in 4-9 Days

2nd air
air cleaner
battery
belt cooling duct
brake pedal
cam chain
camshaft/valve
carrier (lt-a500xpl6 p28)
carrier (lt-a500xpl6 p33)
carrier (lt-a500xpzl6 p28)
carrier (lt-a500xpzl6 p33)
crank balancer
crankcase
crankcase cover
crankshaft
cylinder
cylinder head
electrical
final bevel gear (front)
final bevel gear (rear)
footrest
frame
front box
front brake hose
front caliper
front drive shaft
front fender (lt-a500xpl6 p28)
front fender (lt-a500xpl6 p33)
front fender (lt-a500xpzl6 p28)
front fender (lt-a500xpzl6 p33)
front grille (lt-a500xpl6 p28)
front grille (lt-a500xpl6 p33)
front grille (lt-a500xpzl6 p28)
front grille (lt-a500xpzl6 p33)
front master cylinder
front suspension arm
front wheel
fuel pump
fuel tank
gasket set
gear shifting
handle cover (lt-a500xpl6 p28)
handle cover (lt-a500xpl6 p33)
handle cover (lt-a500xpzl6 p28)
handle cover (lt-a500xpzl6 p33)
handle lever
handlebar
headlamp (lt-a500xpl6 p28)
headlamp (lt-a500xpl6 p33)
headlamp (lt-a500xpzl6 p28)
headlamp (lt-a500xpzl6 p33)
label (lt-a500xpl6 p28)
label (lt-a500xpl6 p33)
label (lt-a500xpzl6 p28)
label (lt-a500xpzl6 p33)
lh rear wheel
MAGNETO
mudguard
muffler
oil pump
optional
optional (recoil starter)
radiator (lt-a500xpl6 p28)
radiator (lt-a500xpl6 p33)
radiator (lt-a500xpzl6 p28)
radiator (lt-a500xpzl6 p33)
radiator hose
rear box
rear brake
rear combination lamp (lt-a500xpl6 p28)
rear combination lamp (lt-a500xpl6 p33)
rear combination lamp (lt-a500xpzl6 p28)
rear combination lamp (lt-a500xpzl6 p33)
rear drive shaft
rear fender (lt-a500xpl6 p28)
rear fender (lt-a500xpl6 p33)
rear fender (lt-a500xpzl6 p28)
rear fender (lt-a500xpzl6 p33)
rear shock absorber
rear suspension arm
recoil cover
rh rear wheel
seat
secondary drive
shift lever
speedometer (lt-a500xpl6 p28)
speedometer (lt-a500xpl6 p33)
speedometer (lt-a500xpzl6 p28)
speedometer (lt-a500xpzl6 p33)
starter clutch
starting motor
steering knuckle
steering shaft
throttle body
transmission (1)
transmission (2)
water pump
wiring harness (lt-a500xpl6 p28)
wiring harness (lt-a500xpl6 p33)
wiring harness (lt-a500xpzl6 p28)
wiring harness (lt-a500xpzl6 p33)

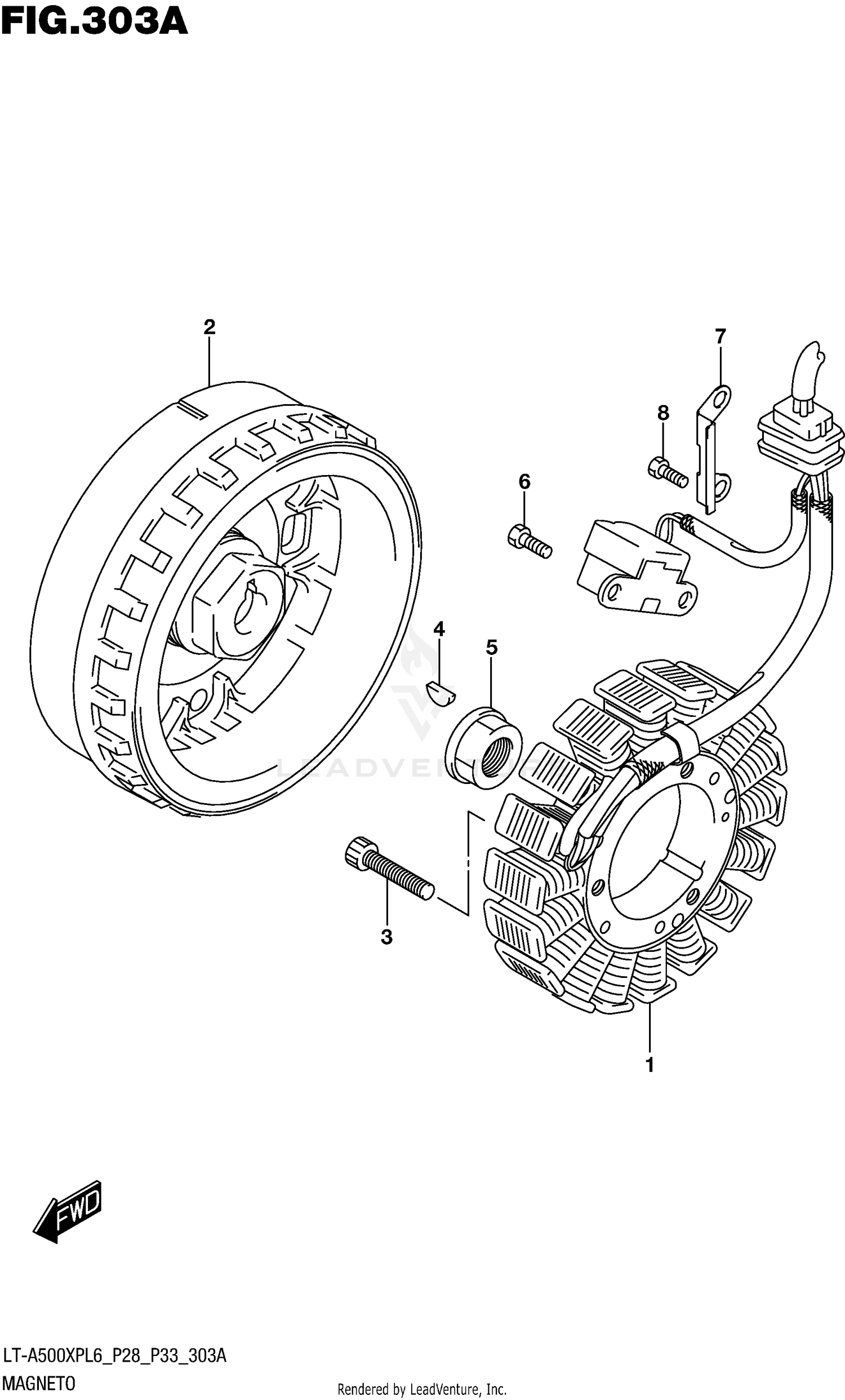

2016 Suzuki KING QUAD 500 XP MAGNETO
