# Part Retail Our Price

Stock Status Suggested Quantity
1
27153-31G42 boot,joint shaft Supersedes: 27153-31G40 (BOOT, JOINT SHAFT) Retail: $11.67 Price: $10.97

In Stock
2
27155-31G30 shaft, rear propeller Supersedes: 27155-31G20 (SHAFT, REAR PROPELLER) Retail: $99.69 Price: $84.74

Expected to Ship in 4-9 Days
3
27157-31G10 joint, rear propeller Retail: $79.81 Price: $74.22

Expected to Ship in 4-9 Days
4
27170-31G20 coupling, rr prop shaft Retail: $128.22 Price: $108.98

Expected to Ship in 4-9 Days
5
27592-31G10 .plate, output oil seal Retail: $11.36 Price: $10.68

Expected to Ship in 4-9 Days
6
27192-31G10 spring,rear propeller shaft Price: $8.70

Expected to Ship in 4-9 Days
7
27410-31G50 case assy, rear final gear Retail: $1,539.15 Price: $1,292.89

Expected to Ship in 4-9 Days
8
09259-20008-XC0 .plug Supersedes: 09259-20008 (PLUG, OIL FILLER) Price: $10.45

In Stock
9
27311-31G50 .gear, rr final drive bevel Retail: $312.30 Price: $262.33

Expected to Ship in 4-9 Days
9
27311-31G50 (nt:10) Retail: $312.30 Price: $262.33

Expected to Ship in 4-9 Days
10
27312-38F00 .stopper,final drive bearing Retail: $56.72 Price: $52.75

Expected to Ship in 4-9 Days
11
27320-31G00 .gear, rr final driven (nt:36 Retail: $342.37 Price: $287.59

Expected to Ship in 4-9 Days
12
27326-31810 .shim set, final driven lh T:0.30/0.35/0.40/0.5 Retail: $45.05 Price: $42.35

Expected to Ship in 4-9 Days
13
27327-31810 .shim set, final driven rh T:0.30/0.35/0.40/0.5 Retail: $41.90 Price: $39.39

Expected to Ship in 4-9 Days
14
27445-24810 .shim set,final drive gear (t T:0.30/0.35/0.40/0.5 Retail: $30.32 Price: $28.50

Expected to Ship in 4-9 Days
15
27451-31G10 .case, rear final gear lh Retail: $99.89 Price: $84.91

Expected to Ship in 4-9 Days
16
27460-31G10 .case, rear final gear rh Retail: $299.69 Price: $251.73

Expected to Ship in 4-9 Days
17
09364-08016 ..union Price: $4.96

Expected to Ship in 4-9 Days
18
09140-28006 .nut Retail: $18.86 Price: $17.72

Expected to Ship in 4-9 Days
19
09168-14002 .gasket (13.8x18.8x4.8)
This part is currently unavailable.
20
09181-28195 .shim (28x38x1) Supersedes: 08211-28381 (WASHER, RR FINAL DR GR) Price: $5.73

Expected to Ship in 4-9 Days
21
09247-14013 .plug Price: $2.95

Expected to Ship in 4-9 Days
22
09262-28023 .bearing (28x68x18) Retail: $133.72 Price: $113.66

Expected to Ship in 4-9 Days
23
09262-65001 .bearing (65x100x11) Retail: $146.70 Price: $124.70

Expected to Ship in 4-9 Days
24
09263-20062 bearing (20x34x18) Retail: $49.14 Price: $46.19

Expected to Ship in 4-9 Days
25
09263-55003 .bearing (55x67x20) Retail: $113.08 Price: $96.12

Expected to Ship in 4-9 Days
26
09280-00046 .o ring (d:2.45,id:156) Retail: $24.67 Price: $23.19

Expected to Ship in 4-9 Days
27
09280-17003 .o ring (d:3.1,id:16.8) Price: $2.28

In Stock
28
09283-59001 .oil seal (59x88x8) Retail: $32.50 Price: $30.55

Expected to Ship in 4-9 Days
29
09283-59001 .oil seal (59x88x8) Retail: $32.50 Price: $30.55

Expected to Ship in 4-9 Days
30
09103-08357 bolt (8x35) Supersedes: 09103-08287 (BOLT (8X35)) Price: $5.02

Expected to Ship in 4-9 Days
31
09103-10294 .bolt (10x45)
This part is currently unavailable.
32
27594-31G50 shaft, rr final drive Retail: $207.92 Price: $176.73

Expected to Ship in 4-9 Days
33
09103-10148 bolt (10x110) Price: $9.68

Expected to Ship in 4-9 Days
34
09103-10405 bolt (10x30) Price: $4.79

Expected to Ship in 4-9 Days
35
09159-14010 nut Retail: $14.76 Price: $13.87

Expected to Ship in 4-9 Days
36
09181-14002 shim (14x26x2) Retail: $3.63 Price: $0.76

In Stock
37
09280-20002 .o-ring (d:3.1,id:19.4) Price: $2.65

Expected to Ship in 4-9 Days
38
27491-31G00 hose, breather Retail: $46.54 Price: $43.75

Expected to Ship in 4-9 Days
39
09401-10403 clip Price: $2.31

Expected to Ship in 4-9 Days
40
09159-10115 nut Supersedes: 09159-10058-A05 (NUT) Price: $4.95

In Stock
41
09408-00235 clamp Price: $3.37

Expected to Ship in 4-9 Days
42
09280-26006 o ring (d:3.1,id:26.4) Price: $3.84

In Stock

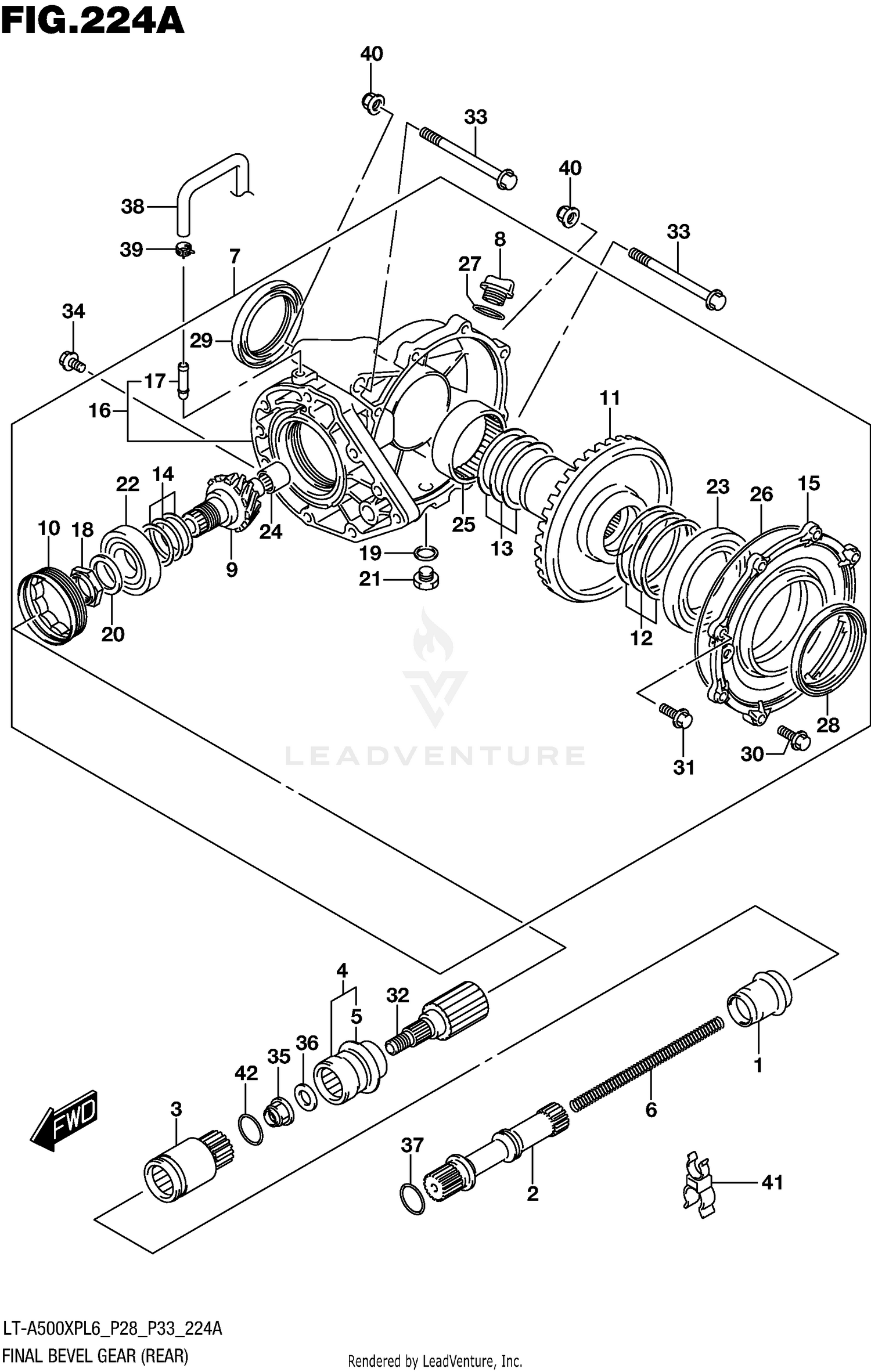

2016 Suzuki KING QUAD 500 XP FINAL BEVEL GEAR (REAR)
