# Part Retail Our Price

Stock Status Suggested Quantity
1
24911-19B00 gear, drive bevel NT:16
This part is currently unavailable.
1A
24921-19B00 gear, driven bevel NT:17
This part is currently unavailable.
2
24935-03811 shim set,sec drive bevel T:0.30/0.35/0.90/0.95/ 1.00/1.05/1.10/1.15 Supersedes: 24935-19810 (SHIM SET, SEC DRIVE BEVEL) Retail: $13,664.72 Price: $11,614.74

Expected to Ship in 4-9 Days
3
09164-20007 washer Price: $523.18

In Stock
4
09140-20001 nut Supersedes: 09140-20002 (NUT) Price: $441.29

In Stock
5
09267-25014 bearing (25x52x20.6) Supersedes: 09267-25006 (BEARING, REAR OUTPUT) Retail: $12,311.72 Price: $11,450.05

Expected to Ship in 4-9 Days
6
09263-30050 bearing (30x50x17) Supersedes: 09263-30010 (BEARING, REAR) Retail: $5,644.04 Price: $5,305.56

Expected to Ship in 4-9 Days
7
09390-50002 ring Price: $346.66

Expected to Ship in 4-9 Days
8
24961-19B01 shaft, secondary output MODEL V Supersedes: 24961-19B00 (SHAFT, SECONDARY OUTPUT) Retail: $16,183.30 Price: $13,755.71

Expected to Ship in 4-9 Days
8
24961-19B01 shaft, secondary output MODEL W Retail: $16,183.30 Price: $13,755.71

Expected to Ship in 4-9 Days
9
09181-25186 shim (t:0.50) MODEL V Supersedes: 08221-25365 (SHIM (T:0.50)) Price: $448.57

Expected to Ship in 4-9 Days
9
09181-25186 shim (t:0.50) MODEL W Supersedes: 08221-25365 (SHIM (T:0.50)) Price: $448.57

Expected to Ship in 4-9 Days
9
09181-25051 shim (t:0.60) Price: $398.53

Expected to Ship in 4-9 Days
9
09181-25052 shim (t:0.65) Price: $398.53

Expected to Ship in 4-9 Days
9
09181-25160 shim (25x34x0.7) Supersedes: 09181-25053 (WASHER) Price: $316.64

Expected to Ship in 4-9 Days
9
09181-25054 shim (t:0.75) Price: $398.53

Expected to Ship in 4-9 Days
9
09181-25162 shim 0.8 Supersedes: 09181-25055 (SHIM (T:0.80))
This part is currently unavailable.
9
09181-25056 shim (t:0.85) Price: $390.34

Expected to Ship in 4-9 Days
9
09181-25164 shim 0.9 Supersedes: 09181-25057 (SHIM (T:0.90))
This part is currently unavailable.
9
09181-25058 shim (t:0.95) Price: $398.53

Expected to Ship in 4-9 Days
9
09181-25167 washer, 5th drive Supersedes: 09181-25059 (WASHER, 5TH DRIVE) Price: $415.81

Expected to Ship in 4-9 Days
9
09181-25060 shim (t:1.05) Price: $390.34

Expected to Ship in 4-9 Days
9
09181-25061 shim (t:1.10) Price: $438.56

Expected to Ship in 4-9 Days
9
09181-25062 shim (t:1.15) Price: $438.56

Expected to Ship in 4-9 Days
9
09181-25063 shim (t:1.20) Price: $430.37

Expected to Ship in 4-9 Days
10
09283-34008 oil seal Retail: $2,365.71 Price: $2,223.77

In Stock
11
08331-3124A circlip, engine sprocket Supersedes: 08331-31246 (CIRCLIP, OUTPUT SHAFT) Price: $269.32

In Stock
12
27551-19B11 shaft,rear fina Supersedes: 27551-19B10 (SHAFT,REAR FINA) Retail: $29,672.42 Price: $25,221.24

Expected to Ship in 4-9 Days
13
27541-19B10 gear, driven (nt:62) Retail: $18,387.96 Price: $15,630.09

Expected to Ship in 4-9 Days
14
09262-25073 bearing (25x62x17) Retail: $2,958.05 Price: $2,780.62

Expected to Ship in 4-9 Days
15
09283-34008 oil seal Retail: $2,365.71 Price: $2,223.77

In Stock
16
27501-19B80 joint, rear final output Includes Item(s) 17 - 18 Supersedes: 27501-19B70 (JOINT, REAR FINAL OUTPUT) Retail: $39,692.13 Price: $33,341.09

Expected to Ship in 4-9 Days
17
27592-19B80 cover, universal joint Supersedes: 27592-19B70 (COVER, OUT PUT OIL SEAL) Retail: $3,847.92 Price: $3,616.81

Expected to Ship in 4-9 Days
18
27593-19B70 cover, universal joint Retail: $2,683.26 Price: $2,522.21

Expected to Ship in 4-9 Days
19
27153-19B71 boot,universal Supersedes: 27153-19B70 (BOOT,UNIVERSAL) Retail: $1,712.41 Price: $1,609.59

Expected to Ship in 4-9 Days
20
44123-60A00 clamp, universal joint Retail: $2,645.05 Price: $2,486.72

Expected to Ship in 4-9 Days
21
09381-24001 ring (od:24,d:1.6) Price: $317.55

Expected to Ship in 4-9 Days
22
08331-31409 circlip Supersedes: 08331-31406 (CIRCLIP)
This part is currently unavailable.
23
27150-19B00 propeller shaft Retail: $23,703.54 Price: $20,147.69

Expected to Ship in 4-9 Days
24
27170-19B00 coupling Retail: $29,672.42 Price: $25,221.24

Expected to Ship in 4-9 Days
25
27200-73814 joint set,universal rr Includes Item(s) 26 Supersedes: 27200-73813 (JOINT, UNIVERSAL) Retail: $5,949.77 Price: $5,593.09

Expected to Ship in 4-9 Days
26
09380-25005 circlip Price: $221.10

Expected to Ship in 4-9 Days
27
01500-1045A bolt Supersedes: 01500-10453 (BOLT) Price: $406.72

Expected to Ship in 4-9 Days
28
08316-1010B nut Supersedes: 08316-10103 (NUT) Price: $346.66

In Stock
29
27190-19B71 protector Supersedes: 27190-19B70 (PROTECTOR) Retail: $7,529.33 Price: $7,002.51

Expected to Ship in 4-9 Days
30
01550-0612A bolt, clamp Supersedes: 01517-06125 (BOLT, PLATE) Price: $256.58

In Stock
31
08321-0106A lock washer Supersedes: 08321-21064 (WASHER) Price: $239.30

In Stock
32
09160-06128 washer (6.5x15x1.6) MODEL V Supersedes: 09160-06092 (WASHER (6.3X15X1.60)) Price: $262.95

Expected to Ship in 4-9 Days
32
09160-16026 washer (6.5x15x1.60) MODEL W Price: $570.50

Expected to Ship in 4-9 Days
33
08310-0006A nut Supersedes: 08310-00063 (NUT) Price: $239.30

Expected to Ship in 4-9 Days
34
27153-62021 boot Retail: $1,651.45 Price: $1,552.27

Expected to Ship in 4-9 Days
35
27130-19B10 yoke, fr drive output Includes Item(s) 36 - 39 Supersedes: 27130-19B00 (YOKE, FRONT DRIVE OUTPUT) Retail: $18,786.49 Price: $15,968.56

Expected to Ship in 4-9 Days
36
09165-30003 plate Price: $703.34

Expected to Ship in 4-9 Days
37
27591-19B01 collar Retail: $2,282.00 Price: $2,145.52

Expected to Ship in 4-9 Days
38
27592-19B00 plate, oil seal Retail: $933.54 Price: $877.13

Expected to Ship in 4-9 Days
39
09280-28007 o ring Price: $269.32

Expected to Ship in 4-9 Days
40
27140-19B00 yoke, propeller shaft joint Retail: $12,826.71 Price: $11,928.65

Expected to Ship in 4-9 Days
41
09159-16004 nut Price: $440.38

Expected to Ship in 4-9 Days
42
09160-16026 washer (16x30x3) Price: $570.50

Expected to Ship in 4-9 Days

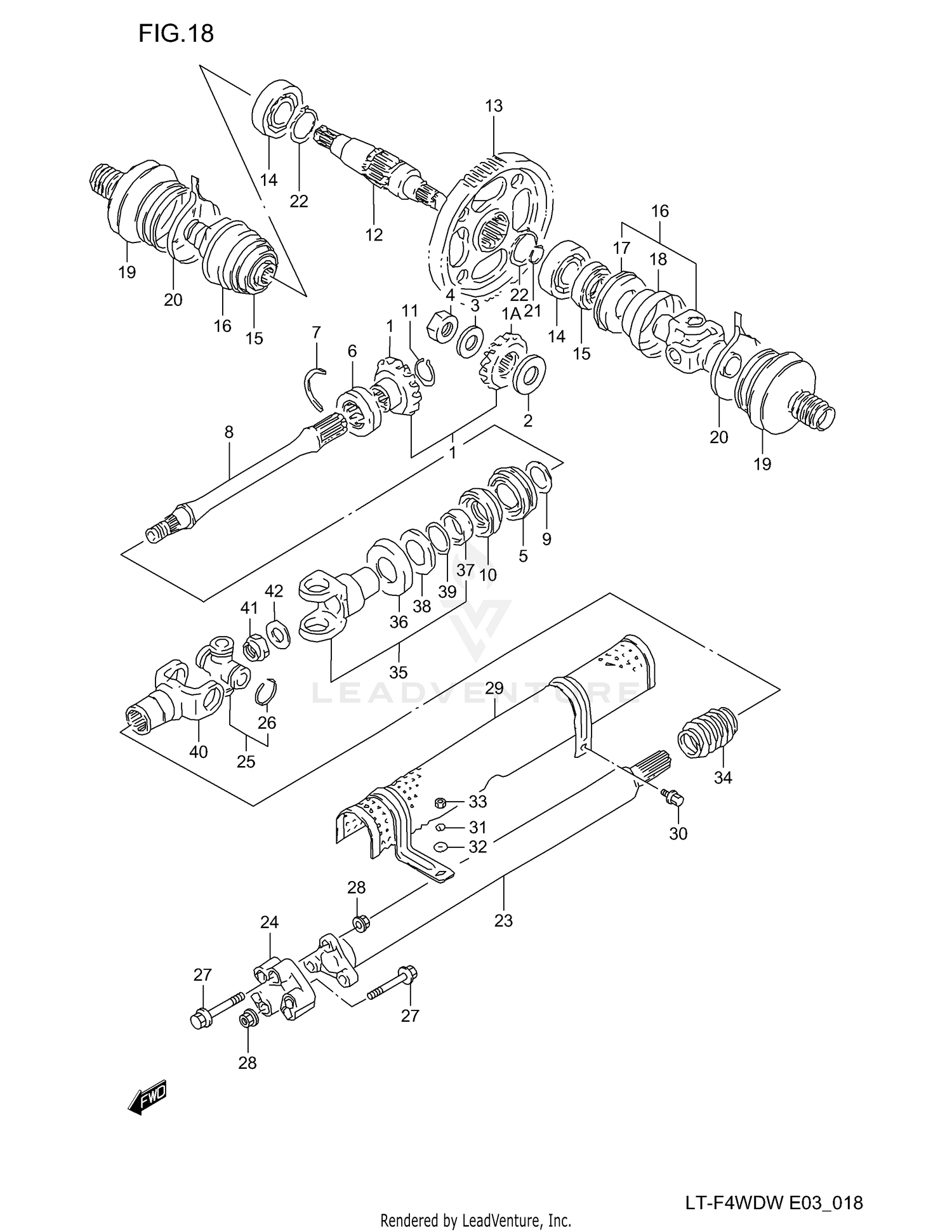

1998 Suzuki LT-F250F QUADRUNNER 4X4 SECONDARY GEAR - PROPELLER SHAFT
