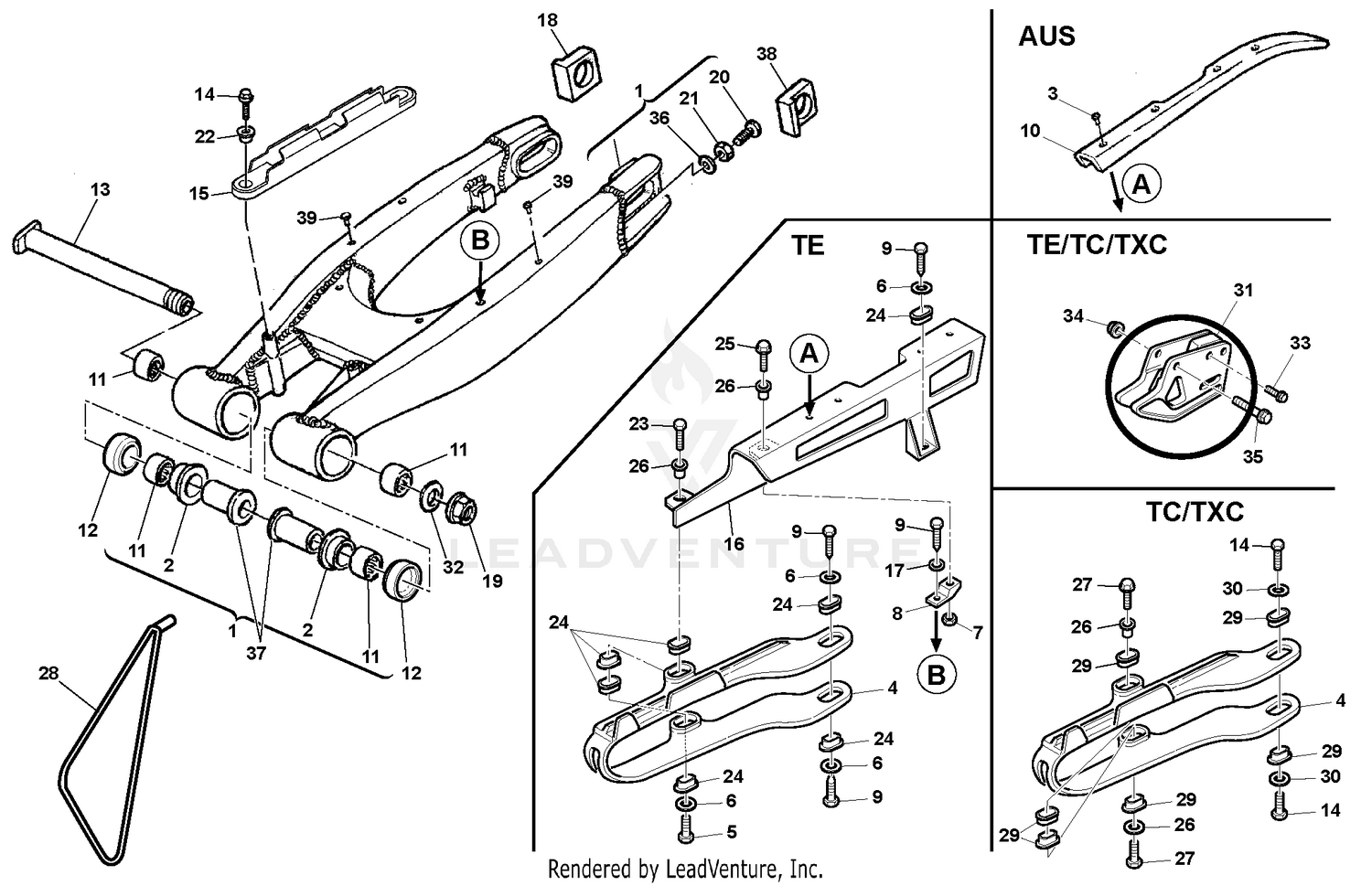

2013 Husqvarna TE 310 Rear Swing Arm
![Genuine husqvarna OEM Parts]()
Set this as my ride
-
# Part Retail Our PriceStock Status Suggested Quantity
-
1
8000H0680 swing arm assy.This part is currently unavailable.
-
2
Z00071622 bush Supersedes: 800071622 (Bushing)This part is currently unavailable.
-
3
Z00081628 self tapping screw To issue /TE 250 model/Only for AUS. Supersedes: 800081628 (Screw (Aus) | Not for U.S.A)This part is currently unavailable.
-
4
8000H1320 chain slider Supersedes: 800099619 (Chain Slider)This part is currently unavailable.
-
5
Z00067997 screw TE 250 model/TE 310 model Supersedes: Z00066525 (Flange Bolt)This part is currently unavailable.
-
6
Z00036137 washer d11-d5,5-sp1,5 TE 250 model/TE 310 model Supersedes: 800036137 (Washer)This part is currently unavailable.
-
7
Z00056443 self locking nut TE 250 model/TE 310 model Supersedes: 800056443 (Nut)This part is currently unavailable.
-
8
8000H2125 spacer TE 250 model/TE 310 modelThis part is currently unavailable.
-
9
Z00020536 screw TE 250 model/TE 310 modelThis part is currently unavailable.
-
10
8000A2352 extension, chain guide To issue /TE 250 model/Only for AUS.This part is currently unavailable.
-
11
800076283 needle bearing 22x28x11This part is currently unavailable.
-
12
8000A6629 spacerThis part is currently unavailable.
-
13
8000H1549 rear fork pinThis part is currently unavailable.
-
14
Z00020536 screw TXC 250 model/TXC 310 model /TC 250 modelThis part is currently unavailable.
-
15
8000B1166 guide, hoseThis part is currently unavailable.
-
16
In Stock
-
17
Z00036137 washer d11-d5,5-sp1,5 TE 250 model/TXC 250 model Supersedes: 800036137 (Washer)This part is currently unavailable.
-
18
800096944 adjuster, chain rhThis part is currently unavailable.
-
19
Z00071623 nut flange Supersedes: 800071623 (Nut)This part is currently unavailable.
-
20
ZC0061121 screwThis part is currently unavailable.
-
21
Z00017810 nutThis part is currently unavailable.
-
22
800069282 bush 14x7x5.25This part is currently unavailable.
-
23
In Stock
-
24
8000H3033 cup TE 250 model/TE 310 model Supersedes: 800059289 (Cup)This part is currently unavailable.
-
25
ZC0067997 screw TE 250 model/TE 310 modelThis part is currently unavailable.
-
26
In Stock
-
27
Z00067997 screw TXC 310 model/TC 250 model /TXC 250 model Supersedes: Z00066525 (Flange Bolt)This part is currently unavailable.
-
28
800074016 rear standThis part is currently unavailable.
-
29
8000H3034 cup TXC 310 model/TC 250 model /TXC 250 modelThis part is currently unavailable.
-
30
Z00036137 washer d11-d5,5-sp1,5 Supersedes: 800036137 (Washer)This part is currently unavailable.
-
31
8000H7668 chain guide assembly Supersedes: 800072868 (Bracket)This part is currently unavailable.
-
32
800032388 washer 26x17.2x1.5This part is currently unavailable.
-
33
ZE0069056 flange boltThis part is currently unavailable.
-
34
In Stock
-
35
Expected to Ship in 4-9 Days
-
36
Z00008536 washerThis part is currently unavailable.
-
37
800071621 collar, swingarm 49.5 mmThis part is currently unavailable.
-
37
8A0071621 collar, swingarm 58.5 mmThis part is currently unavailable.
-
38
In Stock
-
39
800075160 rivetThis part is currently unavailable.
