# Part Retail Our Price

Stock Status Suggested Quantity
1
50252-KT0-670 band, sub-tank (not available)
This part is currently unavailable.
2
51453-KK0-004 cap, air valve Price: $5.34

Expected to Ship in 5-8 Days
3
524A2-KA3-731 case & nut set, rod guide (not available)
This part is currently unavailable.
4
52400-KT0-682ZA cushion assy., rr. *r119* (kayaba) (flash red) (not available)
This part is currently unavailable.
5
52401-KT0-681ZA spring, rr. shock absorber *r119* (flash red) (not available)
This part is currently unavailable.
6
52410-KT0-682 damper, rr. (not available)
This part is currently unavailable.
7
52421-KT0-681 rod, piston (not available)
This part is currently unavailable.
8
52422-KA3-731 seat, spring (upper) (kayaba) Retail: $33.14 Price: $27.17

Expected to Ship in 5-8 Days
9
52423-KA3-731 nut, adjuster
This part is currently unavailable.
10
52424-KS6-701 seat, spring (lower)
This part is currently unavailable.
10
52424-KS6-701 seat, spring (lower) Supersedes: 52424-KT1-671 (SEAT, SPRING (LOWER))
This part is currently unavailable.
11
52425-KT0-681 case, rr. shock absorber (not available)
This part is currently unavailable.
12
52426-KT0-681 rod (not available)
This part is currently unavailable.
13
52427-KT1-671 rubber, bumper Retail: $21.35 Price: $17.61

Expected to Ship in 5-8 Days
14
52428-KA3-731 cap, case (not available)
This part is currently unavailable.
15
52429-KA3-731 case, rod guide (kayaba)
This part is currently unavailable.
16
52429-KT0-671 dial, adjusting (not available)
This part is currently unavailable.
17
52430-KT0-671 tank assy., sub (not available)
This part is currently unavailable.
18
52431-KA3-731 ring, piston (kayaba) (not available)
This part is currently unavailable.
19
52435-KA3-731 ring, snap (not available)
This part is currently unavailable.
20
52437-KA3-731 core, valve
This part is currently unavailable.
21
52438-KA3-731 nut, hex. (12mm) Price: $4.08

Expected to Ship in 5-8 Days
22
52437-KA3-832 o-ring set (kayaba) (not available) Supersedes: 52439-KA3-731 (O-RING SET (KAYABA))
This part is currently unavailable.
23
52440-KT0-671 hose, joint (not available)
This part is currently unavailable.
24
52441-KA3-731 bolt, oil
This part is currently unavailable.
25
52442-KA3-731 washer, oil bolt Price: $2.80

Expected to Ship in 5-8 Days
26
52445-KT1-671 washer, spring seat (not available)
This part is currently unavailable.
27
52448-KS6-004 screw, pan (3x8) (not available)
This part is currently unavailable.
28
52448-KT0-681 screw, pan (3x8) (not available)
This part is currently unavailable.
29
52433-KK0-004 dial, sub-tank Supersedes: 52449-KA3-731 (DIAL, SUB-TANK)
This part is currently unavailable.
30
52451-MA0-000 bush, damper (lower) Retail: $18.31 Price: $15.11

In Stock
31
52455-KT0-671 spring, click
This part is currently unavailable.
32
52456-KT0-671 ball (not available)
This part is currently unavailable.
33
52457-KT0-671 dust seal (not available)
This part is currently unavailable.
34
52460-KT0-830 arm assy., shock absorber Retail: $359.60 Price: $287.68

Expected to Ship in 5-8 Days
35
52463-KT0-830 collar a, cushion arm
This part is currently unavailable.
36
52464-KT0-830 collar b, cushion arm
This part is currently unavailable.
37
52470-KT0-830 rod assy., shock connecting Retail: $209.69 Price: $169.85

Expected to Ship in 5-8 Days
38
52486-KA3-731 collar, shock absorber (upper) (not available)
This part is currently unavailable.
39
52487-KA3-731 ring, stopper
This part is currently unavailable.
40
87516-KT1-901 label, rr. damper warning (not available)
This part is currently unavailable.
41
90128-KT0-680 bolt, flange (12x90) Retail: $22.53 Price: $18.58

Expected to Ship in 5-8 Days
42
90129-KT0-680 bolt, flange (10x77)
This part is currently unavailable.
43
90150-KK0-000 bolt, flange (10x83) (not available)
This part is currently unavailable.
44
90151-KV6-910 bolt, flange (10x69) Supersedes: 90151-KF0-000 (BOLT, FLANGE (10X69))
This part is currently unavailable.
44
90151-KV6-910 bolt, flange (10x69) Supersedes: 90151-KF0-000 (BOLT, FLANGE (10X69))
This part is currently unavailable.
45
90153-KK0-000 bolt, flange (10x58) Supersedes: 90182-KA3-730 (BOLT, FLANGE (10X58)) Price: $9.59

Expected to Ship in 5-8 Days
45
90153-KK0-000 bolt, flange (10x58) Supersedes: 90182-KA3-730 (BOLT, FLANGE (10X58)) Price: $9.59

Expected to Ship in 5-8 Days
46
90304-GE8-003 nut, u (10mm) (fuse rashi) Price: $4.85

In Stock
47
90306-KF0-003 nut, flange (12mm) (fuserashi) Price: $5.08

In Stock
48
90351-KK0-004 o-ring (1.9x9.8) (not available)
This part is currently unavailable.
49
90501-KK6-700 washer (10mm) Supersedes: 90501-KK0-004 (WASHER (10MM))
This part is currently unavailable.
49
90501-KK6-700 washer (10mm)
This part is currently unavailable.
50
91077-GS2-702 bearing, needle (16x22x12) Retail: $22.71 Price: $18.73

In Stock
51
91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.84 Price: $21.31

Expected to Ship in 5-8 Days
51
91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.84 Price: $21.31

Expected to Ship in 5-8 Days
52
91079-KA3-831 bearing, needle (17.5x24.5x22) Retail: $33.65 Price: $27.77

Expected to Ship in 5-8 Days
53
91205-KT2-005 oil seal (17.5x26x5) Price: $6.95

In Stock
54
91251-KY7-003 dust seal (16x23x3.5) Price: $5.90

Expected to Ship in 5-8 Days
55
91351-KA3-731 dust seal, rr. shock (upper) (not available)
This part is currently unavailable.
56
94002-12000-0S nut, hex. (12mm) Price: $2.31

Expected to Ship in 5-8 Days
57
96300-06022-00 bolt, flange (6x22) Supersedes: 96500-06022-00 (BOLT, FLANGE (6X22)) Price: $1.68

In Stock
57
96300-06022-00 bolt, flange (6x22) Supersedes: 96500-06022-00 (BOLT, FLANGE (6X22)) Price: $1.68

In Stock

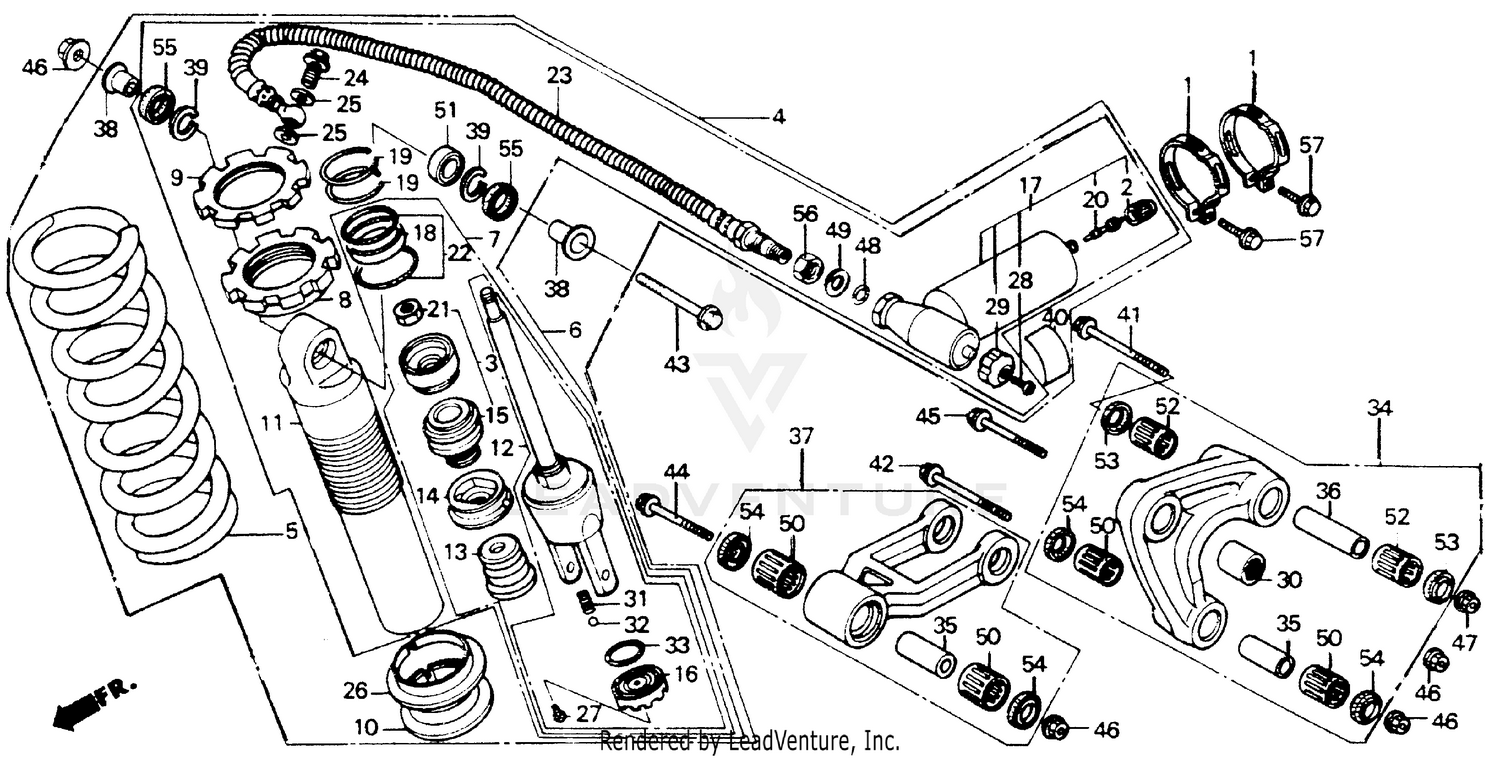

1990 Honda XR200 REAR SHOCK ABSORBER 90-91
