1987 Honda XR200 REAR SHOCK ABSORBER 86-88

Set this as my ride

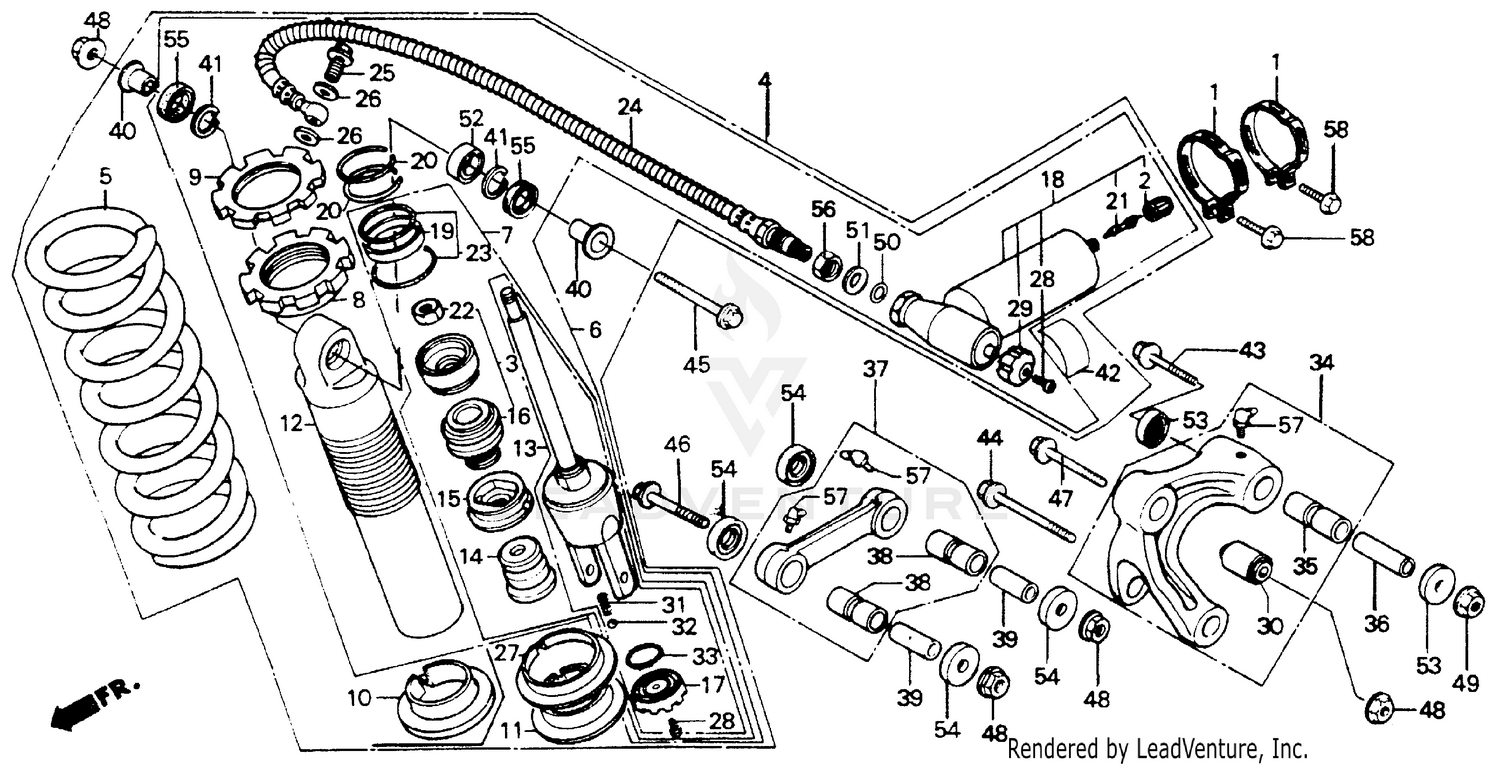

REAR SHOCK ABSORBER 86-88

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

  • # Part Retail Our Price
    Stock Status Suggested Quantity
  • 1
    50252-KT0-670 band, sub-tank (not available)
    This part is currently unavailable.
  • 2
    51453-KK0-004 cap, air valve Price: $5.20
    Expected to Ship in 5-8 Days
  • 3
    524A2-KA3-731 case & nut set, rod guide (not available)
    This part is currently unavailable.
  • 4
    52400-KT0-771 shock absorber assy., rr. (not available)
    This part is currently unavailable.
  • 5
    52401-KT0-671 spring, rr. shock absorber (not available)
    This part is currently unavailable.
  • 6
    52410-KT0-771 damper, rr. (not available)
    This part is currently unavailable.
  • 7
    52421-KT0-671 rod, piston (not available)
    This part is currently unavailable.
  • 8
    52422-KA3-731 seat, spring (upper) (kayaba) Retail: $33.14 Price: $27.17
    Expected to Ship in 5-8 Days
  • 9
    52423-KA3-731 nut, adjuster
    This part is currently unavailable.
  • 10
    52424-KA3-731 stopper, spring seat (not available)
    This part is currently unavailable.
  • 12
    52425-KK0-004 case, rr. shock absorber (not available)
    This part is currently unavailable.
  • 13
    52426-KT0-671 rod (not available)
    This part is currently unavailable.
  • 14
    52427-KT1-671 rubber, bumper Retail: $20.72 Price: $17.09
    Expected to Ship in 5-8 Days
  • 15
    52428-KA3-731 cap, case (not available)
    This part is currently unavailable.
  • 16
    52429-KA3-731 case, rod guide (kayaba)
    This part is currently unavailable.
  • 17
    52429-KT0-671 dial, adjusting (not available)
    This part is currently unavailable.
  • 18
    52430-KT0-671 tank assy., sub (not available)
    This part is currently unavailable.
  • 19
    52431-KA3-731 ring, piston (kayaba) (not available)
    This part is currently unavailable.
  • 20
    52435-KA3-731 ring, snap (not available)
    This part is currently unavailable.
  • 21
    52437-KA3-731 core, valve
    This part is currently unavailable.
  • 22
    52438-KA3-731 nut, hex. (12mm) Price: $3.97
    Expected to Ship in 5-8 Days
  • 23
    52437-KA3-832 o-ring set (kayaba) (not available) Supersedes: 52439-KA3-731 (O-RING SET (KAYABA))
    This part is currently unavailable.
  • 24
    52440-KT0-671 hose, joint (not available)
    This part is currently unavailable.
  • 25
    52441-KA3-731 bolt, oil
    This part is currently unavailable.
  • 26
    52442-KA3-731 washer, oil bolt Price: $2.73
    Expected to Ship in 5-8 Days
  • 28
    52448-KS6-004 screw, pan (3x8) (not available)
    This part is currently unavailable.
  • 29
    52433-KK0-004 dial, sub-tank Supersedes: 52449-KA3-731 (DIAL, SUB-TANK)
    This part is currently unavailable.
  • 30
    52451-MA0-000 bush, damper (lower) Retail: $17.79 Price: $14.67
    Expected to Ship in 5-8 Days
  • 31
    52455-KT0-671 spring, click
    This part is currently unavailable.
  • 32
    52456-KT0-671 ball (not available)
    This part is currently unavailable.
  • 33
    52457-KT0-671 dust seal (not available)
    This part is currently unavailable.
  • 34
    52460-KK0-010 arm, shock absorber Supersedes: 52460-KT0-670 (ARM ASSY., SHOCK ABSORBER)
    This part is currently unavailable.
  • 35
    52462-KF0-003 bush, cushion arm
    This part is currently unavailable.
  • 36
    52463-KF0-000 collar, cushion arm pivot
    This part is currently unavailable.
  • 37
    52470-KT0-670 rod assy., rubber connecting (not available)
    This part is currently unavailable.
  • 38
    52472-MA0-013 bush, cushion connecting rod Retail: $34.68 Price: $28.61
    Expected to Ship in 5-8 Days
  • 39
    52473-MA0-020 collar, connecting rod pivot Supersedes: 52473-MA0-010 (COLLAR, CONNECTING ROD PIVOT) Retail: $19.62 Price: $16.19
    Expected to Ship in 5-8 Days
  • 39
    52473-MA0-020 collar, connecting rod pivot Supersedes: 52473-MA0-010 (COLLAR, CONNECTING ROD PIVOT) Retail: $19.62 Price: $16.19
    Expected to Ship in 5-8 Days
  • 40
    52486-KA3-731 collar, shock absorber (upper) (not available)
    This part is currently unavailable.
  • 41
    52487-KA3-731 ring, stopper
    This part is currently unavailable.
  • 42
    87516-KT1-901 label, rr. damper warning (not available) Supersedes: 87516-KT1-771 (LABEL, RR. DAMPER WARNING)
    This part is currently unavailable.
  • 43
    90128-KF0-000 bolt, flange (12x90)
    This part is currently unavailable.
  • 44
    90129-KF0-000 bolt, flange (10x77) Retail: $17.48 Price: $14.42
    Expected to Ship in 5-8 Days
  • 45
    90150-KK0-000 bolt, flange (10x83) (not available)
    This part is currently unavailable.
  • 46
    90151-KV6-910 bolt, flange (10x69) Supersedes: 90151-KF0-000 (BOLT, FLANGE (10X69))
    This part is currently unavailable.
  • 46
    90151-KV6-910 bolt, flange (10x69) Supersedes: 90151-KF0-000 (BOLT, FLANGE (10X69))
    This part is currently unavailable.
  • 47
    90153-KK0-000 bolt, flange (10x58) Supersedes: 90182-KA3-730 (BOLT, FLANGE (10X58)) Price: $9.30
    In Stock
  • 48
    90304-GE8-003 nut, u (10mm) (fuse rashi) Price: $4.70
    In Stock
  • 49
    90306-KF0-003 nut, flange (12mm) (fuserashi) Price: $4.92
    In Stock
  • 50
    90351-KK0-004 o-ring (1.9x9.8) (not available)
    This part is currently unavailable.
  • 51
    90501-KK6-700 washer (10mm) Supersedes: 90501-KK0-004 (WASHER (10MM))
    This part is currently unavailable.
  • 51
    90501-KK6-700 washer (10mm)
    This part is currently unavailable.
  • 52
    91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.10 Price: $20.70
    Expected to Ship in 5-8 Days
  • 52
    91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.10 Price: $20.70
    Expected to Ship in 5-8 Days
  • 53
    91262-KR8-750 seal, cushion arm pivot (arai) Supersedes: 91261-KA3-711 (SEAL) Retail: $13.25 Price: $10.94
    Expected to Ship in 5-8 Days
  • 53
    91262-KR8-750 seal, cushion arm pivot (arai) Supersedes: 91261-KA3-711 (SEAL) Retail: $13.25 Price: $10.94
    Expected to Ship in 5-8 Days
  • 53
    91262-KR8-750 seal, cushion arm pivot (arai) Supersedes: 91261-KA3-711 (SEAL) Retail: $13.25 Price: $10.94
    Expected to Ship in 5-8 Days
  • 54
    91262-KA3-712 seal, rubber connecting rod pivot (arai) Supersedes: 91262-KA3-711 (SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)) Retail: $13.67 Price: $11.28
    Expected to Ship in 5-8 Days
  • 54
    91262-KA3-712 seal, cushion connecting rod pivot (arai) Supersedes: 91262-KA3-711 (SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)) Retail: $13.67 Price: $11.28
    Expected to Ship in 5-8 Days
  • 55
    91351-KA3-731 dust seal, rr. shock (upper) (not available)
    This part is currently unavailable.
  • 56
    94002-12000-0S nut, hex. (12mm) Price: $2.31
    Expected to Ship in 5-8 Days
  • 57
    96201-80000 nipple, grease (b.t6s) Price: $2.98
    Expected to Ship in 5-8 Days
  • 58
    96300-06022-00 bolt, flange (6x22) Supersedes: 96500-06022-00 (BOLT, FLANGE (6X22)) Price: $1.63
    In Stock
  • 58
    96300-06022-00 bolt, flange (6x22) Supersedes: 96500-06022-00 (BOLT, FLANGE (6X22)) Price: $1.63
    In Stock
