# Part Retail Our Price

Stock Status Suggested Quantity
1
50250-KA3-830 rubber, sub-tank mounting (not available)
This part is currently unavailable.
2
50251-KS7-000 rubber, sub-tank
This part is currently unavailable.
3
50252-KA4-730 band, sub-tank (not available)
This part is currently unavailable.
4
52400-ML3-672 shock absorber assy., rr. (showa)
This part is currently unavailable.
5
52401-ML3-671 spring, rr. shock absorber (49.03n/mm,5.0kgf/mm) (showa) (green)
This part is currently unavailable.
5
52402-ML3-671 spring, rr. shock absorber (4.6kgf/mm) (showa) (red) (Optional).
This part is currently unavailable.
5
52403-ML3-671 spring, rr. shock absorber (53.0n/mm,5.4kgf/mm) (showa) (gray) (Optional).
This part is currently unavailable.
6
52410-ML3-672 damper, rr. (showa)
This part is currently unavailable.
7
52417-KA4-831 seat, rubber (showa)
This part is currently unavailable.
8
52418-KA4-831 ring c, stopper (showa)
This part is currently unavailable.
9
52419-KA4-831 washer (showa)
This part is currently unavailable.
10
52421-ML3-671 rod, piston (showa)
This part is currently unavailable.
11
52422-KA4-831 adjuster, spring (showa)
This part is currently unavailable.
12
52423-KA4-831 nut, adjuster (showa)
This part is currently unavailable.
13
52424-KA4-831 stopper, spring seat
This part is currently unavailable.
14
52425-KS7-003 case, shock absorber (not available)
This part is currently unavailable.
15
52425-381-771 cap, air valve Price: $6.47

Expected to Ship in 5-8 Days
16
52426-KS7-003 rod (showa)
This part is currently unavailable.
17
52427-KA4-741 rubber, stopper Retail: $18.23 Price: $15.05

Expected to Ship in 5-8 Days
18
52428-KA4-832 plate, end (showa)
This part is currently unavailable.
19
52429-KA4-831 case, rod guide (showa) (not available)
This part is currently unavailable.
20
52430-ML3-671 tank assy., sub (showa)
This part is currently unavailable.
21
52431-KA4-831 ring, piston (showa) Retail: $17.64 Price: $14.55

Expected to Ship in 5-8 Days
22
52435-KA4-831 ring, stopper (showa)
This part is currently unavailable.
23
52436-KA4-841 oil seal set (showa)
This part is currently unavailable.
24
52437-KA4-841 o-ring set (showa) Retail: $11.20 Price: $9.23

Expected to Ship in 5-8 Days
25
52440-KA4-831 hose, joint (showa)
This part is currently unavailable.
26
52441-KA3-711 bolt, oil (10x22)
This part is currently unavailable.
27
52442-KA3-711 washer, special (10mm) Price: $2.81

In Stock
28
52448-KS7-003 screw, cross-recessed head machine
This part is currently unavailable.
29
52449-KS7-701 plate b, adjusting Supersedes: 52449-KS7-003 (PLATE, ADJUSTING)
This part is currently unavailable.
29
52449-KS7-701 plate b, adjusting
This part is currently unavailable.
30
52458-KS7-003 seat, spring (lower) (showa)
This part is currently unavailable.
31
52459-KS7-003 seat c, spring (showa)
This part is currently unavailable.
32
52460-KA3-831 arm assy., shock absorber (not available)
This part is currently unavailable.
33
52462-KA3-831 bush, damper arm
This part is currently unavailable.
34
52463-KA3-830 collar, cushion arm pivot
This part is currently unavailable.
35
52464-KA3-830 collar, cushion arm
This part is currently unavailable.
36
52470-KS6-000 rod assy., rubber connecting
This part is currently unavailable.
37
52472-KA3-831 bush, shock connecting rod thrust
This part is currently unavailable.
38
52473-KA3-830 collar, connecting rod pivot
This part is currently unavailable.
39
52486-KA3-731 collar, shock absorber (upper)
This part is currently unavailable.
41
52487-KA3-731 ring, stopper
This part is currently unavailable.
42
52487-KA4-831 ring, stopper (showa) Price: $5.02

In Stock
43
87516-KF0-003 label, rr. damper caution (not available)
This part is currently unavailable.
44
90128-KA4-003 bolt, flange (12x105) Supersedes: 90128-KA3-831 (BOLT, FLANGE (12X105))
This part is currently unavailable.
44
90128-KA4-003 bolt, flange (12x105)
This part is currently unavailable.
45
90129-KF0-000 bolt, flange (10x77) Retail: $17.48 Price: $14.42

Expected to Ship in 5-8 Days
46
90130-KS6-000 bolt, flange (10x83)
This part is currently unavailable.
47
90153-KA3-730 bolt, flange (10x48)
This part is currently unavailable.
48
90154-KA3-830 bolt, flange (10x52)
This part is currently unavailable.
49
90304-GA6-003 nut, axle (10mm) Price: $3.35

In Stock
50
90306-181-761 nut, flange (12mm) Supersedes: 90306-KA4-003 (NUT, FLANGE (12MM)) Price: $7.79

In Stock
50
90306-181-761 nut, flange (12mm) Supersedes: 90306-KA4-003 (NUT, FLANGE (12MM)) Price: $7.79

In Stock
51
91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.10 Price: $20.70

Expected to Ship in 5-8 Days
51
91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.10 Price: $20.70

Expected to Ship in 5-8 Days
52
91077-KS7-013 bearing, spherical (10.1mm) Retail: $45.07 Price: $37.19

Expected to Ship in 5-8 Days
53
91078-KA3-831 bearing, needle (19.1x26.1x27) (toyo)
This part is currently unavailable.
54
91079-KA3-831 bearing, needle (17.5x24.5x22) Retail: $32.66 Price: $26.95

Expected to Ship in 5-8 Days
55
91256-GC5-003 o-ring (15.5x1.5) Price: $1.76

In Stock
56
91261-KS6-701 seal, cushion arm pivot Supersedes: 91261-KA3-831 (SEAL, RUBBER ARM PIVOT (ARAI))
This part is currently unavailable.
56
91261-KS6-701 seal, cushion arm pivot
This part is currently unavailable.
57
91262-KA3-831 seal, rubber connecting rod pivot
This part is currently unavailable.
58
91351-KA3-731 dust seal, rr. shock (upper)
This part is currently unavailable.
59
91351-KS7-003 dust seal, rr. shock (upper) (showa) Price: $6.55

Expected to Ship in 5-8 Days

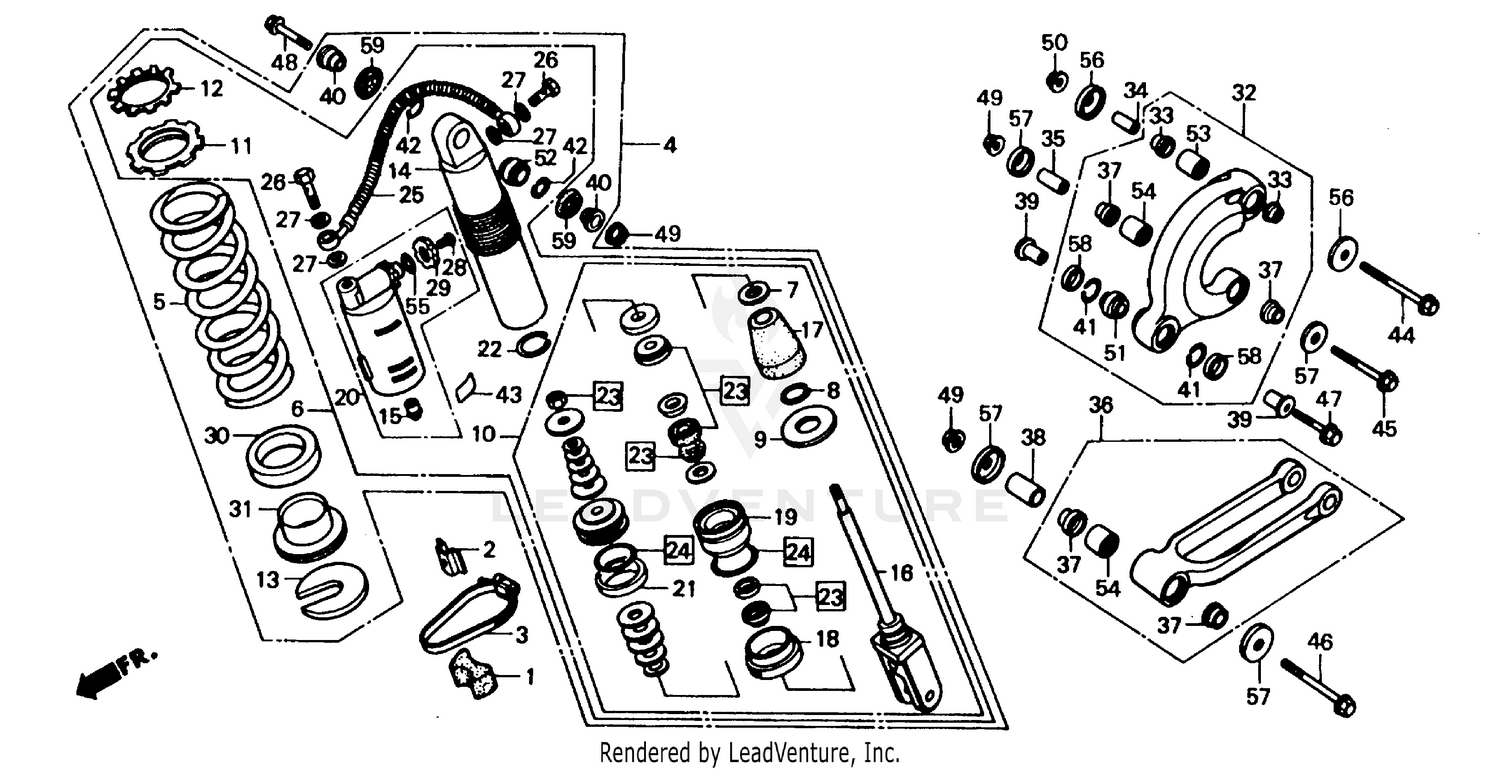

1986 Honda CR500 SHOCK ABSORBER 85-86
