# Part Retail Our Price

Stock Status Suggested Quantity
1
50250-KA3-830 rubber, sub-tank mounting (not available)
This part is currently unavailable.
2
50251-KS7-000 rubber, sub-tank
This part is currently unavailable.
3
50252-KA3-830 band, sub-tank (not available)
This part is currently unavailable.
4
52400-KS6-671 shock absorber assy., rr. (kayaba)
This part is currently unavailable.
5
52401-KS6-004 spring, rr. shock absorber (43.15n/mm,4.4kgf/mm) (kayaba)
This part is currently unavailable.
5
52402-KS6-305 spring, rr. shock absorber (39.23n/mm,4.0kgf/mm) (kayaba) (Optional).
This part is currently unavailable.
5
52403-KS6-305 spring, rr. shock absorber (47.07n/mm,4.8kgf/mm) (kayaba) (Optional).
This part is currently unavailable.
6
52410-KS6-671 damper, rr. (kayaba)
This part is currently unavailable.
7
52421-KS6-004 rod, piston (kayaba)
This part is currently unavailable.
8
52422-KS6-004 seat, spring (upper) (kayaba)
This part is currently unavailable.
9
52423-KS6-004 nut, adjuster (kayaba)
This part is currently unavailable.
10
52424-KS6-701 seat, spring (lower) Supersedes: 52424-KA3-831 (SEAT, SPRING (LOWER) (KAYABA))
This part is currently unavailable.
10
52424-KS6-701 seat, spring (lower) (kayaba)
This part is currently unavailable.
10
52424-KS6-701 seat, spring (lower) Supersedes: 52424-KT1-671 (SEAT, SPRING (LOWER))
This part is currently unavailable.
11
52425-KS6-004 case, rr. shock absorber (not available)
This part is currently unavailable.
12
52426-KS6-004 rod (kayaba)
This part is currently unavailable.
13
52427-KA3-731 rubber, bumper (not available)
This part is currently unavailable.
14
52428-KA3-731 cap, case
This part is currently unavailable.
15
52429-KS6-004 case, rod guide (kayaba) Retail: $39.42 Price: $32.52

Expected to Ship in 5-8 Days
16
52430-KS6-004 tank assy., sub (kayaba)
This part is currently unavailable.
18
52431-KS6-014 ring a, piston (kayaba)
This part is currently unavailable.
19
52433-KS6-004 ring b, piston (kayaba)
This part is currently unavailable.
20
52435-KS6-004 ring, snap (kayaba)
This part is currently unavailable.
21
52436-KA3-731 cap, air valve
This part is currently unavailable.
22
52437-KA3-731 core, valve
This part is currently unavailable.
23
52437-KA3-832 o-ring set (kayaba)
This part is currently unavailable.
24
52438-KA3-731 nut, hex. (12mm) Price: $3.97

Expected to Ship in 5-8 Days
25
52440-KS6-004 hose, joint (kayaba)
This part is currently unavailable.
26
52441-KA3-731 bolt, oil
This part is currently unavailable.
27
52442-KA3-731 washer, oil bolt (kayaba) Price: $2.73

Expected to Ship in 5-8 Days
28
52445-KA3-831 washer, spring seat (kayaba) Retail: $14.58 Price: $12.03

Expected to Ship in 5-8 Days
29
52447-KA3-731 o-ring (2.4x10.8)
This part is currently unavailable.
30
52448-KS6-004 screw, pan (3x8)
This part is currently unavailable.
31
52449-KS6-701 dial, adjusting (not available) Supersedes: 52449-KA3-831 (DIAL, ADJUSTING)
This part is currently unavailable.
32
52460-KA3-831 arm assy., shock absorber (not available)
This part is currently unavailable.
33
52462-KA3-831 bush, damper arm
This part is currently unavailable.
34
52463-KA3-830 collar, cushion arm pivot
This part is currently unavailable.
35
52464-KA3-830 collar, cushion arm
This part is currently unavailable.
36
52470-KS6-000 rod assy., rubber connecting
This part is currently unavailable.
37
52472-KA3-831 bush, shock connecting rod thrust
This part is currently unavailable.
38
52473-KA3-830 collar, connecting rod pivot
This part is currently unavailable.
39
52486-KA3-731 collar, shock absorber (upper)
This part is currently unavailable.
40
52486-KS6-004 collar, shock absorber (upper)
This part is currently unavailable.
41
52487-KA3-731 ring, stopper
This part is currently unavailable.
42
87516-KT1-901 label, rr. damper warning (not available) Supersedes: 87516-KA3-741 (LABEL, RR. DAMPER CAUTION)
This part is currently unavailable.
42
87516-KT1-901 label, rr. damper warning (not available) Supersedes: 87516-KK0-771 (LABEL, RR. DAMPER WARNING)
This part is currently unavailable.
42
87516-KT1-901 label, rr. damper warning (not available) Supersedes: 87516-KT1-771 (LABEL, RR. DAMPER WARNING)
This part is currently unavailable.
42
87516-KT1-901 label, rr. damper warning
This part is currently unavailable.
43
90128-KA4-003 bolt, flange (12x105) Supersedes: 90128-KA3-831 (BOLT, FLANGE (12X105))
This part is currently unavailable.
43
90128-KA4-003 bolt, flange (12x105)
This part is currently unavailable.
44
90129-KF0-000 bolt, flange (10x77) Retail: $17.48 Price: $14.42

Expected to Ship in 5-8 Days
45
90130-KS6-000 bolt, flange (10x83)
This part is currently unavailable.
46
90153-KA3-730 bolt, flange (10x48)
This part is currently unavailable.
47
90154-KA3-830 bolt, flange (10x52)
This part is currently unavailable.
48
90304-GA6-003 nut, axle (10mm) Price: $3.35

In Stock
49
90306-181-761 nut, flange (12mm) Supersedes: 90306-KA4-003 (NUT, FLANGE (12MM)) Price: $7.79

In Stock
49
90306-181-761 nut, flange (12mm) Supersedes: 90306-KA4-003 (NUT, FLANGE (12MM)) Price: $7.79

In Stock
50
91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.10 Price: $20.70

Expected to Ship in 5-8 Days
50
91077-KN5-004 bearing, spherical (14mm) Supersedes: 91077-KA3-731 (BEARING, SPHERICAL (14MM)) Retail: $25.10 Price: $20.70

Expected to Ship in 5-8 Days
51
91077-KA3-831 bearing, spherical (14mm)
This part is currently unavailable.
52
91078-KA3-831 bearing, needle (19.1x26.1x27) (toyo)
This part is currently unavailable.
53
91079-KA3-831 bearing, needle (17.5x24.5x22) Retail: $32.66 Price: $26.95

Expected to Ship in 5-8 Days
54
91261-KS6-701 seal, cushion arm pivot Supersedes: 91261-KA3-831 (SEAL, RUBBER ARM PIVOT (ARAI))
This part is currently unavailable.
54
91261-KS6-701 seal, cushion arm pivot
This part is currently unavailable.
55
91262-KA3-831 seal, rubber connecting rod pivot
This part is currently unavailable.
56
91351-KA3-731 dust seal, rr. shock (upper)
This part is currently unavailable.
57
91351-KA3-831 dust seal, rr. shock (upper) Price: $7.98

Expected to Ship in 5-8 Days

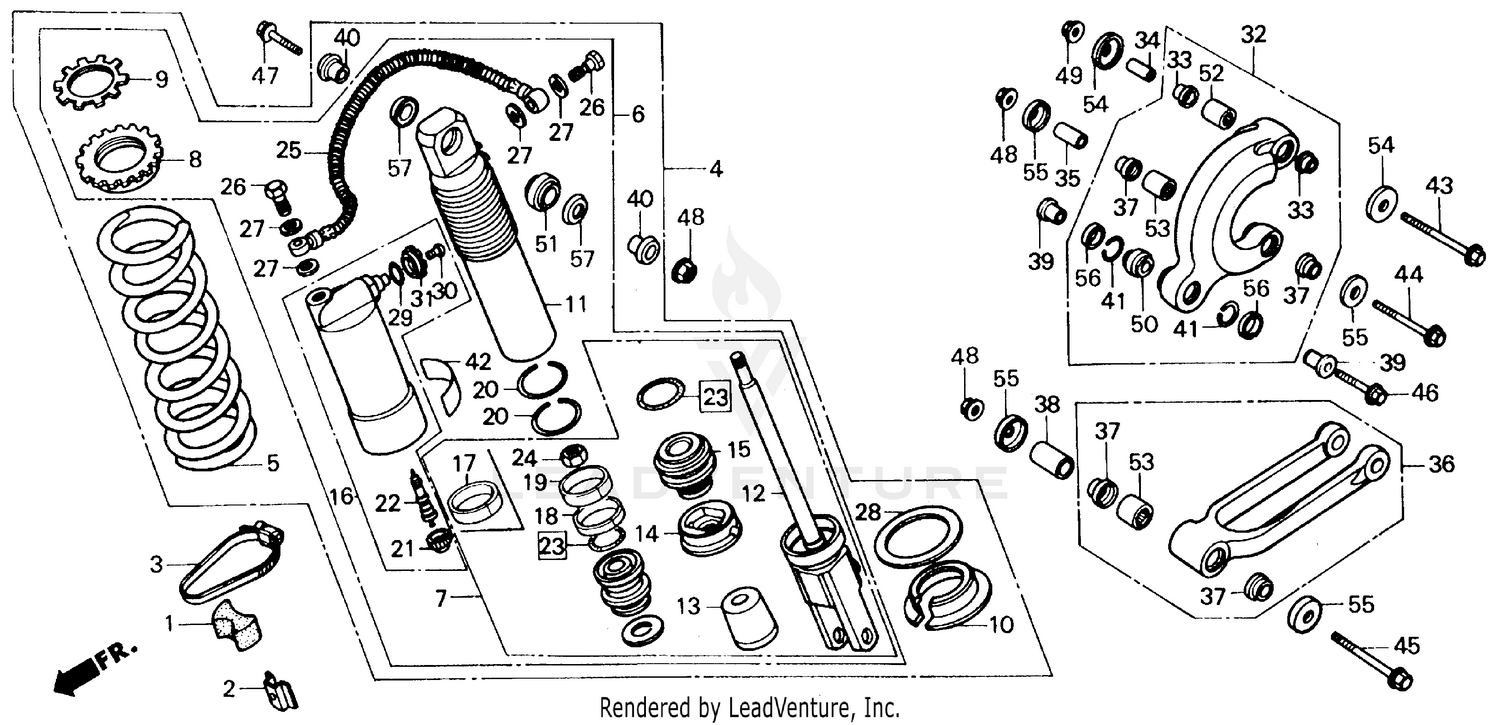

1986 Honda CR125 SHOCK ABSORBER 85-86
