More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
420684566 electric starter ass'y Includes 1 to 2 Supersedes: 420684560 (Starter Ass'y) Price: $265.99

Expected to Ship in 4-9 Days
2
420250140 o-ring Price: $10.11

Expected to Ship in 4-9 Days
3
420440372 torx flange screw m8 x 25 Price: $4.82

Expected to Ship in 4-9 Days
4
420634741 starter double gear 11/49 t Price: $199.99

Expected to Ship in 4-9 Days
5
420634605 starter intermediate gear, 30 teeth Price: $82.99

Expected to Ship in 4-9 Days
6a
420434235 free wheel gear, 64 teeth Includes 6a to 7 Price: $194.99

Expected to Ship in 4-9 Days
6b
XXXX not available as spare part - free wheel gear
This part is currently unavailable.
7
XXXX not available as spare part - bushing needle
This part is currently unavailable.
8
420659111 sprag clutch Supersedes: 420659112 (Sprag Clutch) Price: $264.99

Expected to Ship in 4-9 Days
9
420659263 sparg clutch housing Supersedes: 420659261 (Sprag Clutch Housing) Price: $159.99

Expected to Ship in 4-9 Days
10
420440852 torx flange screw m8 x 16 Price: $4.82

In Stock
11
420685920 stator plate, 420w STD Supersedes: 420296907 (Stator Plate) Price: $299.99

Expected to Ship in 4-9 Days
11
420685632 stator plate, 650w XT, XTP Supersedes: 420685631 (Stator Plate) Price: $299.99

Expected to Ship in 4-9 Days
12
420296906 flywheel, 420w STD Price: $459.97

Expected to Ship in 4-9 Days
12
420685647 flywheel, 650w XT, XTP Price: $464.64

Expected to Ship in 4-9 Days
13
420627270 shim Price: $4.82

Expected to Ship in 4-9 Days
14
420241545 socket head screw m16 x 35 Price: $14.49

Expected to Ship in 4-9 Days
15
420641258 torx flange screw m6 x 35 Price: $4.01

Expected to Ship in 4-9 Days
16
420251889 interior cable support ass'y Supersedes: 420251880 (Cable Inner Cover) Price: $14.30

Expected to Ship in 4-9 Days
17
420240196 phillips screw m4 x 8 Supersedes: 420240195 (Tapping Screw M4 X 8) Price: $2.67

Expected to Ship in 4-9 Days
18
420212225 ignition cover Supersedes: 420611132 (Cover) Price: $194.99

Expected to Ship in 4-9 Days
19
420656370 pressure relief valve Price: $19.49

In Stock
20
420939481 spring Supersedes: 420939480 (Compression Spring) Price: $5.85

Expected to Ship in 4-9 Days
21
420256487 housing Supersedes: 420256486 (Housing Valve) Price: $8.73

Expected to Ship in 4-9 Days
22
420650465 gasket ring Price: $13.49

In Stock
23
420640271 plug screw Supersedes: 420640270 (Screw Plug) Price: $13.99

Expected to Ship in 4-9 Days
24
420966570 crankshaft position sensor ass'y Includes 24 to 25 Price: $114.99

Expected to Ship in 4-9 Days
25
420431580 o-ring Price: $15.49

Expected to Ship in 4-9 Days
26
420641048 torx flange screw m6 x 16 Price: $3.44

Expected to Ship in 4-9 Days
27
420430782 o-ring Price: $6.31

In Stock
28
420241633 plug screw m24x 1.5 Supersedes: 420241630 (Screw Plug) Price: $8.73

Expected to Ship in 4-9 Days
29
420651203 gasket Supersedes: 420651200 (Gasket) Price: $36.99

In Stock
30
420641258 torx flange screw m6 x 35 Price: $4.01

Expected to Ship in 4-9 Days
B
293800060 loctite 243, 10 ml Price: $24.97

Expected to Ship in 4-9 Days
C
219703000 sealant loctite 648 Supersedes: 413711400 (Loctite 648, 10 ml) Price: $45.99

Expected to Ship in 4-9 Days
N
293550030 grease, super lube Price: $28.99

Expected to Ship in 4-9 Days
O
XXXX not available as spare part - engine oil
This part is currently unavailable.
S
219704461 lubricant loctite lb 8150 236ml - call your local brp dealership Price: $30.44

Expected to Ship in 4-9 Days

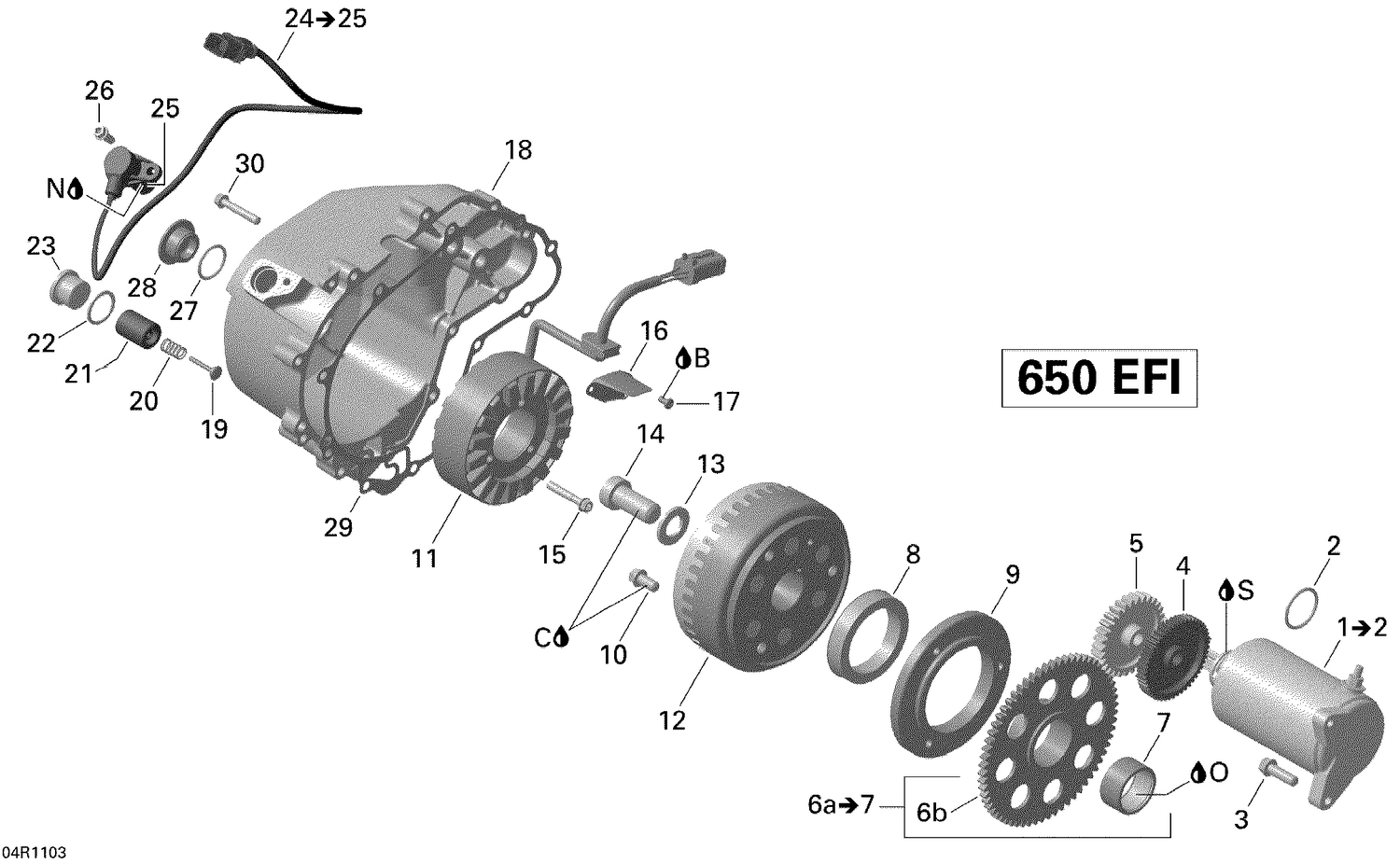

2011 Can-Am OUTLANDER MAX 650 EFI 03- Magneto And Electric Starter
