# Part Retail Our Price

Stock Status Suggested Quantity
1
711650603 ignition cover gasket Price: $28.49

Expected to Ship in 4-9 Days
2
711211821 ignition cover
This part is currently unavailable.
3
711241861 hex. flange screw m6 x 20
This part is currently unavailable.
4
711941126 hex. flange screw m6 x 35
This part is currently unavailable.
5
711940576 hex. flange screw m6 x 70
This part is currently unavailable.
6
420265611 potentiometer, transmission - call your local brp dealership Includes 6 - 7. Supersedes: 711265610 (POTENTIOMETER (TRANSMISSION) - Call your local BRP dealership)
This part is currently unavailable.
7
711931390 o ring
This part is currently unavailable.
8
420440291 socket head screw m4 x 12 - call your local brp dealership Supersedes: 711440291 (Socket Head Screw M4 x 12) Price: $1.60

Expected to Ship in 4-9 Days
9
711224630 reinforcement
This part is currently unavailable.
10
420950400 oil seal - call your local brp dealership Price: $14.99

Expected to Ship in 4-9 Days
11
711220560 water pump shaft
This part is currently unavailable.
12
420650371 rotary seal Supersedes: 420650370 (Rotary Seal) Price: $44.99

In Stock
13
711222540 water impeller
This part is currently unavailable.
14
711650570 rubber ring
This part is currently unavailable.
15
711222550 water pump housing
This part is currently unavailable.
16
711241911 hex. screw m6 x 25
This part is currently unavailable.
17
711650660 k grooved ring
This part is currently unavailable.
18
711257140 hydraulic piston Price: $41.99

Expected to Ship in 4-9 Days
19
711650640 hydraulic cover gasket
This part is currently unavailable.
20
711211950 hydraulic cover
This part is currently unavailable.
21
711241911 hex. screw m6 x 25
This part is currently unavailable.
22
711251180 cable clamp Price: $5.16

Expected to Ship in 4-9 Days
23
711250080 oil seal
This part is currently unavailable.
24
711632170 ball bearing
This part is currently unavailable.
25
711247030 distance sleeve
This part is currently unavailable.
26
711932885 needle pin
This part is currently unavailable.
27
711659190 pawl
This part is currently unavailable.
28
711941126 hex. flange screw m6 x 35
This part is currently unavailable.
29
711241751 hex. flange screw m6 x 16
This part is currently unavailable.
30
210251180 hex. flanged screw m5 x 11 - call your local brp dealership Supersedes: 732600027 (Phillips Screw M5 X 10) Price: $2.40

In Stock
31
711242875 nut m22
This part is currently unavailable.
32
711245875 washer 22 mm
This part is currently unavailable.
33
711296107 magneto ass'y Includes 33 - 37.
This part is currently unavailable.
34
XXXX not available as spare part - rotor with sprag clutch ass'y
This part is currently unavailable.
35
205081644 socket head screw m8 x 16 - call your local brp dealership Price: $1.32

Expected to Ship in 4-9 Days
36
420659117 sprag clutch Supersedes: 711659117 (Sprag Clutch) Price: $349.99

Expected to Ship in 4-9 Days
37
420659129 clutch sprag housing Supersedes: 711659220 (Sprag Clutch Housing) Price: $144.99

Expected to Ship in 4-9 Days
38
413707000 dow corning 111, 150 g Price: $63.54

Expected to Ship in 4-9 Days
39
293800060 loctite 243, 10 ml Price: $24.97

Expected to Ship in 4-9 Days
40
711251222 gear clamp Price: $6.89

Expected to Ship in 4-9 Days
41
707000031 adaptor ass'y Includes 41 - 44.
This part is currently unavailable.
41
710001539 male terminal housing, 6 circuits Supersedes: 270000137 (Female Connector, 6 Circuits) Price: $19.99

Expected to Ship in 4-9 Days
42
270000138 adaptor
This part is currently unavailable.
43
293300033 gasket
This part is currently unavailable.
44
293200055` gasket
This part is currently unavailable.
45
XXXX not available as spare part - engine oil, mineral, API SJ SAE 10W40
This part is currently unavailable.
46
293550030 grease, super lube Supersedes: 293550014 (Grease, Super Lube #823-28) Price: $28.99

Expected to Ship in 4-9 Days
47
710000051 female terminal Price: $9.19

Expected to Ship in 4-9 Days
48
710000050 wire seal - call your local brp dealership Price: $10.34

Expected to Ship in 4-9 Days
49
710000049 cap Price: $10.72

Expected to Ship in 4-9 Days
50
710000032 female terminal housing, 4 circ. Price: $41.99

Expected to Ship in 4-9 Days
51
278000632 female terminal Price: $2.52

Expected to Ship in 4-9 Days
52
710001540 connector_male 6 cavities - call your local brp dealership Supersedes: 278000736 (Male Connector, 6 Circuits) Price: $21.99

Expected to Ship in 4-9 Days
53
711222630 profile tube
This part is currently unavailable.
54
278000737 male lock, 6 circuits - call your local brp dealership Price: $3.08

In Stock
55
711230870 oil seal
This part is currently unavailable.
56
711650940 sealing ring
This part is currently unavailable.
57
711222620 inlet fitting
This part is currently unavailable.

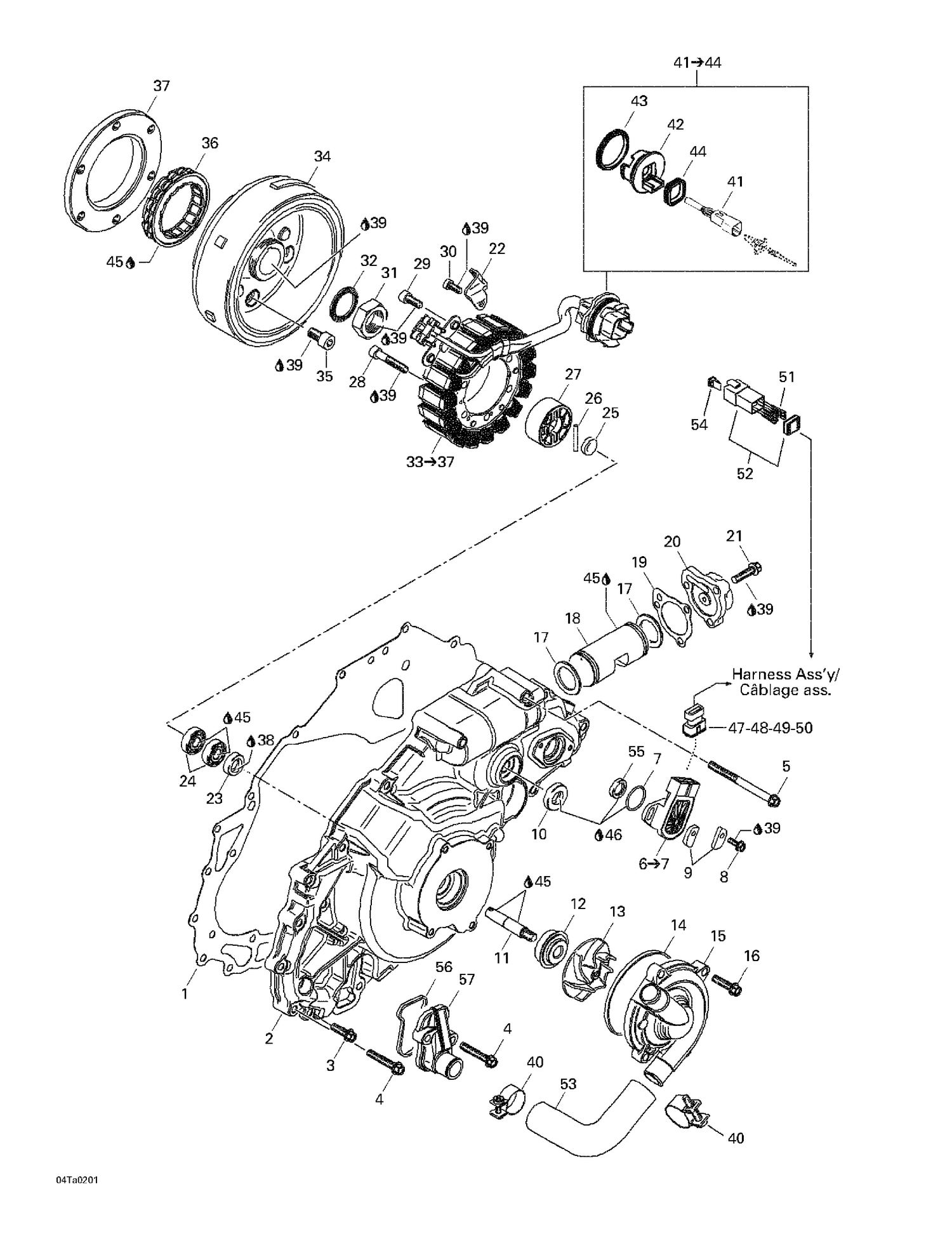

2002 Can-Am TRAXTER XT 03- Ignition And Water Pump
