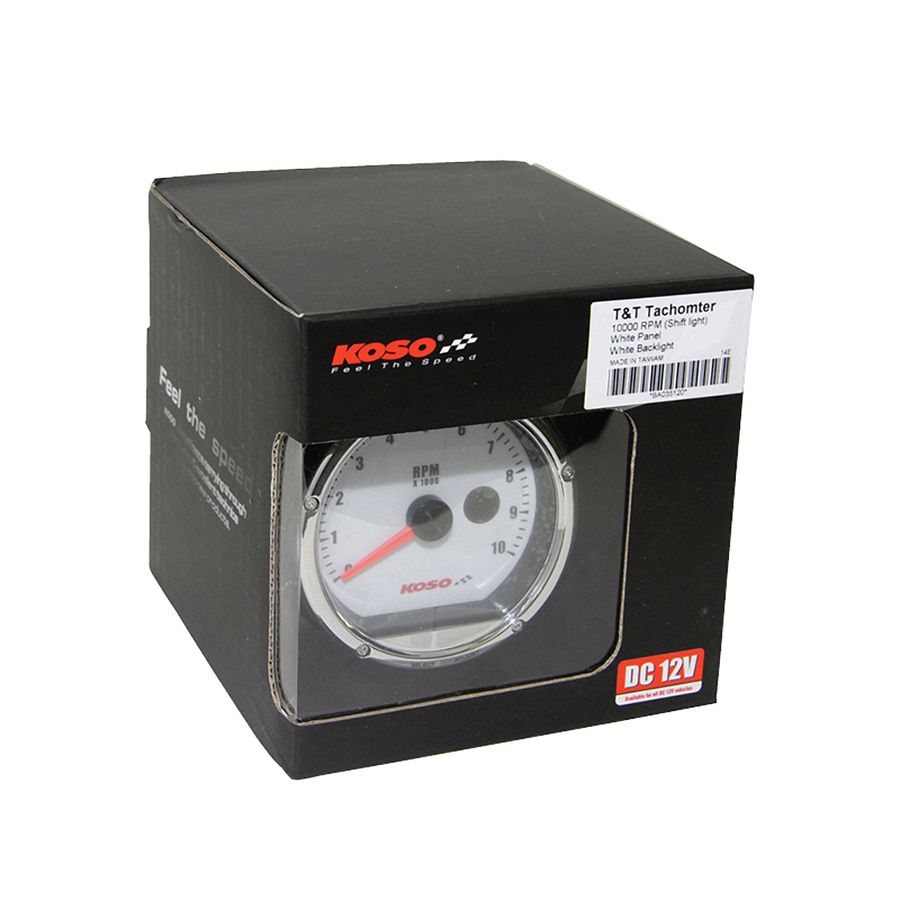

TNT-01R Tachometer With Shift Light

• Product Details

  Built with the best components and strongest stepper motor on the market, this TNT-01R Tachometer is the perfect addition for all motorcycles. Its large dial face and backlight make it easy to read all day and night.

  Detailed Specifications:

  • Tachometer: Display range: 0 ~ 10,000 RPM.
  • Display internal: < 0.5 Second.
  • RPM input signal number setting: Setting range 0.5, 1 ~ 6.
  • RPM input pulse Setting range:
  • Hi (positive wave pulse).
  • Lo (negative wave pulse).
  • Backlight brightness right setting range: 5 different levels available, Setting unit: Each level represent 20%.
  • Shift light:.
  • Setting range: 0 ~ 10,000 RPM.
  • Setting unit: 500 RPM.
  • Warning: Light on Flash.
  • Effective voltage: DC 9 ~ 12V.
  • Effective temperature range: -10 ~ 60C (14 ~ 140F).
  • Meter standard: JIS D 0203 S2.

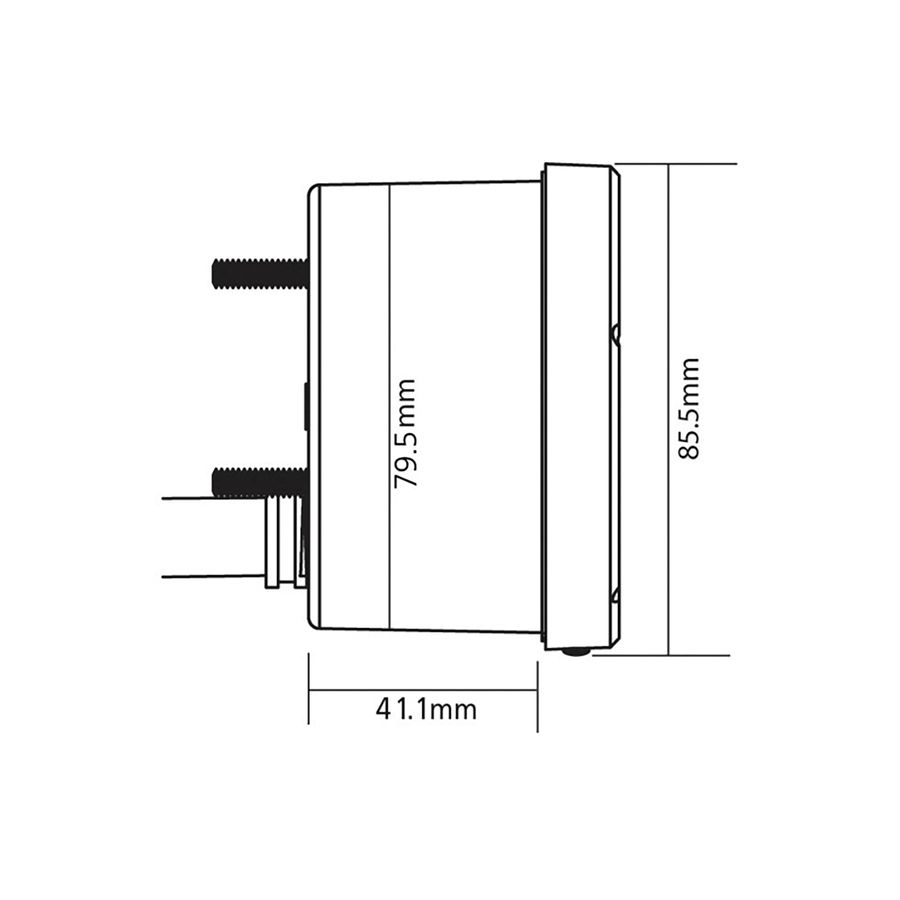

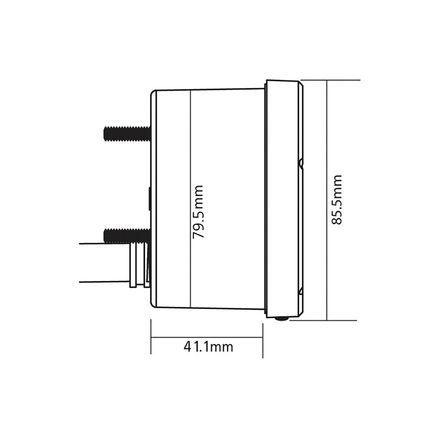

  • Meter size (W x L x H): 86.5 x 79.5 x 41.1 mm.
  • Meter weight: 127.3 grams.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Black / Black Panel / 10000 RPM Koso TNT-01R Tachometer With Shift Light	BA035130
