Rear Caliper Cooler

• Product Details

  G2 Rear Brake Caliper Cooler.

  The G2 Rear Brake Caliper Cooler tackles extreme braking conditions that cause fluid boil and rear brake loss. Many racers and aggressive riders suffer from over-heating the rear brake caliper as they tend to "ride" or "drag" the brake pedal.

  Heat Challenge.

  Heat is a brake system's worst enemy! Friction from the pads contacting rotor transfers heat through the brake caliper piston to the brake fluid. If this heat builds up too much, the fluid will boil. This boiling point introduces air to the system. As a direct result, the brake will fade.

  G2 Solution.

  The G2 Rear Brake Caliper Cooler design drastically decreases this heat buildup. First, the cooler features aluminum fins providing a vast increase in heat dissipating surface area. Because of these fins, heat is drawn away from the brake fluid and caliper to quickly reduce temperature and maintain rear brake performance. In addition, the cooler's direct contact with the caliper transfers heat away from the cast aluminum.

  What sets the G2 Rear Brake Caliper Cooler above the competition?

  Other brands use an inferior design! Their "cooler" combines a simple "tube" with an extremely long banjo bolt. This transfers far less heat away from the rear brake caliper for two reasons:

  • 1) The inner volume of cooler is mainly filled with the steel banjo bolt! Their bolt nearly fills the inside and leaves far less space for brake fluid. The G2 Cooler holds up to five (5) times more fluid! More brake fluid = better heat dissipation!
  • 2) Their design merely seats aluminum against the caliper.

  G2's design both seats against caliper and contacts caliper via threads! That equates to over three times the aluminum-to-aluminum contact area! Aluminum dissipates heat far better than steel!

  • Machined 6061 aluminum cooler draws heat away from the caliper!
  • Fits up to caliper using your stock banjo bolt and two copper washers (included).
  • Works on all motorcycles, ATV and UTV with M10x1.0 or M10x1.25 threads.
  • Helps stop fluid boil in extreme conditions!
  • Note: For KTM and Husqvarna choose the "Brembo" option (M10x1.0). For Japanese and Beta, choose the "Nissan" option (M10x1.25).

  Product Installation.

  Installation instructions are included. Inside each kit you will find one aluminum rear caliper cooler and two copper washers. Remember, don't throw away your stock banjo bolt! You will need this and some extra brake fluid. Keep your brake fluid cool and brake action consistent!

  Which cools better? A Rear Caliper Cooler or Rear Brake Reservoir Extender?

  This question has been asked by many customers, and even some top pros! To be frank, there is no performance advantage to installing a Rear Brake Reservoir Extender.

  The G2 Rear Brake Caliper Cooler underwent extensive evaluation. It is designed to mount AS CLOSE AS POSSIBLE to the source of heat. Reservoir extenders mount to the brake system as FAR AS POSSIBLE away from the heat. In fact, G2 has experienced rear brake fluid boil before the reservoir fluid temperature raises 20 degrees! Regardless, you gotta admit, they do look cool!

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #

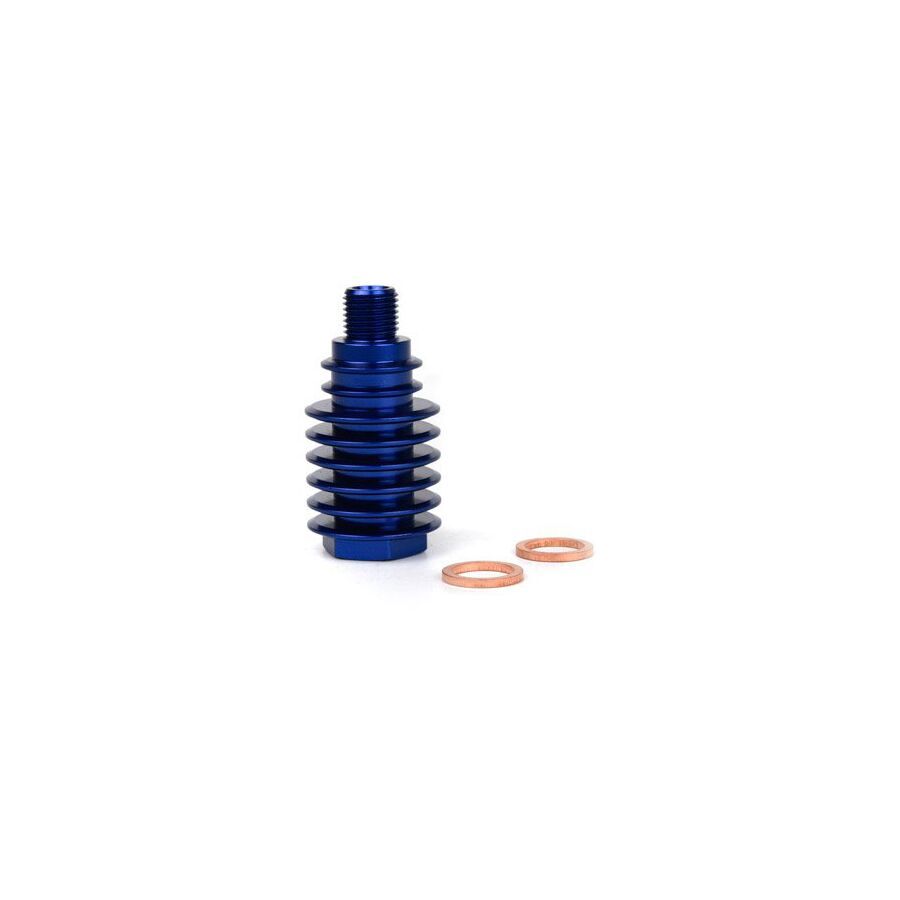

  Blue / European / Brembo Calipers	73-120

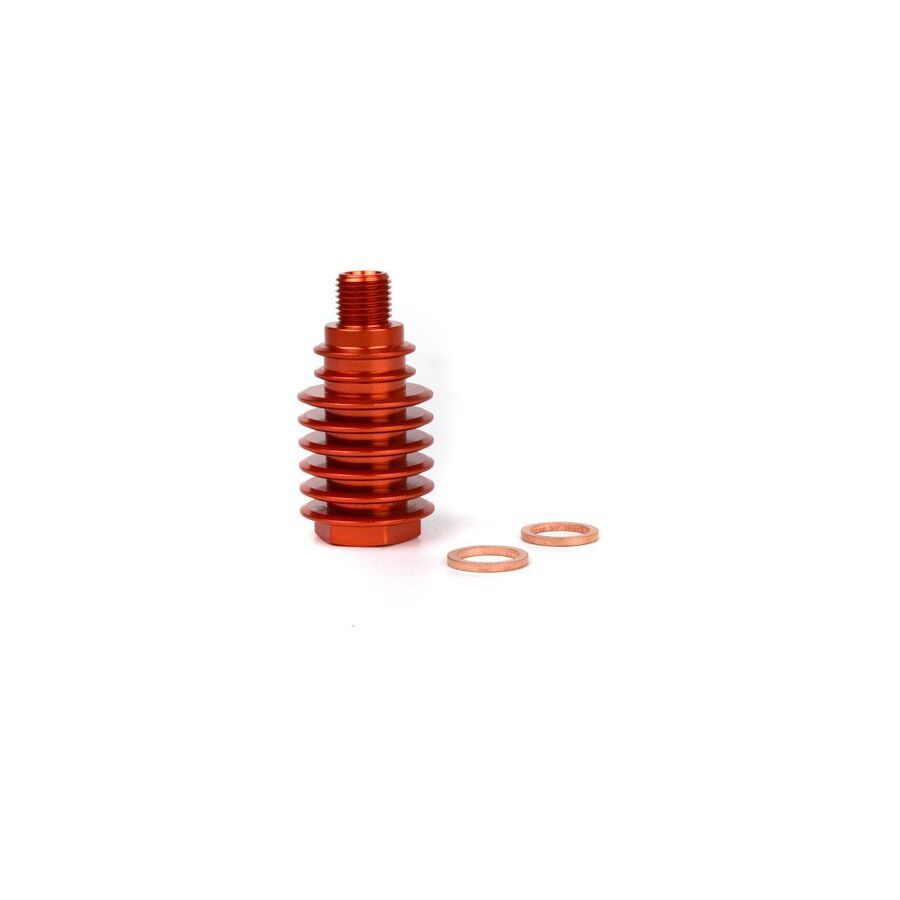

  Orange / European / Brembo Calipers	73-150

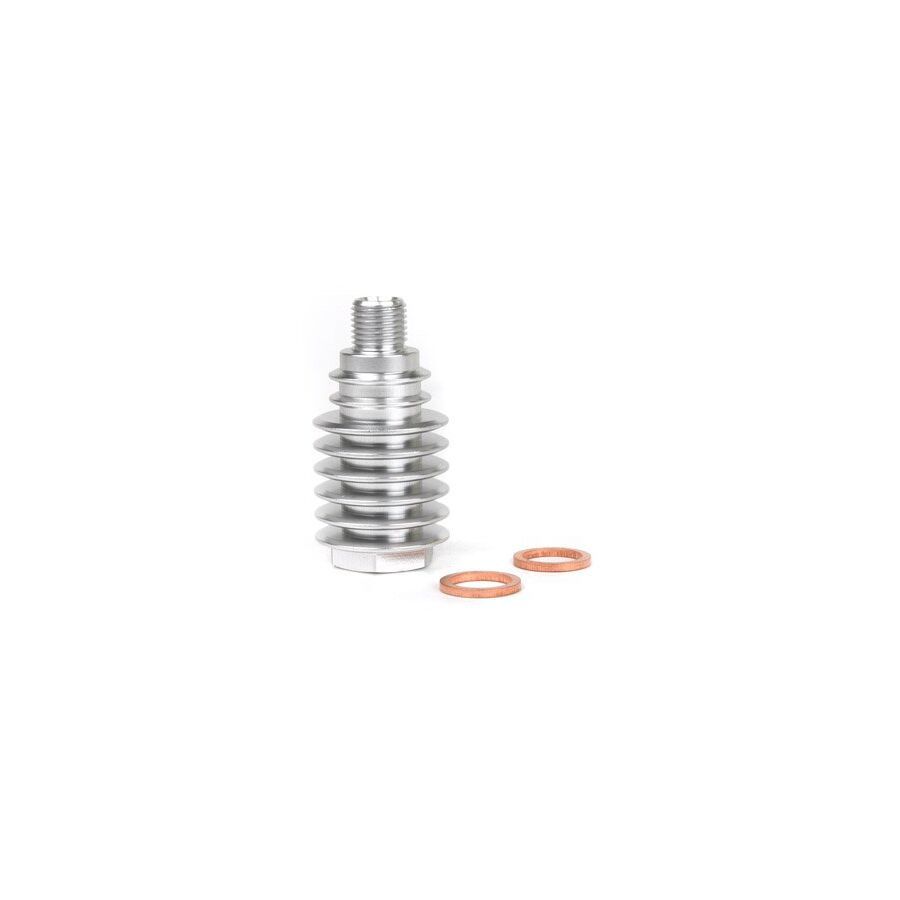

  Silver / European / Brembo Calipers	73-100
  Silver / Japanese / Nissan Calipers	72-100
