XTC Power Products Universal Standard Turn Signal System

• Product Details

  Universal Plug and Play Turn Signal Kit.

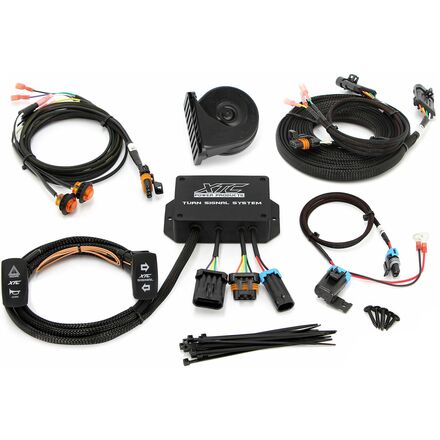

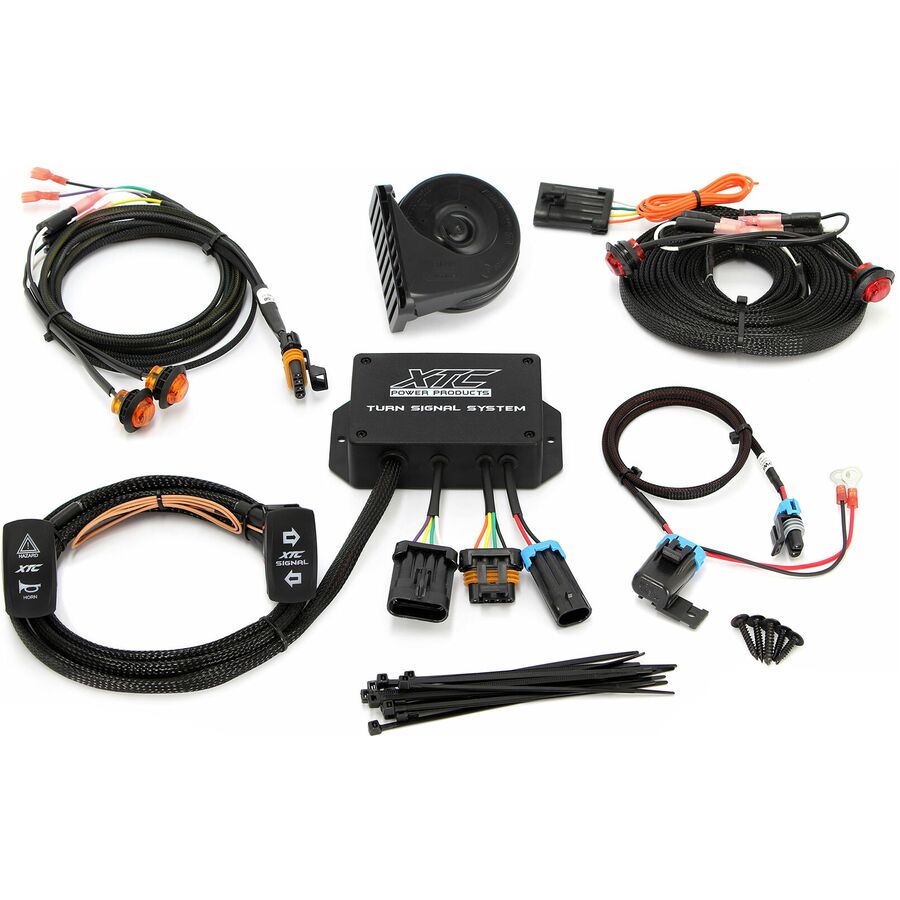

  XTC Power Products leads the way in UTV wiring. Installing turn signals on a UTV is easier than ever with their universal plug-and-play Turn Signal System. The TSS (Turn Signal System) consists of a relay control box and horn that mounts under the hood and turn signal, and custom hazard / horn switches that mount in the dash. The TSS Plug and Play Turn Signal Kit is a modular design with vehicle specific SKUs.

  Includes Rear Marker Lights - Single Tail Light Version (TSS-UNI):

  • Plug-and-play easy install.
  • Universal UTV Turn Signal System.
  • Comes with front and rear LED turn lights.
  • Optional brake light interface.
  • Two and four-seat models.
  • Laser-etched LED lit turn switch.
  • Emergency hazard switch.
  • Automotive horn and push button.
  • Made in the U.S.A.

  Includes OEM Interface Wires - Dual Tail Lights Version (TSS-UNI-I):

  • Plug-and-play easy install.
  • Universal UTV System - uses factory tail lights.
  • Only two (2) wires to cut to interface with factory brake lights.
  • Comes with front 3/4" - 3 LED turn lights.
  • Two and four-seat models.
  • Laser-etched LED lit turn switch.
  • Emergency hazard switch.
  • Automotive horn and push button.
  • Made in the U.S.A.

  How the TSS Works:

  All TSS part numbers include a marine-grade rocker switch with laser-cut directional arrows that flash red when activated. When you press the turn signal rocker switch, the TSS will activate the turn blinker, returning the switch to the center position cancels the blinker.

  • The TSS-UNI includes two 3/4" red LED marker lights that can be mounted next to the factory brake lights or in lieu of a left and right tail light. The factory brake lights work independent of the left and right tail lights and therefore will not be affected.
  • The TSS-UNI-I includes O.E.M. interface wires that splice into any positive 12V tail light system. The brake light signal passes through the TSS. As a result, the opposing brake light still functions normally while the activated turn signal brake light flashes.

  Also Included:

  Also included in the plug-and-play turn signal kit is a 'hazard / horn' rocker switch. Pressing the top 'hazard' side of the actuator will turn on the hazard lights, returning the switch to the center position deactivates them. Furthermore, pressing the lower portion of the custom rocker switch will activate the included street legal FIAMM horn. A front harness is supplied that includes two Maxxima 3/4" Amber LED lights that mount in each corner by drilling out a hole. Additional lights and splitter are sold separately for those looking to expand their setup.

  Hands-on with the TSS Turn Signal Kit:

  Unlike XTC competitors, all TSS kits include an auxiliary power out for a license plate light or whip lights. Moreover, the aux. power is good for powering the 6" LED Lit License Plate Frame (sold separately). Above all, each system comes with a vehicle specific power connection. Without a doubt, it's easy to install with no wires to cut and no crimping. Everything needed to integrate with your vehicle's O.E.M. brake light harness included. Unplug the rear light harness, plug-in the XTC version, and enjoy. XTC Power Products, made in America and Wired For Fun!

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Includes OEM Interface Wires - Dual Tail Lights	TSS-UNI-I
  Includes Rear Marker Lights - Single Tail Light	TSS-UNI
