Vertex Hot Rods Complete Top & Bottom End Kit - 4-Stroke

• Product Details

  This complete 4-Stroke Top and Bottom End Kit has everything you need, all the quality parts, including a Vertex 4-Stroke Piston, to rebuild your motor.

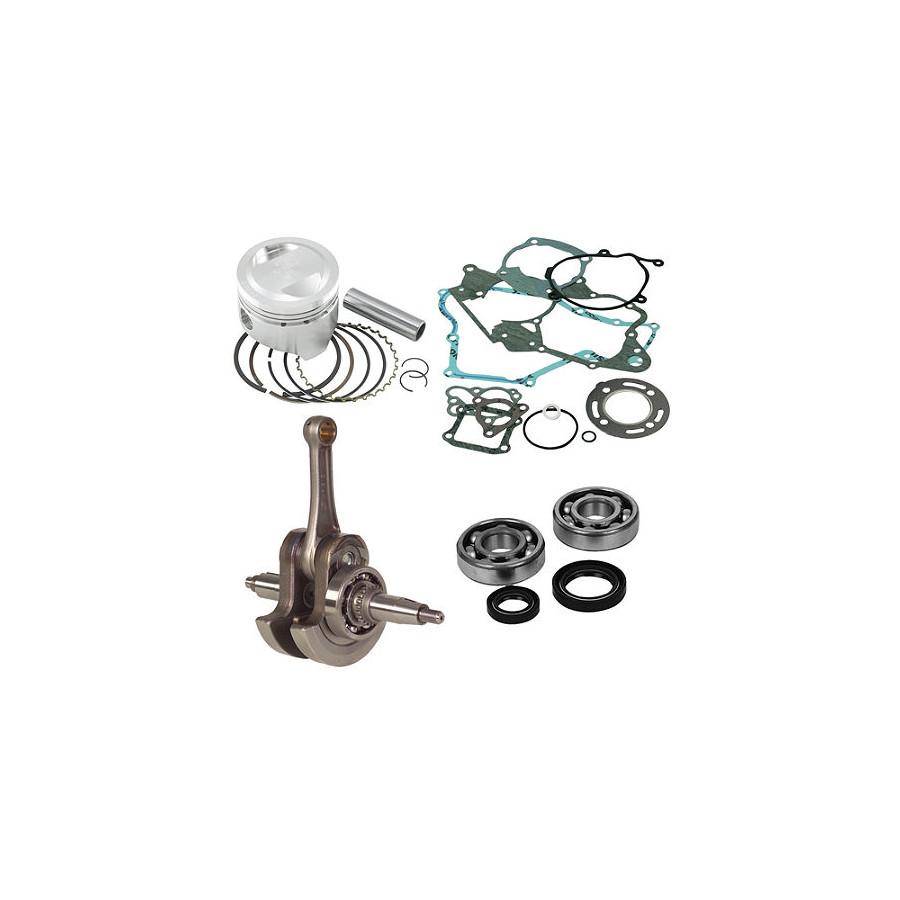

  • The kit includes: Hot Rods Crank, Vertex 4-Stroke Piston, Hot Rods Bearings and Seals, and a Complete Athena Gasket Kit.

  Hot Rods Crankshaft:

  Building on the success of high-quality, O.E.M. replacement rods, Hot Rods introduced the perfect place to showcase them in a complete heavy duty Hot Rods O.E.M. replacement crankshaft. Since that time, Hot Rods heavy duty crankshafts have been regarded as the premier alternative, Hot Rods heavy duty crankshafts also bring a level of uncompromising quality, design and innovation not seen in its competitors.

  • All crankshafts are sold complete and ready for installation with the original proven Hot Rods connecting rods, and crankshaft webs.
  • Factory assembled and trued to O.E.M. specifications, Hot Rods cranks will meet or surpass the O.E.M. in performance and durability.
  • Crankshafts are fully re-buildable with genuine Hot Rods connecting rods and bearings.
  • Multi-cylinder applications are sold complete with main bearings (unless specified otherwise).
  • Two and four-stroke applications available.

  Vertex 4-Stroke Piston:

  When it comes to power and performance, Vertex four-stroke pistons are hard to beat. Vertex pistons are perfectly suited to handle the rigors and high pressures of today's modern four-stroke engines.

  • Forged from the highest quality 2618 aluminum alloy.
  • Each Vertex piston utilizes a unique Molybdenum Disulphide (MOS2) coating which aids in the break-in process and reduces overall wear.
  • With the purchase of a premium quality piston, every Vertex piston kit contains a complete set of nitride-coated or chrome-plated piston rings, a fully case hardened wrist pin and circlips all at a competitive price.
  • Note: This piston is for a stock sized bore. Please measure your cylinder to check clearance before ordering.

  Hot Rods Bearings and Seals:

  To compliment Hot Rods full line of heavy-duty O.E.M. replacement and stroker crankshafts are Hot Rods complete main bearings for both two and four-stroke applications.

  • Like other Hot Rods products, these main bearing and seal kits are built to the highest quality standards that meet or exceed those of O.E.M.
  • Additionally, not only will Hot Rods main bearing and seal kits work in rebuilding a Hot Rods crankshaft but, they also work in rebuilding O.E.M. cranks as well.

  Athena Gaskets:

  • The Athena complete gasket kit is an all-in-one kit featuring superior quality gaskets to rebuild your motorcycle or ATV engine.
  • Athena ensures they are only using the highest quality gaskets to provide a great seal every time.
  • All Athena gaskets are designed and built to meet or exceed O.E.M. specifications.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• Fitment

• # Part Numbers

  Bearing/Seal Kit

  Product Variant	Manufacturer Part #
  Vertex Hot Rods Complete Top & Bottom End Kit - 4-Stroke	K041, K073, K019, K072, K063-CL77, K074, K049, K043, K046, K052, K067-CL77, K069, K091

  Crank

  Product Variant	Manufacturer Part #
  Vertex Hot Rods Complete Top & Bottom End Kit - 4-Stroke	4084, 4083, 4097, 4095, 4048, 4093, 4064, 4096, 4020, 4021, 4082, 4059, 4060, 4070, 4022, 4029, 4075, 4408

  Gasket Kit

  Product Variant	Manufacturer Part #
  Vertex Hot Rods Complete Top & Bottom End Kit - 4-Stroke	P400210850202, P400210850095, P400210850, P400210850064, P400210850215, P400210850239, P400210850209, P400270850, P400250850047, P400250850024, P400510850401, P400250850016, P400510850, P400210850179

  Piston Kit

  Product Variant	Manufacturer Part #
  11.7:1 Compression	23302B
  B Piston	23003B, 23550B, 23759B, 23855B, 23961B
  B Piston 10.5:1 Compression	23163B-CL77
  B Piston 11.3:1 Compression	22951B
  B Piston 12.0:1 Compression	23455B
  B Piston 12.2:1 HIgh Compression	23304B-CL77
  B Piston 12.5:1 High Compression	22900B
  B Piston 12.9:1 Compression	22983B, 23456B
  B Piston 13.6:1 High Compression	23869B
  B Piston 13.8:1 Compression	24119B
  B Piston 13.9:1 Compression	24080B
  B Piston 14.1:1 High Compression	23561B, 23962B
  B Piston 14.6:1 GP Racer's Choice	23730B, 23963B
  Stock Bore	23259B-CL77, 23566B, 23242A, 23564B, 24020B
  Stock Bore 11.5:1 Compression	23545B
  Stock Bore 12.6:1 Compression	23647B
  Stock Bore 13.2:1 Compression	23646B
  Stock Bore 13.3:1 Compression	23236B
  Stock Bore 13.4:1 Compression	23114B
  Stock Bore 13.5:1 Compression	23444B, 23861B
  Stock Bore 13.8:1 Compression	23565B
  Stock Bore 13.9:1 Compression	23458B, 23567B
  Stock Bore 14.0:1 Compression	23736B, 23872B
  Stock Bore 14.5:1 Compression	23732B
  Stock Bore, A Piston	22982A, 23235A
  Stock Bore, B Piston	23235B
  Stock Bore, B Piston 13.4:1 Compression	23113B
