Introducing "Toy Loader"! It's the new patent pending loading system. Now you can load it by yourself...if it's running or not! No more riding up ramps, pushing, pulling or waiting for your buddies to show up. Universal design fits most common pick-ups and some trailers. High quality construction and components made with lightweight 5052 and high tech 6061 T6 aerospace aluminum (weighs about 12 pounds). Easily installs / removes in minutes, center winch mount removes in seconds for safe storage.
Toy Loader Features:
Serves as both an anchoring and/or winching system.
Save the favors and your dignity, load it yourself.
Winch is easily removed and can be stored in cab when necessary (winch sold separately).
Load disabled vehicles easily.
Safely load heavy wheeled vehicles by yourself whenever YOU want.
Made with state-of-the-art quality construction methods in high-tech aluminum alloy materials and high-end hardware.
Components are easy to install and remove.
Once the main components are installed, the winch (sold separately) alone can be removed or installed independently in less than one minute.
Designed to be adjustable for a universal fit and can be used with or without most canopies (may require minor alterations).
Serves well as anchoring device for FULLY loading heavy items directly into truck bed.
Other uses include loading farm / lawn equipment, motorcycles, snowmobiles.
Great tool for hunting.
Don't risk falling or damage...Save yourself for the fun in life!
Made in the U.S.A.
Notes: Winch NOT included. Ramps NOT included.

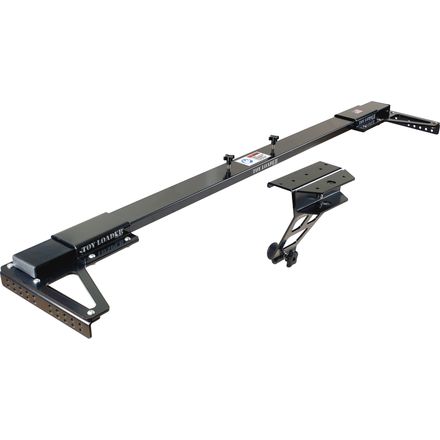

The Toy Loader Basic System package includes:
Main bar (6061-T6 aluminum).
Corner and angle mounting brackets (5052 aluminum).
Detachable center anchor / winch mounting bracket (5052 aluminum).
Stainless steel hardware.
Designed to accommodate most ATV winches with a 2, 3, or 4-bolt mounting base.
Note: For the winch (WARN Vantage, RT, XT, etc.) to fit properly over the main bar, flathead bolts will be required, i.e. M8 x 25 x1", and are NOT included.
The Toy Loader's unique overall design incorporates high-strength, high-tech, light but very strong aluminum alloys. Strength is enhanced by reinforcing, hinged, self-securing and adjustable channel / corner brackets and torque controlling center brackets, (allows use of smaller dimension materials by controlling torque twist of the cross bar). The triangle corner brackets and clap brackets effectively shortens span between points of attachment, i.e. design dissipates stress-pull weight between attachment points via inward, lateral protruding corner brackets. Hinged channel clamping brackets add strength by wrapping (clamping) the cross bar ends while still allowing adjustments for varied width hauling vehicles. (Note: Cross bar is held in place by same clamping action and rubber friction strip (on inner surface of clamp bracket). Unique components were all designed to enhance strength and allow use of smaller dimension, high strength material.
