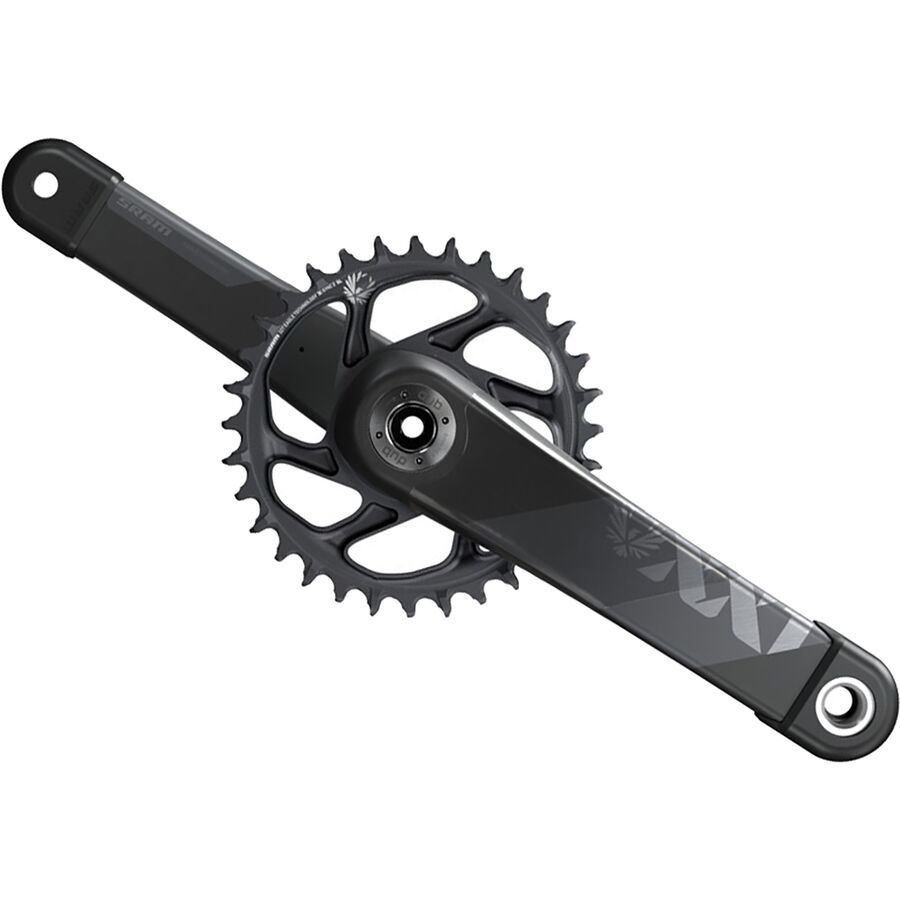

SRAM XX1 Eagle DUB SL Crankset

• Product Details

  Tipping the scales at a paltry 422 grams, the SRAM XX1 Eagle DUB SL Crankset is one of the lightest cranks available on the market, lending itself to professional racers and discerning cross-country riders shaving weight from their Eagle 12-speed drivetrain. You'll find it's approximately 43 grams lighter than previous XX1 Eagle Cranksets with its new spindle diameter and Carbon Tuned crank arms (80 grams less with DUB bottom bracket), which is a big deal when you're counting every last gram that goes on your cross-country race bike. Additionally, it retains the quiet, mud-shedding performance of the X-Sync 2 chainring, plus the ability to retain your chain without a guide. Please note, this particular version is made solely for 12 x 142-millimeter rear axle spacing.

  Not only is the XX1 Eagle DUB SL Crankset lighter than ever, but it's more durable with its newly introduced 28.99-millimeter spindle diameter, versus the previous 30 and 24-millimeter spindles used by SRAM. SRAM termed this new standard as DUB, which stands for Durable Unified Bottom Bracket, seeing it's compatible with virtually any bottom bracket standard on the marketwhether your frame's using a threaded, Press Fit, BB30, or PF30 bottom bracket.

  Upon introducing this 28.99-millimeter spindle diameter, SRAM aimed to improve bearing longevity and seal out moisture, then designed the spindle diameter to meet these needs, meaning it's ready for riding and racing in the wettest, nastiest conditions of the year. This lead SRAM to engineer a new crankset that's every bit as stiff as those with 30-millimeter spindles, but one that provides the increased bearing life of 24-millimeter spindles. It's really a simple concept and one that elevates SRAM's Eagle DUB Cranksets to the top of the market, thanks to an optimal mix of ultra-light efficiency, stiff pedaling, and robust durability across all twelve gears.

  Seeing you don't need a major overhaul in components to run DUB Cranks, it doesn't feel so much like a newly imposed standard, but more like the next step in SRAM's continuously evolving line-up of drivetrain components. Of course, you will have to purchase a new DUB-specific bottom bracket for this crankset to work, but it's really a small compromise considering the system's extremely low weight and improved durability. Although SRAM tried to accommodate every major bottom bracket on the market, there are two types that aren't compatible, including those running Super Boost rear axles, as well as those using Cannondale's BB30 Ai bottom brackets.

  • The lightest XX1 crankset ever produced by SRAM
  • Works with major BBs: BSA/threaded, Press Fit, BB30, PF30
  • DUB 28.99mm spindle diameter for durability and low weight
  • Bearing life of 24mm systems, stiff like 30mm systems
  • Carbon tuned crank arms are light and ultra-stiff

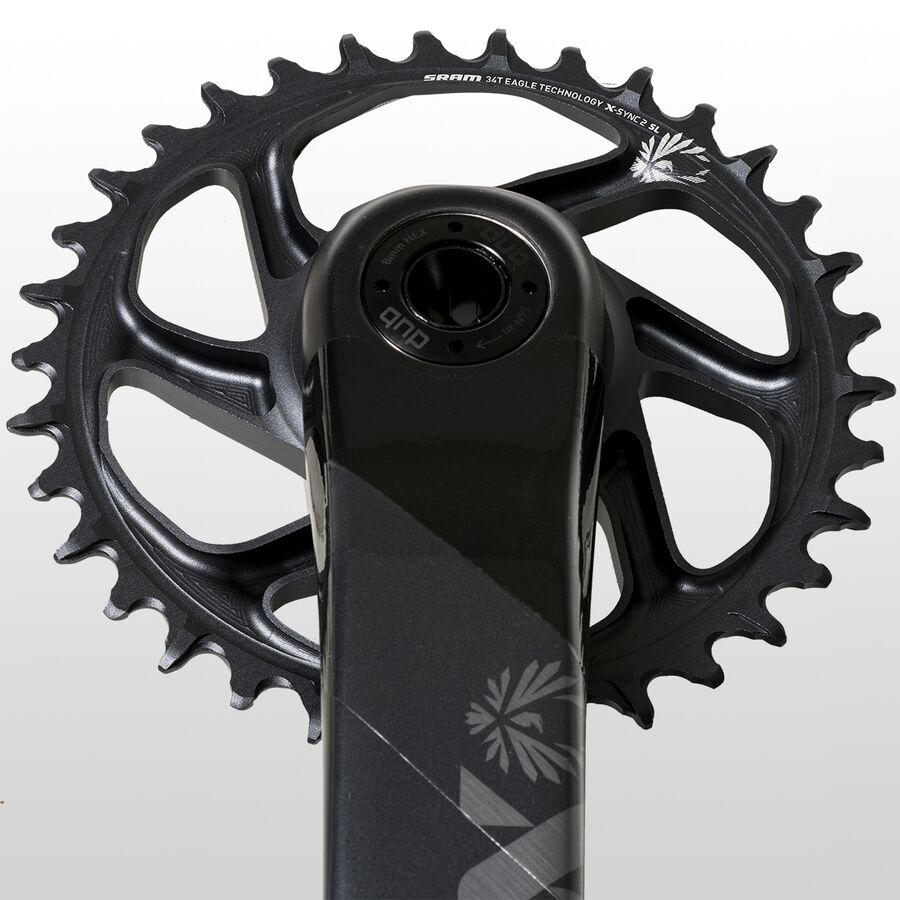

  • X-Sync 2 chainring is quiet and retains your chain
  • Pairs with Eagle 12-speed drivetrain components
  • Only works with 12 x 142mm rear axle spacing

  Arm Material

  carbon composite with hollow core

  Arm Length

  170mm, 175mm

  Chainring Sizes

  34 t

  Rings

  single

  BB Type

  BSA/Threaded/English, Pressfit, BB30, PF 30

  Spindle

  28.99mm (diameter)

  Q Factor

  180mm

  Chainline

  49mm

  Compatible Components

  SRAM DUB bottom bracket, Eagle 12-speed

  Claimed Weight

  [175mm, 32 t] 14.9oz (422g)

  Manufacturer Warranty

  2 years

  Activity

  mountain biking
