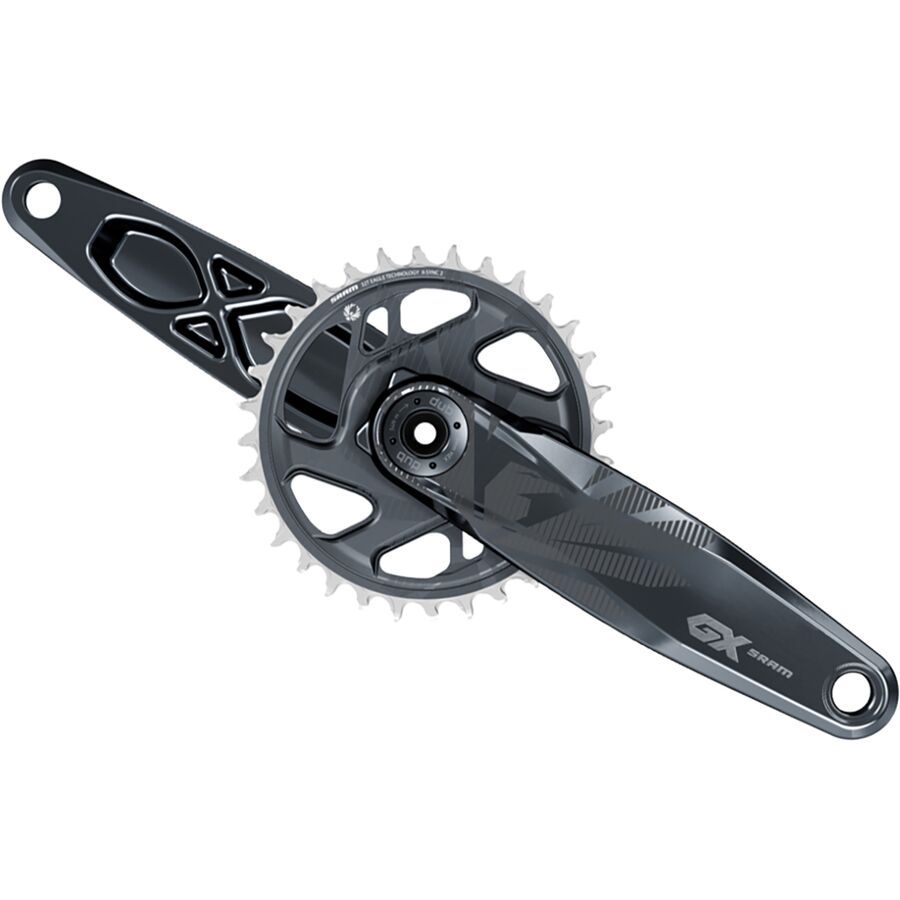

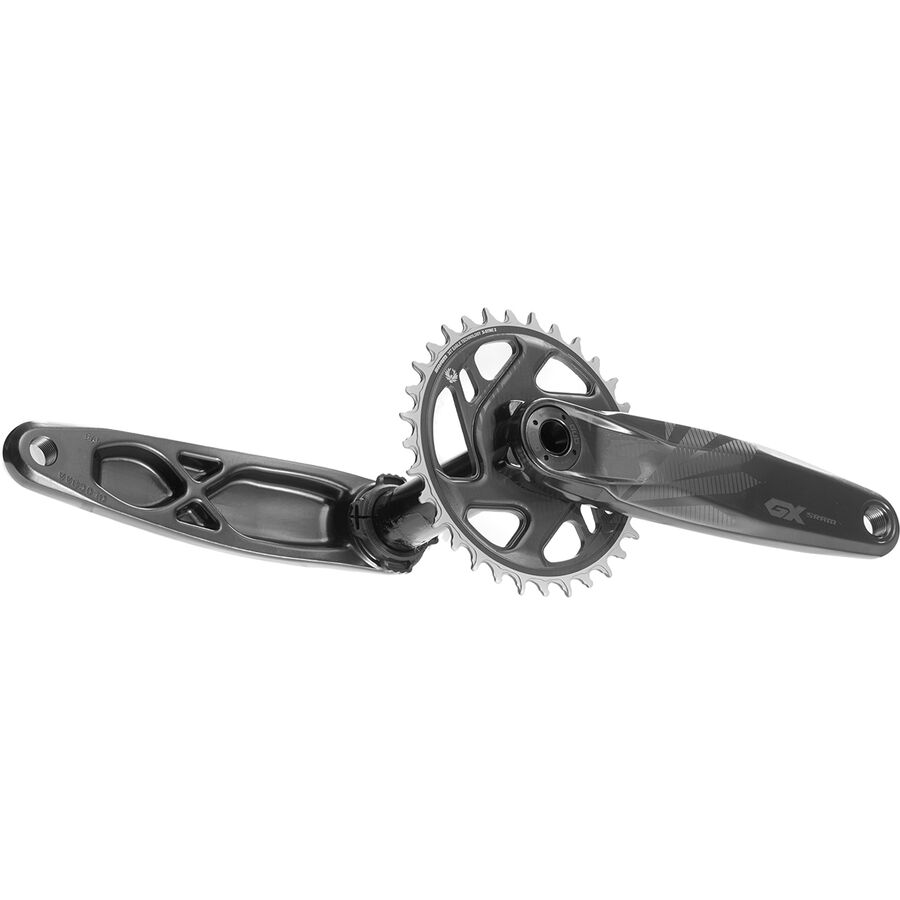

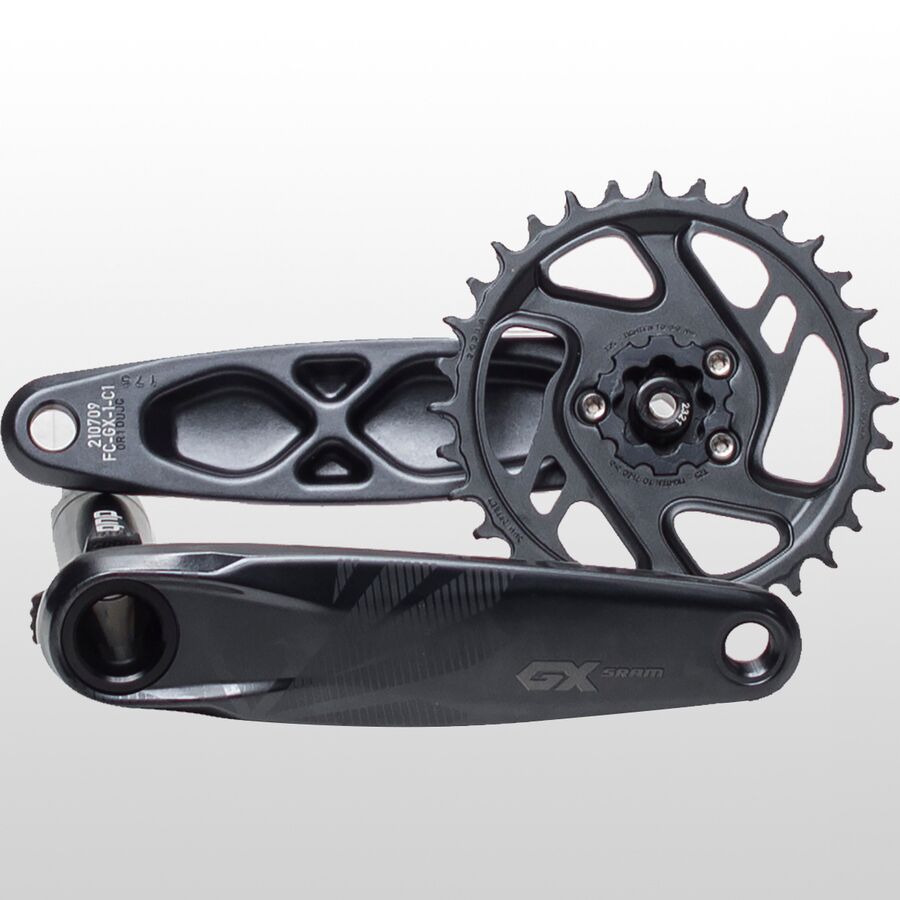

GX Eagle DUB Crankset - Boost

• Product Details

  Standing for Durable Unified Bottom Bracket, or DUB for short, SRAM's latest push forward in crankset technology unifies all major bottom bracket standards under a newly introduced spindle diameter of 28.99 millimeters, versus the previous 30 and 24-mililmeter spindles used by SRAM. Ultimately, that means the GX Eagle DUB Crankset is compatible with virtually any mountain bike, regardless if your frame uses a threaded, Press Fit, BB30, or PF30 bottom bracket.

  When DUB was first announced, we could already envision the eye rolls of the mountain bike community, seeing the changing standards seemingly imposed with every passing year. However, just hear us out before clicking away. SRAM focused entirely on improving the bearing longevity and sealing of DUB, then designed the spindle diameter to meet these needs, meaning it's ready for riding in wet and nasty conditions. SRAM was able to engineer a new crankset that's every bit as light and stiff as those with 30-millimeter spindles, but one that provides the increased bearing durability of 24-millimeter spindles. It's really a simple concept and one that elevates SRAM's Eagle DUB Cranksets to the top of the market, thanks to an optimal mix of lightweight efficiency, stiffness, and robust durability across all twelve gears.

  Seeing you don't need a major overhaul in components to run DUB Cranks, it doesn't feel so much like a newly imposed standard, but more like the next step in SRAM's continuously evolving line-up of drivetrain components. Of course, you will have to purchase a new DUB-specific bottom bracket for this crankset to work, but it's really a small compromise considering the system's ideal blend of lightweight performance and bearing longevity. Although SRAM tried to best accommodate every major bottom bracket standard, there were two types that aren't compatible, including frames with SuperBoost rear ends, as well as those using Cannondale's BB30 Ai standard.

  Outside of the DUB standard, the GX Eagle DUB Crankset is ideal for the everyday rider who demands reliability and efficient pedaling, but one that's not overly concerned with counting every last gram. It's made of 7000-series aluminum for optimal strength-to-weight and a lower cost than carbon offerings, such as XO1 and XX1. This particular version works exclusively with BOOST 12 x 148-millimeter rear axle spacing and pairs nicely with SRAM's Eagle 12-speed drivetrain components.

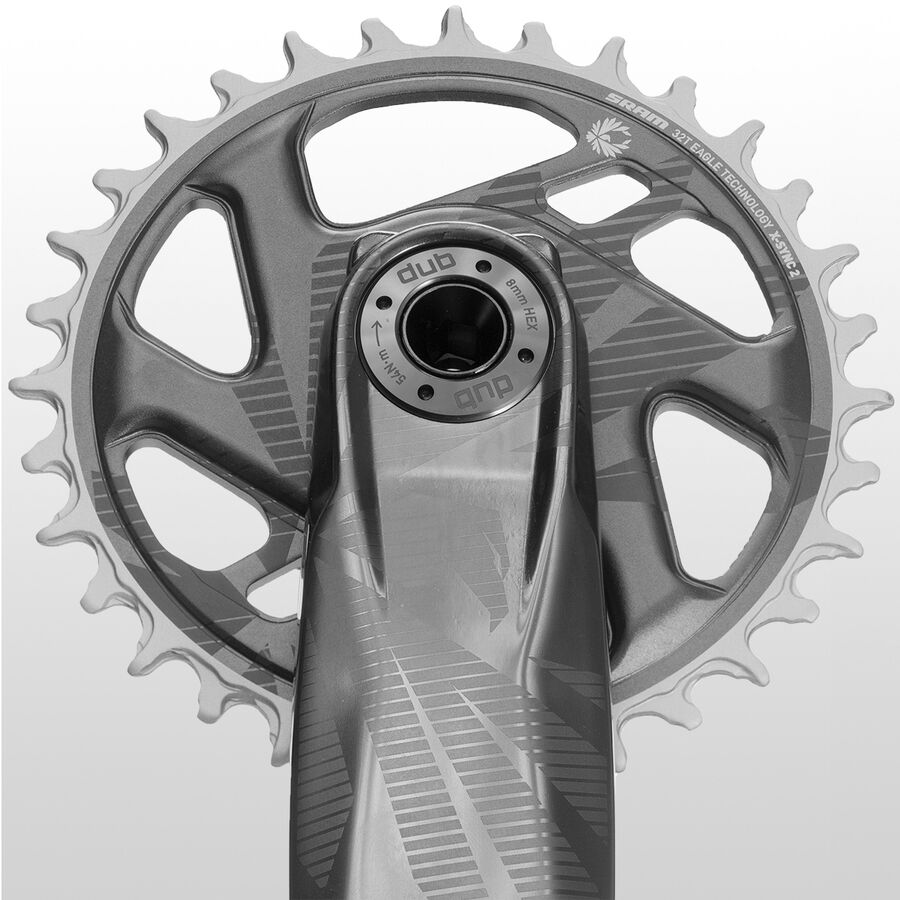

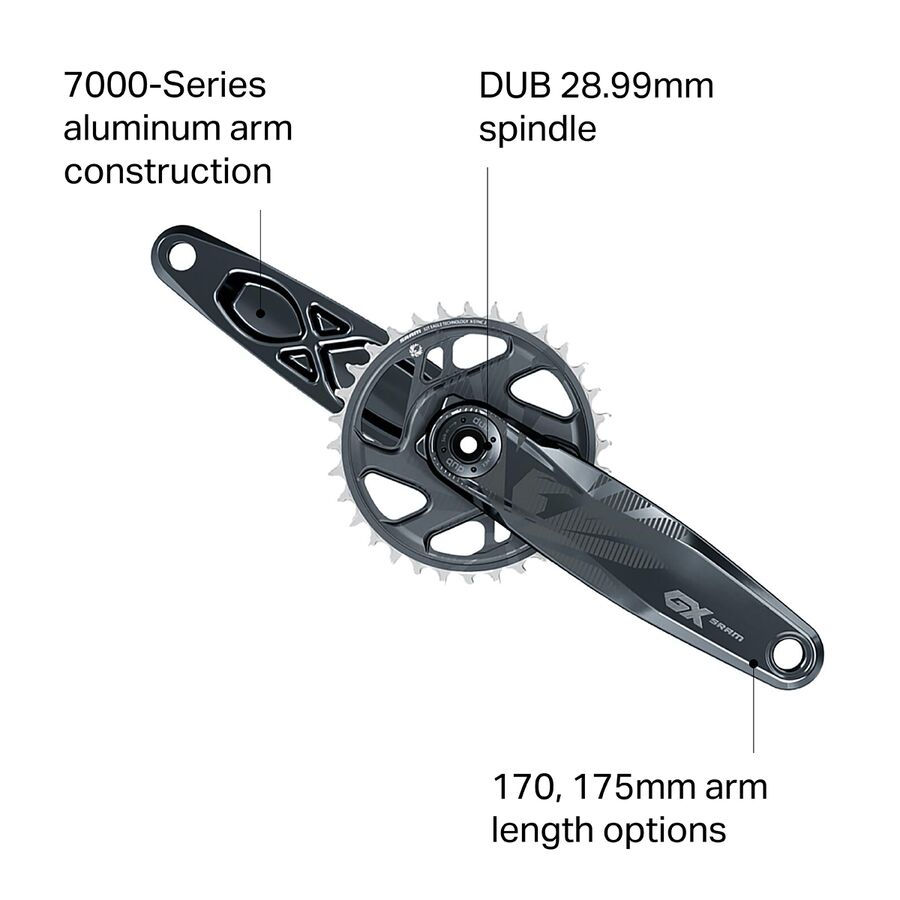

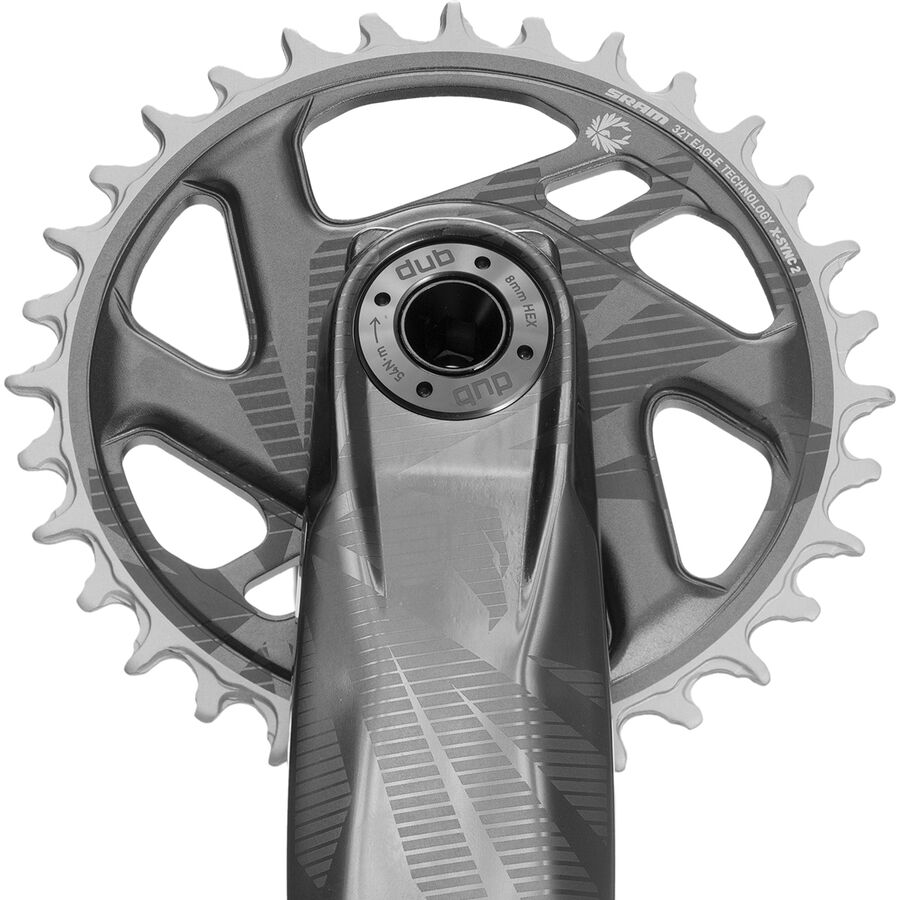

  • SRAM's GX Eagle workhorse crank with DUB 28.99mm spindle
  • Works with major BBs: BSA/threaded/English, Press Fit, BB30, PF30
  • SRAM designed DUB cranks to improve bearing durability and sealing
  • Bearing life of 24mm systems, light and stiffness of 30mm systems
  • 7000-series aluminum for optimal strength, efficiency, low weight
  • Designed exclusively for BOOST 12 x 148mm rear axle spacing
  • Compatible with Eagle 12-speed drivetrain components
  • DUB bottom bracket must be purchased separately

  Arm Material

  7000-series aluminum

  Arm Length

  170mm, 175mm

  Chainring Sizes

  32t

  Bolts

  Direct-Mount

  Rings

  single

  BB Type

  BSA/Threaded/English, Press Fit, BB30, PF30

  Spindle

  28.99mm spindle diameter

  Chainline

  52mm

  Compatible Components

  SRAM DUB Bottom Brackets, Eagle 12-speed drivetrain components (e.g. chain, cassette, derailleur, etc...)

  Includes

  2 pedal washers

  Claimed Weight

  1lb 5.9oz (621g)

  Manufacturer Warranty

  2 years

  Activity

  mountain biking
