VHF 1/2 Wave No Ground Plane (NGP) Antenna

• Product Details

  VHF 1/2 Wave No Ground Plane (NGP) Antenna.

  The best VHF antenna for work, race, or play! Rugged has manufactured this GO FURTHER antenna for optimum performance in the VHF range of frequencies.

  Its wide-band technology makes this antenna plug-and-play for all VHF applications.

  This "No Ground Plane" 1/2 wave base loaded antenna does not have to be attached to a metal surface (such as a vehicle roof or larger body panel). Although using a ground plane is always better, this NGP antenna performs great for all uses, drivers, teams, and applications.

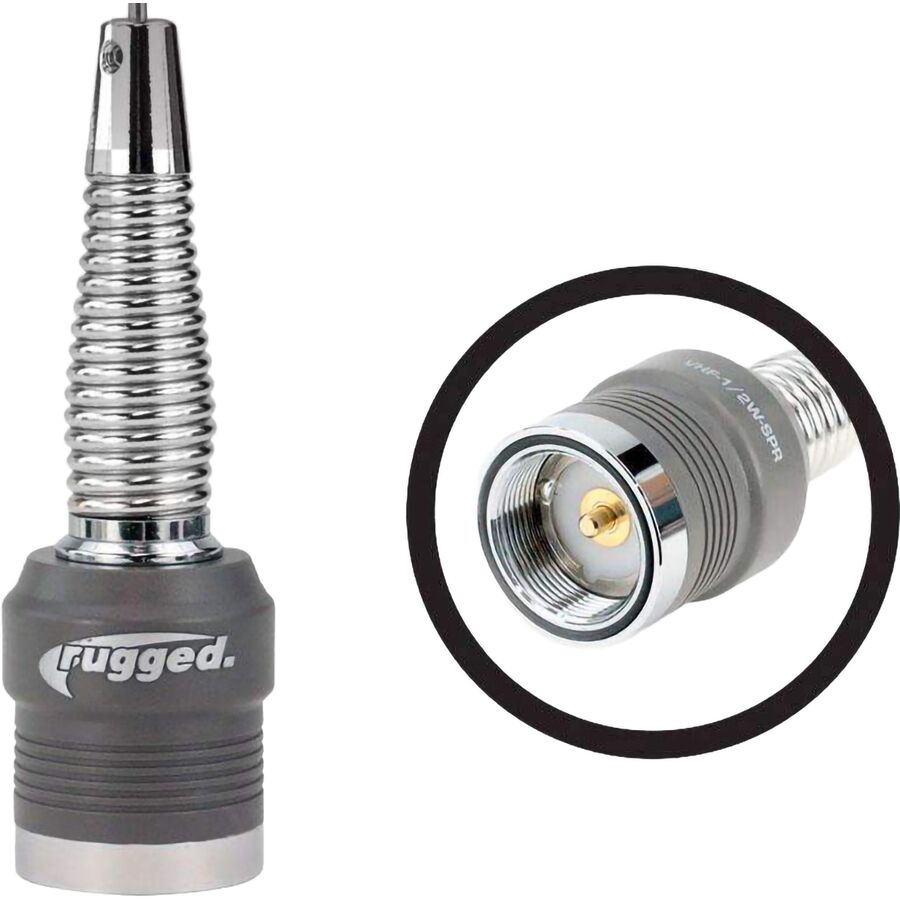

  The molded high-heat ABS mounting base features silver soldered connections, gold-plated push pin contacts and O-ring.

  • VHF range: 136 - 174 Mhz.
  • Pre-tuned: 154 MHz.
  • Connector type: None.
  • Color: Chrome model(s).
  • Gain: 4.5 dB.
  • VHF bandwidth: 4 MHz.
  • Power (watts): 120.
  • Whip material: 17-7PH stainless steel.
  • Whip length (@154 MHz): 39.8" VHF.
  • Base style: NMO style.

  This antenna is already pre-tuned (cut) for application. Simply order, mount, and ride!

  1/2 Wave Spring Antenna Data Sheet


  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Rugged Radios VHF 1/2 Wave No Ground Plane (NGP) Antenna	VHF-1/2W-SPR
