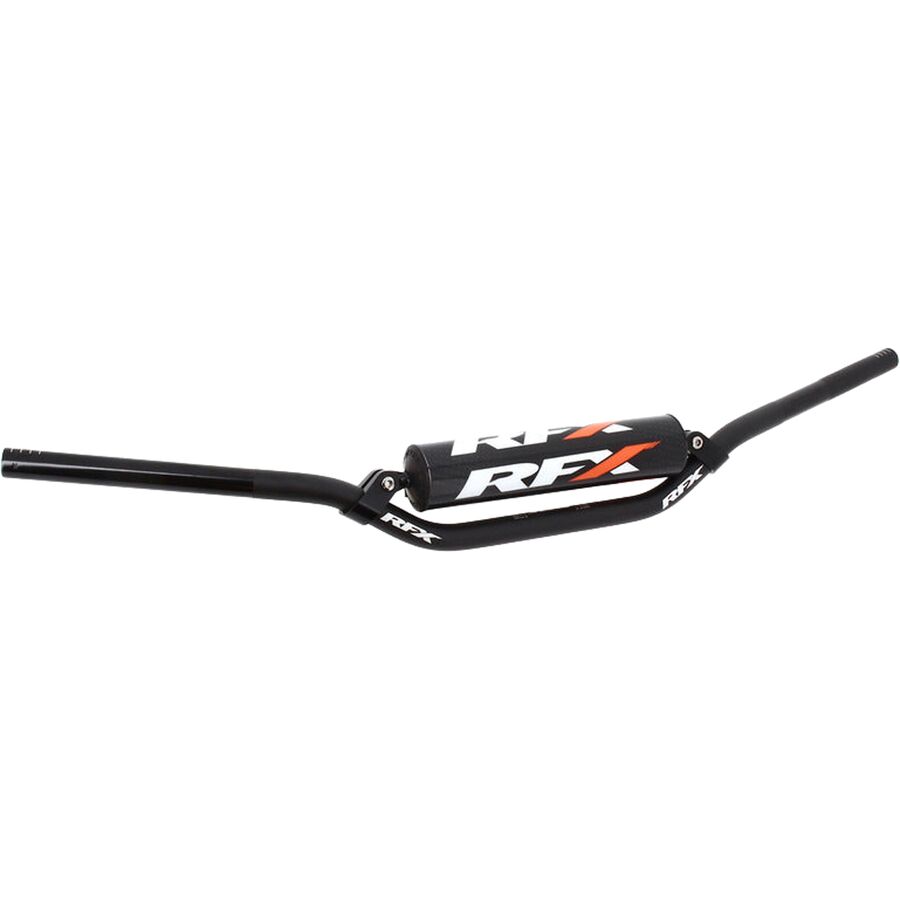

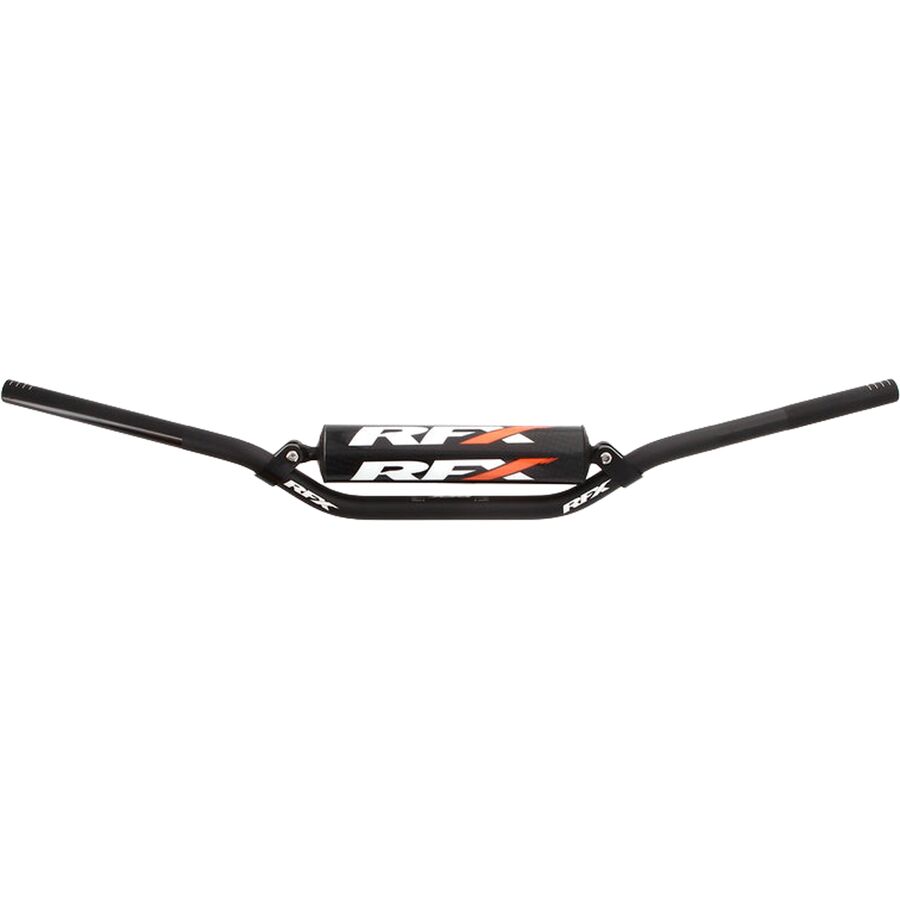

F22 Taper Bar - 7/8in

• Product Details

  F22 Bar.

  A narrower alternative to the F8, with a constant 22.2 mm diameter throughout the full length of the bar. F22 Taper bars are manufactured from 7075-T6 aluminum to give the best strength and crash resistance.

  Engineered Flex Technology (EFT) and Progressive Damping Control (PDC) help provide just the right amount of flex and reduces machine vibration to help combat rider fatigue.

  Features:

  • 7075 aerospace aluminum construction.
  • T6 heat treatment to increase tensile strength.
  • Incorporated cross brace design.
  • Shot peened finish to prevent surface stress fractures and increase service life.
  • Knurled grip area to prevent grips slipping and twisting.
  • Polished throttle area for smoother throttle action.
  • Laser-etched alignment grid for precise setup.
  • Color anodized to prevent corrosion.
  • Includes high-density foam pad with hard-wearing PVC cover.

  Engineered Flex Technology.

  Engineered Flex Technology (EFT) is designed to give a small amount of flex in the bars. Carefully selecting an inner wall thickness of 5 mm through the rise and taper area of the bars helps to reduce the effects of jarring in large impacts whilst providing the rider maximum front-end feel in corners.

  Progressive Damping Control.

  Progressive Damping Control (PDC) is created using a larger wall thickness of 5.3 mm on the handlebar grip area, this has been calculated to balance and dampen against the effects of handlebar vibration. This is a similar principal to the handlebar weights used in sportbikes but is specifically designed and tested to suit the vibration range produced by modern high performance 4-stroke motocross bikes.

  Handlebar Specifications:

  • Name: Stewart.
  • Mount: 22 mm.
  • Width (A): 805 mm.
  • Height (B): 93 mm.
  • Rise (C): 50.
  • Clamp Area (D): 205 mm.
  • Sweep (E): 55 mm.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Black / Stewart RFX F22 Taper Bar - 7/8in	FXHB 22002 99BK
