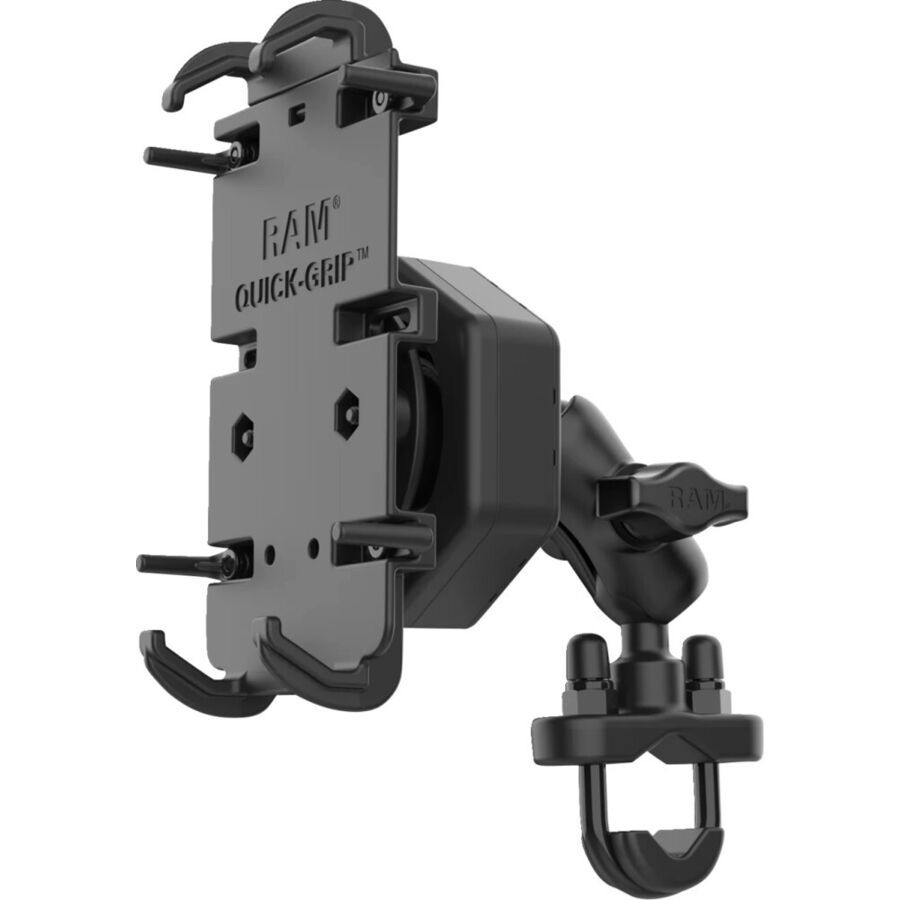

Quick-Grip XL With Vibe-Safe & U-Bolt Base

• Product Details

  The RAM Quick-Grip XL Phone Mount with RAM Vibe-Safe & U-bolt Base - Short (RAM-B-149Z-A-PD4-462) is a combination of the RAM Quick-Grip XL Phone Mount and the RAM Vibe-Safe - the vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies. The RAM Vibe-Safe is based on an NPT connection point and boasts the versatility to rotate between portrait and landscape while keeping your device secure in rugged environments. This product includes one (1) short B size arm and one (1) RAM U-bolt Base that accommodates rails from 0.5" - 1.25" in diameter. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case / sleeve / skin when determining the overall size.

  • RAM Vibe-Safe dampens a wide range of vibration frequencies.
  • NPT thread connection allows for rotation between portrait and landscape while remaining secure.
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments.
  • Unique structure and thoughtfully designed with all industries in mind.
  • Backed by a lifetime warranty.

  Tech Specs:

  • Hardware included:
  • Assembly hardware.
  • (1x) 1/4"-20 U-bolt for 0.5" - 1" rails.
  • (1x) 1/4"-20 U-bolt for 1" - 1.25" rails.
  • (2x) 1/4"-20 Nylock nuts.
  • (2x) rubber caps.
  • (1x) U-bolt spacer.
  • Holder dimensions:
  • Height range: 5.75" - 8.25".
  • Width range: 2.625" - 3.625".
  • Max depth: 0.72".
  • Clamp range: 0.5" - 1.25" diameter.
  • Socket-to-socket length: 1.75".
  • Ball size: B size (1").
  • Weight capacity:
  • Standard use: 2 pounds.
  • Heavy-duty use: 1 pound.
  • Materials:
  • Marine-grade aluminum.
  • High-strength composite.
  • Weight: 1.13 pounds.
  • Note: A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM Vibe-Safe. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM mounts lifetime warranty is limited to RAM mounts and components. The warranty does not include any device mounted or attached to a RAM mount, such as a phone, GPS, camera, computer or other device.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Short Arm RAM Mounts Quick-Grip XL With Vibe-Safe & U-Bolt Base	RAM-B-149Z-A-PD4-462
