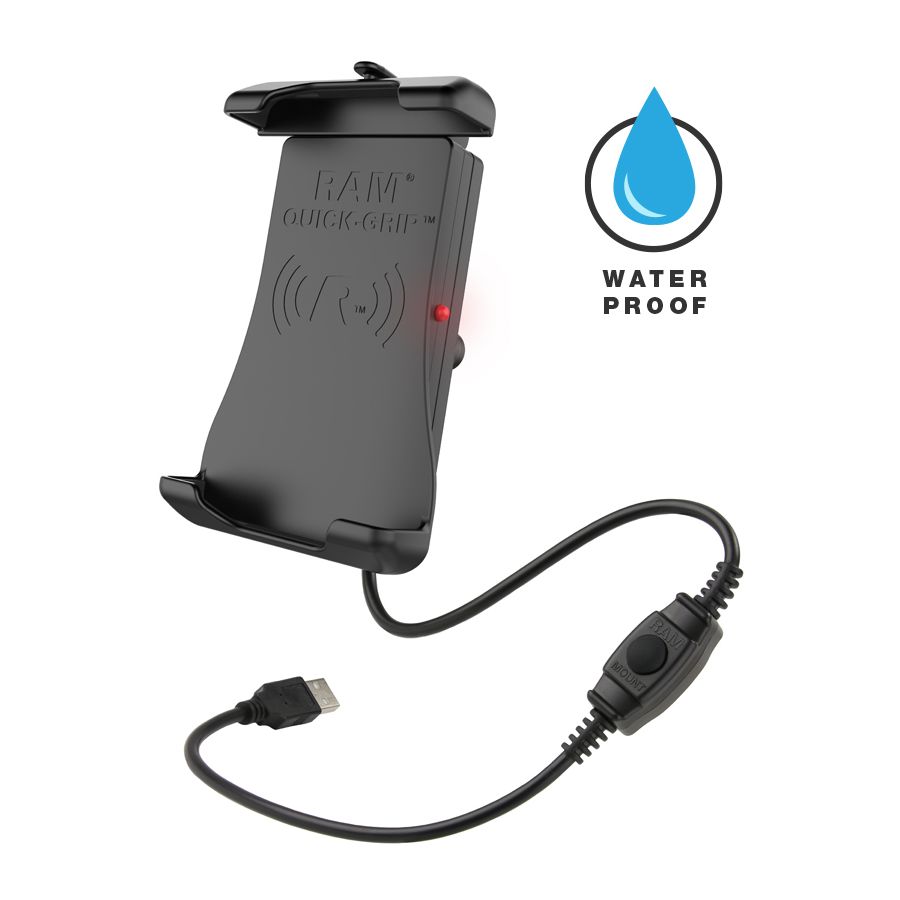

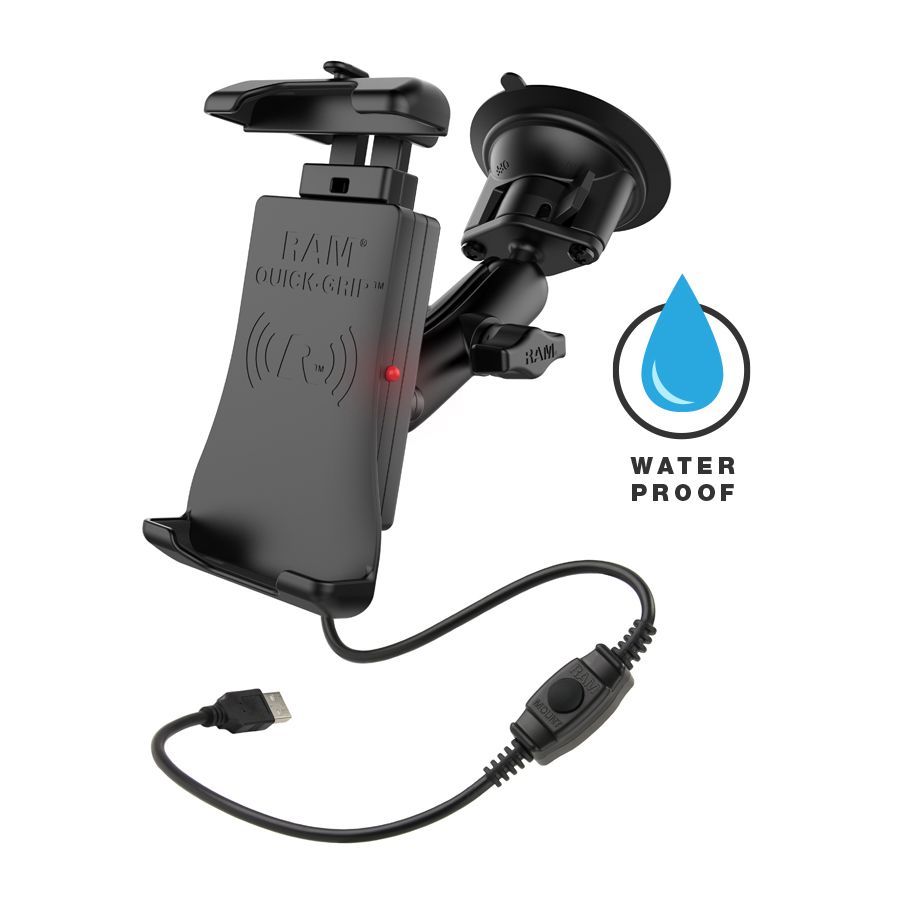

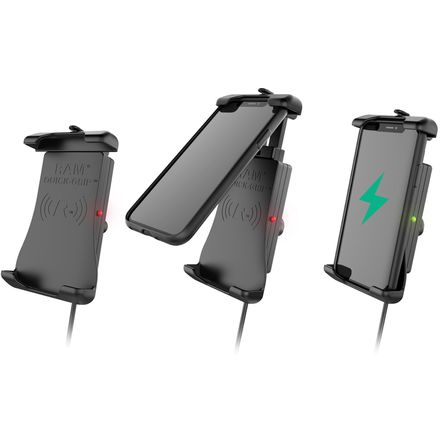

The RAM Quick-Grip Wireless is a patented, universal water-resistant wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it's within the listed compatible dimensions. For added security and peace of mind, a device tether is included that's recommended for outdoor applications. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2 meter Type-A male to Type-A female extension cable.
- Waterproof Qi wireless phone charging cradle features spring-loaded RAM Quick-Grip design and 10W maximum output.
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments.
- RAM Mounts backed by lifetime warranty, RAM electronics backed by one-year warranty.
- Holder dimensions:
- Height range: 5.625" - 6.625".
- Max width: 3.125".
- Max depth: 0.7".

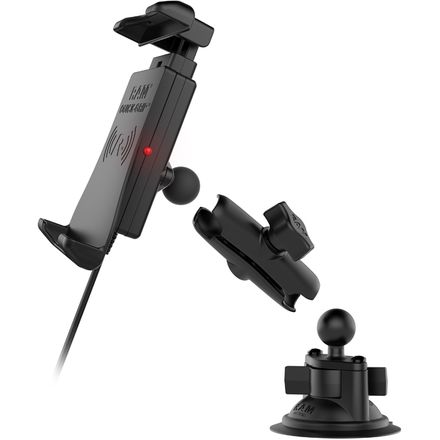

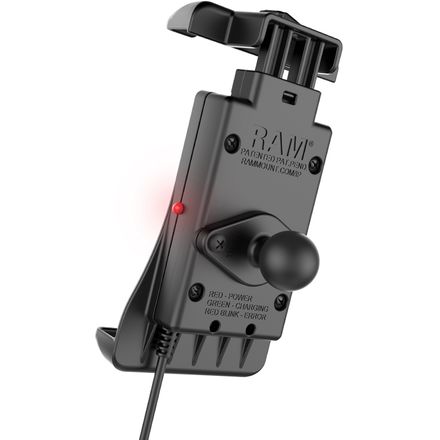

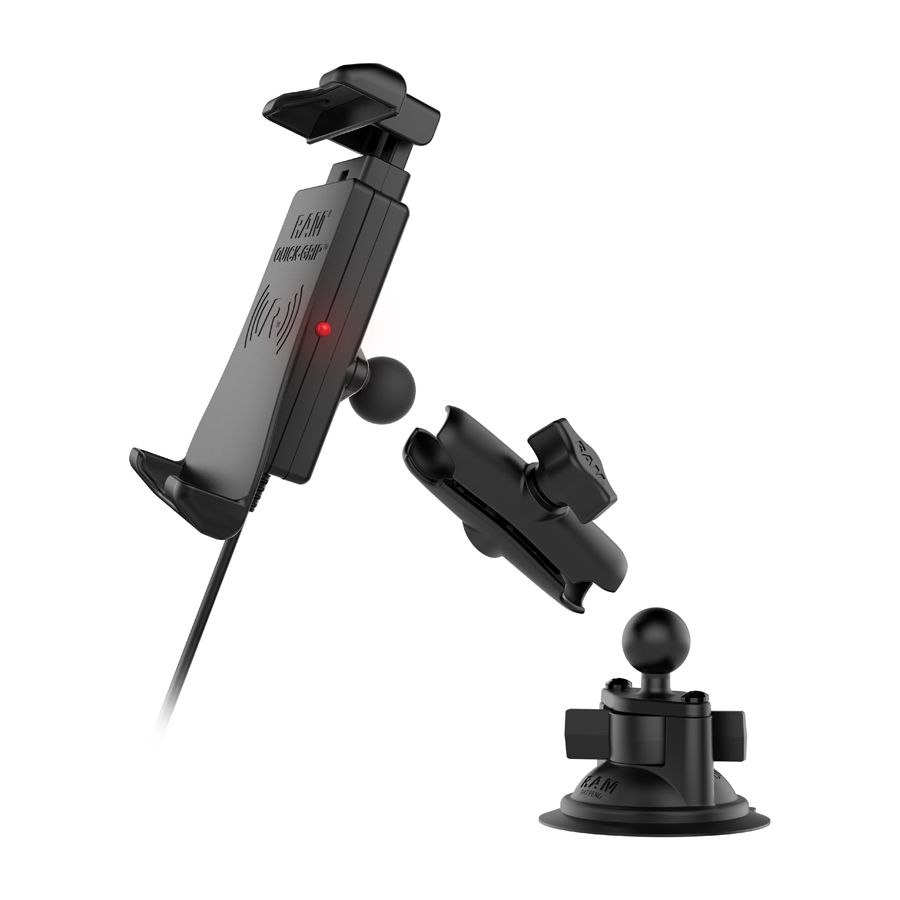

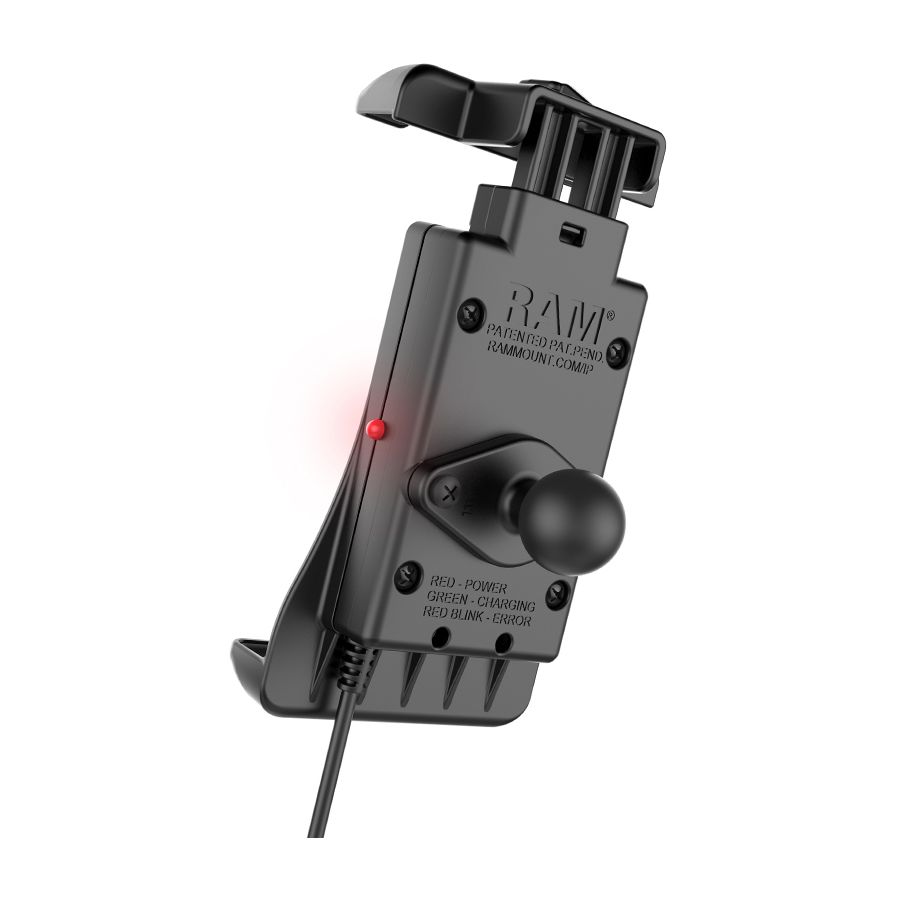

- Ball / socket size: B size (1").
- Materials: Marine-grade aluminum, high-strength composite and stainless steel.
- Power specifications:
- Input power: 5V-2A; 9V-1.67A.
- Output: 5W / 7.5W / 10W.
- Conversion efficiency: 85% max.
- Transmitting distance: 5 - 8 mm.
- Working frequency: 110 - 205KHZ.
- Product standard: WPC v.1.2.4.
- QI compatible.
- Compatible with QC2.0/QC3.0 power supplies.
- Compliance: Over current protection, short circuit protection and over temperature protection.
- Certifications: FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant.
- Note: This holder will NOT charge phones that DO NOT have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
