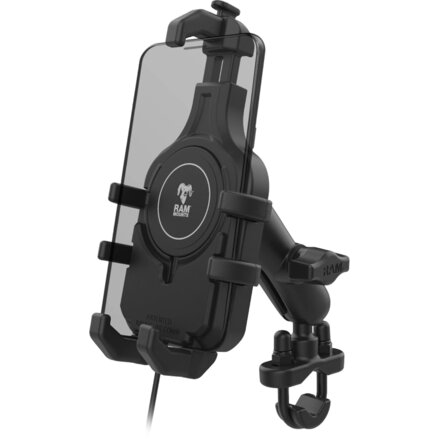

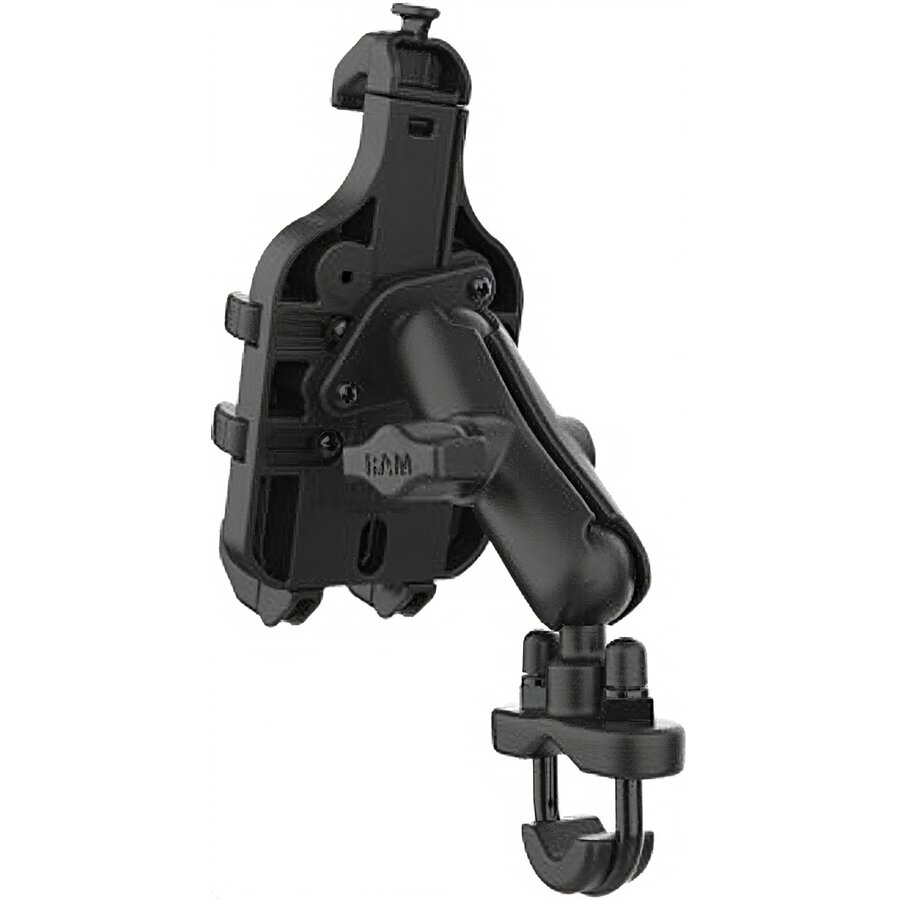

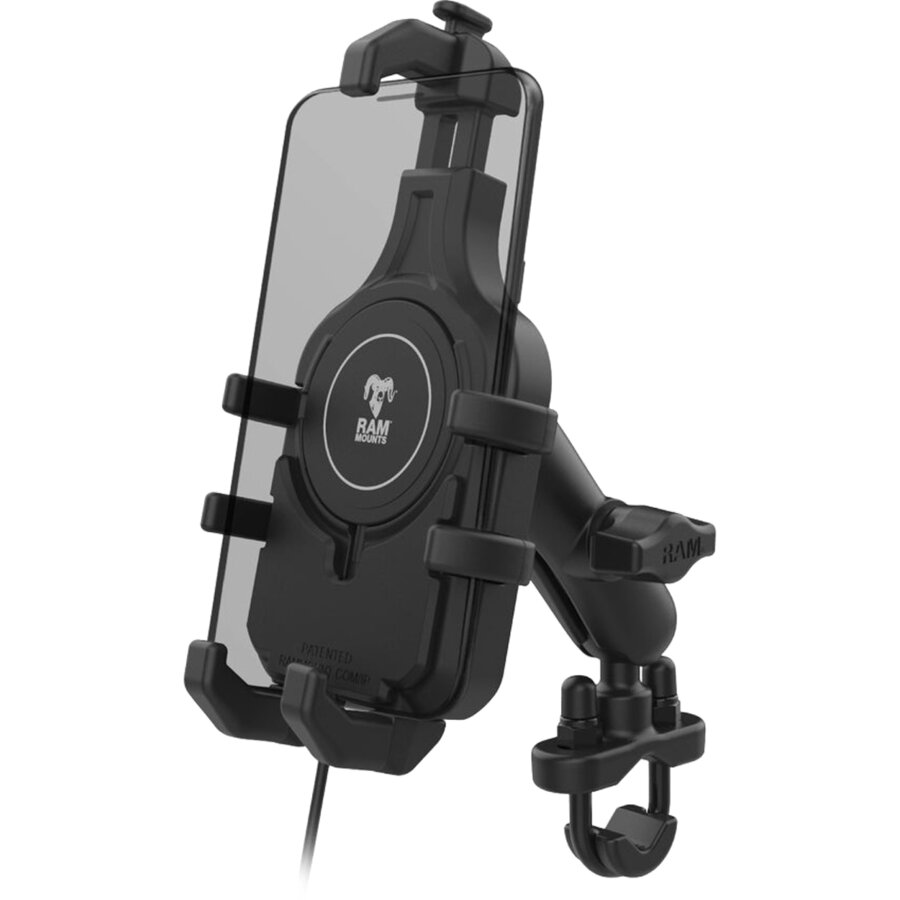

Quick-Grip Pro Phone Handlebar Mount with Qi2 15W Wireless Charger.
The RAM Quick-Grip Pro Phone Handlebar Mount with Qi2 15W Wireless Charger is the next evolution of the RAM Quick-Grip series, re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder comes with the RAM Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM Quick-Grip Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. This kit includes zinc-coated handlebar U-Bolt base that accommodates rails from 0.5" to 1.25" in diameter. RAM recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
Features:
- Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand.
- Includes RAM Qi2 wireless charger that fits seamlessly in the integrated center cavity.
- Made of high-strength composite for durability and reliability; Wireless charger features IP67 waterproof rating for withstanding water and dust in the most extreme conditions.
- Includes U-bolt base that accommodates rails from 0.5" to 1.25" in diameter and a medium length, B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability.
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty.
Specs:
- Hardware Included:
- Assembly Hardware.
- One (1) RAM Qi2 Wireless Charging Puck.
- One (1) 1/4"-20 U-Bolt for 0.5" - 1" Rails.
- One (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails.
- Two (2) 1/4"-20 Nyloc Nuts.
- Two (2) Rubber Caps.
- One (1) U-Bolt Spacer.
- Holder Dimensions:
- Height range: 5.5" - 7.75".
- Width range: 2.625" - 3.75".
- Max Depth: 0.67".
- Clamp Range:
- Socket to Socket Length:
- Ball Size:
- Weight Capacity:
- Standard use: 2 pounds.
- Heavy-duty use: 1 pound.
- Materials:
- Marine-grade aluminum.
- High-strength composite.
- Power Specifications:
- Operating frequency: 360 KHZ.
- Stand-by consumption: ~ 0.008A / 8mA @5VDC.
- 80% Wireless Power Transfer Efficiency or greater.
- Supports USB 2.0 BC1.2 power supply (5V).
- Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0.
- Input Voltage:
- USB 5V @ 3A.
- QC2.0 9V @ 2.22A.
- USB PD 2.0 5-15V @ 2A.
- Power Output:
- BPP - 5W.
- EPP - 7.5W.
- MPP - 15W.
- Output Connector:
- USB Type-C Male with USB-A Adapter.
- Output Cable Length:
- Operating Temperature:
- Storage Temperature:
- Regulatory:
- Over current protection.
- Short circuit protection.
- Over temperature protection.
- RoHS compliance.
- WEEE compliance.
- Certifications:
- IP67.
- SAE J1455.
- FCC Certification.
- CE Certification.
- E-Mark Certification.
- RCM Certification.
- Warranty:
- Weight:
- Additional Information:
- This charger will support up to 8 mm charging distance between puck and device.
- Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
- Top hook may block front facing camera and facial recognition on select phones.
