Puig Tiny LED Turn Signals

• Product Details

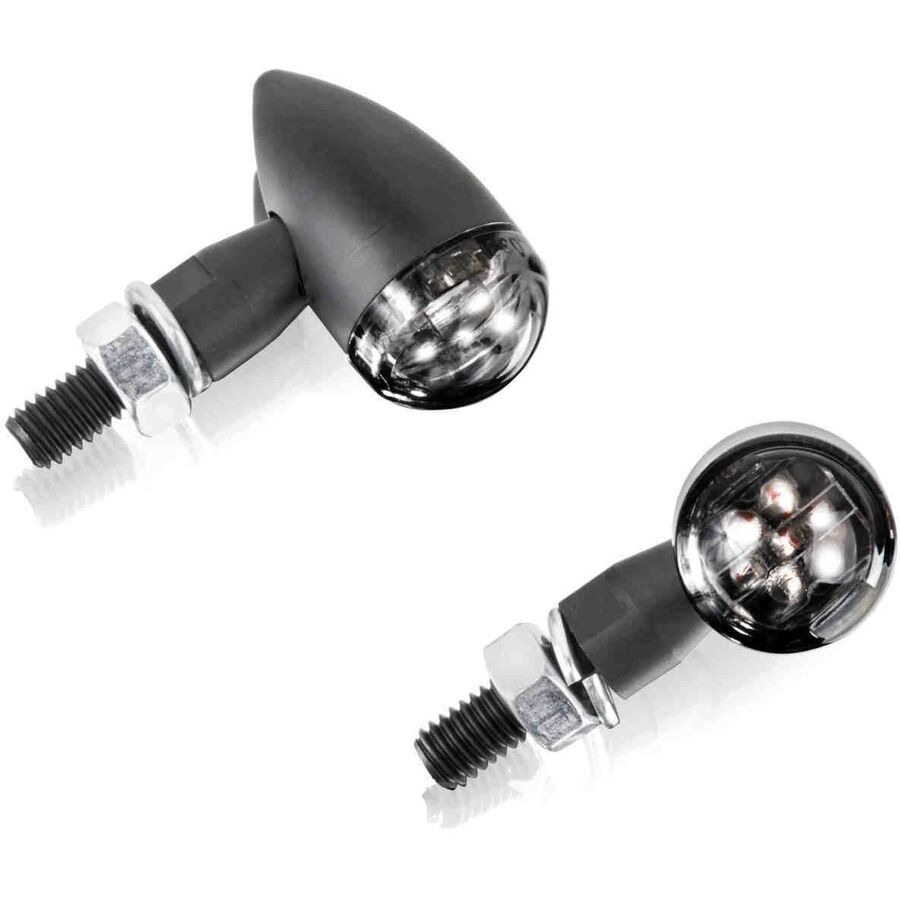

  Replace the original turn signals on your motorcycle with Puig's Tiny universal turn signals.

  • Flashing lights in black and with LED lights, they differ from the rest of their range by incorporating crystals in smoked finish and their reduced size (27 x 34.20 mm).
  • Turn signal function.
  • Sold as a pair.

  Technical Info Turn Signals Connections:

  Most of the bikes use bi-metallic relays. Its frequency (which is the one that sets the pace of the turn signals) depends on the amperage circulating through the circuit. When replacing the turn signals from O.E.M. to aftermarket ones which carry a difference in power, consequently they vary the amperage circulation through the circuit that causes a change on the frequency of the turn signals rhythm. If otherwise, the motorcycle uses electronic relay (which frequency works independently from the amperage circulating through the circuit) the change of turn signals from O.E.M. to aftermarket, should not affect the frequency of the turn signals rhythm.

  Note: In case of doubt of what type of relay the motorcycle uses, Puig recommends to check the turn signal rhythm after switching from O.E.M. to aftermarket.

  If the O.E.M. turn signals are replaced by LED ones (of much less power than incandescent bulbs), there are two options to balance the frequency of rhythm:

  • 1. Incorporate a parallel relay in the right circuit and the other on the left circuit. If four turn signals are replaced , use a resistance P/N 4298O (sold separately). If only two turn signals are replaced (one on each side), use a resistance P/N 4298O (sold separately). The resistances are supplied with a scheme for a parallel connection. (Note: On most of the bikes, the warning function of the bike is disabled if the resistance is used.).
  • 2. Identify the intermittent relay of the motorcycle (location and number of pins) and replace it for its corresponding from the list supplied on most of the bikes, the warning functions work correctly when the relay is replaced. (Note: Some motorcycles in the market do not have an intermittent relay, obviously in this case it cannot be replaced. Moreover, if on the blinking function intervenes more than one relay, it is possible that replacing only one relay does not solve the problem.

  Report Incorrect Product Information

  ---

  Read More

• Customer Reviews

• Q&A

• # Part Numbers

  Product Variant	Manufacturer Part #
  Black Puig Tiny LED Turn Signals	9314N
