Renew the aesthetics of your motorcycle and improve visibility with the versatile approved Tab turn signals from Puig.

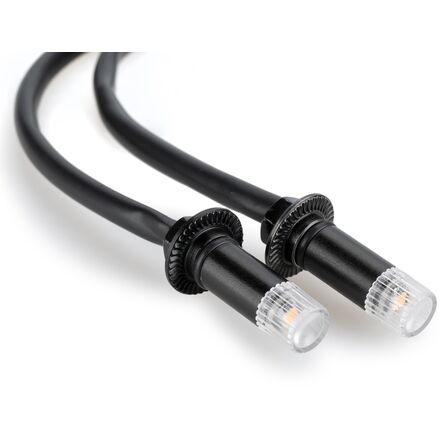

The Tab approved turn signals, available for front and rear, join the extensive catalog of Puig turn signals. With its installation, the aesthetics of the motorcycle are easily and effectively renewed and personalized while, thanks to its LED bulb technology, they achieve optimal visibility to other riders.
- Compact in size and small in size, they stand out for their careful design and great versatility, since they can be installed in different positions; license plate holder, mirror cover, upper and lower part of the mirror support.
- They fit with a wide variety of motorcycles, from sports to naked and classic, that are looking for a more sporty and personalized touch.
- 10 mm diameter x 10 mm length, 12 V, 1 W.
- Sold as a pair.
Technical Info Turn Signals Connections:
Most of the bikes use bi-metallic relays. Its frequency (which is the one that sets the pace of the turn signals) depend on the amperage circulating through the circuit. When replacing the turn signals from O.E.M. to aftermarket ones which carry a difference of power, consequently they vary the amperage circulation through the circuit that causes a change on the frequency of the turn signals rhythm. If otherwise, the motorcycle uses electronic relay (which frequency works independently from the amperage circulating through the circuit) the change of turn signals from O.E.M. to aftermarket, should not affect the frequency of the turn signals rhythm.
Note: In case of doubt of what type of relay the motorcycle uses, PUIG recommends to check the turn signal rhythm after switching form O.E.M. to aftermarket.
If the O.E.M. turn signals are replaced by aftermarket ones that use incandescent bulbs, you need to check they use the same power. In case it is different, you will need to replace the turn signals bulbs for others that use the same power as O.E.M. ones. In the PUIG catalog, they have available bulbs of different power.
If the O.E.M. turn signals are replaced by LED ones (of much less power than incandescent bulbs), PUIG has two options to balance the frequency of rhythm:
- 1. Incorporate a parallel relay in the right circuit and the other on the left circuit. If you replace four turn signals, you need to use a resistance P/N 4298O (Set of Resistors 3.9 Ohms/25w for LED Turn Lights). If otherwise, only two turn signals are replaced (one on each side), you need to use a resistance P/N 5873O (Set of Resistors 18 Ohms/25w for LED Turn Lights). The resistances are supplied with a scheme for a parallel connection. (Note: On most of the bikes, the warning function of the bike is disabled if the resistance is used.)
- 2. Identify the intermittent relay of the motorcycle (location and number of pins) and replace it for its corresponding from the list supplied on most of the bikes, the warning functions work correctly when the relay is replaced. (Note: Some motorcycles in the market that do not have an intermittent relay, obviously in this case it cannot be replaced. Moreover, if on the blinking function intervenes more than one relay, it is possible that replacing only one relay does not solve the problem. Note 2: Some LED turn signals flash faster than normal when connected to power (it is normal to check the polarity of the cables with the flashing function activated). To verify the actual flashing frequency, remove all power by turning the key to the "off" position and then move to the "on" position to activate the flashing function.
