# Part Retail Our Price

Stock Status Suggested Quantity
1
1HP-46101-00-00 rear axle gear case assy Supersedes: 3B4-46101-00-00 (REAR AXLE GEAR CASE ASSY) Retail: $2,360.36 Price: $2,050.83

Expected to Ship in 5-8 Days
2
3B4-46151-00-00 housing, drive shaft Retail: $403.60 Price: $322.88

Expected to Ship in 5-8 Days
3
93332-00046-00 bearing Retail: $95.23 Price: $77.14

Expected to Ship in 5-8 Days
4
90201-25634-00 washer, plate Retail: $20.16 Price: $17.33

Expected to Ship in 5-8 Days
5
3B4-46129-00-00 spacer, expansion Price: $15.75

Expected to Ship in 5-8 Days
6
93332-00053-00 bearing Retail: $112.99 Price: $91.52

Expected to Ship in 5-8 Days
7
3B4-461A0-00-00 ring gear set Retail: $765.25 Price: $604.54

Expected to Ship in 5-8 Days
8
3B4-46144-00-00 housing, pinion bearing Retail: $198.56 Price: $158.84

Expected to Ship in 5-8 Days
9
93102-35380-00 oil seal Retail: $40.34 Price: $34.69

In Stock
10
93210-626A7-00 o-ring Retail: $26.62 Price: $22.89

In Stock
11
3B4-46126-10-00 coupling Supersedes: 3B4-46126-00-00 (COUPLING) Retail: $169.50 Price: $135.60

Expected to Ship in 5-8 Days
12
90201-12029-00 washer, plate Price: $15.75

Expected to Ship in 5-8 Days
13
90179-12325-00 nut Supersedes: 90179-12005-00 (NUT) Price: $12.04

In Stock
14
2HR-46127-00-50 shim, drive piston (0.50t) UR Supersedes: 2HR-46127-00-45 (SHIM, DRIVE PISTON (0.50T)) Retail: $26.62 Price: $22.89

In Stock
14
2HR-46127-00-40 shim, drive piston (0.40t) UR Supersedes: 2HR-46127-00-35 (SHIM, DRIVE PISTON (0.40T)) Retail: $26.62 Price: $22.89

Expected to Ship in 5-8 Days
14
2HR-46127-00-30 shim, drive piston (0.30t) UR Supersedes: 2HR-46127-00-25 (SHIM, DRIVE PISTON (0.30T)) Retail: $26.62 Price: $22.89

Expected to Ship in 5-8 Days
14
2HR-46127-00-30 shim, drive piston (0.30t) UR Supersedes: 2HR-46127-00-25 (SHIM, DRIVE PISTON (0.30T)) Retail: $26.62 Price: $22.89

Expected to Ship in 5-8 Days
14
2HR-46127-00-40 shim, drive piston (0.40t) UR Supersedes: 2HR-46127-00-35 (SHIM, DRIVE PISTON (0.40T)) Retail: $26.62 Price: $22.89

Expected to Ship in 5-8 Days
14
2HR-46127-00-50 shim, drive piston (0.50t) UR Supersedes: 2HR-46127-00-45 (SHIM, DRIVE PISTON (0.50T)) Retail: $26.62 Price: $22.89

In Stock
15
3B4-46316-00-00 gear, pinion 1 Retail: $230.85 Price: $184.68

Expected to Ship in 5-8 Days
16
93306-205U1-00 bearing Supersedes: 93306-205U0-00 (BEARING) Retail: $40.34 Price: $34.69

Expected to Ship in 5-8 Days
17
3B4-46119-40-00 shim, thrust (0.45t) UR Price: $4.18

Expected to Ship in 5-8 Days
17
3B4-46119-30-00 shim, thrust (0.40t) UR Price: $13.90

Expected to Ship in 5-8 Days
17
3B4-46119-20-00 shim, thrust (0.35t) UR Price: $5.29

Expected to Ship in 5-8 Days
17
3B4-46119-50-00 shim, thrust (0.50t) UR Price: $3.81

Expected to Ship in 5-8 Days
17
3B4-46119-00-00 shim, thrust (0.25t) UR Price: $15.75

Expected to Ship in 5-8 Days
17
3B4-46119-10-00 shim, thrust (0.30t) UR Price: $13.90

Expected to Ship in 5-8 Days
18
93306-30560-00 bearing Supersedes: 93306-30527-00 (BEARING) Retail: $138.82 Price: $115.90

Expected to Ship in 5-8 Days
19
3B4-4621F-30-00 shim,thrust (5.4t) UR Price: $17.61

Expected to Ship in 5-8 Days
19
3B4-4621F-20-00 shim,thrust (5.1t) UR Price: $17.61

Expected to Ship in 5-8 Days
19
3B4-4621F-00-00 shim,thrust (4.5t) UR Price: $17.61

Expected to Ship in 5-8 Days
19
3B4-4621F-10-00 shim,thrust (4.8t) UR Price: $17.61

Expected to Ship in 5-8 Days
20
3B4-46326-01-00 gear, wheel 1 Retail: $347.09 Price: $277.67

Expected to Ship in 5-8 Days
21
93306-00702-00 bearing Supersedes: 93306-00704-00 (BEARING) Retail: $108.15 Price: $87.60

Expected to Ship in 5-8 Days
22
93306-207U0-00 bearing Retail: $61.33 Price: $52.74

Expected to Ship in 5-8 Days
23
93102-35380-00 oil seal Retail: $40.34 Price: $34.69

In Stock
24
3B4-46152-00-00 housing, bearing Retail: $167.89 Price: $134.30

In Stock
25
90340-14002-00 plug, straight screw Supersedes: 90340-14046-00 (PLUG, STRAIGHT SCREW) Retail: $37.11 Price: $31.91

In Stock
26
90340-14029-00 plug, straight screw Supersedes: 90340-14012-00 (PLUG, STRAIGHT SCREW) Price: $8.54

In Stock
27
214-11198-01-00 gasket Price: $5.89

Expected to Ship in 5-8 Days
28
5UG-15371-00-00 breather Supersedes: 2N4-15371-00-00 (BREATHER) Retail: $72.63 Price: $62.46

Expected to Ship in 5-8 Days
29
99530-10114-00 pin, dowel Supersedes: 99530-10014-00 (PIN, DOWEL)
This part is currently unavailable.
30
95822-08035-00 bolt, flange
This part is currently unavailable.
31
95817-08025-00 bolt, flange Supersedes: 95827-08025-00 (BOLT, FLANGE) Price: $17.61

Expected to Ship in 5-8 Days
32
3B4-4631A-01-00 gskt., case Supersedes: 3B4-4631A-00-00 (GSKT., CASE) Retail: $25.00 Price: $21.50

Expected to Ship in 5-8 Days
33
90201-08087-00 washer, plate Supersedes: 90430-08119-00 (WASHER, PLATE) Price: $7.32

Expected to Ship in 5-8 Days
34
95022-08012-00 bolt, flange Supersedes: 90105-08126-00 (BOLT, FLANGE) Retail: $21.77 Price: $18.72

In Stock
35
3B4-46344-50-00 shim (0.50t) UR Price: $15.75

Expected to Ship in 5-8 Days
35
3B4-46344-40-00 shim (0.45t) UR Price: $6.58

Expected to Ship in 5-8 Days
35
3B4-46344-00-00 shim (0.25t) UR Price: $5.19

Expected to Ship in 5-8 Days
35
3B4-46344-10-00 shim (0.30t) UR Price: $15.75

Expected to Ship in 5-8 Days
35
3B4-46344-20-00 shim (0.35t) UR Price: $5.19

Expected to Ship in 5-8 Days
35
3B4-46344-30-00 shim (0.40t) UR Price: $6.58

Expected to Ship in 5-8 Days
36
90501-20361-00 spring, compression Retail: $23.39 Price: $20.11

In Stock
37
1HP-G6172-00-00 shaft, drive Retail: $103.31 Price: $83.67

Expected to Ship in 5-8 Days
38
99009-19400-00 circlip Price: $17.61

Expected to Ship in 5-8 Days
39
5KM-46126-00-00 coupling Retail: $116.22 Price: $94.14

In Stock
40
93410-22039-00 circlip
This part is currently unavailable.
41
5KM-46137-00-00 seal 2 Retail: $29.04 Price: $24.97

In Stock
42
5KM-46136-00-00 seal 1 Price: $17.61

In Stock
43
90445-070G6-00 hose (l1700) Supersedes: 90445-076K2-00 (HOSE (L1700)) Retail: $72.63 Price: $62.46

Expected to Ship in 5-8 Days
44
90467-07029-00 clip Price: $4.82

Expected to Ship in 5-8 Days
45
5KM-46559-00-00 damper Price: $15.75

In Stock

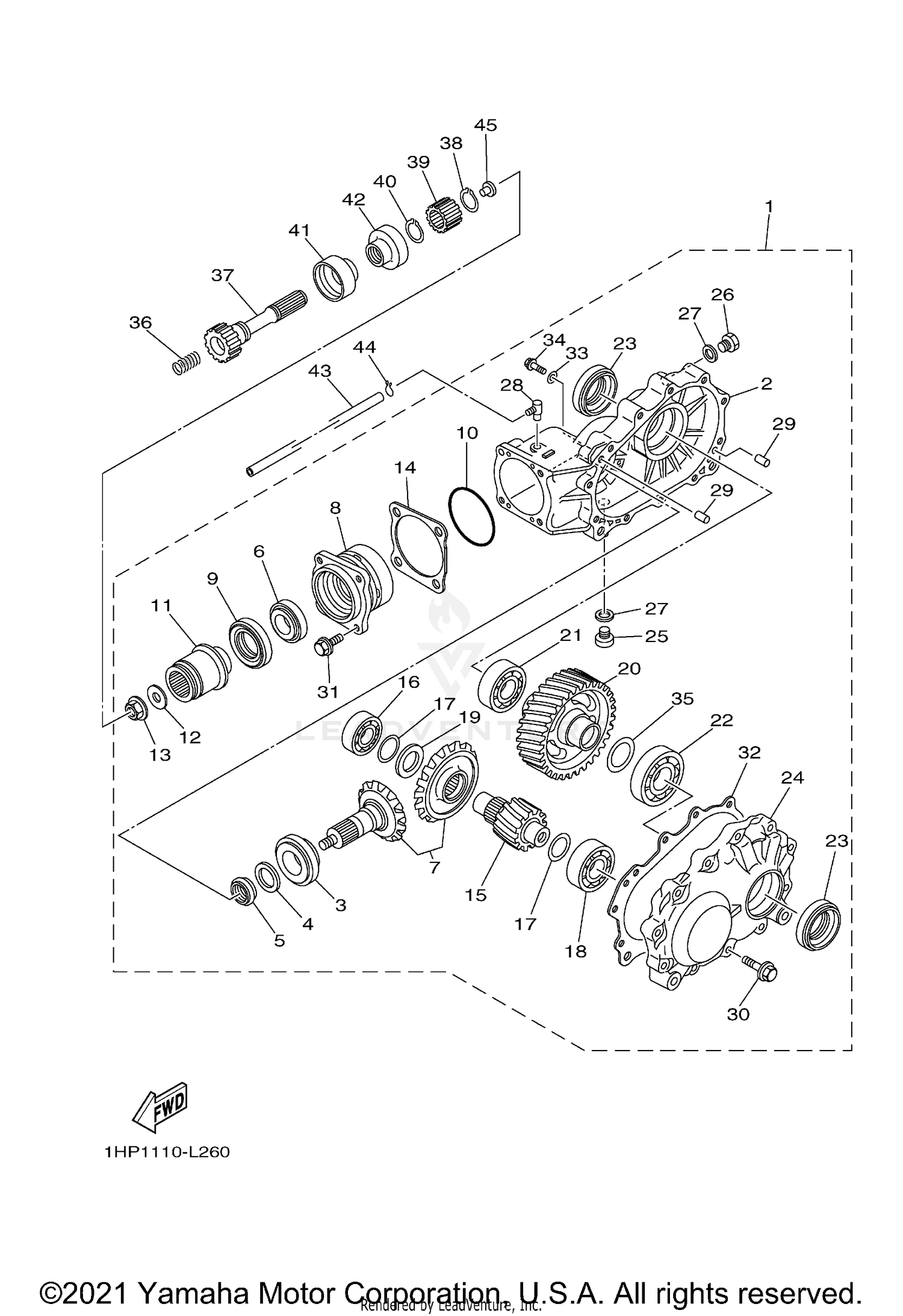

2022 Yamaha GRIZZLY 700 EPS HUNTER DRIVE SHAFT
