# Part Retail Our Price

Stock Status Suggested Quantity
1
1XD-46160-01-00 front axle gear case comp. Supersedes: 1XD-46160-00-00 (FRONT AXLE GEAR CASE COMP.) Retail: $2,063.99 Price: $1,795.69

Expected to Ship in 5-8 Days
2
1XD-46162-00-00 housing, bearing 2 Retail: $426.99 Price: $337.32

Expected to Ship in 5-8 Days
3
1XD-46161-00-00 housing, shaft drive 2 Retail: $275.99 Price: $220.79

Expected to Ship in 5-8 Days
4
1XD-46141-00-00 pinion, drive 2 Supersedes: 3B4-46141-00-00 (PINION, DRIVE 2) Retail: $265.99 Price: $212.79

Expected to Ship in 5-8 Days
5
4S1-46146-01-00 yoke, joint 2 Supersedes: 4S1-46146-00-00 (4S1-46146-01-00) Retail: $179.99 Price: $143.99

Expected to Ship in 5-8 Days
6
1XD-46470-01-00 limited slip diff. assy Supersedes: 1XD-46470-00-00 (LIMITED SLIP DIFF. ASSY) Retail: $882.99 Price: $767.72

Expected to Ship in 5-8 Days
7
3B4-46117-00-00 shim, ring gear (0.1t) UR Price: $11.49

Expected to Ship in 5-8 Days
7
3B4-46117-20-00 shim, ring gear (0.3t) UR Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
7
3B4-46117-30-00 shim, ring gear (0.4t) UR Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
7
3B4-46117-10-00 shim, ring gear (0.2t) UR Retail: $16.49 Price: $14.18

Expected to Ship in 5-8 Days
8
93306-00612-00 bearing Supersedes: 93306-00613-00 (BEARING) Retail: $51.99 Price: $42.11

Expected to Ship in 5-8 Days
9
3B4-46164-00-00 bearing 1 Retail: $93.99 Price: $76.13

Expected to Ship in 5-8 Days
10
3B4-46166-00-00 bearing 3 Retail: $30.99 Price: $26.65

Expected to Ship in 5-8 Days
11
3B4-46134-00-00 o-ring 1 Retail: $19.99 Price: $17.19

Expected to Ship in 5-8 Days
12
3B4-46135-00-00 o-ring 2 Price: $6.89

Expected to Ship in 5-8 Days
13
93105-46001-00 oil seal Retail: $23.99 Price: $20.63

Expected to Ship in 5-8 Days
14
3B4-46163-00-00 seal, oil 1 Supersedes: 93210-24034-00 (SEAL,OIL 1) Retail: $19.99 Price: $17.19

In Stock
15
3B4-47359-00-00 washer Price: $9.76

Expected to Ship in 5-8 Days
16
1HP-4616A-00-00 servo motor comp Retail: $585.99 Price: $462.93

Expected to Ship in 5-8 Days
17
4WV-46145-11-00 nut 1 Supersedes: 4WV-46145-10-00 (NUT 1) Retail: $13.49 Price: $11.60

Expected to Ship in 5-8 Days
18
90340-10001-00 plug, straight screw Price: $7.46

Expected to Ship in 5-8 Days
19
5GH-46293-00-00 tube Price: $8.61

Expected to Ship in 5-8 Days
20
90430-10003-00 gasket Price: $10.91

In Stock
21
95812-06014-00 bolt, flange Supersedes: 90105-06080-00 (BOLT, FLANGE) Price: $7.46

In Stock
22
95817-08040-00 bolt, flange Supersedes: 91026-08040-00 (BOLT, FLANGE) Price: $8.61

Expected to Ship in 5-8 Days
23
3B4-46142-00-00 ring, hole snap 1 Retail: $11.99 Price: $10.31

Expected to Ship in 5-8 Days
24
1XD-46114-00-00 plate, cover Retail: $42.99 Price: $36.97

Expected to Ship in 5-8 Days
25
95817-08050-00 bolt, flange Supersedes: 95806-08050-00 (BOLT, FLANGE) Price: $4.26

In Stock
26
2HC-46107-00-00 cross joint comp. 2 Supersedes: 2P5-46108-00-00 (CROSS JOINT COMP. 2) Retail: $220.99 Price: $176.79

Expected to Ship in 5-8 Days
27
93399-99948-00 bearing Retail: $60.99 Price: $49.40

In Stock
28
93440-20088-00 circlip, outer Price: $10.91

In Stock
29
5GT-46187-00-00 spider Retail: $117.99 Price: $94.39

Expected to Ship in 5-8 Days
30
93399-99948-00 bearing Retail: $60.99 Price: $49.40

In Stock
31
93440-20088-00 circlip, outer Price: $10.91

In Stock
32
90340-14029-00 plug, straight screw Supersedes: 90340-14012-00 (PLUG, STRAIGHT SCREW) Price: $5.29

In Stock
33
214-11198-01-00 gasket Price: $3.65

In Stock
34
90445-07809-00 hose (l750) Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
35
90467-07029-00 clip Price: $2.99

Expected to Ship in 5-8 Days
36
1XD-46109-00-00 drive shaft comp. Retail: $279.99 Price: $223.99

Expected to Ship in 5-8 Days
37
93210-16M69-00 o-ring Price: $1.32

Expected to Ship in 5-8 Days
38
5GT-46136-00-00 seal 1 Retail: $18.99 Price: $16.33

Expected to Ship in 5-8 Days
39
90105-10255-00 bolt, flange Price: $10.91

Expected to Ship in 5-8 Days
40
90201-10035-00 washer, plate Price: $5.18

Expected to Ship in 5-8 Days
41
90105-12066-00 bolt, flange Retail: $13.49 Price: $11.60

Expected to Ship in 5-8 Days
42
90185-12002-00 nut, self-locking Retail: $13.49 Price: $11.60

In Stock
43
92990-12200-00 washer, plain Supersedes: 92902-12200-00 (WASHER) Price: $10.91

Expected to Ship in 5-8 Days
44
95817-10025-00 bolt, flange Supersedes: 95822-10025-00 (BOLT, FLANGE) Price: $10.91

Expected to Ship in 5-8 Days
45
90185-10011-00 nut, self-locking Price: $5.69

In Stock
46
90201-10035-00 washer, plate Price: $5.18

Expected to Ship in 5-8 Days
47
1XD-46173-00-00 shaft, drive 2 Retail: $387.99 Price: $312.19

Expected to Ship in 5-8 Days
48
5KM-46137-00-00 seal 2 Retail: $17.99 Price: $15.47

In Stock
49
2MB-46106-00-00 bearing assy Supersedes: 1XD-46106-00-00 (2MB-46106-00-00) Retail: $133.99 Price: $107.19

Expected to Ship in 5-8 Days
50
93102-30339-00 oil seal Supersedes: 93102-30170-00 (OIL SEAL) Retail: $17.49 Price: $15.04

In Stock
51
1XD-4581J-00-00 rubber shaft coupling Retail: $12.99 Price: $11.17

Expected to Ship in 5-8 Days
52
5B4-17556-00-00 yoke, joint Retail: $130.99 Price: $104.79

Expected to Ship in 5-8 Days
53
90179-16015-00 nut Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
54
90201-16021-00 washer, plate Supersedes: 90201-170M2-00 (WASHER, PLATE) Price: $10.91

Expected to Ship in 5-8 Days
55
5GT-46187-00-00 spider Retail: $117.99 Price: $94.39

Expected to Ship in 5-8 Days
56
93399-99948-00 bearing Retail: $60.99 Price: $49.40

In Stock
57
93440-20088-00 circlip, outer Price: $10.91

In Stock
58
93399-99948-00 bearing Retail: $60.99 Price: $49.40

In Stock
59
93440-20088-00 circlip, outer Price: $10.91

In Stock
60
1XD-4613F-00-00 cover 1 Retail: $24.99 Price: $21.49

In Stock
61
95812-08020-00 bolt, flange Supersedes: 9581N-08020-00 (BOLT, FLANGE) Price: $3.22

Expected to Ship in 5-8 Days

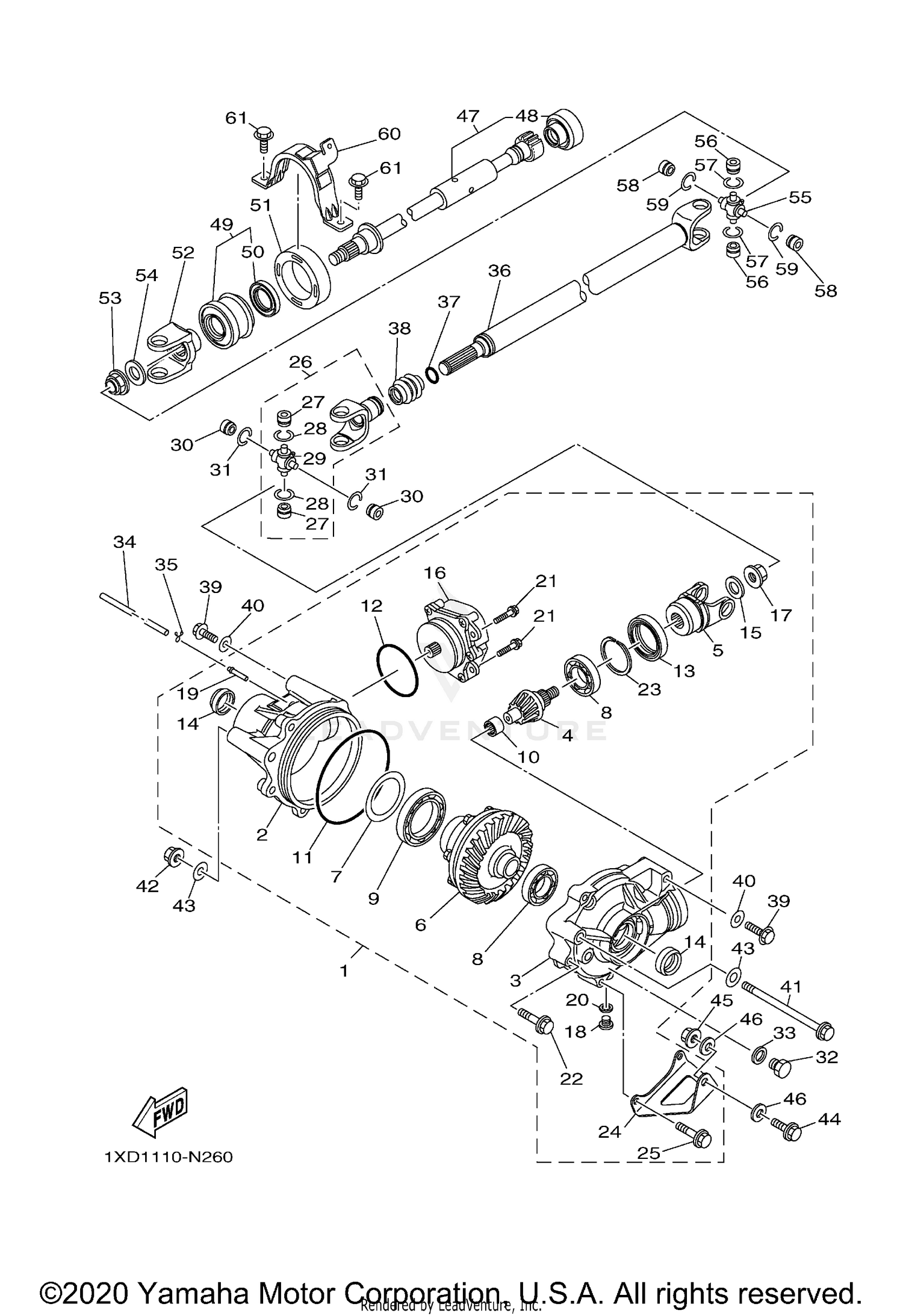

2020 Yamaha VIKING EPS HUNTER FRONT DIFFERENTIAL
