# Part Retail Our Price

Stock Status Suggested Quantity
1
2S3-46101-10-00 rear axle gear case assy Retail: $3,207.42 Price: $2,791.13

Expected to Ship in 5-8 Days
2
90116-10061-00 bolt, stud Supersedes: 90116-10010-00 (BOLT, STUD) Price: $14.28

Expected to Ship in 5-8 Days
3
2S3-17509-00-00 breather assy Retail: $261.90 Price: $209.52

Expected to Ship in 5-8 Days
4
90430-22123-00 gasket Retail: $15.34 Price: $13.19

Expected to Ship in 5-8 Days
5
2S3-46296-20-00 plate Retail: $362.87 Price: $290.29

Expected to Ship in 5-8 Days
6
93210-92448-00 o-ring Retail: $18.27 Price: $15.71

Expected to Ship in 5-8 Days
7
2S3-46153-00-00 collar, guide Retail: $112.65 Price: $91.24

Expected to Ship in 5-8 Days
8
93102-48014-00 oil seal Retail: $28.51 Price: $24.52

Expected to Ship in 5-8 Days
9
90110-06333-00 bolt, hexagon socket head Price: $5.47

Expected to Ship in 5-8 Days
10
93311-62592-00 bearing Retail: $76.07 Price: $61.61

Expected to Ship in 5-8 Days
11
93306-20724-00 bearing Retail: $128.75 Price: $104.28

Expected to Ship in 5-8 Days
12
2S3-46122-00-00 race, inner Retail: $39.49 Price: $33.96

Expected to Ship in 5-8 Days
13
93316-01003-00 bearing Supersedes: 2MB-E6642-00-00 (BEARING) Retail: $166.79 Price: $133.43

Expected to Ship in 5-8 Days
14
93316-01901-00 bearing Retail: $362.87 Price: $290.29

Expected to Ship in 5-8 Days
15
2S3-46152-00-00 housing, bearing Retail: $245.81 Price: $196.64

Expected to Ship in 5-8 Days
16
93102-80008-00 oil seal Retail: $38.02 Price: $32.70

Expected to Ship in 5-8 Days
17
93211-594A4-00 o-ring Retail: $42.41 Price: $36.47

In Stock
18
92014-08060-00 bolt, button head Price: $9.23

Expected to Ship in 5-8 Days
19
90101-12037-00 bolt Price: $10.91

Expected to Ship in 5-8 Days
20
2S3-46125-00-00 retainer, bearing Retail: $282.39 Price: $225.91

Expected to Ship in 5-8 Days
21
93210-86003-00 o-ring Retail: $24.12 Price: $20.74

Expected to Ship in 5-8 Days
22
2S3-17556-01-00 yoke, joint Retail: $253.12 Price: $202.49

Expected to Ship in 5-8 Days
23
90179-20015-00 nut Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
24
90208-22004-00 washer, conical spring Retail: $38.02 Price: $32.70

Expected to Ship in 5-8 Days
25
93102-45014-00 oil seal Retail: $42.41 Price: $36.47

Expected to Ship in 5-8 Days
26
2S3-46114-00-00 plate, cover Retail: $39.49 Price: $33.96

Expected to Ship in 5-8 Days
27
90149-06030-00 screw Supersedes: 90149-06018-00 (SCREW) Price: $10.91

In Stock
28
90340-14004-00 plug, straight screw Supersedes: 90340-14149-00 (PLUG, STRAIGHT SCREW) Retail: $27.05 Price: $23.26

Expected to Ship in 5-8 Days
29
214-11198-01-00 gasket Price: $5.34

Expected to Ship in 5-8 Days
30
95024-06014-00 bolt, flange (small head) Price: $6.81

In Stock
31
90430-06166-00 gasket Supersedes: 90430-06192-00 (GASKET) Price: $6.81

In Stock
32
2S3-46119-00-00 shim, thrust (t0.15) UR Price: $15.96

Expected to Ship in 5-8 Days
32
2S3-46119-10-00 shim, thrust (t0.3) UR Price: $15.96

Expected to Ship in 5-8 Days
32
2S3-46119-20-00 shim, thrust (t0.4) UR Price: $15.96

Expected to Ship in 5-8 Days
32
2S3-46119-30-00 shim, thrust (t0.45) UR Price: $15.96

Expected to Ship in 5-8 Days
32
2S3-46119-40-00 shim, thrust (t0.5) UR Price: $15.96

Expected to Ship in 5-8 Days
32
2S3-46119-50-00 shim, thrust (t0.6) UR Price: $15.96

Expected to Ship in 5-8 Days
32
2S3-46119-60-00 shim, thrust (t0.2) UR Price: $15.96

Expected to Ship in 5-8 Days
32
2S3-46119-70-00 shim, thrust (t0.25) UR Price: $15.96

Expected to Ship in 5-8 Days
33
2S3-46117-00-00 shim, ring gear (t0.1) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-10-00 shim, ring gear (t0.15) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-20-00 shim, ring gear (t0.2) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-30-00 shim, ring gear (t0.25) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-40-00 shim, ring gear (t0.3) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-50-00 shim, ring gear (t0.35) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-60-00 shim, ring gear (t0.4) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-70-00 shim, ring gear (t0.45) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
33
2S3-46117-80-00 shim, ring gear (t0.5) UR Retail: $48.27 Price: $41.51

Expected to Ship in 5-8 Days
34
2S3-46118-00-00 washer, thrust (t1.2) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-10-00 washer, thrust (t1.3) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-20-00 washer, thrust (t1.4) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-30-00 washer, thrust (t1.5) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-40-00 washer, thrust (t1.6) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-50-00 washer, thrust (t1.7) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-60-00 washer, thrust (t1.8) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-70-00 washer, thrust (t1.9) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-80-00 washer, thrust (t2.0) UR Price: $16.81

Expected to Ship in 5-8 Days
34
2S3-46118-90-00 washer, thrust (t2.1) UR Price: $16.81

Expected to Ship in 5-8 Days
35
93605-23164-00 pin, dowel Price: $4.12

Expected to Ship in 5-8 Days
36
2S3-46862-00-00 holder Price: $10.91

Expected to Ship in 5-8 Days
37
90149-06030-00 screw Supersedes: 90149-06018-00 (SCREW) Price: $10.91

In Stock
38
90201-12033-00 washer, plate Supersedes: 90201-12016-00 (WASHER, PLATE) Price: $14.28

Expected to Ship in 5-8 Days
39
2S3-46172-01-00 shaft, drive Supersedes: 2S3-46172-00-00 (SHAFT, DRIVE) Retail: $402.37 Price: $321.90

Expected to Ship in 5-8 Days
40
2S3-17556-01-00 yoke, joint Retail: $253.12 Price: $202.49

Expected to Ship in 5-8 Days
41
90201-29M01-00 washer, plate Price: $13.63

Expected to Ship in 5-8 Days
42
99009-28400-00 circlip Price: $14.28

Expected to Ship in 5-8 Days
43
93440-32194-00 circlip Price: $6.90

Expected to Ship in 5-8 Days
44
93399-99965-00 bearing Retail: $42.41 Price: $36.47

Expected to Ship in 5-8 Days
45
93440-23197-00 circlip Price: $6.64

Expected to Ship in 5-8 Days
46
1YW-46187-10-00 spider Retail: $122.89 Price: $99.54

Expected to Ship in 5-8 Days
47
93210-28763-00 o-ring Price: $14.28

Expected to Ship in 5-8 Days
48
2S3-46231-00-00 cap Retail: $24.86 Price: $21.37

Expected to Ship in 5-8 Days
49
90387-06235-00 collar Price: $6.90

Expected to Ship in 5-8 Days
50
92990-06200-00 washer, plain Supersedes: 92995-06200-00 (WASHER, PLAIN) Price: $1.68

In Stock
51
91317-06045-00 bolt Supersedes: 90110-06063-00 (BOLT) Price: $9.23

Expected to Ship in 5-8 Days
52
2S3-46186-00-00 yoke, joint Retail: $389.20 Price: $313.63

Expected to Ship in 5-8 Days
53
93399-99965-00 bearing Retail: $42.41 Price: $36.47

Expected to Ship in 5-8 Days
54
93440-23197-00 circlip Price: $6.64

Expected to Ship in 5-8 Days
55
1YW-46187-10-00 spider Retail: $122.89 Price: $99.54

Expected to Ship in 5-8 Days
56
90331-37001-00 plug Price: $12.59

Expected to Ship in 5-8 Days
57
93399-99965-00 bearing Retail: $42.41 Price: $36.47

Expected to Ship in 5-8 Days
58
93440-23197-00 circlip Price: $6.64

Expected to Ship in 5-8 Days
59
90176-10075-00 nut, crown Supersedes: 90176-10049-00 (NUT, CROWN) Price: $15.96

Expected to Ship in 5-8 Days
60
92990-10600-00 washer, plate
This part is currently unavailable.
61
2S3-4613F-00-00 cover 1 Retail: $114.11 Price: $92.43

Expected to Ship in 5-8 Days
62
95024-06020-00 bolt, flange (small head) Supersedes: 90105-06053-00 (BOLT, FLANGE) Price: $10.91

In Stock
63
90430-06014-00 gasket Supersedes: 90430-06817-00 (GASKET) Price: $14.47

Expected to Ship in 5-8 Days

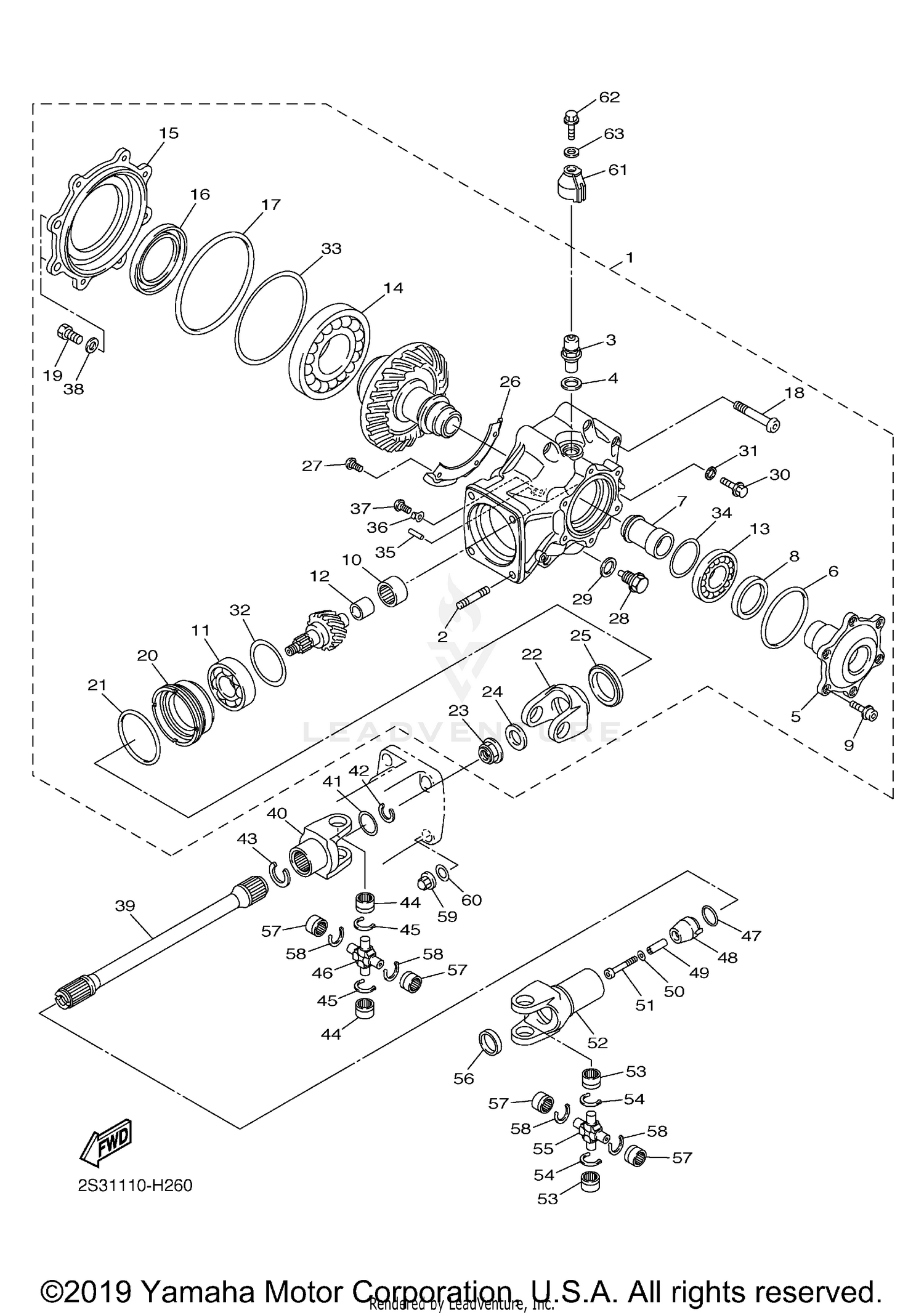

2019 Yamaha VMAX - VMX17KGY DRIVE SHAFT
