# Part Retail Our Price

Stock Status Suggested Quantity
1
2PG-16611-00-00 clutch housing comp. Supersedes: 1XD-16611-00-00 (CLUTCH HOUSING COMP.) Retail: $36,212.71 Price: $29,302.09

Expected to Ship in 5-8 Days
2
3B4-15163-00-00 housing, bearing 1 Supersedes: 2MB-E5163-00-00 (HOUSING, BEARING 1) Retail: $11,008.75 Price: $8,806.82

Expected to Ship in 5-8 Days
3
93316-01003-00 bearing Supersedes: 2MB-E6642-00-00 (BEARING) Retail: $10,371.83 Price: $8,297.28

In Stock
4
93102-35004-00 oil seal Supersedes: 2MB-E511B-00-00 (OIL SEAL) Retail: $2,182.82 Price: $1,877.10

Expected to Ship in 5-8 Days
5
93420-80066-00 circlip Supersedes: 2MB-E6819-00-00 (CIRCLIP) Retail: $1,500.40 Price: $1,290.22

Expected to Ship in 5-8 Days
6
93410-46079-00 circlip Supersedes: 2MB-E5744-00-00 (CIRCLIP) Price: $992.68

In Stock
7
93315-21813-00 bearing Supersedes: 2MB-E7678-00-00 (BEARING) Retail: $3,638.65 Price: $3,129.11

Expected to Ship in 5-8 Days
8
4SH-16664-00-00 bearing, one way Supersedes: 2MB-E6664-00-00 (BEARING, ONE WAY) Retail: $15,285.24 Price: $12,228.01

In Stock
9
1HP-16717-00-00 ring, seal Supersedes: 2MB-E6717-00-00 (RING, SEAL) Retail: $3,183.70 Price: $2,737.85

In Stock
10
3B4-16620-00-00 clutch carrier assy Retail: $43,764.79 Price: $34,573.99

Expected to Ship in 5-8 Days
11
90179-22021-00 nut Supersedes: 2MB-E6134-00-00 (NUT) Retail: $2,637.77 Price: $2,268.35

In Stock
12
3B4-15463-00-00 gasket, cover pinion 2 Retail: $1,318.43 Price: $1,133.72

Expected to Ship in 5-8 Days
13
99530-10116-00 pin, dowel Price: $460.40

In Stock
14
95022-06030-00 bolt, flange Price: $188.34

In Stock
15
95022-06040-00 bolt, flange Price: $387.61

In Stock
16
1XD-17606-00-00 primary sliding sheave comp. Retail: $26,476.88 Price: $21,181.32

Expected to Ship in 5-8 Days
17
93101-35001-00 oil seal Retail: $2,182.82 Price: $1,877.10

In Stock
18
3B4-17632-01-00 weight Supersedes: 3B4-17632-00-00 (WEIGHT) Retail: $1,591.39 Price: $1,368.47

Expected to Ship in 5-8 Days
19
3B4-17623-02-00 cam Supersedes: 3B4-17623-00-00 (CAM) Retail: $4,821.50 Price: $3,905.24

In Stock
20
16B-17653-00-00 slider Supersedes: 3B4-17653-00-00 (SLIDER) Retail: $954.47 Price: $820.72

In Stock
21
1XD-17645-00-00 collar Retail: $8,279.08 Price: $6,705.88

Expected to Ship in 5-8 Days
22
93211-59001-00 o-ring Retail: $2,091.83 Price: $1,798.85

Expected to Ship in 5-8 Days
23
4WV-17639-10-00 stopper Retail: $3,274.69 Price: $2,816.10

Expected to Ship in 5-8 Days
24
90157-04006-00 screw, pan head Price: $574.14

In Stock
25
90201-047R9-00 washer, plate (M4 WASHER) Price: $292.98

In Stock
26
1XD-17641-00-00 v-belt Supersedes: 2MB-E7641-00-00 (V-BELT) Retail: $18,560.84 Price: $14,848.49

In Stock
27
3B4-17611-00-00 sheave, primary fixed Retail: $17,196.01 Price: $13,756.62

In Stock
28
90201-190T7-00 washer, plate Price: $992.68

Expected to Ship in 5-8 Days
29
90179-16005-00 nut Supersedes: 90179-16001-00 (NUT) Retail: $1,136.45 Price: $977.22

Expected to Ship in 5-8 Days
30
1XD-17660-00-00 secondary fixed sheave comp. Retail: $32,209.19 Price: $25,445.07

Expected to Ship in 5-8 Days
31
3B4-17670-10-00 secondary sliding sheave Supersedes: 3B4-17670-00-00 (SECONDARY SLIDING SHEAVE) Retail: $34,756.88 Price: $27,457.74

Expected to Ship in 5-8 Days
32
93104-41119-00 oil seal Retail: $1,682.38 Price: $1,446.72

In Stock
33
93210-44545-00 o-ring Retail: $1,318.43 Price: $1,133.72

Expected to Ship in 5-8 Days
34
4CW-17664-00-00 pin, guide Price: $888.05

In Stock
35
90501-650A0-00 spring, compression Retail: $4,548.54 Price: $3,911.61

Expected to Ship in 5-8 Days
36
4WV-17684-00-00 seat, secondary spring Retail: $5,731.39 Price: $4,642.25

Expected to Ship in 5-8 Days
37
4WV-17644-00-00 seat, spring Retail: $3,001.72 Price: $2,581.35

Expected to Ship in 5-8 Days
38
90170-36279-00 nut Retail: $1,682.38 Price: $1,446.72

Expected to Ship in 5-8 Days
39
90179-16005-00 nut Supersedes: 90179-16001-00 (NUT) Retail: $1,136.45 Price: $977.22

Expected to Ship in 5-8 Days

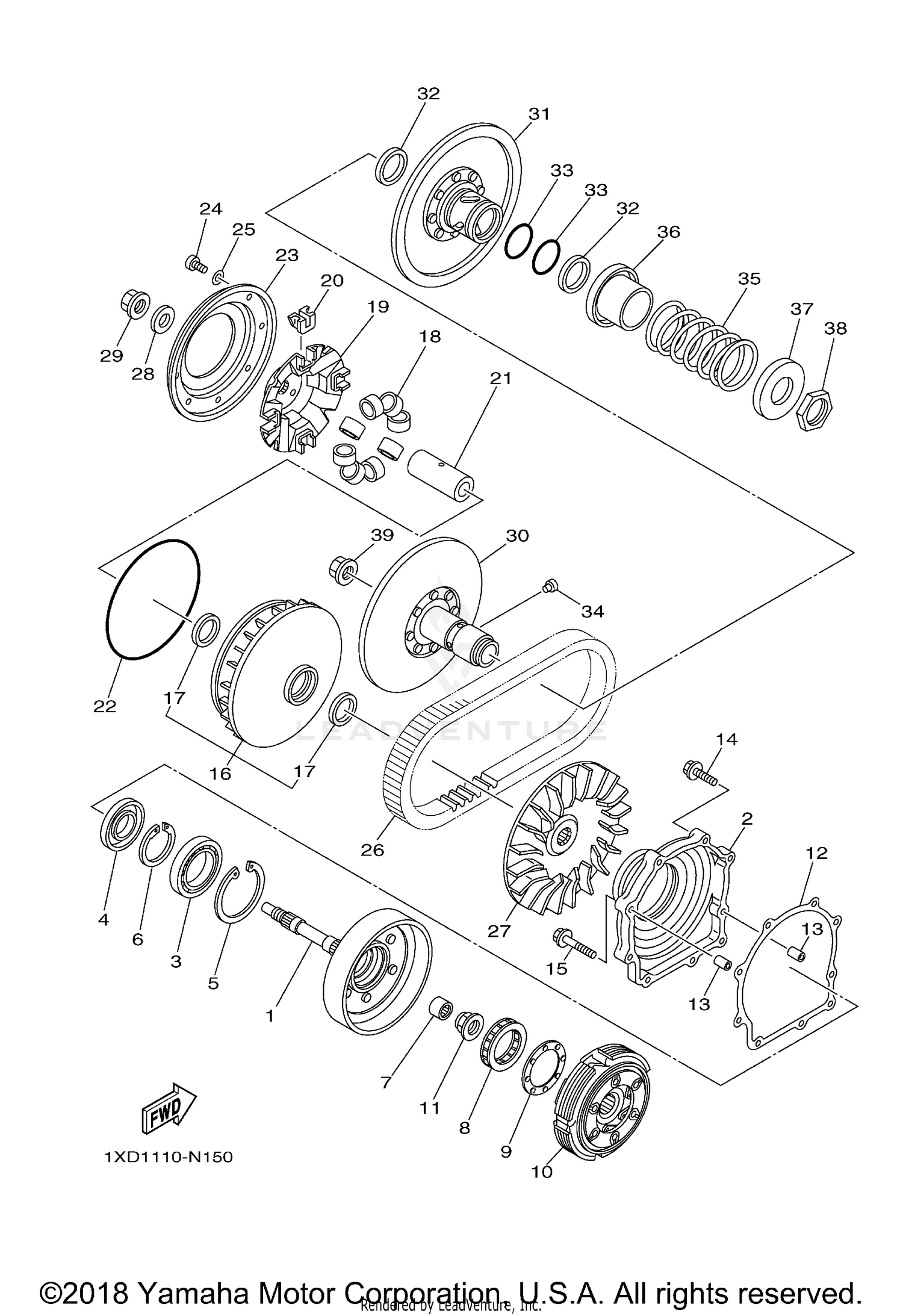

2014 Yamaha VIKING HUNTER EDITION CLUTCH
