# Part Retail Our Price

Stock Status Suggested Quantity
1
2S3-17524-00-00 holder Retail: $51.78 Price: $41.93

Expected to Ship in 5-8 Days
2
2S3-17528-00-00 spring, damper Retail: $48.79 Price: $41.95

Expected to Ship in 5-8 Days
3
2S3-17527-00-00 cam, driven Retail: $143.40 Price: $114.72

Expected to Ship in 5-8 Days
4
2S3-Y1754-00-00 middle gear comp. Retail: $672.26 Price: $559.46

Expected to Ship in 5-8 Days
5
93306-20903-00 bearing Retail: $79.66 Price: $64.52

Expected to Ship in 5-8 Days
6
2S3-15163-00-00 housing, bearing 1 Retail: $141.41 Price: $113.13

Expected to Ship in 5-8 Days
7
90179-44001-00 nut Retail: $29.86 Price: $25.68

Expected to Ship in 5-8 Days
8
2S3-17531-00-00 shim, pinion UR (T0.1) Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
2S3-17531-20-00 shim, pinion UR (T0.2) Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
2S3-17531-30-00 shim, pinion UR (T0.3) Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
2S3-17531-40-00 shim, pinion UR (T0.4) Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
2S3-17531-50-00 shim, pinion UR (T0.5) Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
2S3-17531-10-00 shim, pinion UR (T0.15) Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
2S3-17537-00-00 shim, thrust UR (T0.1) Price: $9.15

Expected to Ship in 5-8 Days
2S3-17537-20-00 shim, thrust UR (T0.2) Price: $9.15

Expected to Ship in 5-8 Days
2S3-17537-30-00 shim, thrust UR (T0.3) Price: $9.15

Expected to Ship in 5-8 Days
2S3-17537-50-00 shim, thrust UR (T0.5) Price: $9.15

Expected to Ship in 5-8 Days
2S3-17537-40-00 shim, thrust UR (T0.4) Retail: $12.43 Price: $10.69

Expected to Ship in 5-8 Days
9
90201-27014-00 washer, plate Retail: $36.84 Price: $31.68

Expected to Ship in 5-8 Days
10
2S3-17529-00-00 washer, thrust Retail: $59.74 Price: $48.39

Expected to Ship in 5-8 Days
11
93332-000A1-00 bearing Retail: $64.72 Price: $52.42

Expected to Ship in 5-8 Days
12
2S3-17571-00-00 spacer, expansion Retail: $22.89 Price: $19.69

Expected to Ship in 5-8 Days
13
93332-000A0-00 bearing Retail: $71.69 Price: $58.07

Expected to Ship in 5-8 Days
14
2S3-17556-01-00 yoke, joint Retail: $172.29 Price: $137.83

Expected to Ship in 5-8 Days
15
90208-22004-00 washer, conical spring Retail: $25.88 Price: $22.25

Expected to Ship in 5-8 Days
16
90179-20015-00 nut Retail: $32.85 Price: $28.25

Expected to Ship in 5-8 Days
17
2S3-17551-00-00 housing, bearing Retail: $88.63 Price: $71.78

Expected to Ship in 5-8 Days
18
93102-45009-00 oil seal Retail: $27.87 Price: $23.97

Expected to Ship in 5-8 Days
19
93210-94001-00 o-ring Retail: $11.44 Price: $9.84

Expected to Ship in 5-8 Days
20
90201-35014-00 washer, plate Retail: $28.87 Price: $24.82

Expected to Ship in 5-8 Days
21
2S3-17537-10-00 shim, thrust UR (T0.15) Price: $9.15

Expected to Ship in 5-8 Days
22
95817-08035-00 bolt, flange Supersedes: 90105-08311-00 (BOLT, FLANGE) Retail: $10.44 Price: $8.98

Expected to Ship in 5-8 Days
23
2S3-17446-00-00 plate Retail: $83.65 Price: $67.75

Expected to Ship in 5-8 Days
24
91317-08025-00 bolt Supersedes: 90110-08150-00 (BOLT, HEXAGON SOCKET HEAD) Price: $10.86

In Stock

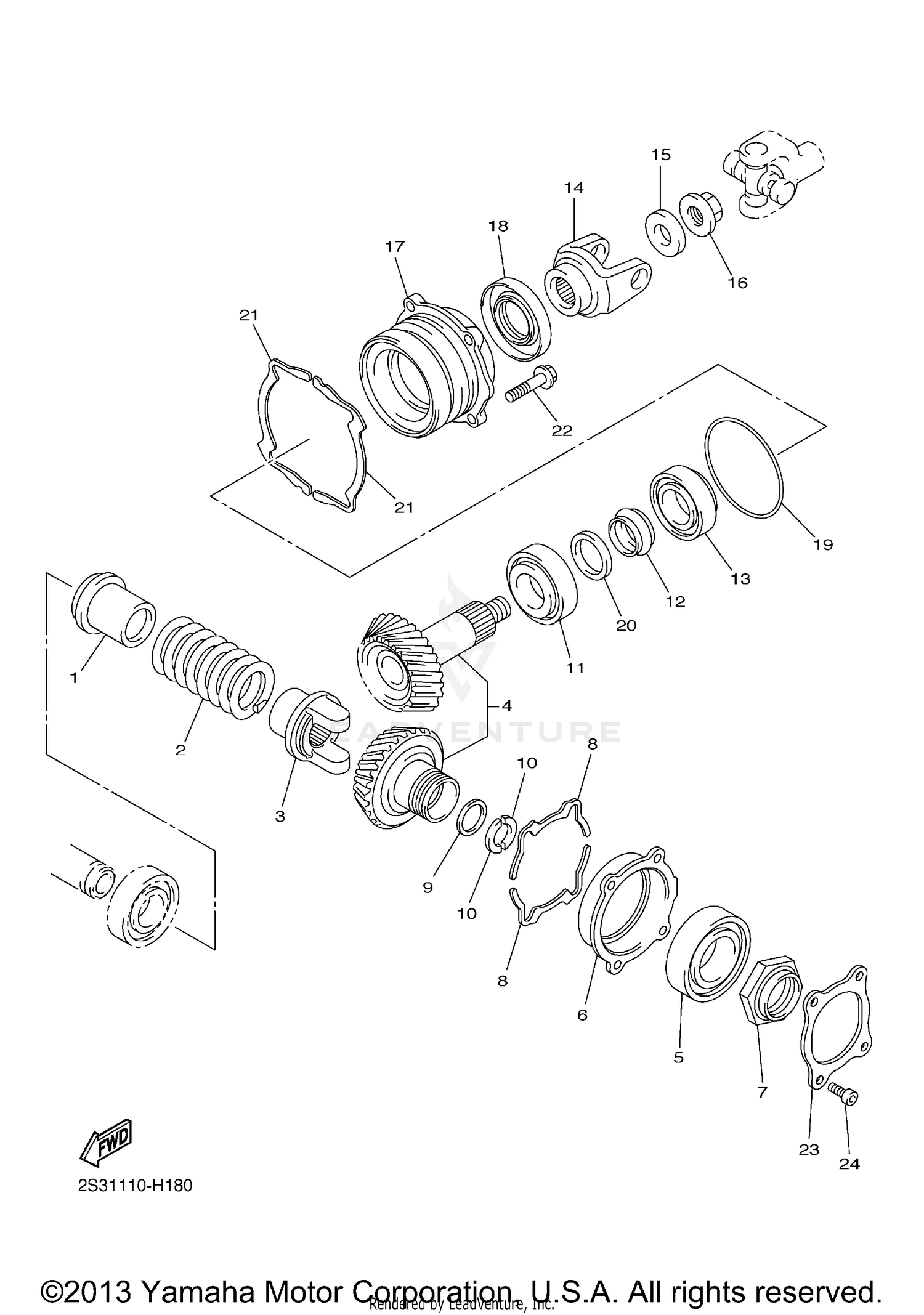

2009 Yamaha VMAX 1700 - VMX17 MIDDLE DRIVE GEAR
