More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
5EL-46101-00-00 rear axle gear case assy Retail: $17,070.24 Price: $14,823.09

Expected to Ship in 5-8 Days
2
90116-10361-00 bolt, stud Supersedes: 90116-10428-00 (BOLT, STUD) Price: $73.92

Expected to Ship in 5-8 Days
3
95617-08620-00 bolt, stud Supersedes: 90116-08360-00 (BOLT, STUD) Price: $114.34

In Stock
4
5EL-46153-00-00 collar, guide Retail: $245.92 Price: $211.47

Expected to Ship in 5-8 Days
5
93101-30084-00 oil seal Retail: $245.92 Price: $211.47

In Stock
6
93311-43729-00 bearing Retail: $925.45 Price: $749.59

Expected to Ship in 5-8 Days
7
2H7-46102-00-00 bearing assy Supersedes: 93317-41510-00 (BEARING ASSY) Retail: $749.71 Price: $607.24

Expected to Ship in 5-8 Days
8
2H7-46122-00-00 race, inner Retail: $327.93 Price: $282.00

Expected to Ship in 5-8 Days
9
1J7-17537-Y0-30 shim, thrust (0.30t) UR Price: $65.37

Expected to Ship in 5-8 Days
9
1J7-17537-Y0-40 shim, thrust (0.40t) UR Price: $65.37

Expected to Ship in 5-8 Days
9
1J7-17537-Y0-50 shim, thrust (0.50t) UR Price: $65.37

Expected to Ship in 5-8 Days
10
93306-30533-00 bearing (b6305rb1 special) Supersedes: 93306-30539-00 (BEARING) Retail: $1,757.29 Price: $1,405.81

Expected to Ship in 5-8 Days
11
4H7-46125-00-00 retainer, bearing Retail: $808.29 Price: $654.69

Expected to Ship in 5-8 Days
12
93210-60426-00 o-ring Retail: $134.61 Price: $115.75

In Stock
13
93101-38098-00 oil seal, (s) type Retail: $228.34 Price: $196.36

Expected to Ship in 5-8 Days
14
4H7-46123-01-00 coupling, gear Supersedes: 4H7-46123-00-00 (COUPLING, GEAR) Retail: $2,507.12 Price: $2,005.67

Expected to Ship in 5-8 Days
15
90201-14632-00 washer, plate Supersedes: 90201-143K7-00 (WASHER, PLATE) Price: $66.07

Expected to Ship in 5-8 Days
16
90185-14070-00 nut, self-locking Retail: $169.76 Price: $145.98

In Stock
17
4H7-46152-00-00 housing, bearing Retail: $726.28 Price: $588.26

Expected to Ship in 5-8 Days
18
1J7-46117-Y0-40 shim, ring gear (0.40t) UR Retail: $169.76 Price: $145.98

Expected to Ship in 5-8 Days
18
1J7-46117-Y0-50 shim, ring gear (0.50t) UR Retail: $134.61 Price: $115.75

Expected to Ship in 5-8 Days
18
1J7-46117-Y0-25 shim, ring gear (0.25t) UR Retail: $169.76 Price: $145.98

Expected to Ship in 5-8 Days
18
1J7-46117-Y0-30 shim, ring gear (0.30t) UR Retail: $134.61 Price: $115.75

Expected to Ship in 5-8 Days
19
93316-01403-00 bearing Retail: $972.31 Price: $787.55

Expected to Ship in 5-8 Days
20
22U-46118-00-16 shim, thrust (1.6t) UR Supersedes: 22U-46118-00-17 (SHIM, THRUST (1.6T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
20
22U-46118-00-20 shim, thrust (2.0t) UR Supersedes: 22U-46118-00-21 (SHIM, THRUST (2.0T)) Retail: $134.61 Price: $115.75

Expected to Ship in 5-8 Days
20
22U-46118-00-18 shim, thrust (1.8t) UR Supersedes: 22U-46118-00-19 (SHIM, THRUST (1.8T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
20
22U-46118-00-14 shim, thrust (1.4t) UR Supersedes: 22U-46118-00-15 (SHIM, THRUST (1.4T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
20
22U-46118-00-12 shim, thrust (1.2t) UR Supersedes: 22U-46118-00-13 (SHIM, THRUST (1.2T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
21
93211-44348-00 o-ring Retail: $245.92 Price: $211.47

Expected to Ship in 5-8 Days
22
95337-08600-00 nut(6ta) Supersedes: 95317-08600-00 (NUT, HEX) Price: $127.82

In Stock
23
92907-08700-00 washer Supersedes: 92901-08700-00 (WASHER) Price: $11.24

Expected to Ship in 5-8 Days
24
95817-10025-00 bolt, flange Supersedes: 95822-10025-00 (BOLT, FLANGE) Price: $127.82

Expected to Ship in 5-8 Days
25
93102-70167-00 oil seal Retail: $445.09 Price: $382.76

Expected to Ship in 5-8 Days
26
90340-14132-00 plug, straight screw Supersedes: 11H-13455-00-00 (PLUG, STRAIGHT SCREW) Price: $42.41

Expected to Ship in 5-8 Days
27
214-11198-01-00 gasket Price: $42.76

Expected to Ship in 5-8 Days
28
56W-17590-00-00 breather comp. Retail: $409.94 Price: $352.53

In Stock
29
3JL-13455-00-00 plug, straight screw Supersedes: 90340-14135-00 (PLUG)
This part is currently unavailable.
30
5EL-46171-00-00 shaft drive assy Retail: $3,198.37 Price: $2,558.67

Expected to Ship in 5-8 Days
31
5EL-46154-00-00 cover, housing Retail: $1,558.12 Price: $1,246.47

Expected to Ship in 5-8 Days
32
5EL-46297-00-00 cover, dust Retail: $456.81 Price: $392.84

Expected to Ship in 5-8 Days
33
93108-43014-00 oil seal Retail: $316.21 Price: $271.93

Expected to Ship in 5-8 Days
34
90201-266L1-00 washer, plate Retail: $216.63 Price: $186.28

Expected to Ship in 5-8 Days
35
93410-26067-00 circlip Price: $127.82

Expected to Ship in 5-8 Days
36
93410-22039-00 circlip
This part is currently unavailable.
37
90501-16491-00 spring, compression Price: $114.34

Expected to Ship in 5-8 Days
38
4X7-46180-00-00 cross joint comp. Retail: $2,553.99 Price: $2,043.17

Expected to Ship in 5-8 Days
39
93399-99926-00 bearing Supersedes: 93311-21044-00 (BEARING) Retail: $855.15 Price: $692.65

In Stock
40
93440-20088-00 circlip, outer Price: $127.82

In Stock
41
90176-10075-00 nut, crown Supersedes: 90176-10049-00 (NUT, CROWN) Price: $127.82

Expected to Ship in 5-8 Days
42
92990-10600-00 washer, plate
This part is currently unavailable.
43
90387-172A5-00 collar Retail: $316.21 Price: $271.93

Expected to Ship in 5-8 Days

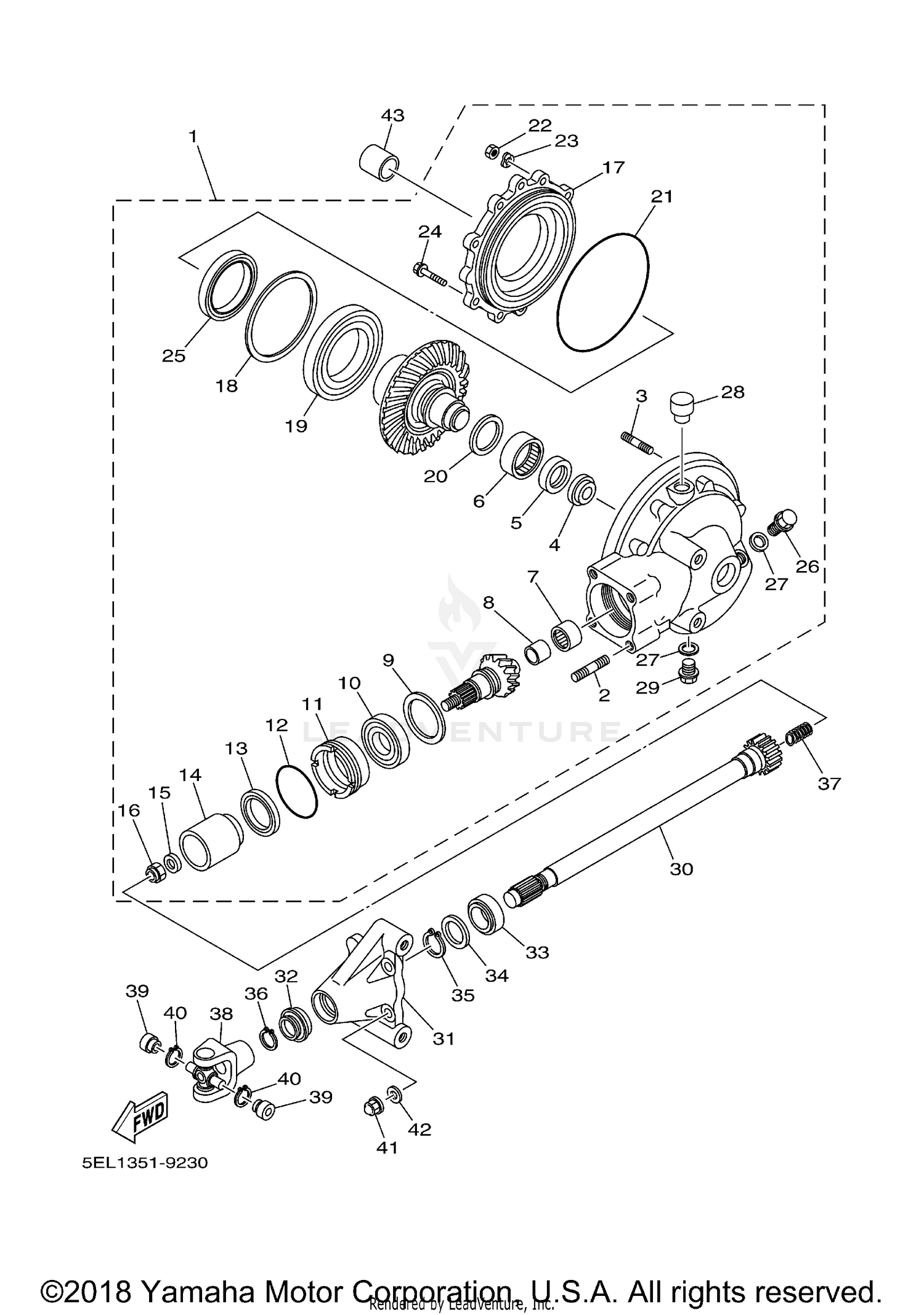

2005 Yamaha V STAR 1100 CUSTOM - XVS11 DRIVE SHAFT
