# Part Retail Our Price

Stock Status Suggested Quantity
1
5FB-W4617-00-00 shaft drive sub assy Supersedes: 5FB-Y4617-00-00 (SHAFT DRIVE SUB ASSY) Retail: $19,706.36 Price: $17,133.50

Expected to Ship in 5-8 Days
2
1J7-25319-03-00 seal, hub dust Supersedes: 1J7-25319-02-00 (SEAL, HUB DUST) Retail: $199.05 Price: $171.17

Expected to Ship in 5-8 Days
3
90116-10361-00 bolt, stud Supersedes: 90116-10428-00 (BOLT, STUD) Price: $73.92

Expected to Ship in 5-8 Days
4
97527-08525-00 bolt, with washer Supersedes: 90119-08126-00 (BOLT, WITH WASHER) Price: $94.19

Expected to Ship in 5-8 Days
5
22U-46153-00-00 collar, guide Retail: $339.64 Price: $292.08

In Stock
6
93101-30084-00 oil seal Retail: $245.92 Price: $211.47

Expected to Ship in 5-8 Days
7
93311-43729-00 bearing Retail: $925.45 Price: $749.59

Expected to Ship in 5-8 Days
8
2H7-46102-00-00 bearing assy Supersedes: 93317-41510-00 (BEARING ASSY) Retail: $749.71 Price: $644.73

Expected to Ship in 5-8 Days
9
1J7-17537-Y0-30 shim, thrust (0.30t) UR Price: $65.37

Expected to Ship in 5-8 Days
9
1J7-17537-Y0-40 shim, thrust (0.40t) UR Price: $65.37

Expected to Ship in 5-8 Days
9
1J7-17537-Y0-50 shim, thrust (0.50t) UR Price: $65.37

Expected to Ship in 5-8 Days
10
93306-30533-00 bearing Supersedes: 93306-30539-00 (BEARING) Retail: $1,757.29 Price: $1,423.38

In Stock
11
4H7-46125-00-00 retainer, bearing Retail: $808.29 Price: $695.11

Expected to Ship in 5-8 Days
12
93210-60426-00 o-ring Retail: $134.61 Price: $115.75

Expected to Ship in 5-8 Days
13
93101-38098-00 oil seal, (s) type Retail: $228.34 Price: $196.36

Expected to Ship in 5-8 Days
14
90387-256G9-00 collar Retail: $269.35 Price: $231.62

Expected to Ship in 5-8 Days
15
5FB-46136-00-00 seal 1 Retail: $281.06 Price: $241.70

Expected to Ship in 5-8 Days
16
22U-46152-00-00 housing, bearing Retail: $737.99 Price: $634.66

Expected to Ship in 5-8 Days
17
22U-46117-00-40 shim, ring gear (0.40t) UR Price: $65.37

Expected to Ship in 5-8 Days
17
22U-46117-00-25 shim, ring gear (0.25t) UR Price: $65.37

Expected to Ship in 5-8 Days
17
22U-46117-00-30 shim, ring gear (0.30t) UR Price: $80.72

Expected to Ship in 5-8 Days
18
93316-01301-00 bearing Retail: $1,417.53 Price: $1,148.17

Expected to Ship in 5-8 Days
19
22U-46118-00-20 shim, thrust (2.0t) UR Supersedes: 22U-46118-00-21 (SHIM, THRUST (2.0T)) Retail: $134.61 Price: $115.75

Expected to Ship in 5-8 Days
19
22U-46118-00-18 shim, thrust (1.8t) UR Supersedes: 22U-46118-00-19 (SHIM, THRUST (1.8T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
19
22U-46118-00-16 shim, thrust (1.6t) UR Supersedes: 22U-46118-00-17 (SHIM, THRUST (1.6T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
19
22U-46118-00-12 shim, thrust (1.2t) UR Supersedes: 22U-46118-00-13 (SHIM, THRUST (1.2T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
19
22U-46118-00-14 shim, thrust (1.4t) UR Supersedes: 22U-46118-00-15 (SHIM, THRUST (1.4T)) Retail: $122.90 Price: $105.67

Expected to Ship in 5-8 Days
20
93211-39569-00 o-ring Retail: $216.63 Price: $186.28

Expected to Ship in 5-8 Days
21
95817-10025-00 bolt, flange Supersedes: 95822-10025-00 (BOLT, FLANGE) Price: $127.82

Expected to Ship in 5-8 Days
22
93102-65277-00 oil seal Supersedes: 93102-65386-00 (OIL SEAL) Retail: $216.63 Price: $186.28

Expected to Ship in 5-8 Days
23
90340-14132-00 plug, straight screw Supersedes: 11H-13455-00-00 (PLUG, STRAIGHT SCREW) Price: $42.41

In Stock
24
214-11198-01-00 gasket Price: $42.76

Expected to Ship in 5-8 Days
25
56W-17590-00-00 breather comp. Retail: $409.94 Price: $352.53

In Stock
26
35C-46297-00-00 cover, dust Supersedes: 4TR-46297-00-00 (COVER, DUST) Retail: $269.35 Price: $231.62

Expected to Ship in 5-8 Days
27
22U-46123-00-00 coupling, gear Retail: $691.13 Price: $594.35

Expected to Ship in 5-8 Days
28
5FB-46171-00-00 shaft drive assy Retail: $2,366.53 Price: $1,893.20

Expected to Ship in 5-8 Days
29
99009-18400-00 circlip Price: $127.82

In Stock
30
5FB-46137-00-00 seal 2 Retail: $257.63 Price: $221.55

Expected to Ship in 5-8 Days
31
93410-22039-00 circlip
This part is currently unavailable.
32
90501-15722-00 spring, compression Price: $114.34

Expected to Ship in 5-8 Days
33
90176-10075-00 nut, crown Supersedes: 90176-10049-00 (NUT, CROWN) Price: $127.82

In Stock
34
92990-10600-00 washer, plate
This part is currently unavailable.
35
4TR-46154-00-00 cover, housing Retail: $960.60 Price: $778.06

Expected to Ship in 5-8 Days
36
90387-1510D-00 collar Retail: $193.19 Price: $166.13

Expected to Ship in 5-8 Days
37
4X7-46180-00-00 cross joint comp. Retail: $2,553.99 Price: $2,043.17

Expected to Ship in 5-8 Days
38
93399-99926-00 bearing Supersedes: 93311-21044-00 (BEARING) Retail: $855.15 Price: $735.41

In Stock
39
93440-20088-00 circlip, outer Price: $127.82

In Stock

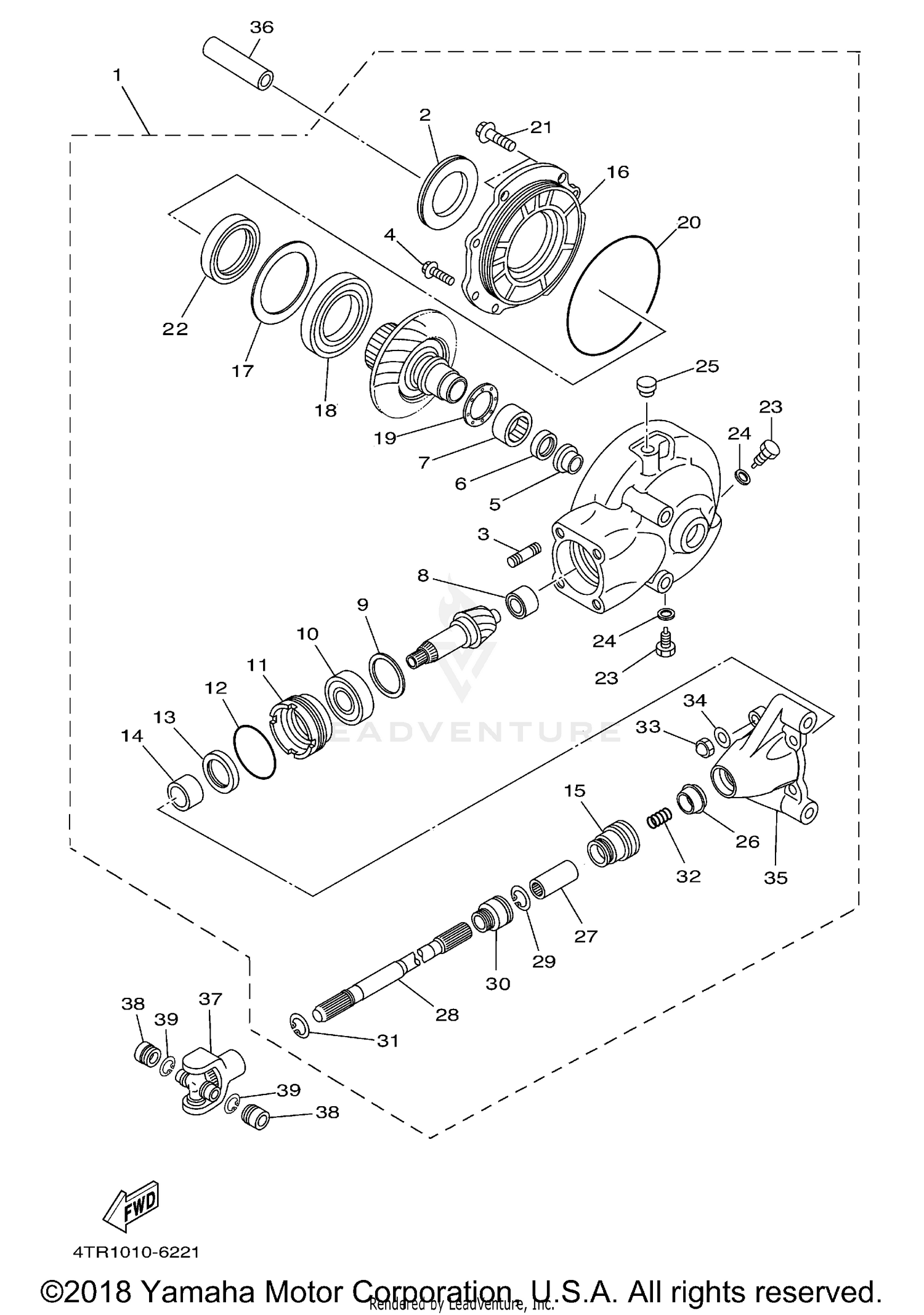

2002 Yamaha V STAR 650 CUSTOM - XVS650 DRIVE SHAFT
