# Part Retail Our Price

Stock Status Suggested Quantity
1
4JW-23102-20-00 front fork assembly (l.h) UR Retail: $717.99 Price: $567.21

Expected to Ship in 5-8 Days
2
4JX-23136-L0-00 tube, outer (right) Retail: $740.99 Price: $585.38

Expected to Ship in 5-8 Days
3
4EW-23120-L0-00 inner tube comp.2
This part is currently unavailable.
4
5EB-23171-00-00 piston, front fork Supersedes: 3GM-23171-00-00 (PISTON, FRONT FORK) Retail: $37.99 Price: $32.67

In Stock
5
4EW-23125-L0-00 metal, slide 1
This part is currently unavailable.
6
4V4-23146-L0-00 washer, oil seal Price: $8.61

Expected to Ship in 5-8 Days
7
3XJ-23145-L0-00 oil seal Retail: $35.99 Price: $30.95

In Stock
8
4V4-23153-L0-00 ring, snap Retail: $10.99 Price: $9.45

In Stock
9
4PU-23144-00-00 seal, dust Supersedes: 3XJ-23144-L0-00 (SEAL, DUST) Retail: $26.99 Price: $23.21

In Stock
10
4JW-2314A-10-00 piston rod assembly UR Retail: $237.99 Price: $190.39

Expected to Ship in 5-8 Days
11
4JX-23170-L0-00 cylinder comp., front fork Retail: $413.99 Price: $327.05

Expected to Ship in 5-8 Days
12
4JY-2316A-L0-00 valve comp. UR Retail: $356.99 Price: $282.02

Expected to Ship in 5-8 Days
13
4EW-23111-L0-00 bolt, cap Retail: $318.39 Price: $251.53

Expected to Ship in 5-8 Days
14
3JD-23158-L0-00 gasket
This part is currently unavailable.
15
3SP-23153-L0-00 ring, snap
This part is currently unavailable.
16
3SP-23113-L0-00 collar
This part is currently unavailable.
17
3SP-23166-L0-00 spacer, oil lock Retail: $14.99 Price: $12.89

Expected to Ship in 5-8 Days
18
3SP-23393-L0-00 nut, special Retail: $21.99 Price: $18.91

Expected to Ship in 5-8 Days
19
3JD-23147-L0-00 o-ring Price: $5.18

Expected to Ship in 5-8 Days
20
4JX-23142-L0-00 seat, spring upper Retail: $33.99 Price: $29.23

Expected to Ship in 5-8 Days
21
4JW-23141-00-00 spring, front fork (k=0.42) UR Retail: $95.99 Price: $77.75

Expected to Ship in 5-8 Days
22
3XJ-23143-L0-00 seat, spring lower
This part is currently unavailable.
23
3JD-2312G-L0-00 plug Price: $8.61

In Stock
24
4JX-23363-L0-00 collar 1
This part is currently unavailable.
25
3SP-23357-L0-00 nut Price: $4.31

In Stock
26
4JW-23103-20-00 front fork assembly (r.h) UR Retail: $907.99 Price: $733.23

Expected to Ship in 5-8 Days
27
4JX-23136-L0-00 tube, outer (right) Retail: $740.99 Price: $585.38

Expected to Ship in 5-8 Days
28
4EW-23110-L0-00 inner tube comp.1
This part is currently unavailable.
29
5EB-23171-00-00 piston, front fork Supersedes: 3GM-23171-00-00 (PISTON, FRONT FORK) Retail: $37.99 Price: $32.67

In Stock
30
4EW-23125-L0-00 metal, slide 1
This part is currently unavailable.
31
4V4-23146-L0-00 washer, oil seal Price: $8.61

Expected to Ship in 5-8 Days
32
3XJ-23145-L0-00 oil seal Retail: $35.99 Price: $30.95

In Stock
33
4V4-23153-L0-00 ring, snap Retail: $10.99 Price: $9.45

In Stock
34
4PU-23144-00-00 seal, dust Supersedes: 3XJ-23144-L0-00 (SEAL, DUST) Retail: $26.99 Price: $23.21

In Stock
35
4JW-2314A-10-00 piston rod assembly UR Retail: $237.99 Price: $190.39

Expected to Ship in 5-8 Days
36
4JX-23170-L0-00 cylinder comp., front fork Retail: $413.99 Price: $327.05

Expected to Ship in 5-8 Days
37
4JY-2316A-L0-00 valve comp. UR Retail: $356.99 Price: $282.02

Expected to Ship in 5-8 Days
38
4EW-23111-L0-00 bolt, cap Retail: $318.39 Price: $251.53

Expected to Ship in 5-8 Days
39
3JD-23158-L0-00 gasket
This part is currently unavailable.
40
3SP-23153-L0-00 ring, snap
This part is currently unavailable.
41
3SP-23113-L0-00 collar
This part is currently unavailable.
42
3SP-23166-L0-00 spacer, oil lock Retail: $14.99 Price: $12.89

Expected to Ship in 5-8 Days
43
3SP-23393-L0-00 nut, special Retail: $21.99 Price: $18.91

Expected to Ship in 5-8 Days
44
3JD-23147-L0-00 o-ring Price: $5.18

Expected to Ship in 5-8 Days
45
4JX-23142-L0-00 seat, spring upper Retail: $33.99 Price: $29.23

Expected to Ship in 5-8 Days
46
4JW-23141-00-00 spring, front fork (k=0.42) UR Retail: $95.99 Price: $77.75

Expected to Ship in 5-8 Days
47
3XJ-23143-L0-00 seat, spring lower
This part is currently unavailable.
48
3JD-2312G-L0-00 plug Price: $8.61

In Stock
49
4JX-23363-L0-00 collar 1
This part is currently unavailable.
50
3SP-23357-L0-00 nut Price: $4.31

In Stock
51
4EW-23167-L0-00 holder, axle
This part is currently unavailable.
52
95780-06500-00 nut, flange Supersedes: 90179-06568-00 (NUT, FLANGE) Price: $3.39

In Stock
53
4JX-23340-L0-00 under bracket comp. Retail: $420.99 Price: $332.58

Expected to Ship in 5-8 Days
54
95024-08040-00 bolt, flange (small head) Supersedes: 95021-08040-00 (BOLT, FLANGE) Price: $10.91

In Stock
55
4MX-2314J-L0-00 protecter comp., 2
This part is currently unavailable.
56
4MX-2314H-L1-00 protecter comp., 1
This part is currently unavailable.
57
3SP-23356-L0-00 bolt 2 Price: $10.91

In Stock
58
4MX-2314G-L0-00 protecter guide comp., 2 Retail: $34.99 Price: $30.09

Expected to Ship in 5-8 Days
59
4MX-2314F-L0-00 protecter guide comp., 1 Retail: $55.99 Price: $45.35

Expected to Ship in 5-8 Days
60
98517-04025-00 screw, pan head Supersedes: 98502-04025-00 (SCREW, PAN HEAD) Price: $3.68

In Stock
61
4EW-2314E-L0-00 cover, hose
This part is currently unavailable.
62
95024-06008-00 bolt, flange Supersedes: 3SP-23346-L0-00 (BOLT, FLANGE) Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
63
4EW-2331E-L1-00 guide, cable Supersedes: 4EW-2331E-L0-00 (GUIDE, CABLE)
This part is currently unavailable.
64
4SS-2313B-11-00 emblem Supersedes: 4SS-2313B-10-00 (EMBLEM 1)
This part is currently unavailable.
65
4SS-2313C-11-00 emblem 2
This part is currently unavailable.

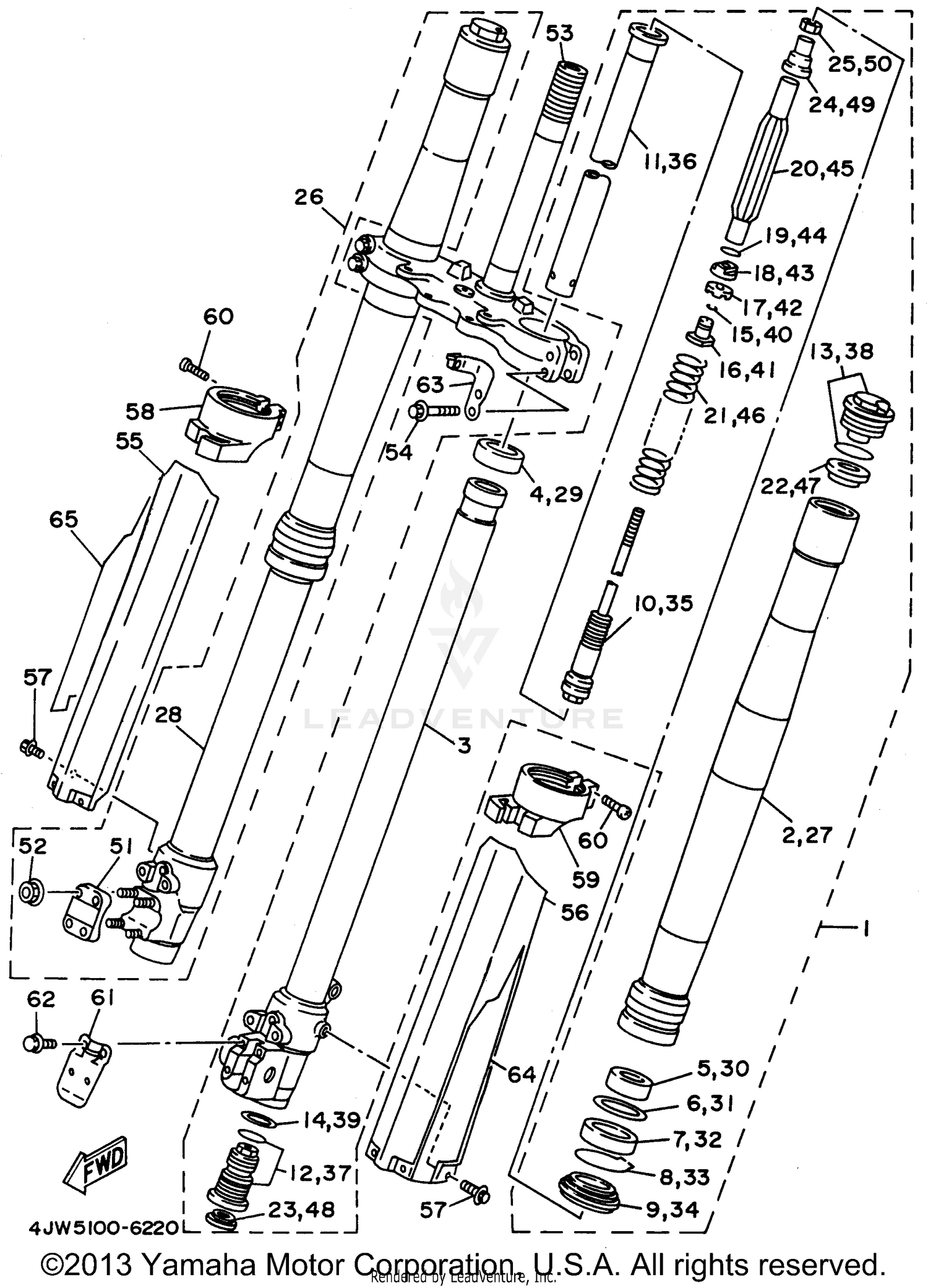

1996 Yamaha WR250 FRONT FORK
