More Parts for this ride

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov.

# Part Retail Our Price

Stock Status Suggested Quantity
1
2HR-46161-00-00 housing, shaft drive 2 Retail: $336.99 Price: $266.22

Expected to Ship in 5-8 Days
2
2HR-Y4613-00-00 pinion drive gear Supersedes: 2HR-W4614-00-00 (PINION DRIVE GEAR SET) Retail: $494.99 Price: $399.72

Expected to Ship in 5-8 Days
3
93332-00066-00 bearing Retail: $76.99 Price: $62.36

Expected to Ship in 5-8 Days
4
90387-257R3-00 collar Retail: $13.49 Price: $11.60

Expected to Ship in 5-8 Days
5
2H7-17571-01-00 spacer, expansion Retail: $37.99 Price: $32.67

Expected to Ship in 5-8 Days
6
93332-00024-00 bearing Retail: $58.99 Price: $47.78

Expected to Ship in 5-8 Days
7
2HR-46144-00-00 housing, pinion bearing Retail: $246.99 Price: $197.59

Expected to Ship in 5-8 Days
8
93105-35028-00 oil seal Retail: $16.49 Price: $14.18

Expected to Ship in 5-8 Days
9
4UM-46146-01-00 yoke, joint 2 Supersedes: 2HR-46146-00-00 (YOKE, JOINT 2 | UR) Retail: $332.99 Price: $263.06

In Stock
10
93210-14359-00 o-ring Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
11
90201-14633-00 washer, plate Price: $9.76

Expected to Ship in 5-8 Days
12
90179-14541-00 nut Retail: $26.99 Price: $23.21

Expected to Ship in 5-8 Days
13
90201-08087-00 washer, plate Supersedes: 90430-08119-00 (WASHER, PLATE) Price: $4.54

In Stock
14
95027-08012-00 bolt, flange Supersedes: 90105-08050-00 (BOLT, FLANGE) Retail: $10.49 Price: $9.02

In Stock
15
2HR-46127-00-50 shim, drive piston (0.50t) UR Supersedes: 2HR-46127-00-45 (SHIM, DRIVE PISTON (0.50T)) Retail: $16.49 Price: $14.18

In Stock
2HR-46127-00-40 shim, drive piston (0.40t) UR Supersedes: 2HR-46127-00-35 (SHIM, DRIVE PISTON (0.40T)) Retail: $16.49 Price: $14.18

Expected to Ship in 5-8 Days
2HR-46127-00-30 shim, drive piston (0.30t) UR Supersedes: 2HR-46127-00-25 (SHIM, DRIVE PISTON (0.30T)) Retail: $16.49 Price: $14.18

Expected to Ship in 5-8 Days
4H7-17537-00-20 shim, thrust (0.20t) UR Price: $7.46

Expected to Ship in 5-8 Days
4H7-17537-00-30 shim, thrust (0.30t) UR Price: $8.04

Expected to Ship in 5-8 Days
16
93210-626A7-00 o-ring Supersedes: 93210-63514-00 (O-RING) Retail: $16.49 Price: $14.18

In Stock
17
97017-08045-00 bolt Supersedes: 97021-08045-00 (BOLT) Price: $9.76

Expected to Ship in 5-8 Days
18
92907-08600-00 washer, plate Supersedes: 9290N-08600-00 (WASHER, PLATE) Price: $3.74

Expected to Ship in 5-8 Days
19
3HN-46470-05-00 limited slip diff. a Supersedes: 2HR-46470-03-00 (LIMITED SLIP DIFF. A) Retail: $846.99 Price: $704.92

Expected to Ship in 5-8 Days
20
90101-10666-00 bolt Price: $3.39

Expected to Ship in 5-8 Days
21
2HR-22156-00-00 washer, plate Retail: $14.49 Price: $12.46

Expected to Ship in 5-8 Days
22
2HR-46162-01-00 housing, bearing 2 Supersedes: 2HR-46162-00-00 (HOUSING, BEARING 2) Retail: $146.99 Price: $117.59

Expected to Ship in 5-8 Days
23
2HR-46156-00-00 stopper, ring gear Retail: $32.99 Price: $28.37

Expected to Ship in 5-8 Days
24
90201-08087-00 washer, plate Supersedes: 90430-08119-00 (WASHER, PLATE) Price: $4.54

In Stock
25
95707-08500-00 nut,flange (jn5) Supersedes: 95702-08500-00 (NUT, WITH WASHER) Price: $2.24

Expected to Ship in 5-8 Days
26
93306-20717-00 bearing Retail: $66.99 Price: $54.26

In Stock
27
4H7-17537-00-30 shim, thrust (0.30t) UR Price: $8.04

Expected to Ship in 5-8 Days
28
93211-54698-00 o-ring Supersedes: 93211-51749-00 (O-RING) Retail: $22.99 Price: $19.77

Expected to Ship in 5-8 Days
29
93306-20717-00 bearing Retail: $66.99 Price: $54.26

In Stock
30
4H7-17537-00-20 shim, thrust (0.20t) UR Price: $7.46

Expected to Ship in 5-8 Days
31
97017-08025-00 bolt Supersedes: 97022-08025-00 (BOLT HEX, HEAD W/WASHER) Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
32
92907-08600-00 washer, plate Supersedes: 9290N-08600-00 (WASHER, PLATE) Price: $3.74

Expected to Ship in 5-8 Days
33
97017-10045-00 bolt Supersedes: 97011-10045-00 (BOLT) Retail: $10.49 Price: $9.02

In Stock
34
92907-10600-00 washer, plate Price: $10.91

Expected to Ship in 5-8 Days
35
93102-35380-00 oil seal Retail: $24.99 Price: $21.49

In Stock
36
5UG-15371-00-00 breather Supersedes: 2N4-15371-00-00 (BREATHER) Retail: $44.99 Price: $38.69

Expected to Ship in 5-8 Days
37
90340-14002-00 plug, straight screw Supersedes: 90340-14046-00 (PLUG, STRAIGHT SCREW) Retail: $22.99 Price: $19.77

In Stock
38
214-11198-01-00 gasket Price: $3.65

In Stock
39
90340-14029-00 plug, straight screw Supersedes: 90340-14012-00 (PLUG, STRAIGHT SCREW) Price: $5.29

In Stock
40
90445-072G8-00 hose (l310) Supersedes: 90445-042E2-00 (HOSE) Retail: $32.99 Price: $28.37

In Stock
41
90467-07029-00 clip Price: $2.99

Expected to Ship in 5-8 Days
42
4KD-46107-10-00 cross joint comp. 2 Supersedes: 4KD-46107-00-00 (CROSS JOINT COMP. 2)
This part is currently unavailable.
43
93399-99926-00 bearing Supersedes: 93311-21044-00 (BEARING) Retail: $72.99 Price: $59.12

In Stock
44
93440-20088-00 circlip Price: $10.91

In Stock
45
2HR-46187-00-00 spider Retail: $240.99 Price: $192.79

Expected to Ship in 5-8 Days
46
4GB-46108-10-00 cross joint comp. 3 Supersedes: 3HN-46108-01-00 (CROSS JOINT COMP. 3 | (USA)) Retail: $524.99 Price: $414.74

Expected to Ship in 5-8 Days
47
93399-99926-00 bearing Supersedes: 93311-21044-00 (BEARING) Retail: $72.99 Price: $59.12

In Stock
48
93440-20088-00 circlip Price: $10.91

In Stock
49
2HR-46187-00-00 spider Retail: $240.99 Price: $192.79

Expected to Ship in 5-8 Days
50
93399-99926-00 bearing Supersedes: 93311-21044-00 (BEARING) Retail: $72.99 Price: $59.12

In Stock
51
93440-20088-00 circlip Price: $10.91

In Stock
52
4KD-46173-00-00 shaft, drive 2
This part is currently unavailable.
53
93410-22039-00 circlip
This part is currently unavailable.
54
90201-225M9-00 washer, plate Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days
55
90501-234F8-00 spring, compression Retail: $11.49 Price: $9.88

Expected to Ship in 5-8 Days

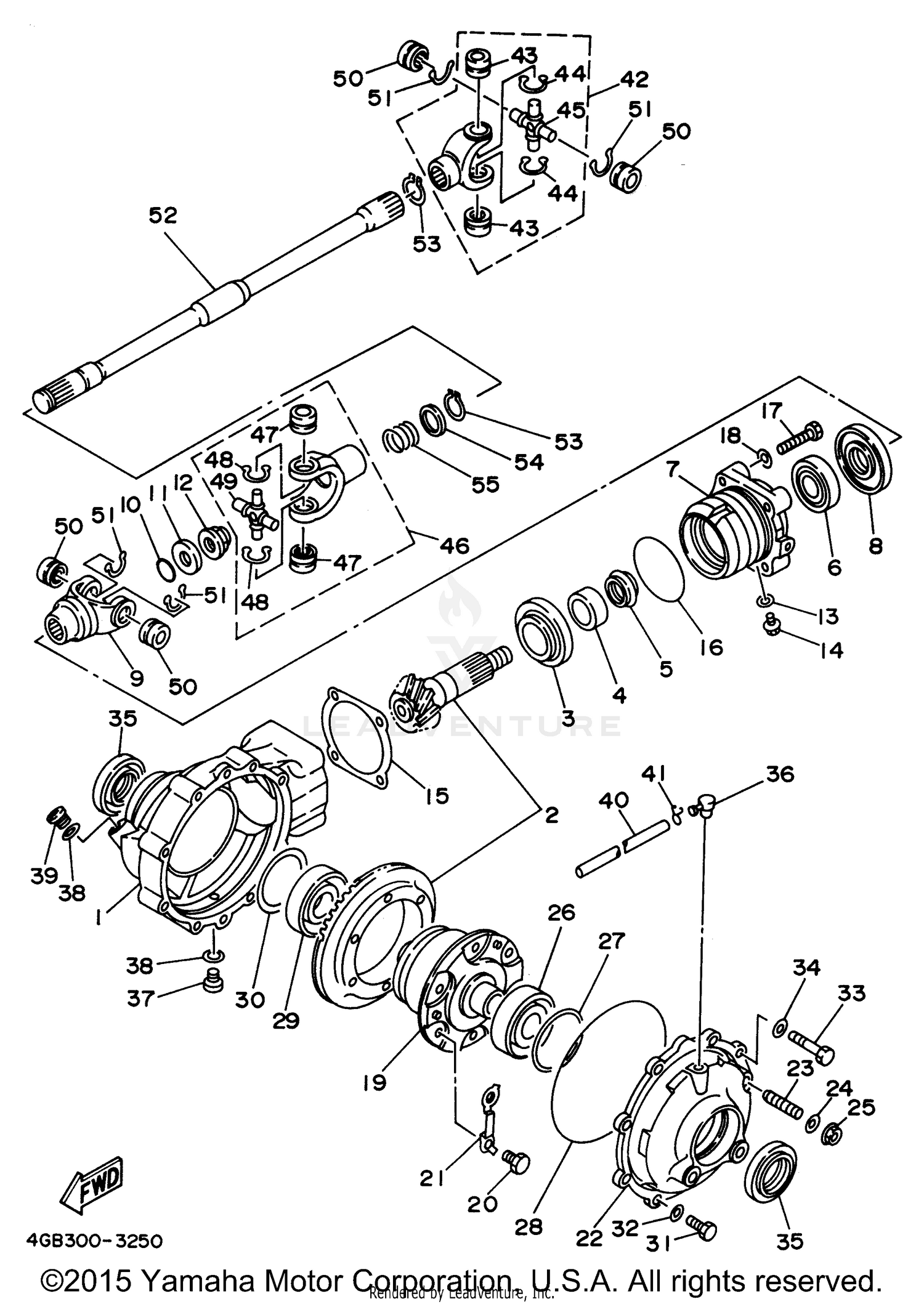

1995 Yamaha TIMBERWOLF 4WD FRONT DIFFERENTIAL
