# Part Retail Our Price

Stock Status Suggested Quantity
1
4BF-85540-00-00 cdi unit assembly
This part is currently unavailable.
2
98580-06016-00 screw, pan head Supersedes: 98502-06016-00 (SCREW, PAN HEAD)
This part is currently unavailable.
3
92990-06600-00 washer, plate Supersedes: 92903-06600-00 (WASHER, PLATE) Price: $3.39

In Stock
4
3KJ-82310-14-00 ignition coil assy Supersedes: 3XP-82310-00-00 (IGNITION COIL ASSEMBLY) Retail: $41.99 Price: $36.11

In Stock
5
97D95-06016-00 bolt, hexagon deep r Supersedes: 97024-06016-00 (BOLT, HEXAGON DEEP R) Price: $3.17

In Stock
6
8DG-82370-00-00 plug cap assy Supersedes: 4JY-82370-00-00 (PLUG CAP ASSY) Retail: $53.99 Price: $46.43

In Stock
7
4GY-82540-10-00 neutral switch assy Supersedes: 2H7-82540-00-00 (NEUTRAL SWITCH ASSY) Retail: $41.99 Price: $36.11

In Stock
8
296-82543-00-00 gasket Supersedes: 341-82543-00-00 (GASKET) Price: $6.89

Expected to Ship in 5-8 Days
9
3XP-85820-00-00 servomotor assembly
This part is currently unavailable.
10
90480-14023-00 grommet Supersedes: 90480-14102-00 (GROMMET) Price: $9.76

In Stock
11
90387-06553-00 collar Retail: $10.49 Price: $9.02

Expected to Ship in 5-8 Days
12
90201-06380-00 washer plain Supersedes: 90201-06076-00 (WASHER, PLATE) Price: $1.14

In Stock
13
98517-06025-00 screw, pan head Supersedes: 98507-06025-00 (SCREW, PAN HEAD) Price: $4.66

Expected to Ship in 5-8 Days
14
34X-85825-01-00 cover, wire Supersedes: 34X-85825-00-00 (COVER, WIRE)
This part is currently unavailable.
15
1JK-81960-A1-00 rectifier & regulator assy Retail: $114.99 Price: $93.14

Expected to Ship in 5-8 Days
16
98517-06012-00 screw,pan Supersedes: 98501-06012-00 (SCREW, WITH WASHER) Price: $4.72

In Stock
17
1NL-81965-01-00 condenser, smoothing Supersedes: 1NL-81965-00-00 (CONDENSER, SMOOTHING) Retail: $112.99 Price: $91.52

Expected to Ship in 5-8 Days
18
4BF-82590-00-00 wire harness assembly
This part is currently unavailable.
19
1UA-82591-00-00 band Supersedes: 90464-32060-00 (BAND) Price: $6.31

In Stock
20
90464-49001-00 clamp Supersedes: 437-83936-11-00 (BAND, SWITCH CORD) Price: $4.37

Expected to Ship in 5-8 Days
21
90464-49001-00 clamp Supersedes: 437-83936-11-00 (BAND, SWITCH CORD) Price: $4.37

Expected to Ship in 5-8 Days
22
341-26397-01-00 band Supersedes: 435-13474-00-00 (BAND)
This part is currently unavailable.

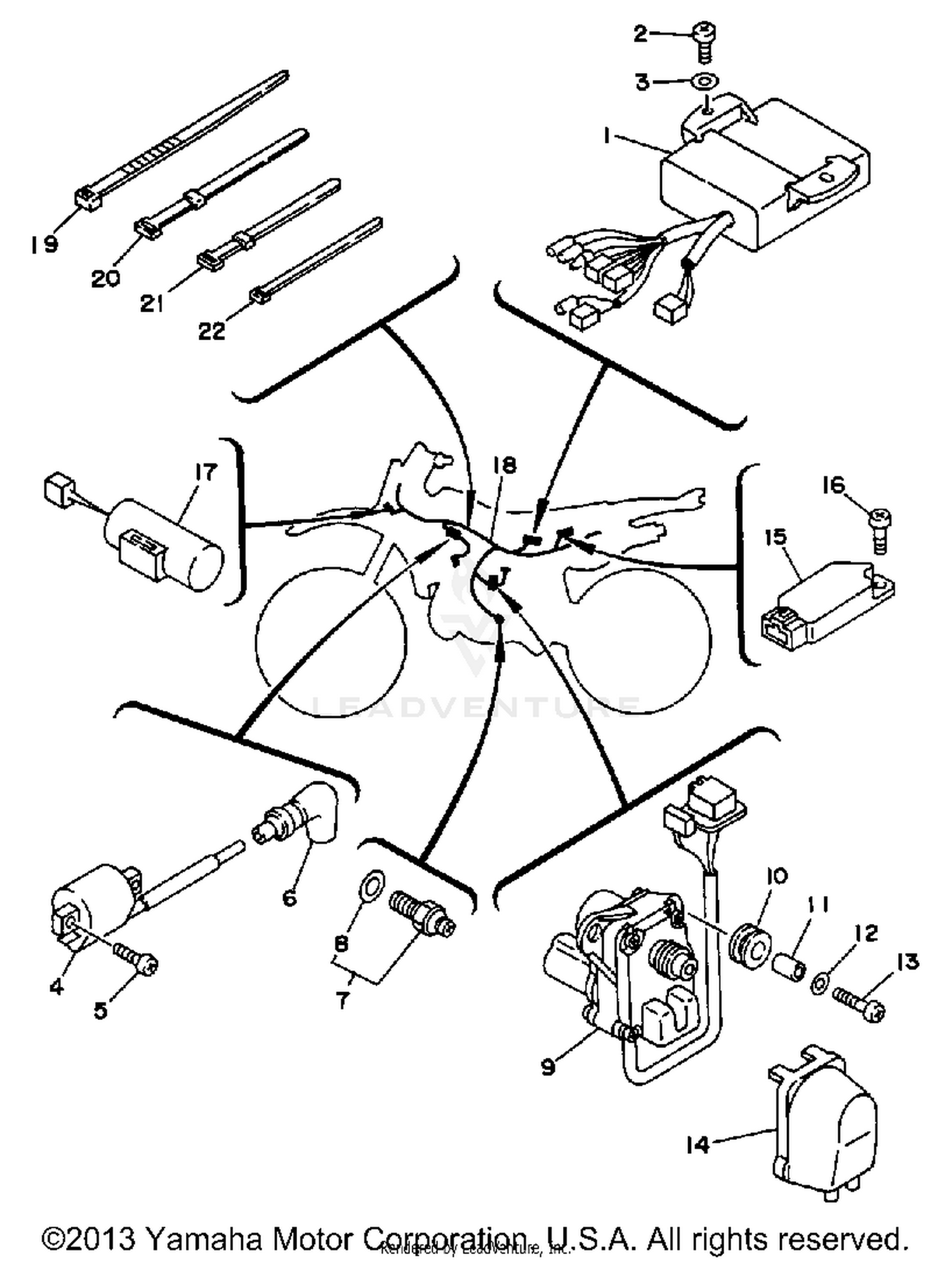

1992 Yamaha WR200 ELECTRICAL 1
