# Part Retail Our Price

Stock Status Suggested Quantity
1
1J7-17537-Y0-30 shim, thrust (0.30t) UR Price: $9.00

Expected to Ship in 5-8 Days
1J7-17537-Y0-40 shim, thrust (0.40t) UR Price: $9.00

Expected to Ship in 5-8 Days
1J7-17537-Y0-50 shim, thrust (0.50t) UR Price: $9.00

Expected to Ship in 5-8 Days
1YW-17527-10-00 cam, driven UR Supersedes: 1YW-17527-00-00 (CAM, DRIVEN) Retail: $129.14 Price: $104.60

Expected to Ship in 5-8 Days
59V-17531-30-00 shim, pinion (0.3t) UN Price: $6.31

Expected to Ship in 5-8 Days
59V-17531-20-00 shim, pinion (0.2t) UN Price: $7.42

Expected to Ship in 5-8 Days
59V-17531-10-00 shim, pinion (0.15t) UN Price: $6.95

Expected to Ship in 5-8 Days
59V-17531-00-00 shim, pinion (0.1t) UN Retail: $12.98 Price: $4.47

In Stock
59V-17531-50-00 shim, pinion (0.5t) UN Price: $15.75

Expected to Ship in 5-8 Days
59V-17531-60-00 shim, pinion (1.0t) UN Price: $12.04

Expected to Ship in 5-8 Days
2
93306-20636-00 bearing Retail: $75.86 Price: $65.24

Expected to Ship in 5-8 Days
3
11H-15383-02-00 plate, bearing cover Supersedes: 11H-15383-01-00 (PLATE, BEARING COVER) Retail: $25.00 Price: $21.50

Expected to Ship in 5-8 Days
4
90149-08013-00 screw Supersedes: 90149-08152-00 (SCREW) Price: $17.61

Expected to Ship in 5-8 Days
5
1YW-17522-00-00 pinion, drive
This part is currently unavailable.
6
90179-22015-00 nut Supersedes: 90179-22526-00 (NUT) Retail: $53.26 Price: $45.80

Expected to Ship in 5-8 Days
7
93306-20461-00 bearing Supersedes: 93306-20401-00 (BEARING (B6204)) Retail: $71.02 Price: $61.07

Expected to Ship in 5-8 Days
8
2HR-17553-00-00 shaft, middle driven Retail: $287.36 Price: $229.88

Expected to Ship in 5-8 Days
9
1YW-17552-00-00 pinion, driven
This part is currently unavailable.
10
2HR-W1752-01-00 houshing comp. Supersedes: 2HR-W1752-00-00 (HOUSHING COMP.) Retail: $288.97 Price: $231.17

Expected to Ship in 5-8 Days
11
90387-257R2-00 collar Retail: $29.85 Price: $25.67

Expected to Ship in 5-8 Days
12
93210-626A7-00 o-ring Supersedes: 93210-63514-00 (O-RING) Retail: $26.62 Price: $22.89

In Stock
13
1YW-17527-10-00 cam, driven UR Retail: $129.14 Price: $104.60

Expected to Ship in 5-8 Days
14
90501-602E2-00 spring, compression Retail: $37.11 Price: $31.91

Expected to Ship in 5-8 Days
15
90201-206K8-00 washer, plate
This part is currently unavailable.
16
3H5-17529-00-00 washer, thrust Price: $15.75

Expected to Ship in 5-8 Days
17
59V-17531-40-00 shim, pinion (0.4t) UN
This part is currently unavailable.
18
93210-59748-00 o-ring Retail: $26.62 Price: $22.89

Expected to Ship in 5-8 Days
19
2HR-17541-00-00 case, transfer 1 Retail: $482.71 Price: $386.16

Expected to Ship in 5-8 Days
20
93316-00604-00 bearing
This part is currently unavailable.
21
93306-30551-00 bearing Retail: $114.61 Price: $92.83

Expected to Ship in 5-8 Days
22
93105-35027-00 oil seal Retail: $23.39 Price: $20.11

Expected to Ship in 5-8 Days
23
2HR-17542-01-00 case, transfer 2 Retail: $405.22 Price: $324.17

Expected to Ship in 5-8 Days
24
93306-00702-00 bearing Supersedes: 93306-00704-00 (BEARING) Retail: $108.15 Price: $87.60

Expected to Ship in 5-8 Days
25
93316-00604-00 bearing
This part is currently unavailable.
26
93306-00423-00 bearing Supersedes: 93306-00435-00 (BEARING) Retail: $67.79 Price: $58.29

Expected to Ship in 5-8 Days
27
93101-35097-00 oil seal Retail: $40.34 Price: $34.69

In Stock
28
91808-16023-00 pin, dowel Supersedes: 99530-08016-00 (PIN, DOWEL) Price: $14.83

In Stock
29
2HR-17586-00-00 gear, transfer drive (26t) Retail: $222.78 Price: $178.22

Expected to Ship in 5-8 Days
30
2HR-17587-00-00 gear, idler (34t) Retail: $242.15 Price: $193.72

Expected to Ship in 5-8 Days
31
22U-17553-01-00 shaft, middle driven Supersedes: 22U-17553-00-00 (SHAFT, MIDDLE DRIVEN) Retail: $374.54 Price: $299.63

Expected to Ship in 5-8 Days
32
2HR-17588-01-00 gear, transfer driven Retail: $219.55 Price: $175.64

Expected to Ship in 5-8 Days
33
95027-06050-00 bolt, flange Supersedes: 95021-06050-00 (BOLT, FLANGE) Price: $5.10

Expected to Ship in 5-8 Days
34
95024-06040-00 bolt, flange (small head) Supersedes: 95023-06040-00 (BOLT, FLANGE (1YW)) Retail: $16.93 Price: $14.56

In Stock
35
95024-06030-00 bolt, flange (small head) Supersedes: 90105-06830-00 (BOLT, FLANGE) Price: $17.61

Expected to Ship in 5-8 Days
36
4UM-17576-01-00 yoke,joint 2 Supersedes: 2HR-17576-00-00 (YOKE,JOINT 2) Retail: $471.41 Price: $377.12

In Stock
37
90201-14633-00 washer, plate Price: $15.75

Expected to Ship in 5-8 Days
38
90185-14070-00 nut, self-locking Retail: $23.39 Price: $20.11

In Stock
39
90340-14029-00 plug, straight screw Supersedes: 90340-14012-00 (PLUG, STRAIGHT SCREW) Price: $8.54

In Stock
40
214-11198-01-00 gasket Price: $5.89

Expected to Ship in 5-8 Days
41
95024-08012-00 bolt, flange (small head) Supersedes: 95023-08012-00 (BOLT) Price: $17.61

In Stock
42
90201-08087-00 washer, plate Supersedes: 90430-08119-00 (WASHER, PLATE) Price: $7.32

Expected to Ship in 5-8 Days
43
22U-17527-01-00 cam, driven Supersedes: 22U-17527-00-00 (CAM, DRIVEN) Retail: $71.02 Price: $61.07

Expected to Ship in 5-8 Days
44
90501-605E1-00 spring, compression Retail: $32.27 Price: $27.75

Expected to Ship in 5-8 Days
45
22U-17524-00-00 holder Retail: $29.04 Price: $24.97

In Stock
46
3H5-17529-00-00 washer, thrust Price: $15.75

Expected to Ship in 5-8 Days
47
90101-08712-00 bolt Supersedes: 97021-08085-00 (BOLT) Retail: $20.16 Price: $17.33

Expected to Ship in 5-8 Days
48
92990-08600-00 washer, plate Supersedes: 90201-08544-00 (WASHER, PLATE) Price: $5.02

Expected to Ship in 5-8 Days
49
2HR-17556-01-00 yoke, joint Supersedes: 2HR-17556-00-00 (YOKE, JOINT) Retail: $256.68 Price: $205.34

Expected to Ship in 5-8 Days
50
90201-14633-00 washer, plate Price: $15.75

Expected to Ship in 5-8 Days
51
90185-14070-00 nut, self-locking Retail: $23.39 Price: $20.11

In Stock
52
59V-17831-00-00 gear, drive Retail: $75.86 Price: $65.24

Expected to Ship in 5-8 Days
53
59V-17841-00-00 gear, driven Retail: $206.63 Price: $165.30

Expected to Ship in 5-8 Days
54
90201-12M34-00 washer, plate Supersedes: 90201-12163-00 (WASHER, PLATE) Price: $7.05

Expected to Ship in 5-8 Days
55
93102-08307-00 oil seal Price: $15.75

Expected to Ship in 5-8 Days
56
93210-24253-00 o-ring Price: $15.75

In Stock
57
59V-17811-00-00 housing, tachometer gear Retail: $93.62 Price: $75.83

Expected to Ship in 5-8 Days
58
98507-06016-00 screw,pan head Supersedes: 92506-06016-00 (SCREW, WITH WASHER) Price: $6.45

In Stock
59
98517-06030-00 screw, pan head Supersedes: 92506-06030-00 (SCREW, PAN HEAD (98507-06030-00) Price: $6.21

Expected to Ship in 5-8 Days
60
2HR-83599-00-00 guide, wire Retail: $32.27 Price: $27.75

Expected to Ship in 5-8 Days

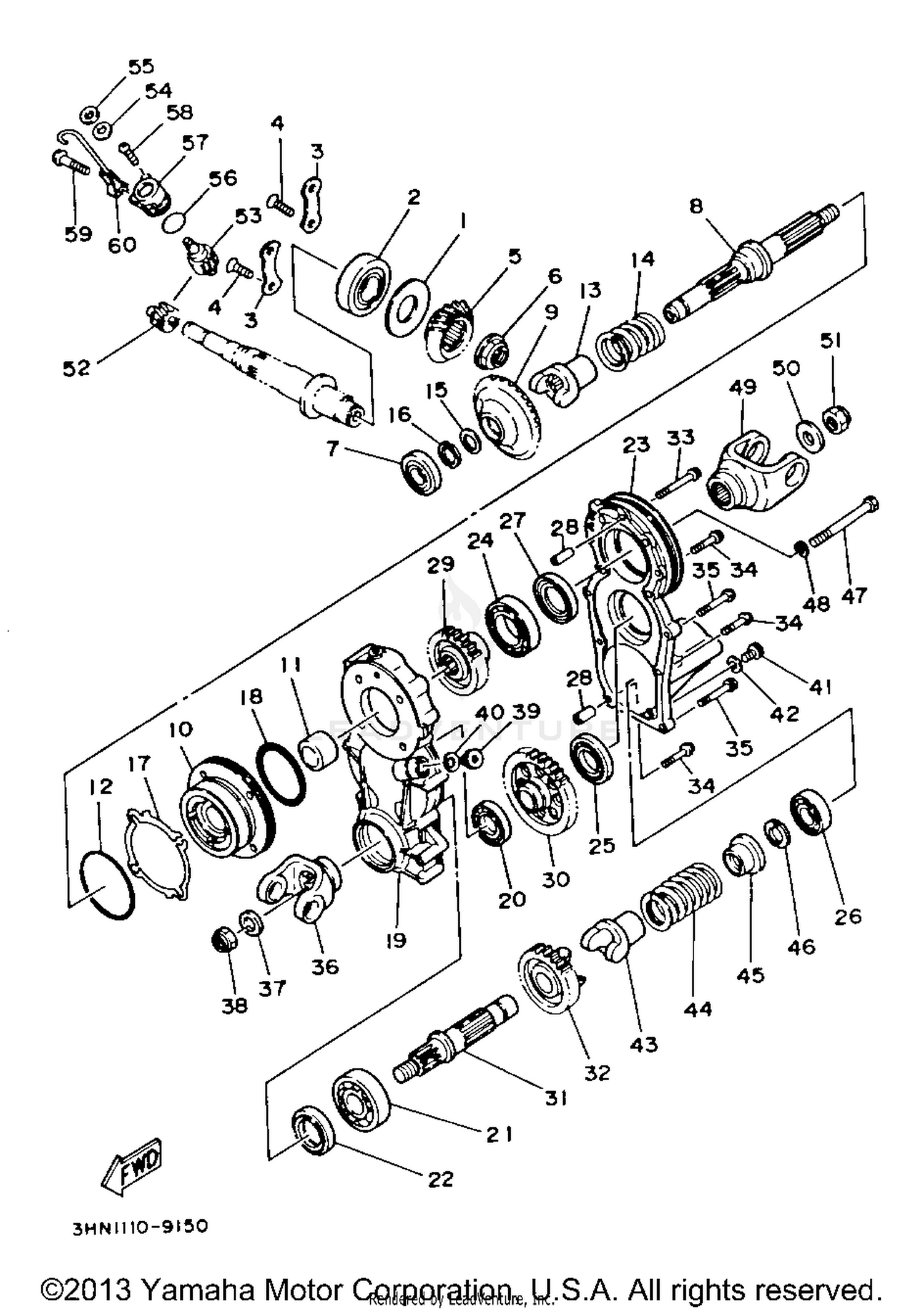

1991 Yamaha BIGBEAR 350 4X4 MIDDLE DRIVE GEAR
